L77TSCH37SOL2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> L77TSCH37SOL2

L77TSCH37SOL2: DescriptionD-Sub Standard Connectors D-SUB; CategoryThe connector; File Size2MB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

L77TSCH37SOL2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	L77TSCH37SOL2	-	-	View	Buy Now

L77TSCH37SOL2 Overview

D-Sub Standard Connectors D-SUB

L77TSCH37SOL2 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	D-Sub Standard Connectors
RoHS	Details
Number of Positions	37 Position
Number of Rows	2 Row
Shell Size	4 (C)
Packaging	Tray
Insert Arrangement	C37
Factory Pack Quantity	40

Preview

Download Datasheet

View All

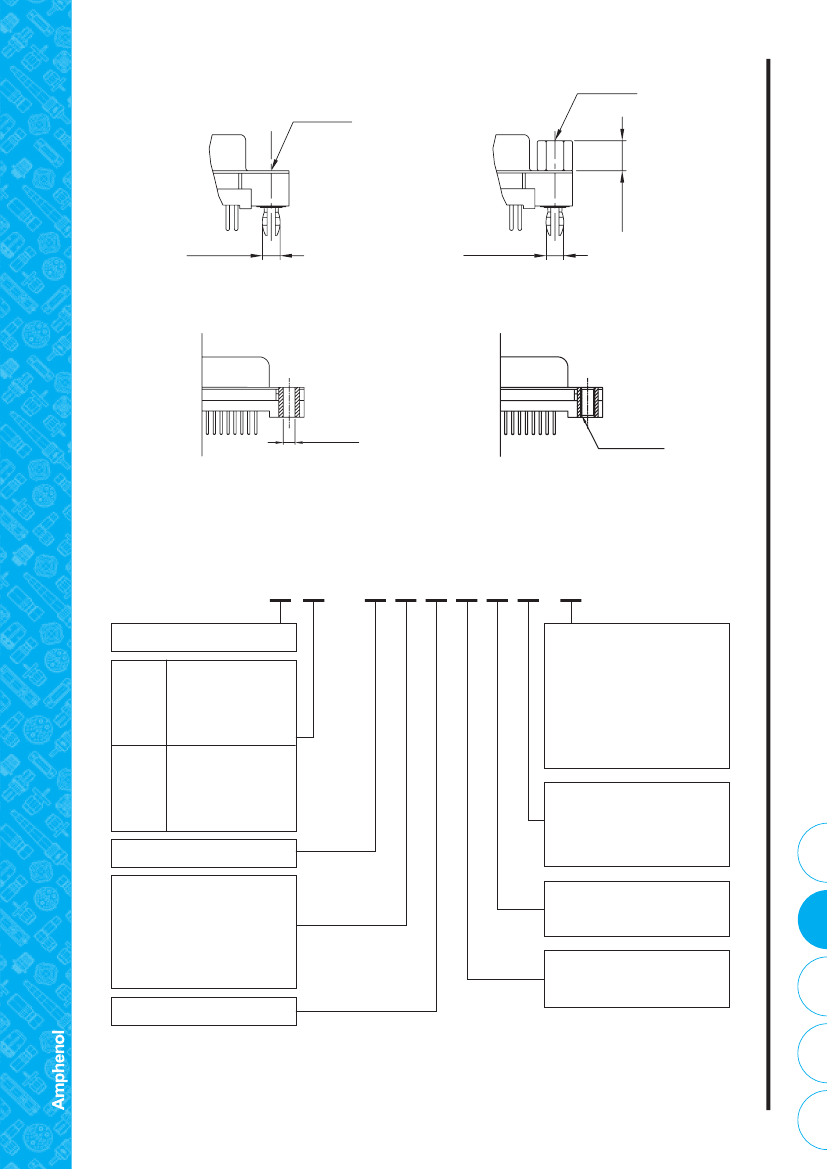

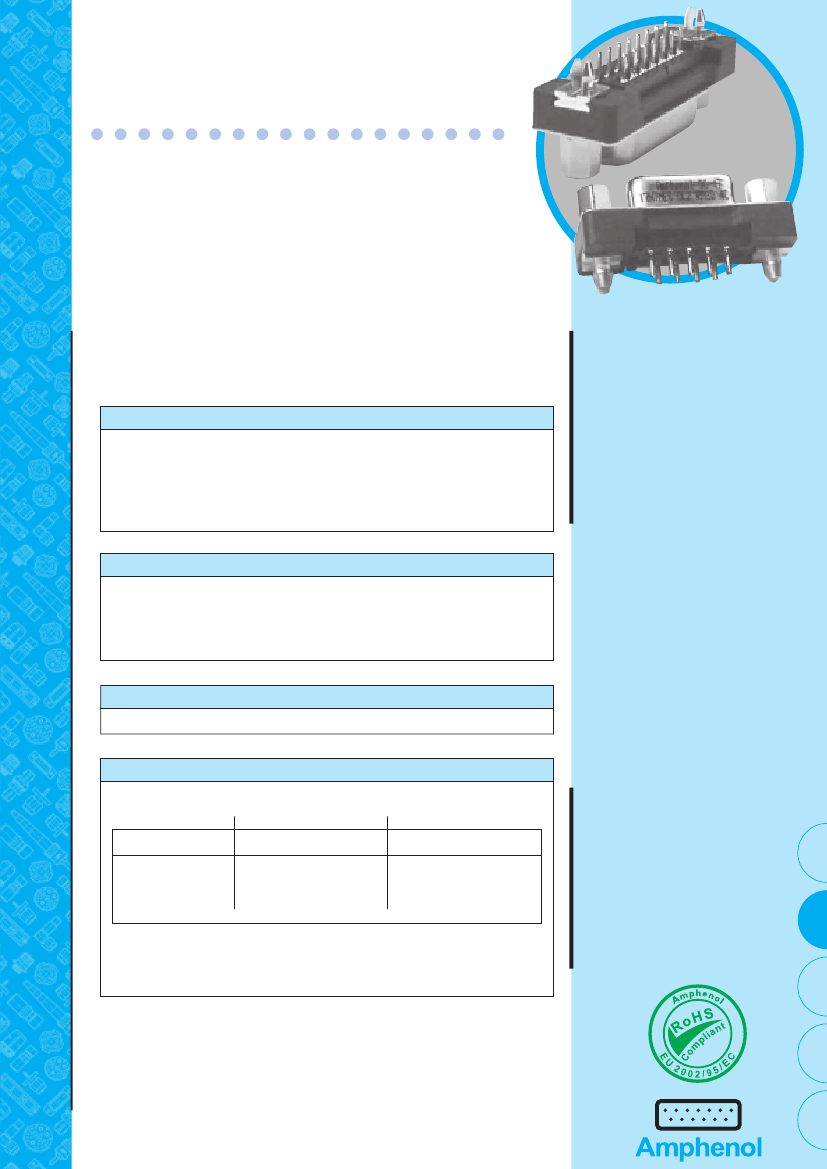

D-Sub connectors - Stamped and Formed Contacts

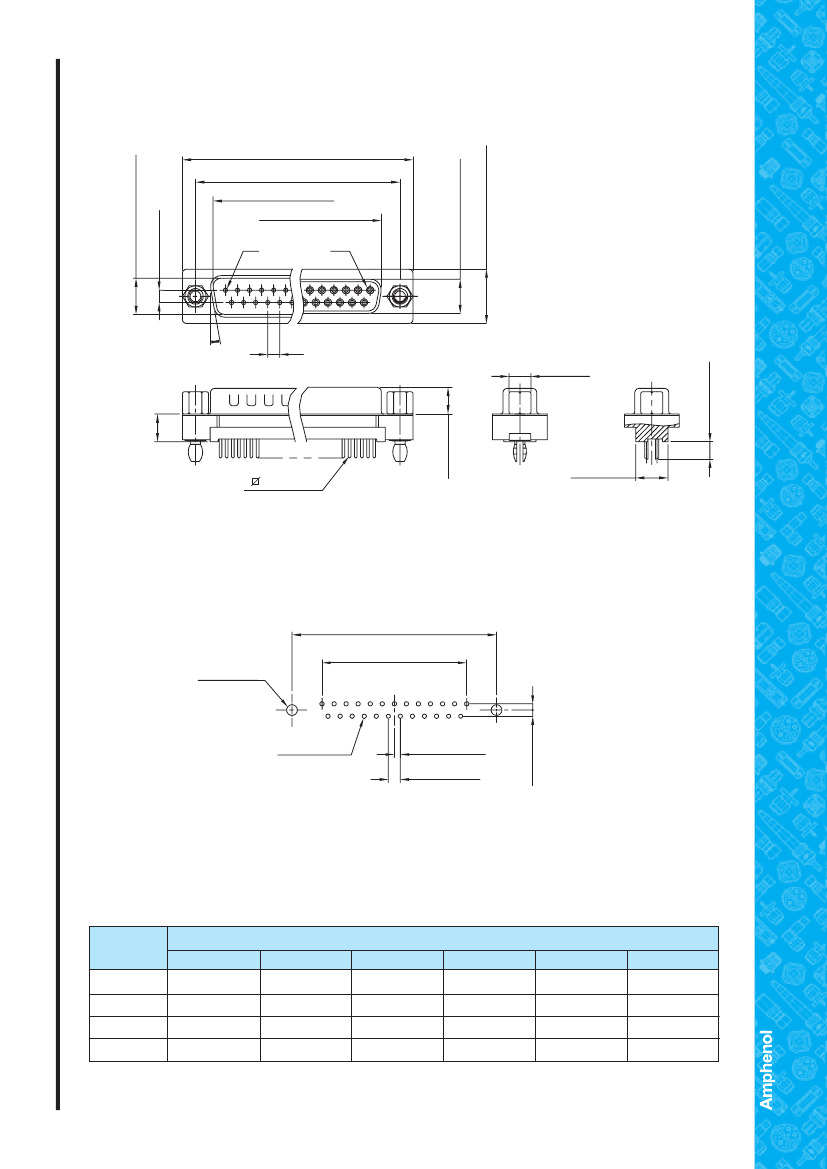

STRAIGHT PCB TERMINATION

ONE METAL SHELL CONNECTORS

CHARACTERISTICS

DESCRIPTION

APPLICATIONS

Unmate (min)

0.36 (0.79)

0.46 (1.01)

0.81 (1.8)

1.1 (2.47)

Specifications

• Connectors according to MIL C24308

The one shell D-sub Amphenol series

features, stamped and formed contacts.

This series gives you Amphenol’s high

standards of quality and reliability

to meet all of your commercial

requirements

Materials and Platings

Shells

Insulator

Contacts

Boardlock

Screwlock

Steel with nickel plating

Glass-filled thermoplastic, UL 94V-0

Copper alloy, selective gold plating

Brass with nickel plating

Electrical Data

Current rating

Voltage rating

Withstanding voltage

Insulation resistance

Contact resistance

600V AC/rms 50Hz

1000V AC/rms 50Hz for one minute

5000MΩ

10mΩ max

Climatic Data

Operating temperature

-55°C to +125°C

Economical

straight PCB,

one shell

connectors

• Industrial

• Telecom

• Any industry standard

I / O connections

Mechanical Data

Mating and unmating force

Unit: kg ( lb)

No. of Cts

Mate (max)

3.05 (6.74)

5.09 (11.24)

8.44 (18.66)

12.51 (27.65)

• gold flash

• 0.4µm (15µ") gold

• 0.76 µm (30µ") gold

Standard plating thicknesses

TS / E10
