53364-2070

Description
Board to Board & Mezzanine Connectors 0.8 BtB Wafer Assy S T SMT 20CktEmbsTpPkg
CategoryThe connector    The connector
File Size28KB，2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

53364-2070 Online Shopping

Suppliers Part Number Price MOQ In stock
53364-2070 - - View Buy Now

53364-2070 Overview

Board to Board & Mezzanine Connectors 0.8 BtB Wafer Assy S T SMT 20CktEmbsTpPkg

53364-2070 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys DescriptionBoard to Board & Mezzanine Connectors 0.8 BtB Wafer Assy S T SMT 20CktEmbsTpPkg
Other featuresEMBOSSED TAPE PACKAGING
Board mount optionsPEG
body width0.161 inch
subject depth0.203 inch
body length0.386 inch
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Dielectric withstand voltage700VAC V
Durability30 Cycles
Insulation resistance100000000 Ω
insulator materialPOLYPHENYLENE SULPHIDE
JESD-609 codee3
Plug contact pitch0.031 inch
Match contact row spacing0.092 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-20 °C
PCB contact patternRECTANGULAR
PCB contact row spacing4.2926 mm
Plating thickness40u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.7874 mm
Termination typeSURFACE MOUNT
Total number of contacts20
Base Number Matches1

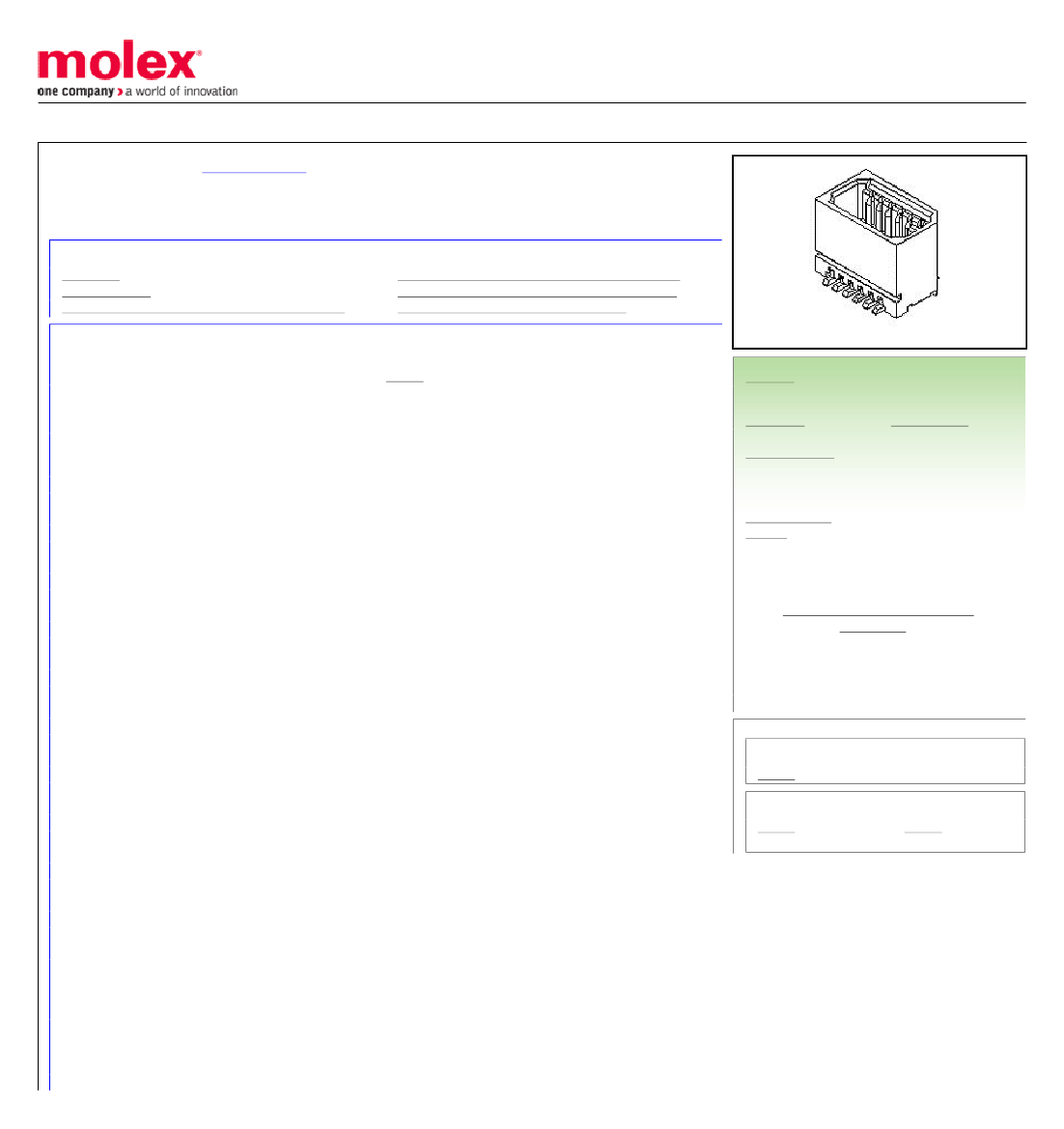

Preview

Download Datasheet
This document was generated on 12/06/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0533642070
Active
0.80mm Pitch Board-to-Board Header, Surface Mount, Dual Row, Vertical, 6.00mm
Stacking Height, with Plastic Pegs, 20 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-52465-010-001 (PDF)
General
Product Family
Series
Application
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification PS-52588-032-001 (PDF)
Packaging Specification 533649200-200 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
PCB Headers
53364
Board-to-Board, Signal
N/A
822348295357
No
20
20
Natural
30
No
No
No
None
Yes
6.00mm, 7.00mm
Phosphor Bronze
Tin
Tin
High Temperature Thermoplastic
432.200/mg
2
Vertical
0.50mm
Yes
None
Embossed Tape on Reel
0.80mm
1.016µm
1.016µm
Yes
Yes
Fully
No
-40°C to +105°C
Surface Mount
0.5A
50V
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Not Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
53364 Series
Mates With
52465 PCB Receptacle, 52588 PCB
Receptacle Floating Type
533649200-200
