4715KL-07W-B30-P00 datasheet, PDF

Datasheet> All Categories > Heat resisting bracing> 4715KL-07W-B30-P00

4715KL-07W-B30-P00: DescriptionDC Fan, Axial Construction, 160A, 48V, 7.68W; CategoryHeat resisting bracing; File Size373KB，1 Pages; ManufacturerNMB Technologies Corporation

Download Datasheet Parametric Compare View All

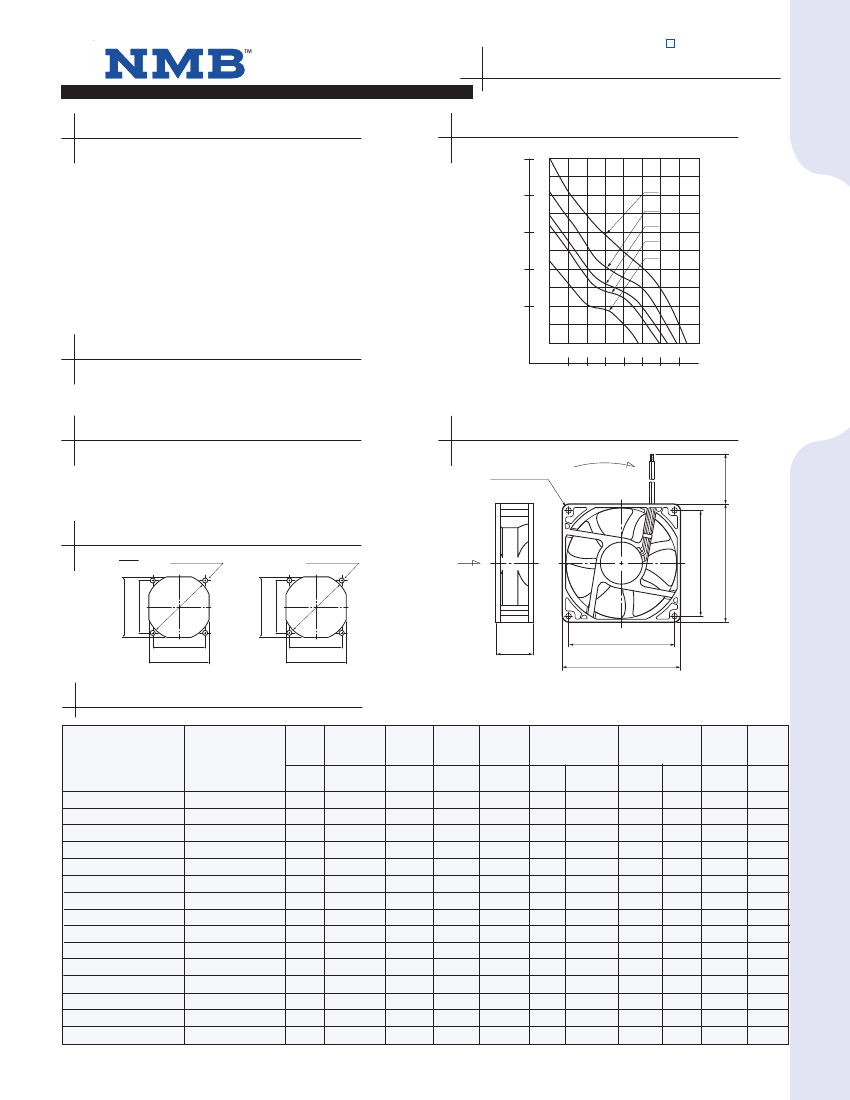

4715KL-07W-B30-P00 Overview

DC Fan, Axial Construction, 160A, 48V, 7.68W

4715KL-07W-B30-P00 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
air flow volume	108 CFM
Certification	UL
Bearing type	BALL
structure	AXIAL
high	119 mm
length	119 mm
life expectancy	50000 h
noise	42.5 dB
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
pressure	6.858 mmH2O
Rated current	160 A
rated power	7.68 W
Rated voltage	48 V
speed	2950 rpm
Heat Resistant Support Device Type	DC FAN
weight	260 g
width	38.4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

(119

)

11938KA

NMBTC.COM / 818.341.3355

Legacy Part No. 4715KL

General Specifications

Motor Protection:

Auto Restart/Polarity Protection

Characteristic Curves

In H

(Pa)

.48

100

.32

.24

.16

Insulation Resistance:

10M Ω or over with a DC500V Megger

Static Pressure

Dielectric Withstand Voltage:

AC 700V 1s

Allowable Ambient Temperature Range:

DC Axial Fans

N Class:

-10°C ~ +40°C (Operating)

L ~ M Class:

-10°C ~ +70°C (Operating)

L ~ M Class:

-40°C ~ +70°C (Storage)

N Class:

-40°C ~ +60°C (Storage)

(non-condensing environment)

.08

Expected Life

Failure Rate: 10%

25°C

100,000 Hours

0.5

1.0

1.5

2.0

2.5

3.0

106

3.5

124

/min)

CFM

17.6 35.3

Air Flow

Material

Casing : Plastic (Black) UL94V-0

Impeller : Plastic (Black) UL94V-0

Bearing : Ball Bearing

Lead Wire : UL1007, AWG24, +Red, -Black

Outline

.169

8 – (

φ4.3

± 0.2

)

11.8

(300) min

ROTATION

inch

Units: (mm)

.169

4 – (φ4.3

± 0.2

)

88 0)

4. 24.

(

.169

4 – (φ4.3

± 0.2

)

96 0)

4. 26.

(

AIR

NAME

PLATE

4.51

(114.5)

4.13

(105.0)

4.51

(114.5)

4.13

(105.0)

4.13

(105.0)

4.51

(114.5)

4.13

(105.0)

4.51

(114.5)

OUTLET SIDE

1.5

(38.4

± 0.5

)

Specifications

MODEL

INLET SIDE

4.13

(105.0

± 0.5

)

4.69

(119.0

± 0.5

)

Rated

Operating

Voltage

Current

Input

(W)

3.24

4.80

6.60

8.40

12.00

3.60

5.04

7.44

8.40

12.00

3.84

5.28

7.68

9.60

7.68

Speed

(min

-1

)

2300

2650

2950

3200

3600

2300

2650

2950

3200

3600

2300

2650

2950

3200

3600

Max.

Max. Static

(Pa)

44.1

55.9

68.2

81.4

110.0

44.1

55.9

68.2

81.4

110.0

44.1

55.9

68.2

81.4

110.0

4.13

(105.0

± 0.5

)

4.69

(119.0

± 0.5

)

Panel Cut-Outs

Noise

Mass

(g)

260

LEGACY P/N

Voltage

Power Air Flow Pressure

(V)

11938KA-12J-EA-00

11938KA-12K-EA-00

11938KA-12L-EA-00

11938KA-12M-EA-00

11938KA-12N-EA-00

11938KA-24J-EA-00

11938KA-24K-EA-00

11938KA-24L-EA-00

11938KA-24M-EA-00

11938KA-24N-EA-00

11938KA-48J-EA-00

11938KA-48K-EA-00

11938KA-48L-EA-00

4715KL-04W-B10-E00

4715KL-04W-B20-E00

4715KL-04W-B30-E00

4715KL-04W-B40-E00

4715KL-04W-B50-E00

4715KL-05W-B10-E00

4715KL-05W-B20-E00

4715KL-05W-B30-E00

4715KL-05W-B40-E00

4715KL-05W-B50-E00

4715KL-07W-B10-E00

4715KL-07W-B20-E00

4715KL-07W-B30-E00

4715KL-07W-B40-E00

4715KL-07W-B50-E00

(V)

6.0 ~ 13.8

9.5 ~ 12.6

10.0 ~ 27.6

18.0 ~ 25.0

25.0 ~ 55.2

30.0 ~ 60.0

(A)

0.27

0.40

0.55

0.70

1.00

0.15

0.21

0.31

0.35

0.50

0.08

0.11

0.16

0.20

0.16

CFM

/min)

in H

83.6

97.0

108.0

118.0

129.9

83.6

97.0

108.0

118.0

130.0

83.6

97.0

108.0

118.0

130.0

2.37

2.75

3.07

3.34

3.68

2.37

2.75

3.07

3.34

3.68

2.37

2.75

3.07

3.34

3.68

.17

.22

.27

.33

.44

.17

.22

.27

.33

.44

.17

.22

.27

.33

.44

(dB)

37.0

41.0

42.5

46.5

50.0

37.0

41.0

42.5

46.5

50.0

37.0

41.0

42.5

46.5

50.0

11938KA-48M-EA-00

11938KA-48N-EA-00

Rotation: Clockwise

Airflow Outlet: Air Out Over Struts

*1: Average Values in Free Air

Note: PWM/Locked Rotor/Tach Available

Contact NMB for availability

4715KL-07W-B30-P00 Related Products

	4715KL-07W-B30-P00	4715KL-04W-B30-P00	4715KL-04W-B40-P00	4715KL-05W-B30-P00	4715KL-05W-B40-P00
Description	DC Fan, Axial Construction, 160A, 48V, 7.68W	DC Fan, Axial Construction, 550A, 12V, 6.6W	DC Fan, Axial Construction, 700A, 12V, 8.4W	DC Fan, Axial Construction, 310A, 24V, 7.44W	DC Fan, Axial Construction, 350A, 24V, 8.4W
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
air flow volume	108 CFM	108 CFM	118 CFM	108 CFM	118 CFM
Certification	UL	UL	UL	UL	UL
Bearing type	BALL	BALL	BALL	BALL	BALL
structure	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
high	119 mm	119 mm	119 mm	119 mm	119 mm
length	119 mm	119 mm	119 mm	119 mm	119 mm
life expectancy	50000 h	50000 h	50000 h	50000 h	50000 h
noise	42.5 dB	42.5 dB	46.5 dB	42.5 dB	46.5 dB
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
pressure	6.858 mmH2O	6.858 mmH2O	8.38 mmH2O	6.858 mmH2O	8.38 mmH2O
Rated current	160 A	550 A	700 A	310 A	350 A
rated power	7.68 W	6.6 W	8.4 W	7.44 W	8.4 W
Rated voltage	48 V	12 V	12 V	24 V	24 V
speed	2950 rpm	2950 rpm	3200 rpm	2950 rpm	3200 rpm
Heat Resistant Support Device Type	DC FAN	DC FAN	DC FAN	DC FAN	DC FAN
weight	260 g	260 g	260 g	260 g	260 g
width	38.4 mm	38.4 mm	38.4 mm	38.4 mm	38.4 mm
Base Number Matches	1	1	1	1	1
