KPY69A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> KPY69A

KPY69A: DescriptionABSOLUTE, PEIZORESISTIVE PRESSURE SENSOR, 0-5801.5Psi, 0.5%, 0-440mV, ROUND, THROUGH HOLE MOUNT; CategoryThe sensor; File Size129KB，4 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

KPY69A Overview

ABSOLUTE, PEIZORESISTIVE PRESSURE SENSOR, 0-5801.5Psi, 0.5%, 0-440mV, ROUND, THROUGH HOLE MOUNT

KPY69A Parametric

Parameter Name	Attribute value
Maker	SIEMENS
Reach Compliance Code	unknow
Maximum accuracy(%)	0.5%
body height	31.9 mm
Body length or diameter	19 mm
shell	STAINLESS STEEL
Linearity(%)	0.5 %
Installation features	THROUGH HOLE MOUNT
Nominal offset	0MV
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output range	0-440mV
Output type	ANALOG VOLTAGE
Package Shape/Form	ROUND
port type	1/8-27NPT
Maximum pressure range	5801.5 Psi
Minimum pressure range
Pressure sensing mode	ABSOLUTE
Sensitivity (mV/V)	0.22 mV/V
Sensor/temperature sensor type	PRESSURE SENSOR,PIEZORESISTIVE
Maximum supply voltage	12 V
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

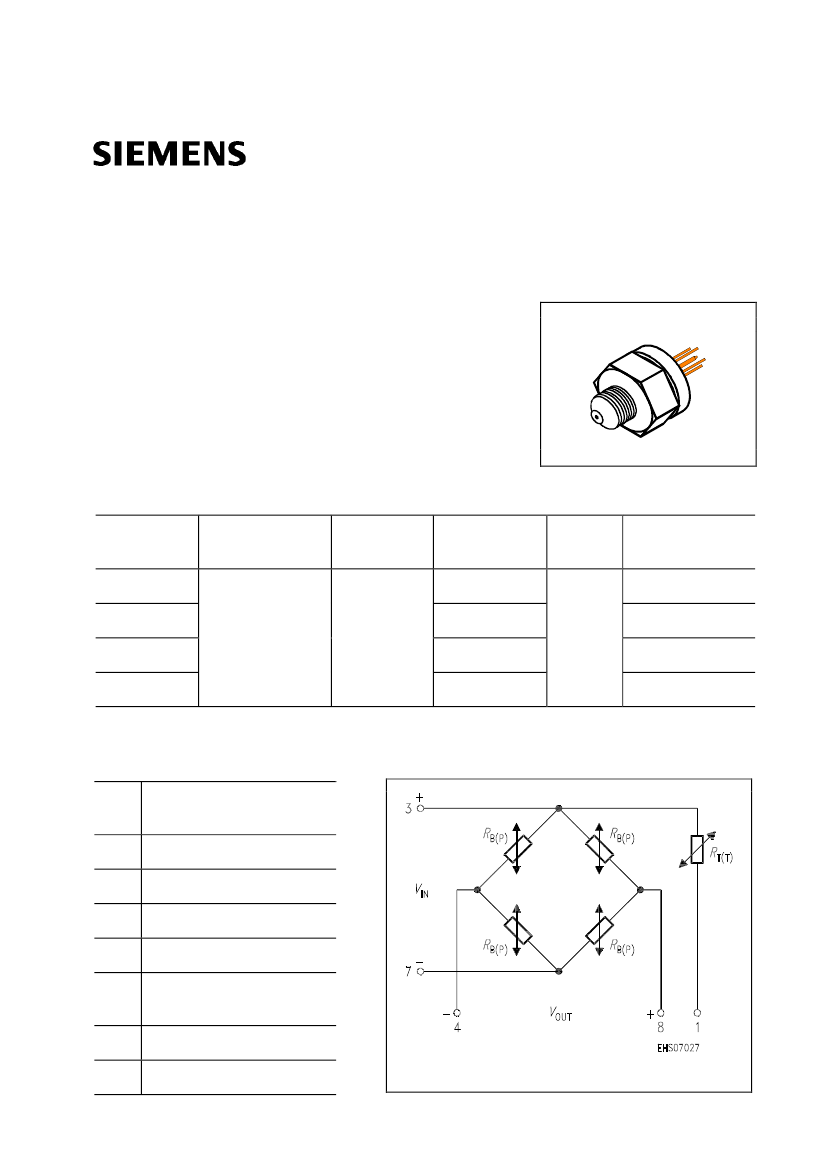

Silicon Piezoresistive

Absolute Pressure Sensor

Preliminary Data

KPY 66-A

…KPY

69-A

•

Low pressure and temperature hysteresis

Fast response

High sensitivity and linearity

Fatigue free monocrystaline silicon diaphragm

giving high load cycle stability

High long term stability

Built in silicon temperature sensor

Corrosion resistant stainless steel threaded housing

Type and

Marking

KPY 66 A

KPY 67 A

KPY 68 A

KPY 69 A

Thread

ISO M12*1.5

NPTF 1/8"x27

Symbol

Pressure

Range

…

160

…

400

Unit

bar

Ordering Code

Q62705-K…

…

*) delivery on request

Pin Configuration

Temp.-Sensor

(typ.

= 2 kΩ)

Not connected

; Temp.-Sensor

−

out

Capillary tube

Shielding, to be connected

to +

−

out

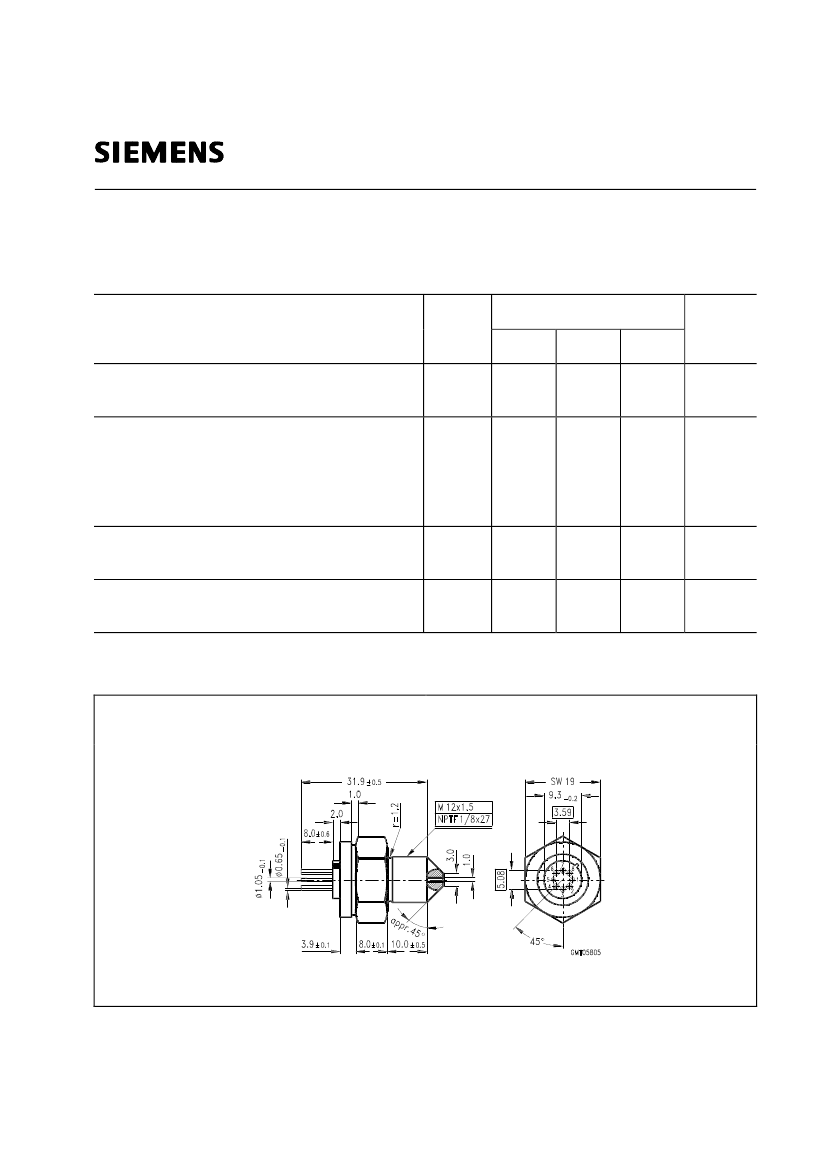

KPY69A Related Products

	KPY69A	KPY68A	KPY67A	KPY66-A	KPY66A
Description	ABSOLUTE, PEIZORESISTIVE PRESSURE SENSOR, 0-5801.5Psi, 0.5%, 0-440mV, ROUND, THROUGH HOLE MOUNT	ABSOLUTE, PEIZORESISTIVE PRESSURE SENSOR, 0-5801.5Psi, 0.5%, 0-440mV, ROUND, THROUGH HOLE MOUNT	ABSOLUTE, PEIZORESISTIVE PRESSURE SENSOR, 0-870.22Psi, 0.5%, 0-300mV, ROUND, THROUGH HOLE MOUNT	ABSOLUTE, PEIZORESISTIVE PRESSURE SENSOR, 0-5801.5Psi, 0.5%, 0-440mV, ROUND, THROUGH HOLE MOUNT	ABSOLUTE, PEIZORESISTIVE PRESSURE SENSOR, 0-5801.5Psi, 0.5%, 0-440mV, ROUND, THROUGH HOLE MOUNT
Maker	SIEMENS	SIEMENS	SIEMENS	-	SIEMENS
Reach Compliance Code	unknow	unknow	unknown	-	unknown
Maximum accuracy(%)	0.5%	0.5%	0.5%	-	0.5%
body height	31.9 mm	31.9 mm	31.9 mm	-	31.9 mm
Body length or diameter	19 mm	19 mm	19 mm	-	19 mm
shell	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	-	STAINLESS STEEL
Linearity(%)	0.5 %	0.5 %	0.5 %	-	0.5 %
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	-	THROUGH HOLE MOUNT
Nominal offset	0MV	0MV	0MV	-	0MV
Maximum operating temperature	125 °C	125 °C	125 °C	-	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-40 °C
Output range	0-440mV	0-420mV	0-300mV	-	0-260mV
Output type	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	-	ANALOG VOLTAGE
Package Shape/Form	ROUND	ROUND	ROUND	-	ROUND
port type	1/8-27NPT	1/8-27NPT	1/8-27NPT	-	1/8-27NPT
Maximum pressure range	5801.5 Psi	2320.6 Psi	870.22 Psi	-	362.59 Psi
Pressure sensing mode	ABSOLUTE	ABSOLUTE	ABSOLUTE	-	ABSOLUTE
Sensitivity (mV/V)	0.22 mV/V	0.53 mV/V	1 mV/V	-	2.1 mV/V
Maximum supply voltage	12 V	12 V	12 V	-	12 V
surface mount	NO	NO	NO	-	NO
Termination type	SOLDER	SOLDER	SOLDER	-	SOLDER
Sensor/Transducer Type	-	PRESSURE SENSOR,PEIZORESISTIVE	PRESSURE SENSOR,PIEZORESISTIVE	-	PRESSURE SENSOR,PIEZORESISTIVE
Base Number Matches	-	1	1	-	1
