Datasheet> All Categories > Passive components> B966AS-1R8N=P3

Preview

B966AS-1R8N=P3: DescriptionFixed Inductors 1.8uH 14mOhms 13.1A +/-30%; CategoryPassive components; File Size976KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric View All

B966AS-1R8N=P3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B966AS-1R8N=P3	-	-	View	Buy Now

B966AS-1R8N=P3 Overview

Fixed Inductors 1.8uH 14mOhms 13.1A +/-30%

B966AS-1R8N=P3 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Murata
Product Category	Fixed Inductors
RoHS	Details
Inductance	1.8 uH
Tolerance	30 %
Maximum DC Current	13.1 A
Maximum DC Resistance	14 mOhms
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Test Frequency	0.1 MHz
Product	Power Inductors
Shielding	Shielded
Termination Style	SMD/SMT
Termination	-
Mounting Style	SMD/SMT
Length	10.4 mm
Width	10.4 mm
Height	6.8 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Type	Wire Wound Ferrite Inductor
Core Material	Ferrite
Operating Temperature Range	-
Self Resonant Frequency	-
Factory Pack Quantity	500
Unit Weight	0.070548 oz

Preview

Download Datasheet

View All

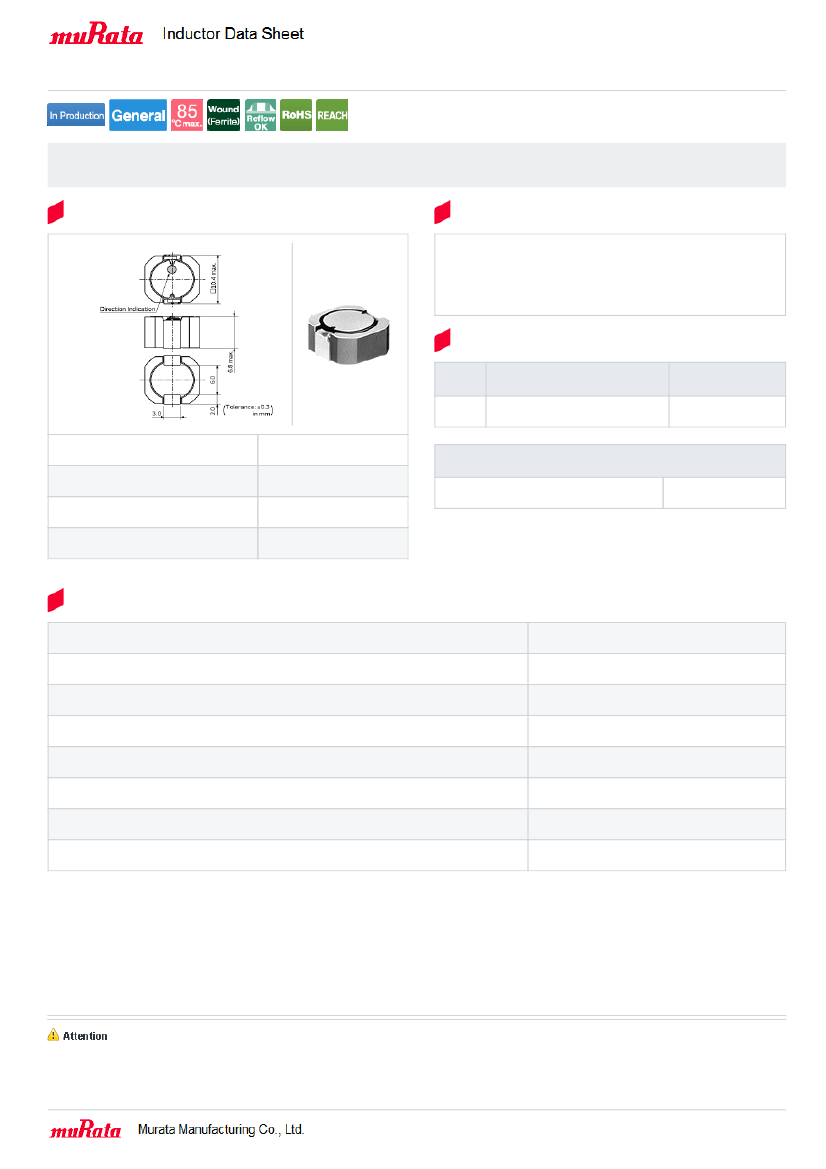

#B966AS-1R8N=P3

< List of part numbers with package codes >

#B966AS-1R8N=P3

Shape

Notes

Rated current (Isat) is specified when the decrease of the initial

inductance value at 10%. (The ambient reference temperature is 20℃.)

Rated current (Itemp) is specified when temperature of inductor the is

raised 40℃ by DC current. (The ambient reference temperature is 20℃.)

References

Packaging

code

=P3

Specifications

φ330mm

Embossed taping

Minimum quantity

500

L size

W size

T size

Size code in inch (mm)

10.1 ±0.3mm

6.8 mm

4040 (101101)

Mass (Typ.)

1 piece

2.575g

Specifications

Inductance

Inductance test frequency

Rated current (Isat) (Based on Inductance change)

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Operating temperature range (Self-temperature rise is included)

Class of magnetic shield

Series

1.8µH ±30%

0.1MHz

9800mA

6700mA

0.014Ω

-40〜85℃

Ferrite Core

DS106C2

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated: 2018/02/18
