Air Core RF Inductors
AL Series
GENERAL DESCRIPTION

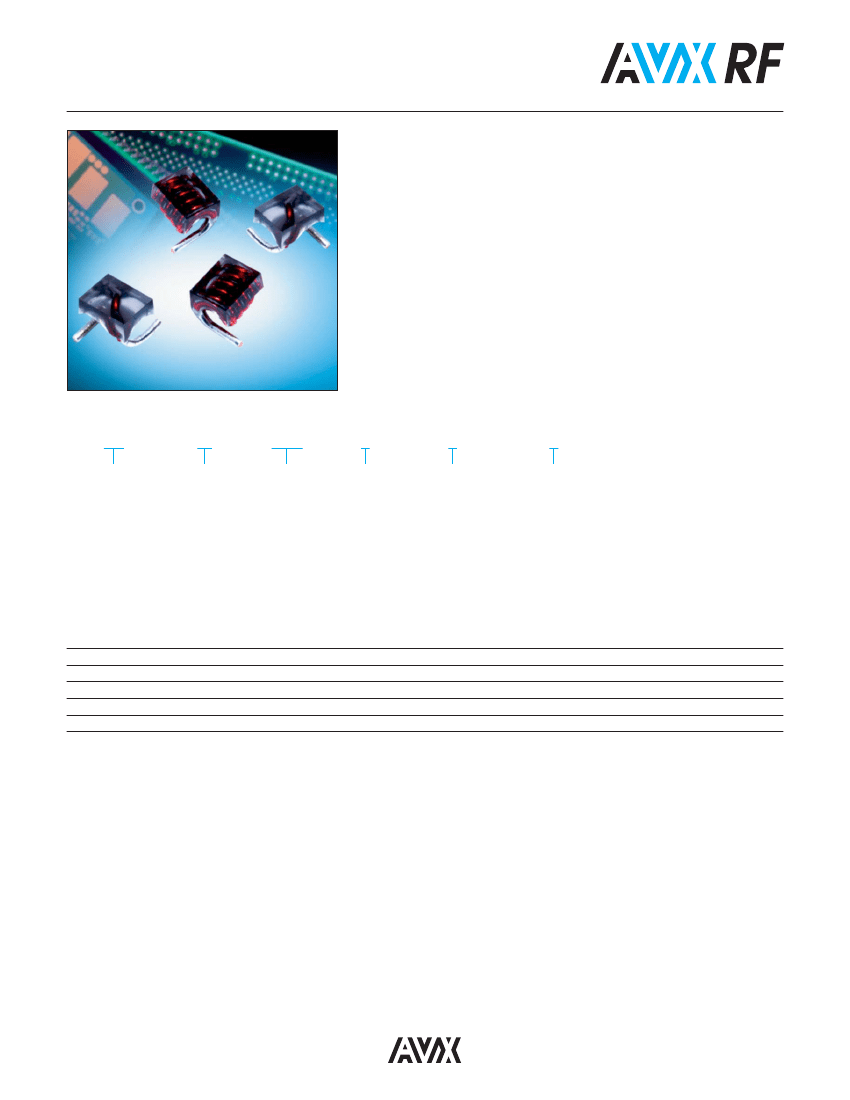

AVX Air Core RF Inductors, part of the wound air core inductor family, are
ideal for RF circuits, broadband I/O filtering, frequency selection, or
impedance matching. The air core inductor provides better performance
over solid core inductors with higher Q, and better current handling
capabilities.
FEATURES
•
•
•
•
•
Air Core Construction
High Q
High Current
Excellent SRF
Many inductance values ranging
from 1.65nH to 538nH
APPLICATIONS
•
•
•
•
•
RF Applications
RF Circuits
Broadband I/O Filtering
Impedance Matching/Tuning
Decoupling/Bypassing
HOW TO ORDER
AL
Air Core Inductor
05A
Size
Size
05A = 0605
05B = 0605
12A = 1212
12B = 1212
016 = 1516
023 = 2523
02N5
Inductance
02N5 = 2.5nH
12N5 = 12.5nH
130N = 130nH
G
Tolerance
G = 2%
J = 5%
K = 10%
T
Termination
T = Sn/Ag over Cu
(96.5% Sn, 3% Ag,
0.5% Cu)
R
Packaging
R = 7" reel
S = 13" reel*
*AL016 & AL023 Only
ELECTRICAL SPECIFICATIONS
Technical Data
Inductance Range
Inductance Tolerance
Rated Current
Operating Temperature
Termination
All technical data related to an ambient temperature of +25˚C
1.65nH to 538nH
2%, 5%, 10%
1.5A to 4.0A
-40˚C to +125˚C
96.5% Tin/3% Silver over 0.5% Copper
1
Air Core RF Inductors
AL Series
ELECTRICAL SPECIFICATIONS
AVX P/N
AL05A1N65KTR
AL05A2N55*TR
AL05A3N85*TR
AL05A5N45*TR
AL05B05N6*TR
AL05B7N15*TR
AL05B08N8*TR
AL05B9N85*TR
AL05B12N5*TR
AL12A02N5KTR
AL12A05N0*TR
AL12A08N0*TR
AL12A12N5*TR
AL12A18N5*TR
AL12B17N5*TR
AL12B22N0*TR
AL12B28N0*TR
AL12B33N5*TR
AL12B43N0*TR
AL01622N0*TS
AL01627N0*TS
AL01633N0*TS
AL01639N0*TS
AL01647N0*TS
AL01656N0*TS
AL01668N0*TS
AL01682N0*TS
AL016100N*TS
AL016120N*TS
AL02390N0*TS
AL023111N*TS
AL023130N*TS
AL023169N*TS
AL023206N*TS
AL023222N*TS
AL023246N*TS
AL023307N*TS
AL023380N*TS
AL023422N*TS
AL023491N*TS
AL023538N*TS
Turns
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
4
5
5
6
6
7
7
8
9
9
9
10
11
12
13
14
15
16
17
18
19
20
Inductance
(nH)
1.65
2.55
3.85
5.45
5.6
7.15
8.8
9.85
12.55
2.5
5
8
12.5
18.5
17.5
22
28
35.5
43
22
27
33
39
47
56
68
82
100
120
90
111
130
169
206
222
246
307
380
422
491
538
Tolerance
(%)
K
J, K
G, J, K
G, J
G, J
G, J
G, J
G, J
G, J
K
J, K
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
G, J
Q
min.
100
100
100
100
100
100
100
100
100
145
140
140
137
132
100
102
105
112
106
100
100
100
100
100
100
100
100
100
100
95
87
87
95
95
92
95
95
95
95
95
87
Q
typ.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
135
135
130
135
135
125
120
120
115
125
114
104
104
114
114
110
114
114
114
114
114
104
Test Freq.
(MHz)
800
800
800
800
800
800
800
800
800
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
50
50
50
50
50
50
50
50
50
50
50
50
DCR max
(mΩ)
4
5
6
8
9
10
12
13
14
1.1
1.8
2.6
3.4
3.9
4.5
5.2
6
6.8
7.9
4.2
4
4.8
4.4
5.6
6.2
8.2
9.4
12.3
17.3
15
15
20
25
30
35
35
35
50
60
65
90
SRF
GHz (min.)
10
8.2
7.5
7
6.5
6
6
5.2
4.6
12.5
6.5
5
3.3
2.5
2.2
2.1
1.8
1.5
1.2
3.2
2.7
2.5
2.1
2.1
1.5
1.5
1.3
1.2
1.1
1.140
1.020
0.900
0.875
0.800
0.730
0.685
0.660
0.590
0.540
0.535
0.490
Ir max
Amps
1.60
1.60
1.60
1.60
1.60
1.60
1.60
1.60
1.60
4.00
4.00
4.00
4.00
4.00
4.00
4.00
4.00
4.00
4.00
3.00
3.50
3.00
3.00
3.00
3.00
2.50
2.50
1.70
1.50
3.50
3.50
3.00
3.00
3.00
3.00
3.00
3.00
2.50
2.50
2.00
2.00
*Tolerance: G= ± 2%, J: ± 5%, K: ± 10%
a. Test Equipment:
L/Q: HP-4291B With HP16193A test fixture or equivalent.
SRF: HP8753E /HP8720D or equivalent.
RDC: Chroma 16502 or equivalent.
b. Operating temperature range: -40ºC to +125ºC.
c. For Temperature Rise: 15ºC
d. Storage Temp.: -40ºC to +85ºC.
f. MSL: Level 1
2
