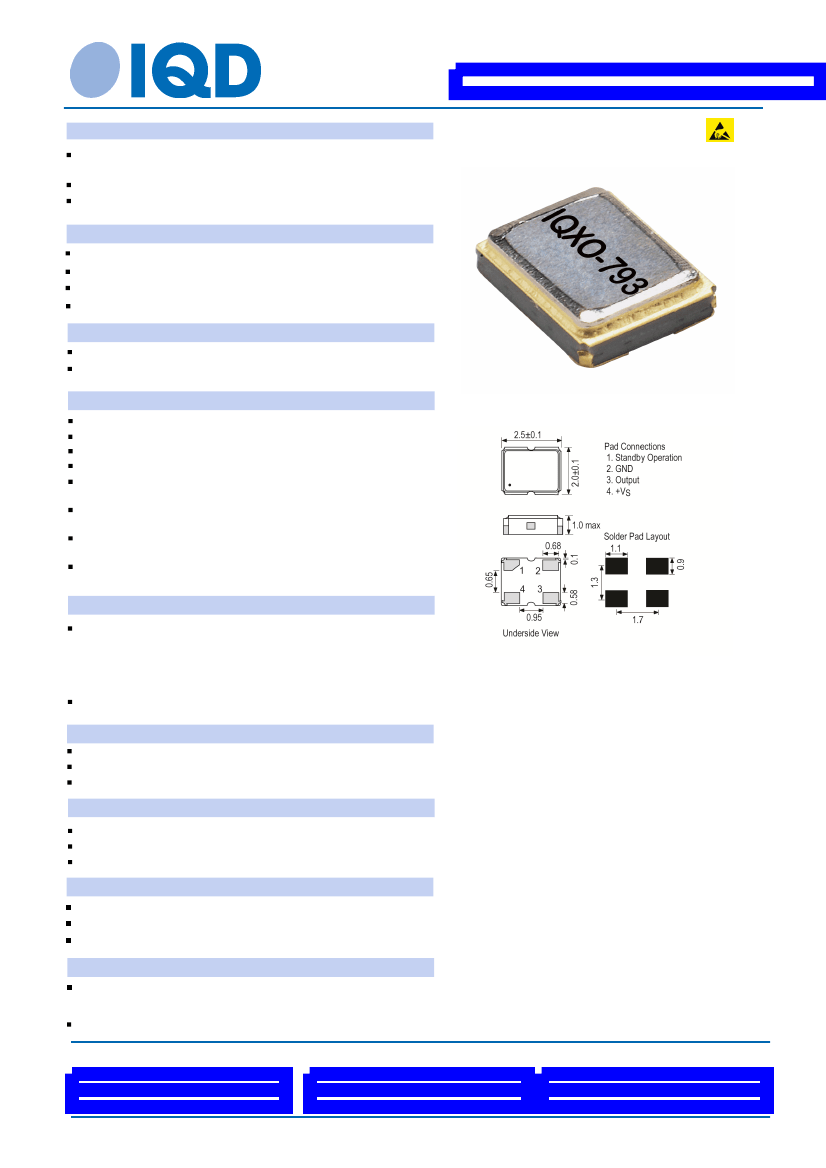

Crystal Clock Oscillator Specification
Part No. + Packaging:
LFSPXO056279Reel
Description
Standard 2.5 x 2.0 oscillator in a ceramic package with a
hermetically sealed metal lid.
Model
IQXO-793
Model Issue number
1
Frequency Parameters
Frequency
Frequency Stability
Operating Temperature Range
Ageing
Electrical Parameters
20.0MHz
±50.00ppm
-40.00 to 85.00°C
±3ppm max per year
Supply Voltage
Current Draw
Output Details
2.5V ±10%
10.00mA
HCMOS
Output Compatability
Drive Capability
15pF
Rise and Fall Time
10.0ns max
40/60%
Duty Cycle
Output Voltage High: 90% of VS min
Output Voltage Low: 10% of VS max
Output Voltage High: 90% of VS min
Output Voltage Low: 10% of VS max
Output Voltage High: 90% of VS min
Output Voltage Low: 10% of VS max
Output Voltage High: 90% of VS min
Output Voltage Low: 10% of VS max
Output Control
Outline (mm)
Standby Function (pin1):
No Connection = Output Enabled
>70% VS = Output Enabled
<30% VS = Output Disabled
wWhen disabled output goes to high impedance state)
Start Up Time: 10ms max
Noise Parameters
Jitter (Period pk-pk): ±100ps max
Jitter (Period One Sigma): ±25ps max
Jitter (Phase 12kHz to 20MHz): 1ps max
Environmental Parameters
Storage Temperature Range: -55 to 125°C
Shock: MIL-STD-202, Method 213
Vibration: MIL-STD-883, Method 2007
Compliance
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Reel
Pack Size: 1,000
Tape & reel in accordance with EIA-481D
Alternative packing option available
