KIA78DL06PI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> KIA78DL06PI

KIA78DL06PI: DescriptionBIPOLAR LINEAR INTEGRATED CIRCUIT (THREE TERMINAL POSITIVE LOW DROPOUT VOLTAGE REGULATOR); CategoryPower/power management The power supply circuit; File Size317KB，5 Pages; ManufacturerKEC; Websitehttp://www.keccorp.com/

Download Datasheet Parametric Compare View All

KIA78DL06PI Overview

BIPOLAR LINEAR INTEGRATED CIRCUIT (THREE TERMINAL POSITIVE LOW DROPOUT VOLTAGE REGULATOR)

KIA78DL06PI Parametric

Parameter Name	Attribute value
Maker	KEC
Parts packaging code	TO-220IS
package instruction	TO-220IS, 3 PIN
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum drop-back voltage 1	0.6 V
Maximum input voltage	26 V
Minimum input voltage	7 V
JESD-30 code	R-XSFM-T3
Number of functions	1
Number of terminals	3
Working temperatureTJ-Max	150 °C
Operating temperatureTJ-Mi	-40 °C
Maximum output current 1	0.25 A
Maximum output voltage 1	6.6 V
Minimum output voltage 1	5.4 V
Nominal output voltage 1	6 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

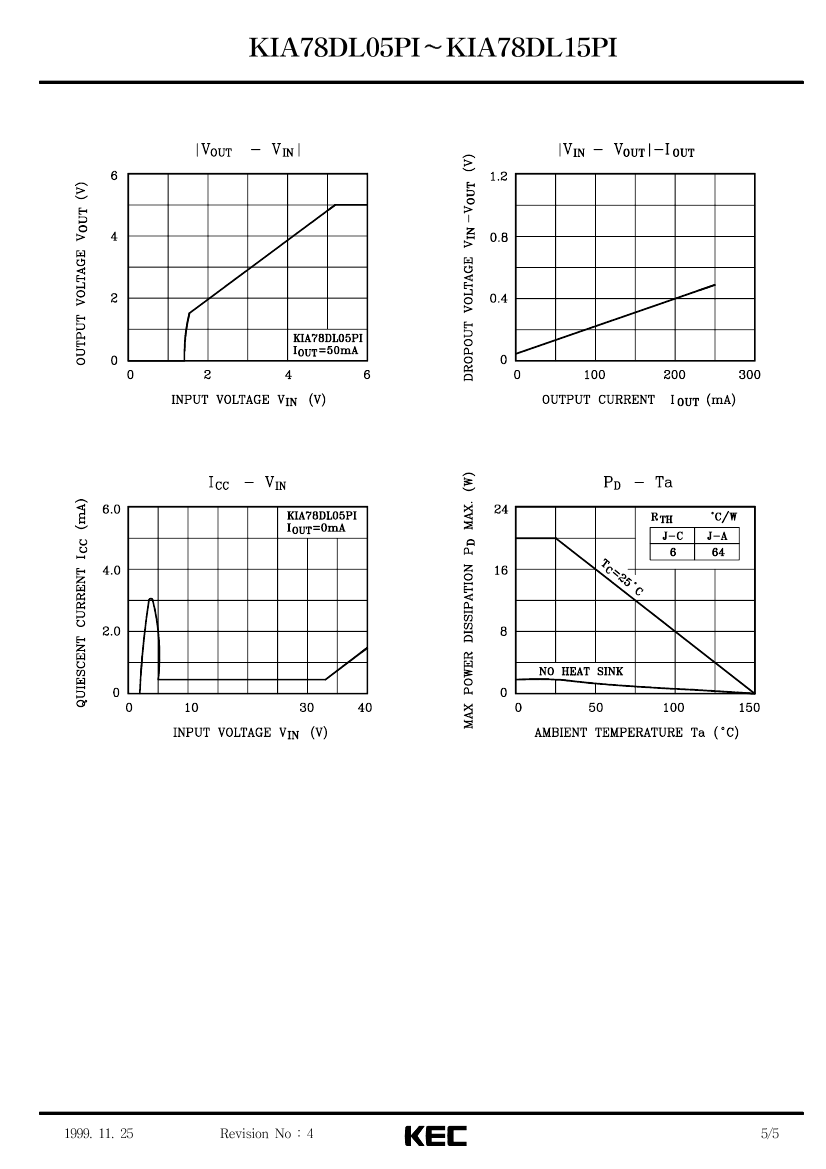

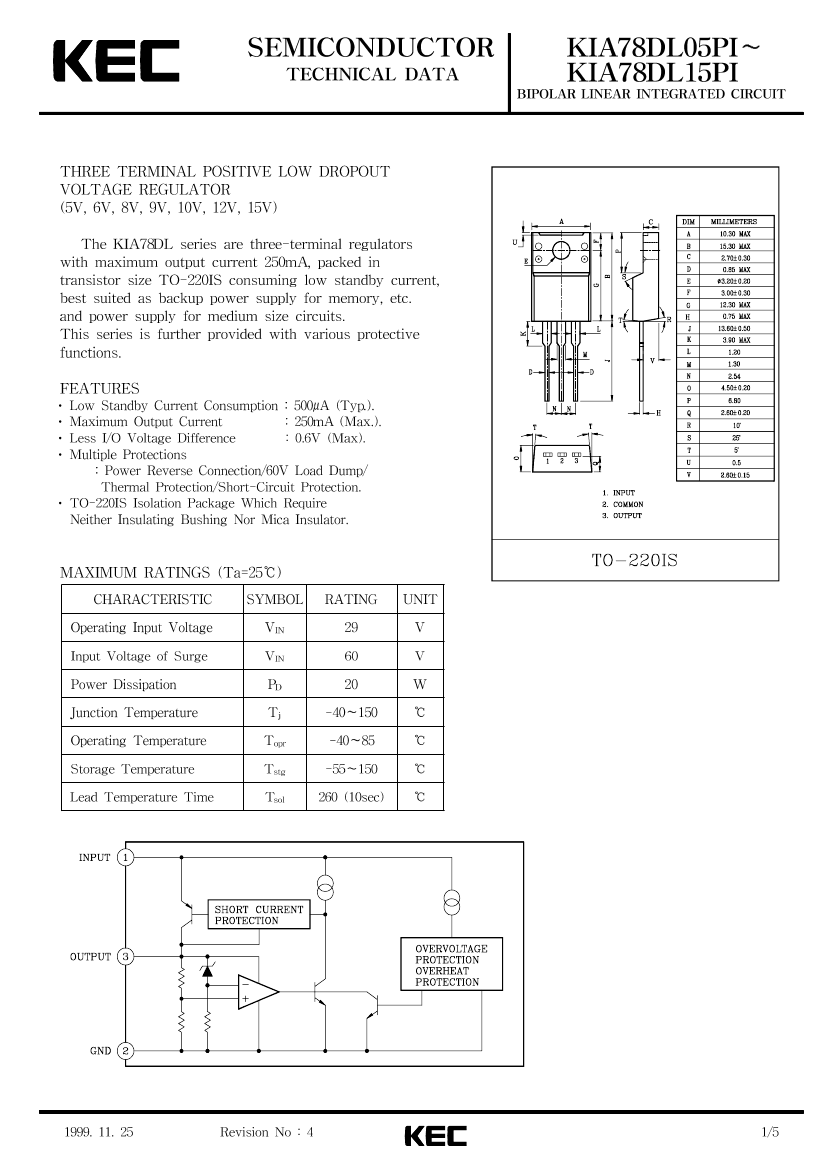

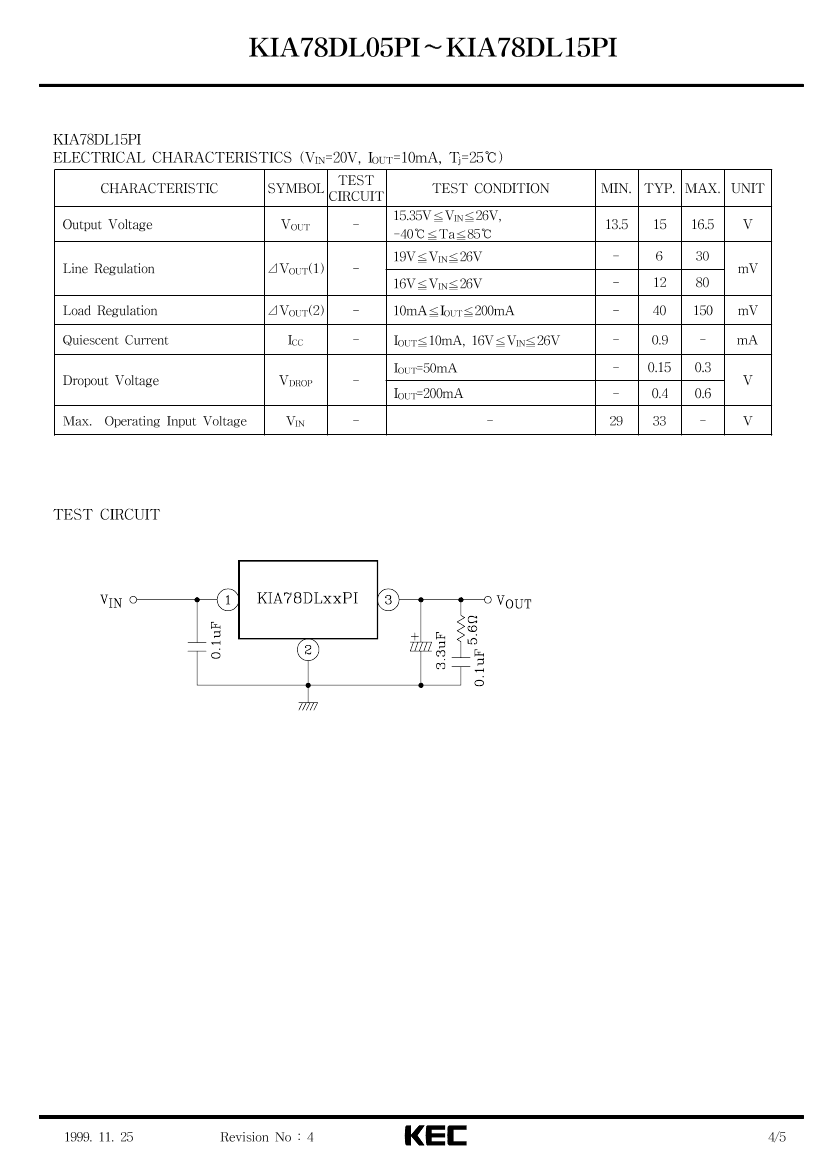

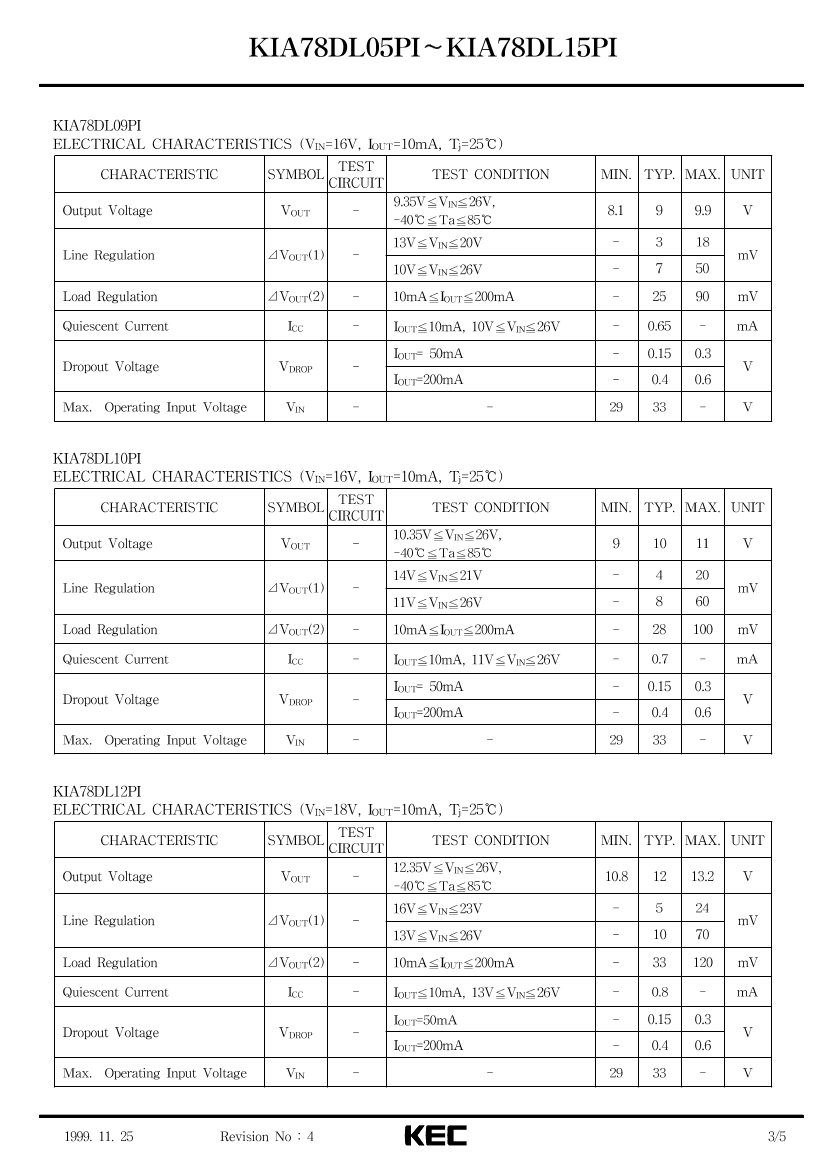

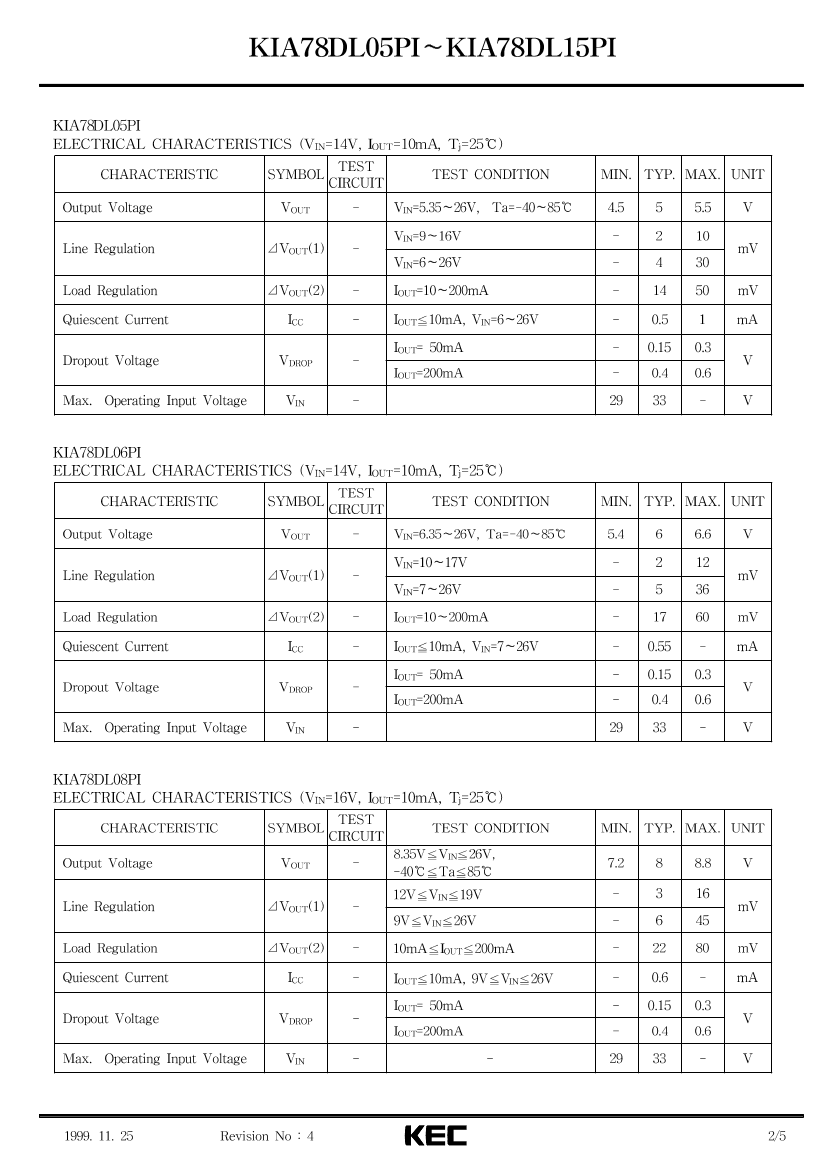

Preview

Download Datasheet

View All

KIA78DL06PI Related Products

	KIA78DL06PI	KIA78DL10PI	KIA78DL15PI	KIA78DL09PI	KIA78DL08PI
Description	BIPOLAR LINEAR INTEGRATED CIRCUIT (THREE TERMINAL POSITIVE LOW DROPOUT VOLTAGE REGULATOR)	BIPOLAR LINEAR INTEGRATED CIRCUIT (THREE TERMINAL POSITIVE LOW DROPOUT VOLTAGE REGULATOR)	BIPOLAR LINEAR INTEGRATED CIRCUIT (THREE TERMINAL POSITIVE LOW DROPOUT VOLTAGE REGULATOR)	BIPOLAR LINEAR INTEGRATED CIRCUIT (THREE TERMINAL POSITIVE LOW DROPOUT VOLTAGE REGULATOR)	BIPOLAR LINEAR INTEGRATED CIRCUIT (THREE TERMINAL POSITIVE LOW DROPOUT VOLTAGE REGULATOR)
Maker	KEC	KEC	-	KEC	KEC
Parts packaging code	TO-220IS	TO-220IS	-	TO-220IS	TO-220IS
package instruction	TO-220IS, 3 PIN	TO-220IS, 3 PIN	-	TO-220IS, 3 PIN	TO-220IS, 3 PIN
Contacts	3	3	-	3	3
Reach Compliance Code	unknow	unknow	-	unknow	unknown
ECCN code	EAR99	EAR99	-	EAR99	EAR99
Maximum drop-back voltage 1	0.6 V	0.6 V	-	0.6 V	0.6 V
Maximum input voltage	26 V	26 V	-	26 V	26 V
Minimum input voltage	7 V	11 V	-	10 V	9 V
JESD-30 code	R-XSFM-T3	R-XSFM-T3	-	R-XSFM-T3	R-XSFM-T3
Number of functions	1	1	-	1	1
Number of terminals	3	3	-	3	3
Working temperatureTJ-Max	150 °C	150 °C	-	150 °C	150 °C
Operating temperatureTJ-Mi	-40 °C	-40 °C	-	-40 °C	-
Maximum output current 1	0.25 A	0.25 A	-	0.25 A	0.25 A
Maximum output voltage 1	6.6 V	11 V	-	9.9 V	8.8 V
Minimum output voltage 1	5.4 V	9 V	-	8.1 V	7.2 V
Nominal output voltage 1	6 V	10 V	-	9 V	8 V
Package body material	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	-	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	NO	NO	-	NO	NO
technology	BIPOLAR	BIPOLAR	-	BIPOLAR	BIPOLAR
Terminal form	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	-	SINGLE	SINGLE
