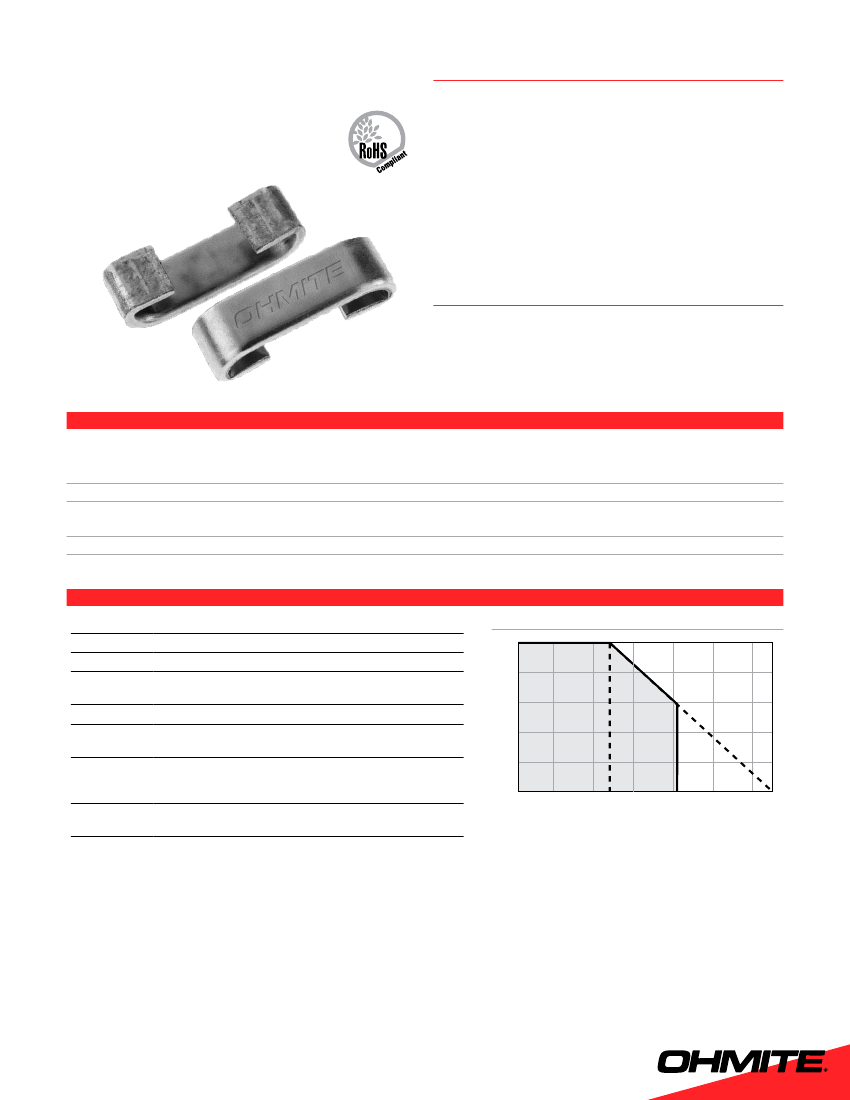

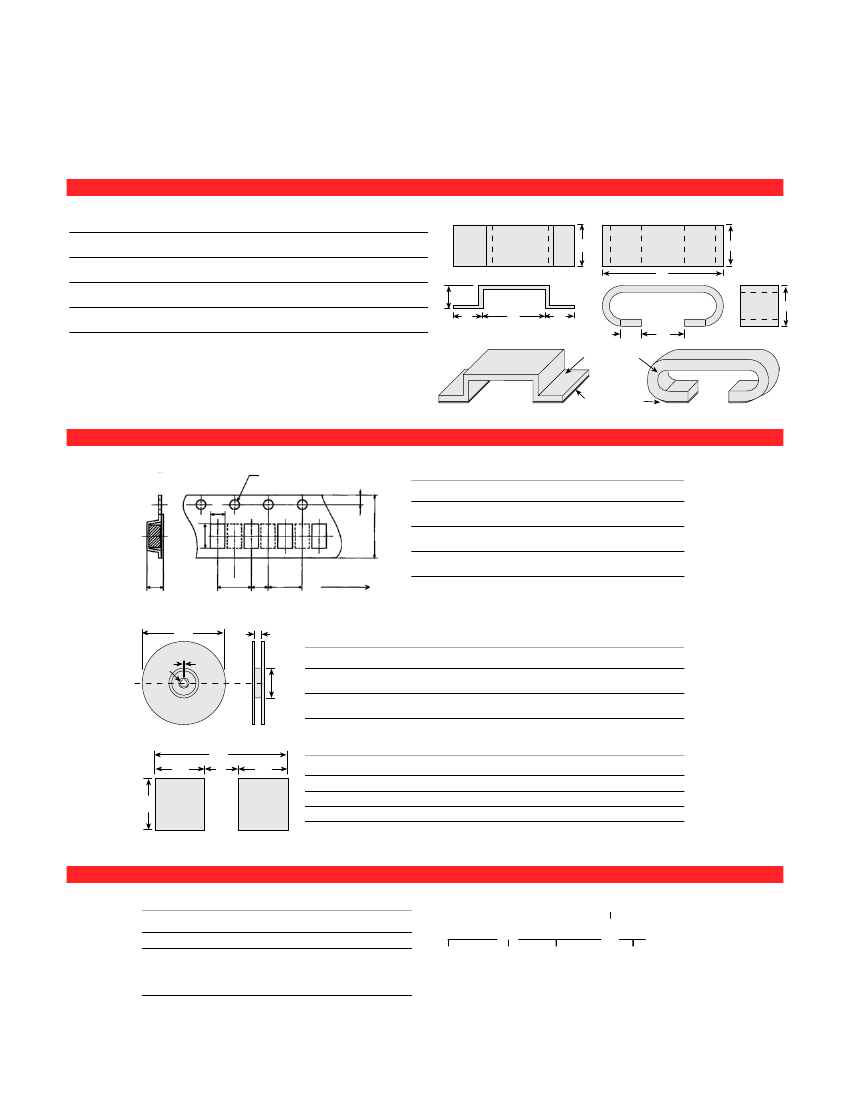

60S Series
Surface Mount
Metal Plate Current Sense
F e At u r e S
• Superior thermal expansion cycling
• Inductance less than 10 nanohenries
• Flameproof
• Solderable pads: Tin (Sn) plate
• Lead flexible for thermal expansion
• Low termination stress (“J” terminals)
• Shape provides cooler operation
• Custom values available
A p p l i c At i o n S
• Current sensing
• Low inductance
• AC applications
• Feedback
S e r i e S S p e c i F i c At i o n S
Type
Tolerance
602SJR
±5%
605SJR
Discontinued*
±5%
610SJR
±5%
TCR
(ppm/C°)
±100
±100
±350
Power
Rating
(watts)
0.25
0.5
1
* 605SJR discontinued March 2017, Specifications remain for reference only
Resistance
Rated
Values
Ambient
(Ω)
Temp. (°C)
0.003, 0.005
+70°C
0.002, 0.0375,
+70°C
0.005, 0.008
0.002, 0.003
+85°C
Operating
Temp.
Range (°C)
-40 - +155
-40 - +155
-40 - +155
Qty./
Reel
2000
2000
1500
chArActeriSticS
Parameter Requirement
Resistance
Within regulated tolerance
T.C.R.
Within specified T.C.R.
Resistance to
±2.0%
Solder Heat
Solderability
95% coverage minimum
Moisture
±3.0%
Resistance
Moisture
±5.0%
Resistance
Load Life
±5.0%
Test Method (JIS C 5202)
25°C
Room temperature/100°C up
Percent Rated Power
Derating
100
80
60
Area of recommended operation
40
20
0
-40
350°C ± 10°C, 3 seconds
235°C ± 5°C, 5 seconds
40°C, 90 - 95% RH, 1000
hours, no load
Power rating x 1/10, 40°C, 90
- 95% RH, 1000 hours, 1.5 hr
ON, 0.5 hr OFF cycle
Rating voltage, 1000 hours, 1.5
hr ON, 0.5 hr OFF cycle
0
50
70
100
155
200
Ambient Temperature,
ϒ
C
250 275
1-866-9-OHMITE • Int’l 1-847-258-0300 • Fax 1-847-574-7522 • www.ohmite.com • info@ohmite.com
19
60S Series
Surface Mount
Metal Plate Current Sense
inches (mm)
602SJR
605SJR
L
0.39 ± .008
(10.0 ± 0.2)
0.39 ± .008
(10.0 ± 0.2)
H
L
0.018 ± .008
(2 ± 0.2)
0.018 ± .008
(2 ± 0.2)
D
L2
0.024
(0.6 ± 0.1)
0.079
(2 max.)
A
H
0.118 ± .008
(3.0 ± 0.2)
0.20 ± .008
(5.2 ± 0.2)
W
W
dimenSionS
602SJR, 605SJR
W
L
H
L
2
L
L
2
D
Copper Nickel
Alloy
Termination
A
H
610SJR
W
610SJR 0.44 ± .016
(11.2 ± 0.4)
0.137 ± .016
(3.5 ± 0.4)
0.095 ± .010
(2.35 ± 0.25)
0.189 ± .030
(4.8 ± .75)
0.126 ± .016
(3.2 ± 0.40)
pA c k A g i n g S p e c i F i c At i o n S
inches (mm)
Embossed Carrier
0.059
(1.5
+0.1
)
-0
0.069
(1.75 ± 0.1)
Tape
Type
602SJR
0.057
0.134
(1.45 ± 0.2) (3.4 ± 0.2)
0.057
0.224
(1.45 ± 0.2) (5.7 ± 0.2)
A
B
0.079
(2.0)
0.079
(2.0)
W
0.098
(2.5 ± 0.2)
0.091
(2.3 ± 0.2)
___
___
T1
N
O
A
M
L
B
N
W
605SJR
610SJR
Direction of Feed
0.461
0.169
0.945
(11.7 ± 0.1) (4.3 ± 0.1) (24.0 ± 0.2)
T
1
0.315 0.079 0.157
(8.0 ± 0.1) (2.0) (4.0 ± 0.1)
øA
øc
E
W
1
Reel
Type
602SJR
10.0
3.15
605SJR
(255 +0.0 -3.0) (80 +1.0 -0)
610SJR
12.99
(330 ± 2.0)
3.94
(100 ± 2.0)
A
B
0.511
0.079
1.0
(13.0 ±0.2) (2.0 ±0.5) (25.5 ± 2.0)
0.511
0.079
1.0
(13.0 ± 0.2) (2.0 ± 0.5) (25.5 ± 2.0)
C
E
W1
qty./reel
2000
øB
1500
N
O
M
L
Land pattern
N
Type
602SJR
0.622
(16.0)
M
0.118
(3.0)
N
0.150
(3.8)
O
0.394
(10.0)
0.127
(3.22)
L
610SJR
605SJR
0.369
(9.36)
0.622
(16.0)
0.121
(3.07)
0.118
(3.0)
0.142
(3.60)
0.236 (6.0)
0.394
(10.0)
Land pattern dimensions are for reference only
o r d e r i n g i n F o r m At i o n
Standard Part Numbers for 60S Series
Wattage:
Ohms
0.00200Ω
0.00300Ω
0.00375Ω
0.00500Ω
Series:
0.25 watt
602SJR
602SJR00300E-T
602SJR00500E-T
1 watt
610SJR
610SJR00200E-T
610SJR00300E-T
RoHS Compliant
½½½½½½½½½½½½½½
Tolerance Ohms
Type &
Packaging
J = 5%
Power Rating
R00200 = 0.00200½ T = tape and reel
602S = 0.25 watt
R00300 = 0.00300½
(optional)
605S = 0.5 watt
R00375 = 0.00375½
610S = 1 watt
rev 12/17-2
20
1-866-9-OHMITE • Int’l 1-847-258-0300 • Fax 1-847-574-7522 • www.ohmite.com • info@ohmite.com
