4308H-102-220 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 4308H-102-220

4308H-102-220: DescriptionResistor Networks & Arrays RNET - THK FILM MOLD SIP; CategoryPassive components The resistor; File Size203KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

4308H-102-220 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4308H-102-220	-	-	View	Buy Now

4308H-102-220 Overview

Resistor Networks & Arrays RNET - THK FILM MOLD SIP

4308H-102-220 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	SIP
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	8 weeks 4 days
Other features	TOLERANCE IS 1 OHM
structure	Molded
Component power consumption	0.5 W
The first element resistor	22 Ω
JESD-609 code	e0
Lead length	3.43 mm
lead spacing	2.54 mm
Installation features	THROUGH HOLE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	4
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	8.89 mm
Package length	19.91 mm
Package shape	RECTANGULAR PACKAGE
Package form	SIP
Package width	2.16 mm
Rated power dissipation(P)	1.6 W
Rated temperature	70 °C
resistance	22 Ω
Resistor type	ARRAY/NETWORK RESISTOR
size code	7808
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	250 ppm/°C
Temperature coefficient tracking	50 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	FLAT
Operating Voltage	100 V
Base Number Matches	1

Preview

Download Datasheet

View All

V E S CO

AV R M

AI SIO PL

LA N IA

BL S NT

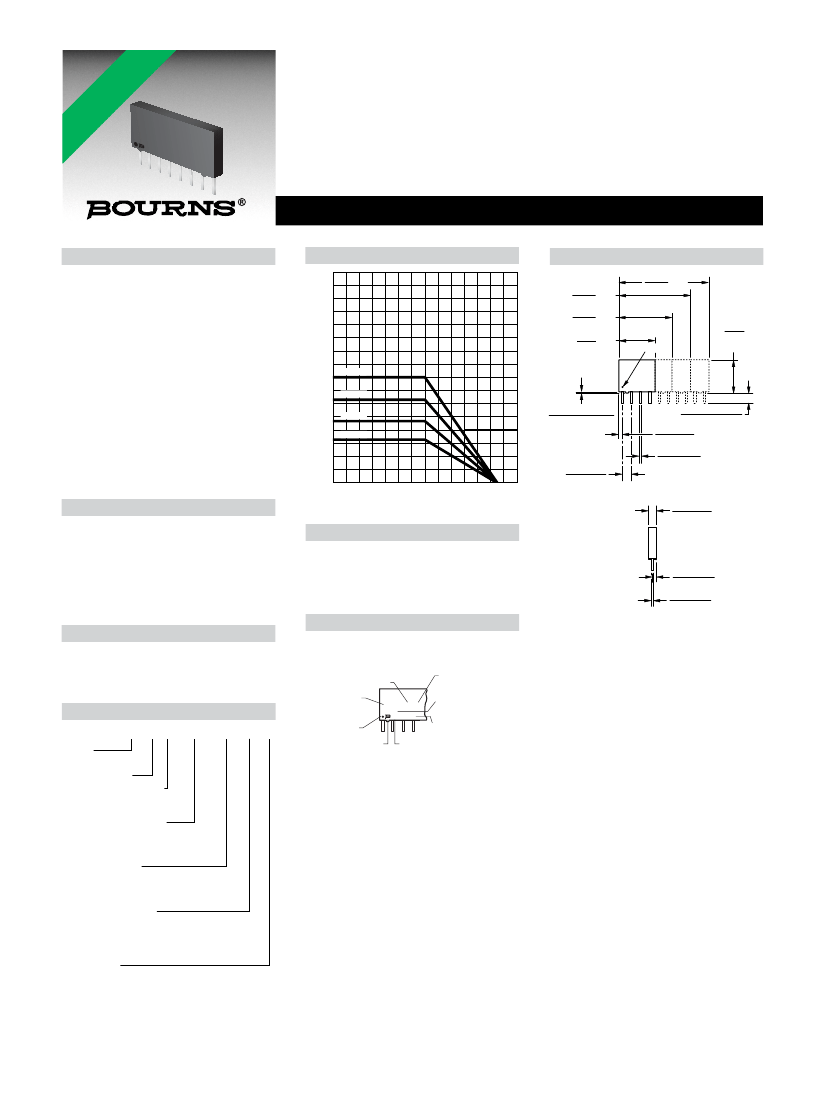

Features

■

RoHS compliant* versions available (see

■

Now available with improved tolerance

430

–568H–1

C11

How to Order “Termination” option)

■

High proﬁle offers increased power

handling

■

Compatible with automatic insertion

equipment

■

Superior package integrity

to ±0.5 %

4300H Series - Thick Film Molded SIPs

Product Characteristics

Resistance Range

.................... 10 ohms to 10 megohms

Maximum Operating Voltage .........100 V

Temperature Coefﬁcient of Resistance

to 2.2 megohms.....±100 ppm/°C

below 50

.....................±250 ppm/°C

above 2.2 megohms.......±250 ppm/°C

TCR Tracking.........................50 ppm/°C

maximum; equal values

Resistor Tolerance ............... See circuits

Operating Temperature

................................-55 °C to +125 °C

Insulation Resistance

................ 10,000 megohms minimum

Dielectric Withstanding Voltage

...........................................200 VRMS

Lead Solderability .....Meet requirements

of MIL-STD-202 Method 208

Environmental Characteristics

TESTS PER MIL-STD-202 ...... ∆R MAX.

Short Time Overload..................±0.25 %

Load Life ....................................±1.00 %

Moisture Resistance ..................±0.50 %

Resistance to Soldering Heat

...............................................±0.25 %

Terminal Strength ......................±0.25 %

Thermal Shock ..........................±0.25 %

Physical Characteristics

Flammability ........ Conforms to UL94V-0

Lead Frame Material

.........................Copper, solder coated

Body Material.................. Novolac epoxy

How To Order

Package Power Temp. Derating Curve

Product Dimensions

19.91

MAX.

(.784)

14.83

MAX.

(.584)

9.75

MAX.

(.384)

24.99

MAX.

(.984)

3.50

3.00

2.50

2.00

1.50

4306H

1.00

.50

4304H

4310H

4308H

WATTS

PIN #1 REF.

8.89

(.350)

MAX.

.407 + .102/ - .000

(.016 + .004/ - 000)

1.02

(.040

.483

(.020

125

AMBIENT TEMPERATURE (

C )

3.43 + .38/ - .25

(.125 + .005/ - .010)

.12

.005)

.050

TYP.

.002)

2.54 .07

(.100 .003*)

TYP.

NON-ACCUM.

2.16 .10

(.085 .004)

Package Power Rating at 70 °C

4304H .....................................0.80 watts

4306H .....................................1.20 watts

4308H .....................................1.60 watts

4310H .....................................2.00 watts

Typical Part Marking

Represents total content. Layout may

vary.

PART

NUMBER

PIN ONE

INDICATOR

MANUFACTURER'S

TRADEMARK

CIRCUIT

4308H-101 LF

-562

CYYWW

1.02

(.0425

.254

(.010

.05

.002)

.050

.002)

Governing dimensions are in metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

RoHS COMPLIANCY

INDICATOR

RESISTANCE

CODE

DATE CODE

COUNTRY OF MANUFACTURE

(C = COSTA RICA)

43 06 H - 101 - 222 __ __

Model

(43 = Molded SIP)

Number of Pins

Physical Conﬁguration

(H = Thick Film High

Proﬁle)

Electrical Conﬁguration

• 101 = Bussed

• 102 = Isolated

• 104 = Dual Terminator

Resistance Code

• First 2 digits are signiﬁcant

• Third digit represents the

number of zeros to follow.

Resistance Tolerance

• Blank = ±2 % (see “Resistance Tolerance”

on next page for resistance range)

• F = ±1 % (100 ohms - 1 megohm)

• D = ±0.5 % (100 ohms - 1 megohm)

Terminations

• All electrical conﬁgurations EXCEPT 104:

LF = Tin-plated (RoHS compliant version)

• ONLY electrical conﬁguration 104:

L = Tin-plated (RoHS compliant version)

• Blank = Tin/Lead-plated

Consult factory for other available options.

For Standard Values Used in

Capacitors, Inductors, and Resistors,

click here.

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.
