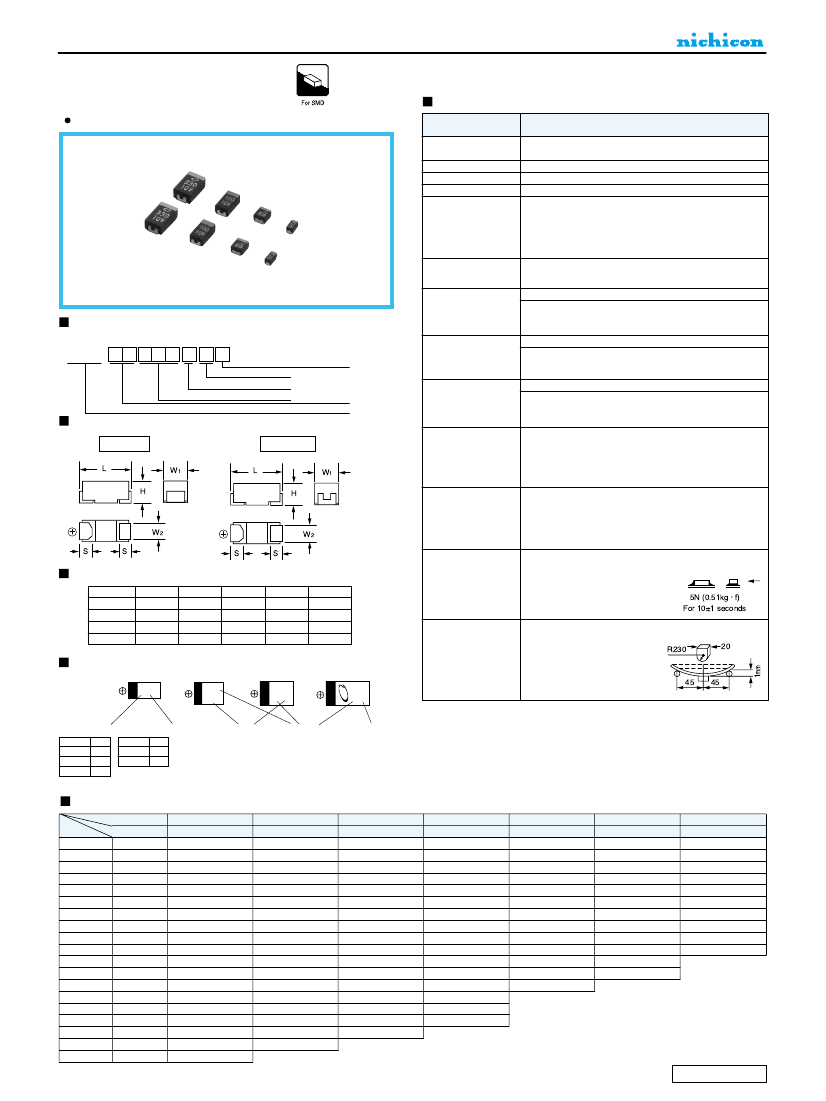

SOLID TANTALUM ELECTROLYTIC CAPACITORS
F93
Resin-molded Chip,
Standard Series
Specifications
Item
Category
Temperature Range
Capacitance Tolerance
Dissipation Factor
(120Hz)
ESR
(100kHz)
Performance Characteristics
--55 to +125
˚C
(Rated temperature : +85
˚C
)
± 20%, ±10% (at 120Hz)
Refer to next page
Refer to next page
•
After 1 minute's application of rated voltage, leakage current
at 20
˚C
is not more than 0.01CV or 0.5µA, whichever is greater.
•
After 1 minute's application of rated voltage, leakage current
at 85
˚C
is not more than 0.1CV or 5µA, whichever is greater.
•
After 1 minute's application of derated voltage, leakage current
at 125
˚C
is not more than 0.125CV or 6.3µA, whichever is greater.
+15% Max. (at +125
˚C
)
+10% Max. (at +85
˚C
)
--10% Max. (at --55
˚C
)
At 40
˚C
90 to 95% R.H. 500 hours (No voltage applied)
Capacitance Change...Refer to next page (* 1)
Dissipation Factor........Initial specified value or less
Leakage Current..........Initial specified value or less
--55
˚C
/ +125
˚C
30 minutes each 5 cycles
Capacitance Change...Refer to next page (* 1)
Dissipation Factor........Initial specified value or less
Leakage Current..........Initial specified value or less
10 seconds reflow at 260
˚C ,
5 seconds immersion at 260
˚C
Capacitance Change...Refer to next page (* 1)
Dissipation Factor........Initial specified value or less
Leakage Current..........Initial specified value or less
After application of surge voltage in series with a 33Ω resistor at the rate of
30 seconds ON, 30 seconds OFF, for 1000 successive test cycles at
85
˚C
, capacitors shall meet the characteristic requirements table below.
Capacitance Change
.....
Refer to next page (* 1)
Dissipation Factor
.........
Initial specified value or less
Leakage Current
...........
Initial specified value or less
After 2000 hours' application of rated voltage in series with a 3
Ω
resistor
at 85
˚C
, or derated voltage in series with a 3
Ω
resistor at 125
˚C
,
capacitors shall meet the characteristic requirements table below.
Capacitance Change
......
Refer to next page (* 1)
Dissipation Factor
..........
Initial specified value or less
Leakage Current
............
Initial specified value or less
Compliant to the RoHS directive (2002/95/EC).
Leakage Current
Capacitance Change
by Temperature
Damp Heat
(Steady State)
Type numbering system (Example: 10V 10µF)
1
2
3
4
5
6
7
8
9
10
11
Taping code
(Refer to page 333 for details)
Case code
Capacitance tolerance
Rated capacitance Rated voltage
Series
F 9 3 1 A 1 0 6 M A
Temperature Cycles
Resistance
to Soldering Heat
Drawing
A
•
B Case
L
W
1
L
C
•
N Case
Surge
∗
W
1
H
H
Endurance
∗
W
2
S
S
W
2
S
S
Dimensions
Case code
A
B
C
N
3.2
3.5
6.0
7.3
L
± 0.2
± 0.2
± 0.2
± 0.2
W
1
1.6 ± 0.2
2.8 ± 0.2
3.2 ± 0.2
4.3 ± 0.2
W
2
1.2 ± 0.1
2.2 ± 0.1
2.2 ± 0.1
2.4 ± 0.1
H
1.6 ± 0.2
1.9 ± 0.2
2.5 ± 0.2
2.8 ± 0.2
(mm)
Shear Test
S
0.8 ± 0.2
0.8 ± 0.2
1.3 ± 0.2
1.3 ± 0.2
Terminal Strength
After applying the pressure load of 5N for 10±1 seconds
horizontally to the center of capacitor side body which has no
electrode and has been soldered
beforehand on a substrate, there shall be
¥
found neither exfoliation nor its sign at the
5N (0.51kg f)
For 10±1 seconds
terminal electrode.
Keeping a capacitor surface-mounted on a substrate upside down
and supporting the substrate at both of the opposite bottom points
45mm apart from the center of
20
capacitor, the pressure strength is
R230
applied with a specified jig at the
center of substrate so that the
substrate may bend by 1mm as
illustrated. Then, there shall be found
45
45
no remarkable abnormality on the
capacitor terminals.
1mm
Marking
A Case
C685
B Case
22
16V
C Case
47
16V
N Case
100
16V
∗
As for the surge and derated voltage at 125
˚C
, refer to page 332 for details.
Rated voltage
(V)
(Rated voltage code)
4V
6.3V
10V
16V
G
J
A
C
20V
25V
35V
(Capacitance code)
D
E
V
Capacitance (µF)
Rated voltage (V)
We can supply the type of compliance to AEC-Q200.
Please contact to your local Nichicon sales office
when these series are being designed in your application.
Standard Ratings
V
Cap. (µF)
Code
4
0G
6.3
0J
10
1A
16
1C
A
A
A
A
A
A
•
B
A
•
B
A
•
B
•
C
B
•
C
(B)
•
C
•
N
N
C
•
N
N
N
20
1D
25
1E
A
A
A
A
0.68
1
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
684
105
155
225
335
475
685
106
156
226
336
476
686
107
157
227
337
477
687
A
A
A
A
A
•
•
•
A
A
A
A
A
•
B
B
(A)
•
B
•
C
C
N
N
A
A
A
A
A
•
B
A
•
B
A
•
B
•
C
B
•
C
B
•
C
•
N
N
N
A
A
A
A
•
B
A
•
B
A
•
B
•
C
B
•
C
B
•
C
•
N
C
•
N
N
N
B
B
B
A
•
B
B
•
C
C
C
•
N
N
N
C
B
•
C
C
•
N
C
•
N
(N)
35
1V
A
A
A
A
•
B
B
B
•
C
C
C
N
N
( ) The series in parentheses are being developed.
Please contact to your local Nichicon sales office when these
series are being designed in your application.
CAT.8100B
