This specification covers the characteristics of SAW Filter ACTF474/374.0/QCC8C,
in a QCC8C package and is designed for use in wireless LAN applications.

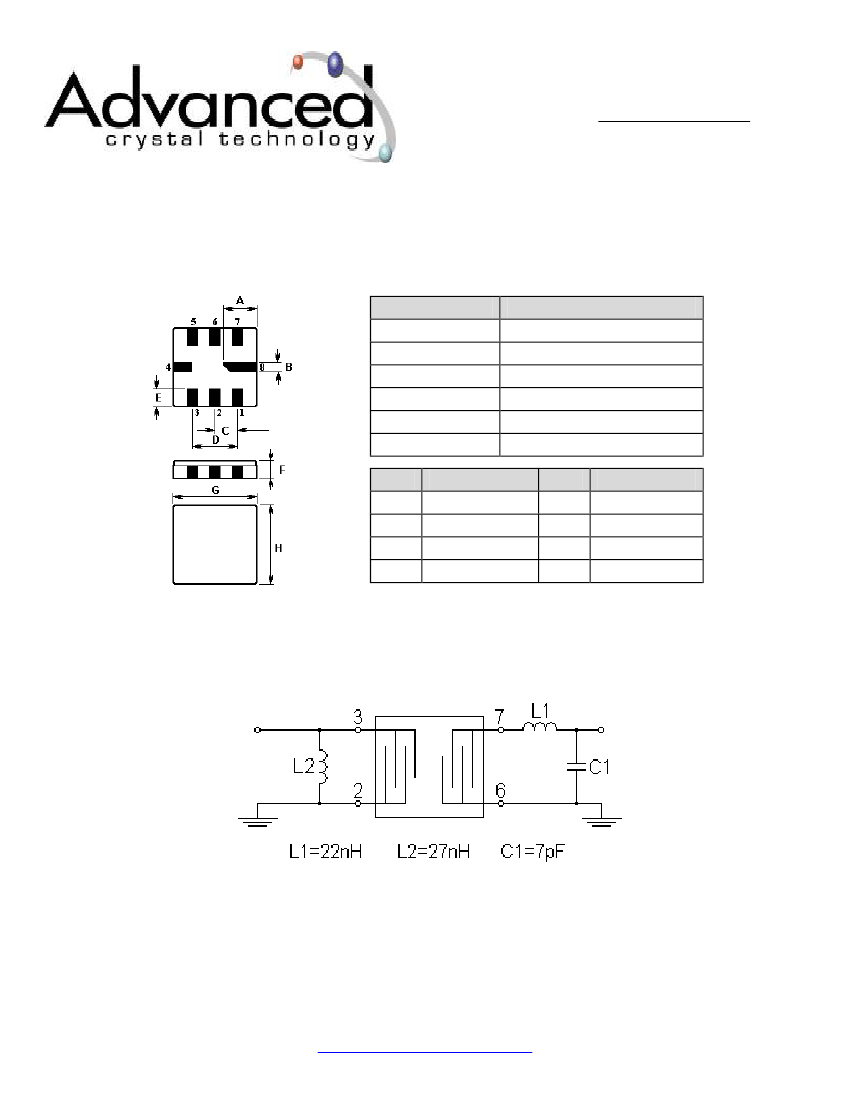

1.Package Dimension
(QCC8C)
Pins
2
3
6
7
1,5
4,8
Sign
A
B
C
D
Data (unit: mm)
2.08
0.60
1.27
2.54
Configuration
Input Ground
Input
Output Ground
Output
To be Grounded
Case Ground
Sign
E
F
G
H
Data (unit: mm)
1.20
1.35
5.00
5.00
3. Matching Network
(50
Ω
unbalanced)
In keeping with our ongoing policy of product evolvement and improvement, the above specification is subject to change without notice.
ISO9001: 2000 Registered - Registration number 6830/2
For quotations or further information please contact us at:
3 The Business Centre, Molly Millars Lane, Wokingham, Berks, RG41 2EY, UK
Issue : 1 C1
Date : SEPT 04
http://www.actcrystals.com
1 OF 3
Tel : +44 118 979 1238
Fax : +44 118 979 1283
Email: info@actcrystals.com

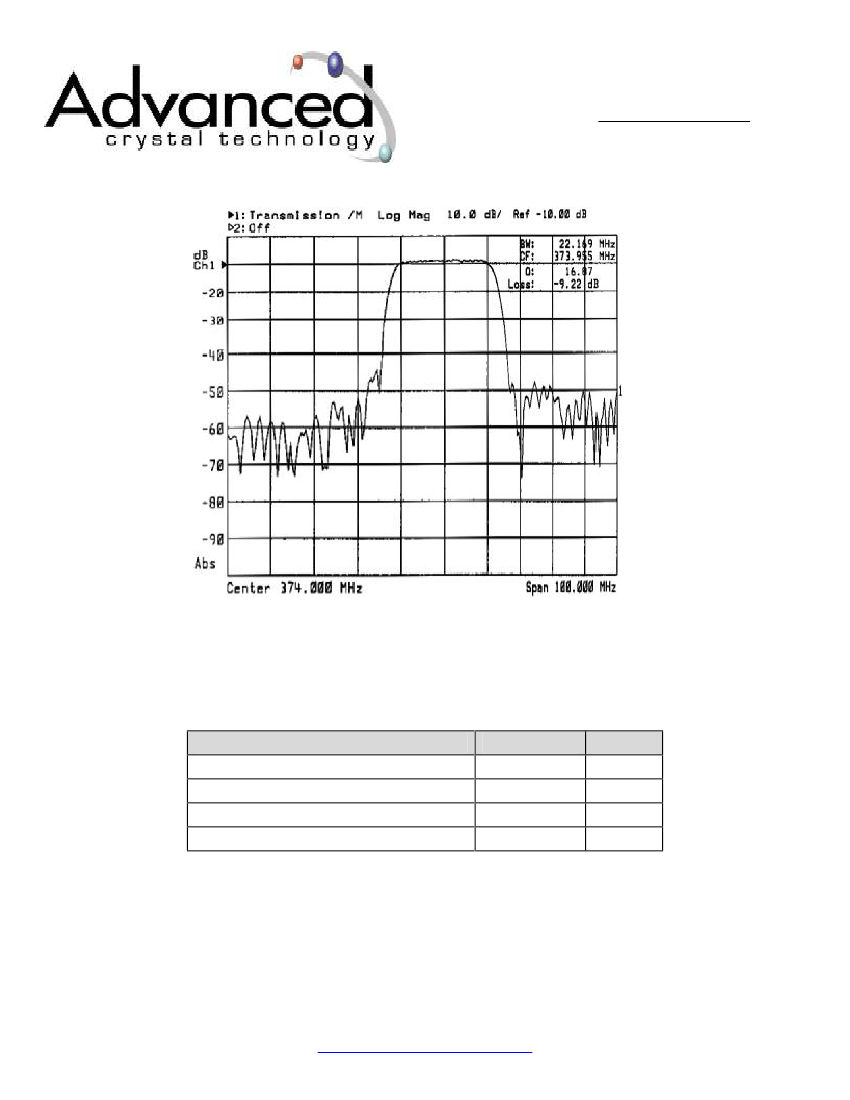

4.Typical Frequency Response
5.Performance
5-1. Maximum Ratings
Rating
Source Power
DC Voltage
Storage Temperature
Soldering Temperature
P
S
V
DC
Value
10
0
-40 to +85
+235
Units
dBm
V
°C
°C
In keeping with our ongoing policy of product evolvement and improvement, the above specification is subject to change without notice.
ISO9001: 2000 Registered - Registration number 6830/2
For quotations or further information please contact us at:
3 The Business Centre, Molly Millars Lane, Wokingham, Berks, RG41 2EY, UK
Issue : 1 C1
Date : SEPT 04
http://www.actcrystals.com
2 OF 3
Tel : +44 118 979 1238
Fax : +44 118 979 1283
Email: info@actcrystals.com
5-2. Electronic Characteristics
Operating temperature:
Terminating source impedance:
Terminating load impedance:
Characteristics
Centre Frequency
Minimum insertion attenuation
(including matching network)
Bandwidth
Amplitude ripple (p-p)
Group delay ripple (p-p)
Triple transit suppression
Relative attenuation (relative to
α
min
)
357.5 ~ 352.0 MHz
352.0 ~ 341.0 MHz
341.0 ~ 224.0 MHz
390.5 ~ 392.0 MHz
392.0 ~ 396.0 MHz
396.0 ~ 422.0 MHz
422.0 ~ 454.0 MHz
Temperature coefficient of frequency
α
rel
30
40
48
20
30
38
40
T
Cf
--
42
45
52
38
42
44
45
-87
--
--
--
--
--
--
--
--
dB
dB
dB
dB
dB
dB
dB
ppm/K
αrel ≤3
dB
f
C
±7MHz
f
C
±7MHz
f
C
α
min
T
A
= -10 … +80
°C
Z
S
= 50
Ω
unbalanced and matching network
Z
L
= 50
Ω
unbalanced and matching network
Minimum
--
--
17
--
--
30
Typical
374.000
9.0
22
0.5
40
40
Maximum
--
10.5
--
1.0
100
--
Units
MHz
dB
MHz
dB
ns
dB
BW
3dB
Δ α
Δτ
i
CAUTION: Electrostatic Sensitive Device. Observe precautions for handling
!
1.
2.
The frequency f
C
is defined as the midpoint between the 3dB frequencies.
Unless noted otherwise, all measurements are made with the filter installed in the specified test fixture that is
connected to a
50
Ω
test system with VSWR
≤1.2:1.
The test fixture L and C are adjusted for minimum
insertion loss at the filter centre frequency, f
C
. Note that insertion loss, bandwidth, and passband shape are
dependent on the impedance matching component values and quality.
Unless noted otherwise, specifications apply over the entire specified operating temperature range.
The specifications of this device are based on the test circuit shown above and subject to change or
obsolescence without notice.
All equipment designs utilizing this product must be approved by the appropriate government agency prior to
manufacture or sale.
Our liability is only assumed for the Surface Acoustic Wave (SAW) component(s) per se, not for applications,
processes and circuits implemented within components or assemblies.
3.
4.
5.
6.
In keeping with our ongoing policy of product evolvement and improvement, the above specification is subject to change without notice.
ISO9001: 2000 Registered - Registration number 6830/2
For quotations or further information please contact us at:
3 The Business Centre, Molly Millars Lane, Wokingham, Berks, RG41 2EY, UK
Issue : 1 C1
Date : SEPT 04
http://www.actcrystals.com
3 OF 3
