73L6R91J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 73L6R91J

73L6R91J: DescriptionCurrent Sense Resistors - SMD 0.91ohms 5%; CategoryPassive components; File Size181KB，4 Pages; ManufacturerCTS [CTS Corporation]

Download Datasheet Parametric View All

73L6R91J Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	73L6R91J	-	-	View	Buy Now

73L6R91J Overview

Current Sense Resistors - SMD 0.91ohms 5%

73L6R91J Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	CTS [CTS Corporation]
Product Category	Current Sense Resistors - SMD
RoHS	Details
Resistance	910 mOhms
Power Rating	750 mW (3/4 W)
Tolerance	5 %
Temperature Coefficient	200 PPM / C
Operating Temperature Range	- 55 C to + 125 C
Case Code - in	2010
Case Code - mm	5025
Technology	Thick Film
Termination	2 Terminal
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Height	0.56 mm
Length	5 mm
Package / Case	2010 (5025 metric)
Product	Thick Film Current Sensing Resistors
Termination Style	SMD/SMT
Type	Thick Film Current Sensing Resistor
Width	2.5 mm
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Factory Pack Quantity	4000
Unit Weight	0.001199 oz

Preview

Download Datasheet

View All

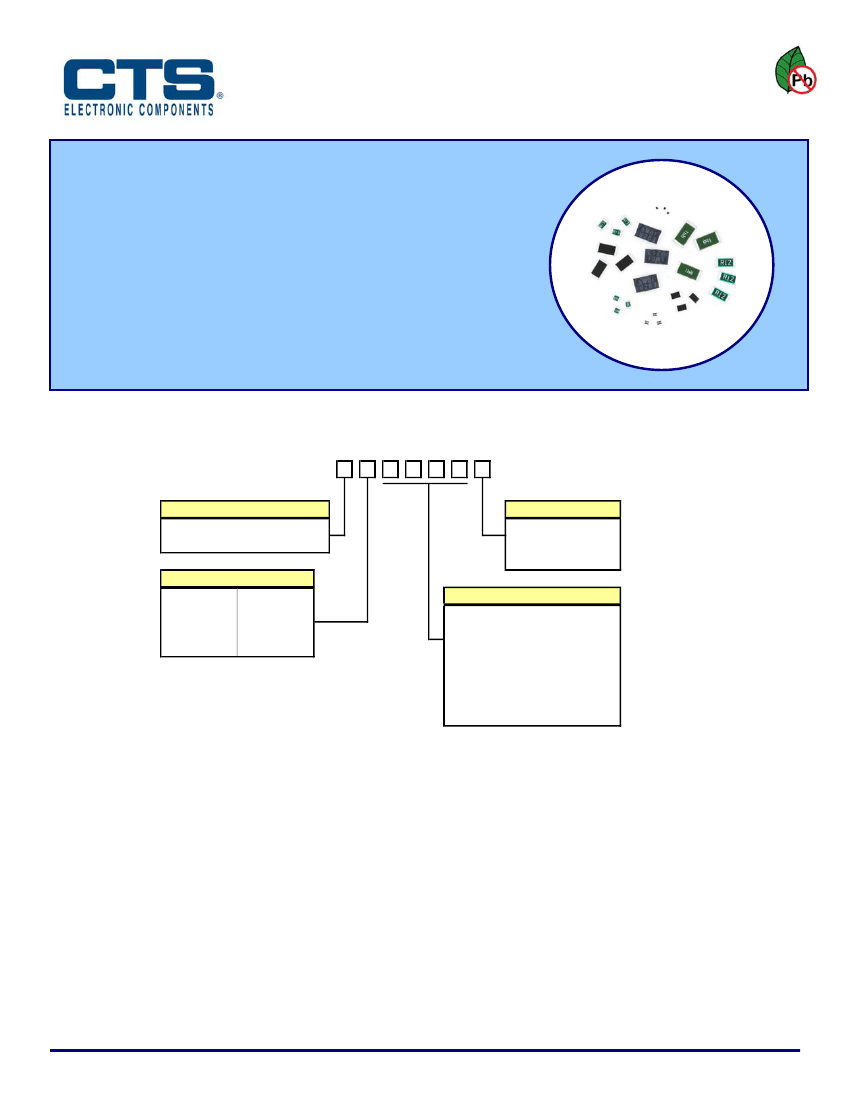

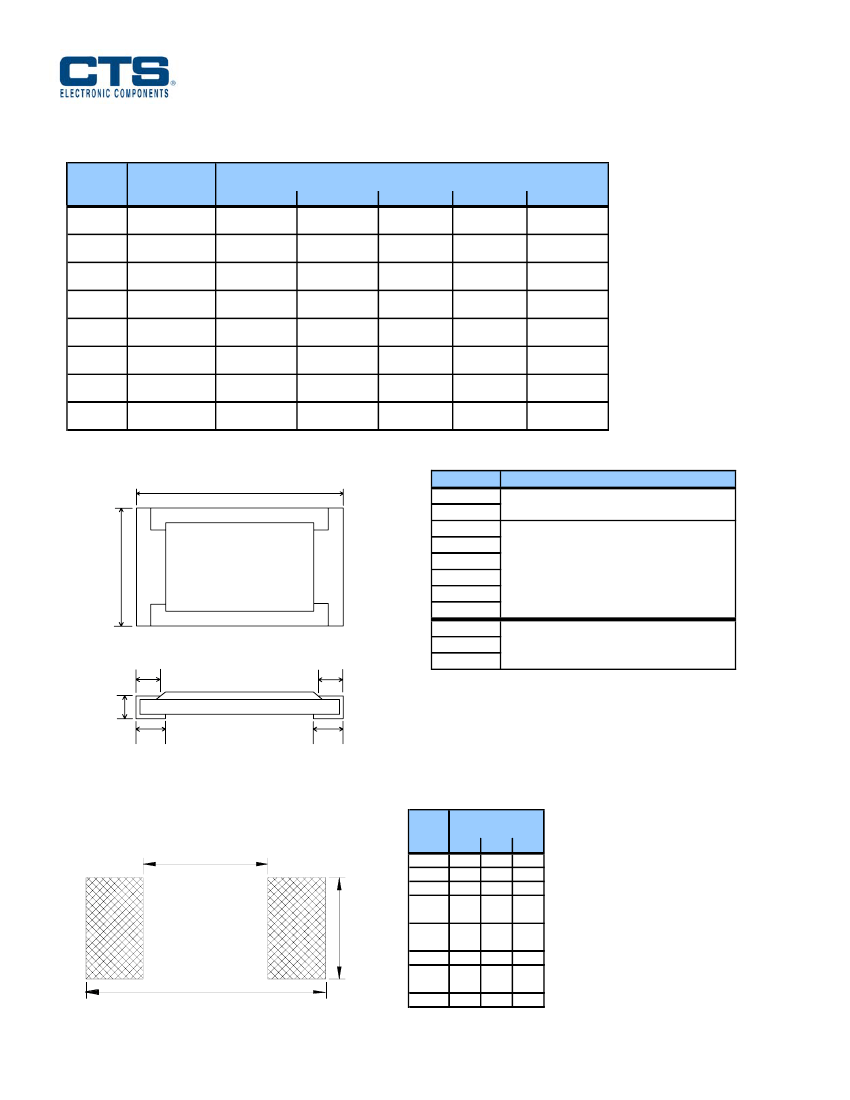

Current Sensing Resistors – Thick Film

FEATURES

•

Very Low Resistance

•

Suitable for Current Limiting, Current Detection, Motor Control,

Power Supply and Hard Disk Drives

•

High Precision and Excellent Accuracy for Current Detection

•

Good Electrical Characteristics

•

Surface Mount Package

•

Nickel Barrier Solder-Coated Pads [e3]

•

Reflow capable per JEDEC J-STD-020, 260°C maximum

•

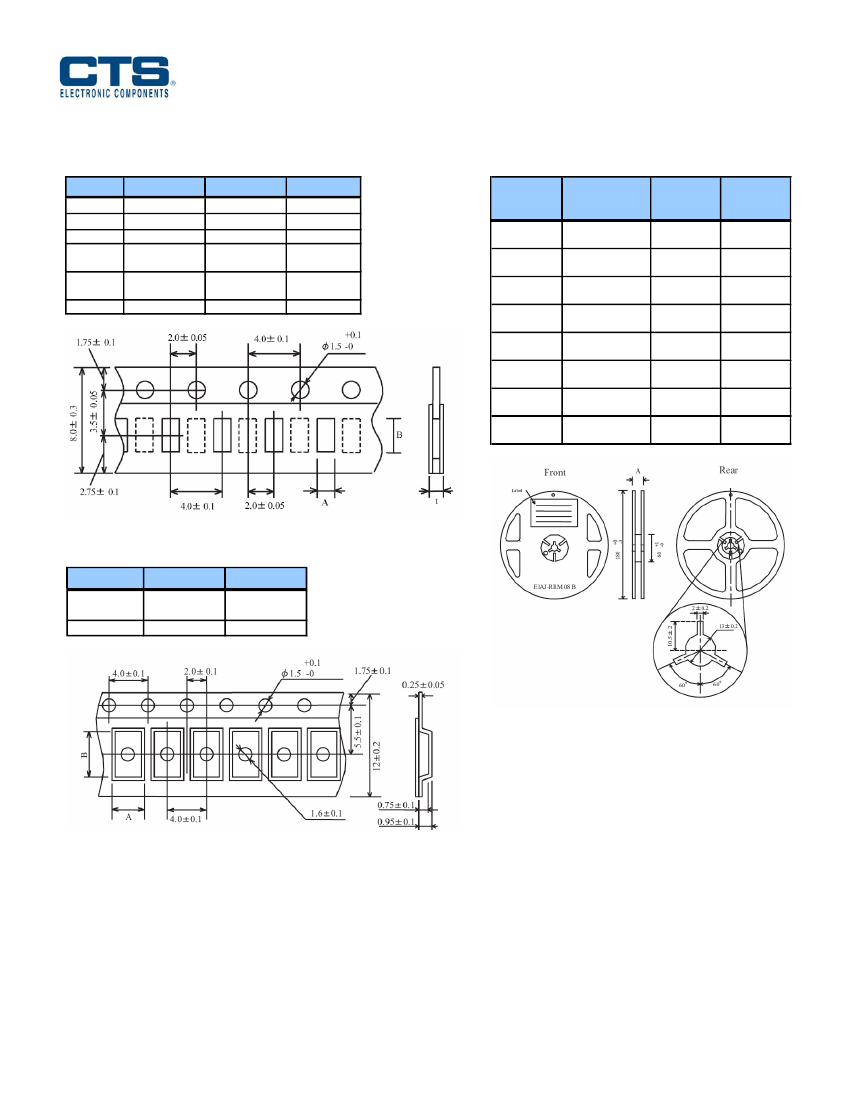

Tape and Reel Packaging

•

RoHS Compliant in Accordance with EU Directive 2005/95/EC

- Lead-Free Termination Finish

- Exemption 5 for Pb in glass material and resistor elements

Series 73Lx & 73Ex

ORDERING INFORMATION

TYPE

L = 3-Digit Resistor Code

E = 4-Digit Resistor Code

PACKAGE CODE

0201

0402

0603

0805

1206

1210

2010

2512

RESISTOR CODE

3 or 4-Digit Resistor Codes

Type L = 3-Digit Code

Type E = 4-Digit Code

"R" indicates decimal point.

Ex.

R47 = 0.47 Ohms

R020 = 0.020 Ohms

Notes:

1. No dashes or spaces to appear in part number.

2. Example Part Numbers:

73L4R10J [1206 pkg., 0.10 Ohms, ±5%]

73L3R51F [0805 pkg., 0.51 Ohms, ±1%]

73E6R056J [2010 pkg., 0.056 Ohms, ±5%]

73E4R068F [1206 pkg., 0.068 Ohms, ±1%

TOLERANCE

J = ±5%

G = ±2%

F = ±1%

Not all performance combinations and resistor values may be available.

Contact your local CTS Representative or CTS Customer Service for availability.

Document No. 008-0337-0

Page 1 - 4

Rev. A

www.ctscorp.com
