KD1084AD2M18 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> KD1084AD2M18

KD1084AD2M18: Description5A LOW DROP POSITIVE VOLTAGE REGULATOR ADJUSTABLE AND FIXED; CategoryPower/power management The power supply circuit; File Size233KB，18 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric View All

KD1084AD2M18 Overview

5A LOW DROP POSITIVE VOLTAGE REGULATOR ADJUSTABLE AND FIXED

KD1084AD2M18 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	STMicroelectronics
Parts packaging code	D2PAK
package instruction	D2PAK/A-3
Contacts	3
Reach Compliance Code	compli
ECCN code	EAR99
Adjustability	FIXED
Maximum drop-back voltage 1	1.5 V
Nominal dropback voltage 1	1.3 V
Maximum absolute input voltage	12 V
Maximum input voltage	10 V
Minimum input voltage	3.4 V
JESD-30 code	R-PSSO-G3
length	10.2 mm
Maximum grid adjustment rate	0.006%
Maximum load regulation	0.02%
Number of functions	1
Output times	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Operating temperatureTJ-Mi	-40 °C
Maximum output current 1	5 A
Maximum output voltage 1	1.836 V
Minimum output voltage 1	1.764 V
Nominal output voltage 1	1.8 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-263
Encapsulate equivalent code	SMSIP3H,.55TB
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	4.6 mm
surface mount	YES
technology	BIPOLAR
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum voltage tolerance	2%
width	9.15 mm

Preview

Download Datasheet

View All

KD1084

SERIES

5A LOW DROP POSITIVE VOLTAGE

REGULATOR ADJUSTABLE AND FIXED

TYPICAL DROPOUT 1.3V (AT 5A)

THREE TERMINAL ADJUSTABLE OR FIXED

OUTPUT VOLTAGE 1.5V, 1.8V, 2.5V, 2.85V,

3.3V, 3.6V, 5V.

GUARANTEED OUTPUT CURRENT UP TO

OUPUT TOLERANCE

±1%

AT 25°C AND

±2%

IN FULL TEMPERATURE RANGE FOR

THE "A" VERSION

OUPUT TOLERANCE

±2%

AT 25°C AND

±3%

IN FULL TEMPERATURE RANGE

INTERNAL POWER AND THERMAL LIMIT

WIDE OPERATING TEMPERATURE RANGE

-40°C TO 125°C

PACKAGE AVAILABLE : TO-220, D

PAK,

PAK/A, DPAK

PINOUT COMPATIBILITY WITH STANDARD

ADJUSTABLE VREG

PAK

TO-220

DPAK

PAK/A

DESCRIPTION

The KD1084 is a LOW DROP Voltage Regulator

able to provide up to 5A of Output Current.

Dropout is guaranteed at a maximum of 1.5V at

the maximum output current, decreasing at lower

loads. The KD1084 is pin to pin compatible with

the older 3-terminal adjustable regulators, but has

better performances in term of drop and output

tolerance .

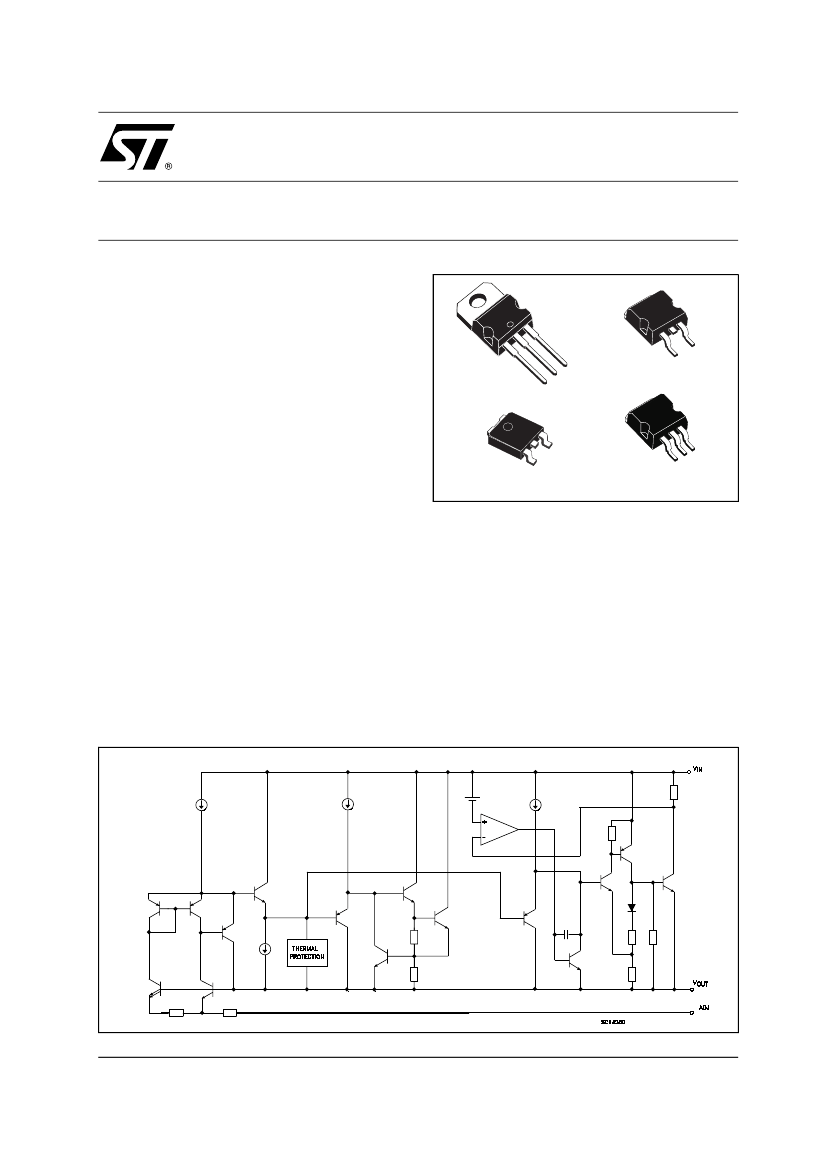

SCHEMATIC DIAGRAM

A 2.85V output version is suitable for SCSI-2

active termination. Unlike PNP regulators, where

a part of the output current is wasted as quiescent

current, the KD1084 quiescent current flows into

the load, so increase efficiency. Only a 10µF

minimum capacitor is need for stability.

The devices are supplied in TO-220, D

PAK,

PAK/A and DPAK. On chip trimming allows the

regulator to reach a very tight output voltage

tolerance, within ±1% at 25°C for "A" version and

±2% at 25°C for standard version.

May 2002

1/18
