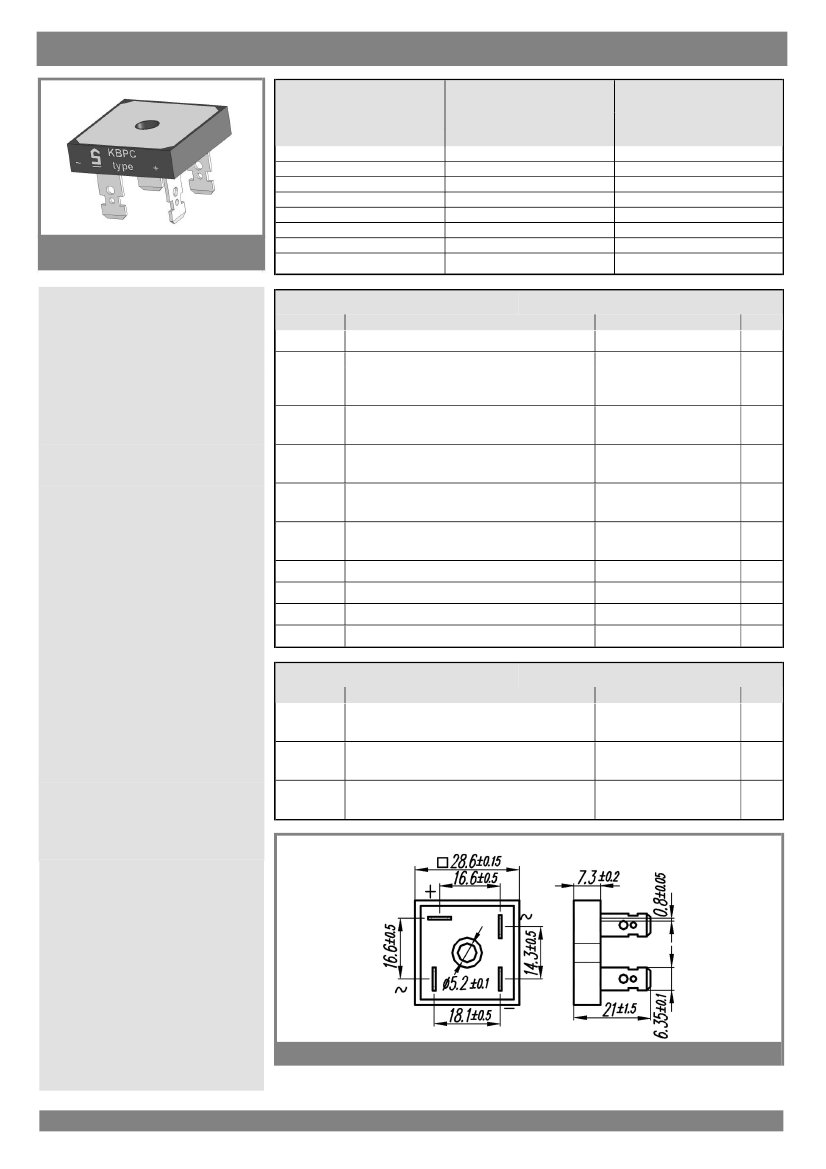

Silicon-Bridge Rectifiers

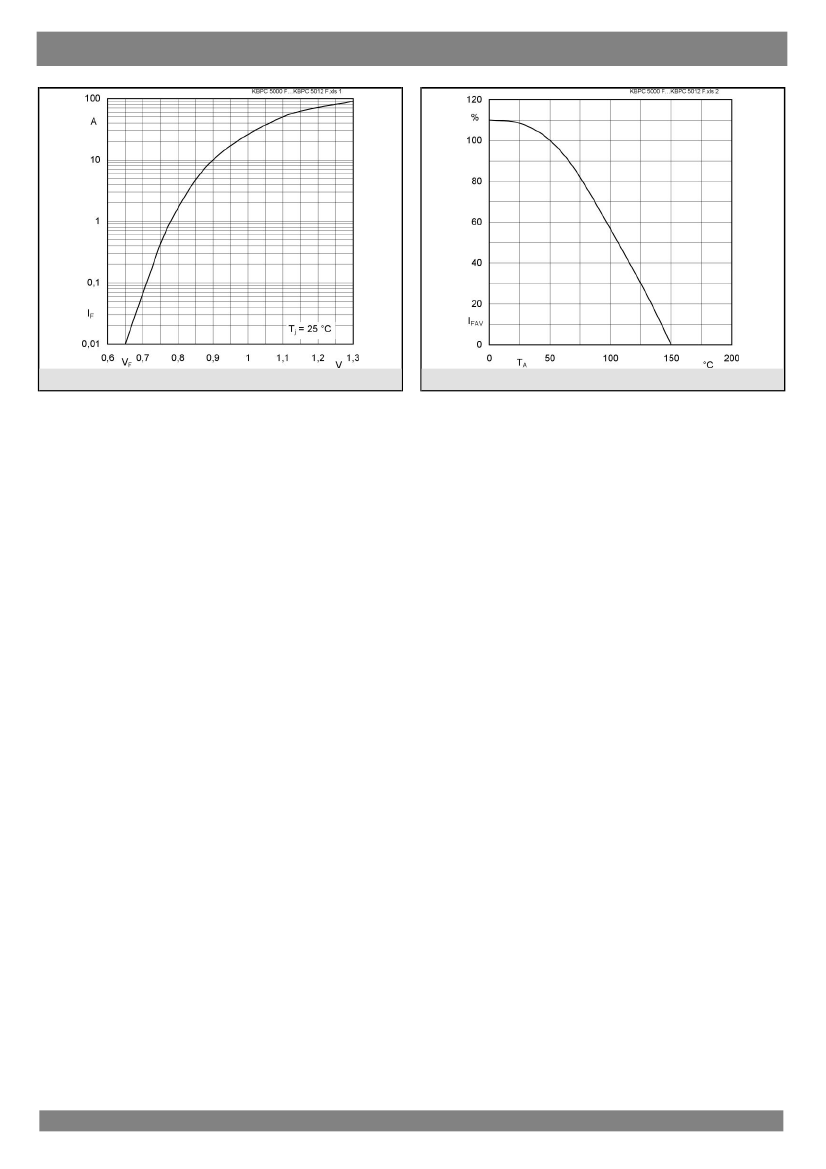

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | SEMIKRON |
| package instruction | S-PUFM-D4 |
| Contacts | 4 |
| Reach Compliance Code | compliant |
| Other features | UL RECOGNIZED |
| Shell connection | ISOLATED |
| Configuration | BRIDGE, 4 ELEMENTS |
| Diode component materials | SILICON |
| Diode type | BRIDGE RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.1 V |
| JESD-30 code | S-PUFM-D4 |
| JESD-609 code | e2 |
| Maximum non-repetitive peak forward current | 450 A |
| Number of components | 4 |
| Phase | 1 |
| Number of terminals | 4 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -50 °C |
| Maximum output current | 50 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | SQUARE |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 600 V |
| surface mount | NO |
| Terminal surface | Tin/Silver (Sn/Ag) |
| Terminal form | SOLDER LUG |
| Terminal location | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Base Number Matches | 1 |
| KBPC5006F | KBPC5001F | KBPC5000F | KBPC5004F | KBPC5002F | KBPC5012F | KBPC5010F | KBPC5008F | |
|---|---|---|---|---|---|---|---|---|
| Description | Silicon-Bridge Rectifiers | Silicon-Bridge Rectifiers | Silicon-Bridge Rectifiers | Silicon-Bridge Rectifiers | Silicon-Bridge Rectifiers | Silicon-Bridge Rectifiers | Silicon-Bridge Rectifiers | Silicon-Bridge Rectifiers |
| Is it lead-free? | Lead free | - | Lead free | - | - | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | - | conform to | - | - | conform to | conform to | conform to |
| package instruction | S-PUFM-D4 | - | S-PUFM-D4 | - | - | S-PUFM-D4 | S-PUFM-D4 | S-PUFM-D4 |
| Contacts | 4 | - | 4 | - | - | 4 | 4 | 4 |
| Reach Compliance Code | compliant | - | compli | - | - | compli | compli | compli |
| Other features | UL RECOGNIZED | - | UL RECOGNIZED | - | - | UL RECOGNIZED | UL RECOGNIZED | UL RECOGNIZED |
| Shell connection | ISOLATED | - | ISOLATED | - | - | ISOLATED | ISOLATED | ISOLATED |
| Configuration | BRIDGE, 4 ELEMENTS | - | BRIDGE, 4 ELEMENTS | - | - | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS |
| Diode component materials | SILICON | - | SILICON | - | - | SILICON | SILICON | SILICON |
| Diode type | BRIDGE RECTIFIER DIODE | - | BRIDGE RECTIFIER DIODE | - | - | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.1 V | - | 1.1 V | - | - | 1.1 V | 1.1 V | 1.1 V |
| JESD-30 code | S-PUFM-D4 | - | S-PUFM-D4 | - | - | S-PUFM-D4 | S-PUFM-D4 | S-PUFM-D4 |
| JESD-609 code | e2 | - | e2 | - | - | e2 | e2 | e2 |
| Maximum non-repetitive peak forward current | 450 A | - | 450 A | - | - | 450 A | 450 A | 450 A |
| Number of components | 4 | - | 4 | - | - | 4 | 4 | 4 |
| Phase | 1 | - | 1 | - | - | 1 | 1 | 1 |
| Number of terminals | 4 | - | 4 | - | - | 4 | 4 | 4 |
| Maximum operating temperature | 150 °C | - | 150 °C | - | - | 150 °C | 150 °C | 150 °C |
| Minimum operating temperature | -50 °C | - | -50 °C | - | - | -50 °C | -50 °C | -50 °C |
| Maximum output current | 50 A | - | 50 A | - | - | 50 A | 50 A | 50 A |
| Package body material | PLASTIC/EPOXY | - | PLASTIC/EPOXY | - | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | SQUARE | - | SQUARE | - | - | SQUARE | SQUARE | SQUARE |
| Package form | FLANGE MOUNT | - | FLANGE MOUNT | - | - | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | - | NOT SPECIFIED | - | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | - | Not Qualified | - | - | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 600 V | - | 50 V | - | - | 1200 V | 1000 V | 800 V |
| surface mount | NO | - | NO | - | - | NO | NO | NO |
| Terminal surface | Tin/Silver (Sn/Ag) | - | Tin/Silver (Sn/Ag) | - | - | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) |
| Terminal form | SOLDER LUG | - | SOLDER LUG | - | - | SOLDER LUG | SOLDER LUG | SOLDER LUG |
| Terminal location | UPPER | - | UPPER | - | - | UPPER | UPPER | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED | - | NOT SPECIFIED | - | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
