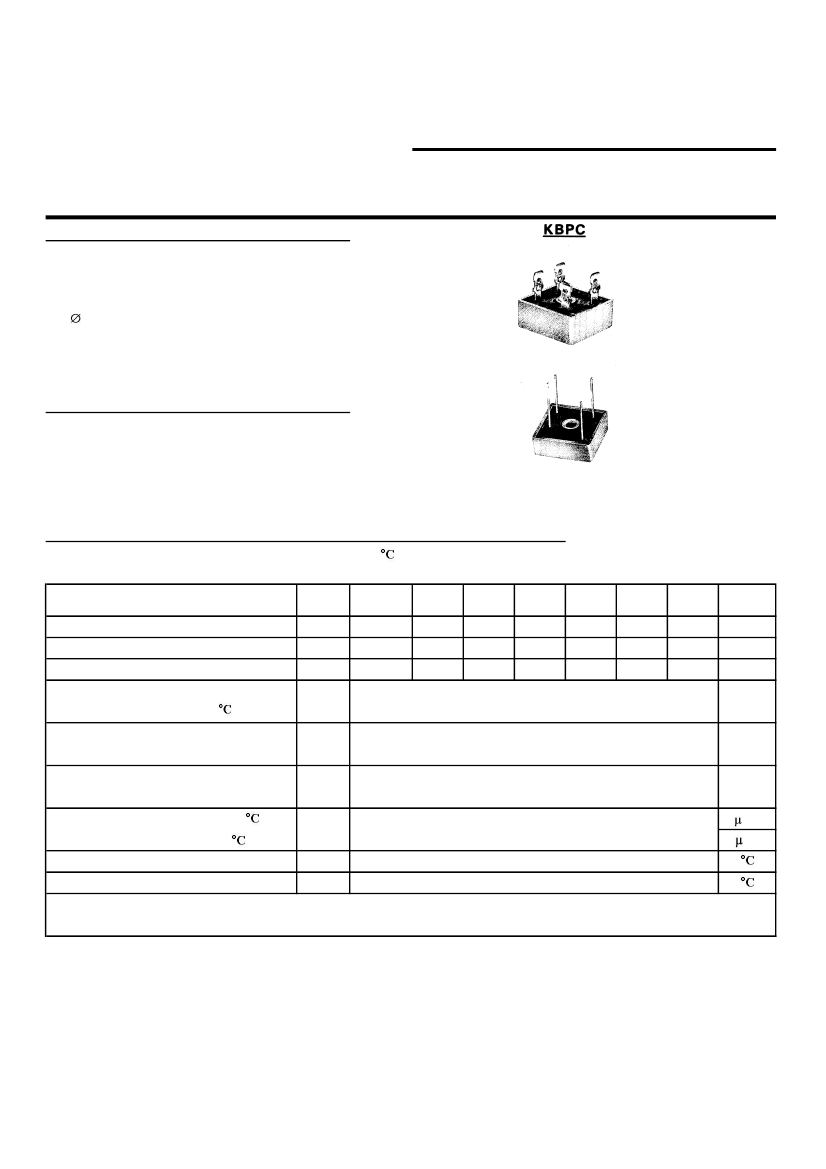

FEATURES
Surge overload rating: 400A peak
High case dielectric strength
1/4" Universal faston terminal
and
40ml lead--wire available
KBPC35005 THRU KBPC3510
SINGLE PHASE SILICON
BRIDGE RECTIFIER
Voltage: 50 TO 1000V CURRENT:35A
MECHANICAL DATA
.
Polarity:
Polarity symbol marked on body
.
Mounting
: Hole thru #8 screw
.
Case:
metal or plastic
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Single-phase, half-wave, 60HZ, resistive or inductive load rating at 25
for capacitive load, derate current by 20%)
SYMBOL
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC blocking Voltage
Maximum Average Forward Rectified
current 3/8" lead length at Ta=55
Peak Forward Surge Current 8.3ms single
half sine-wave superimposed on rated load
Maximum Instantaneous Forward Voltage at
forward current 17.5A DC
Maximum DC Reverse Voltage Ta=25
at rated DC blocking voltage Ta=100
Operating Temperature Range
Storage and operation Junction Temperature
Ir
Tj
Tstg
Vf
1.1
10.0
500
-55 to +150
-55 to +150
V
A
A
Ifsm
400
A
If(av)
35
Vrrm
Vrms
Vdc
KBPC
35005
50
35
50
KBPC
3501
100
70
100
KBPC
3502
200
140
200
KBPC
3504
400
280
400
KBPC
3506
600
420
600
KBPC
3508
800
560
800
KBPC
3510
1000
700
1000
, unless otherwise stated,
units
v
v
v
A
A
Copyright @ 2000 SHANGHAI CHENYI ELECTRONICS CO.,LTD
Page 1 of 2
CE
CHENYI ELECTRONICS
KBPC35005 THRU KBPC3510
SINGLE PHASE SILICON
BRIDGE RECTIFIER
Voltage: 50 TO 1000V CURRENT:35A

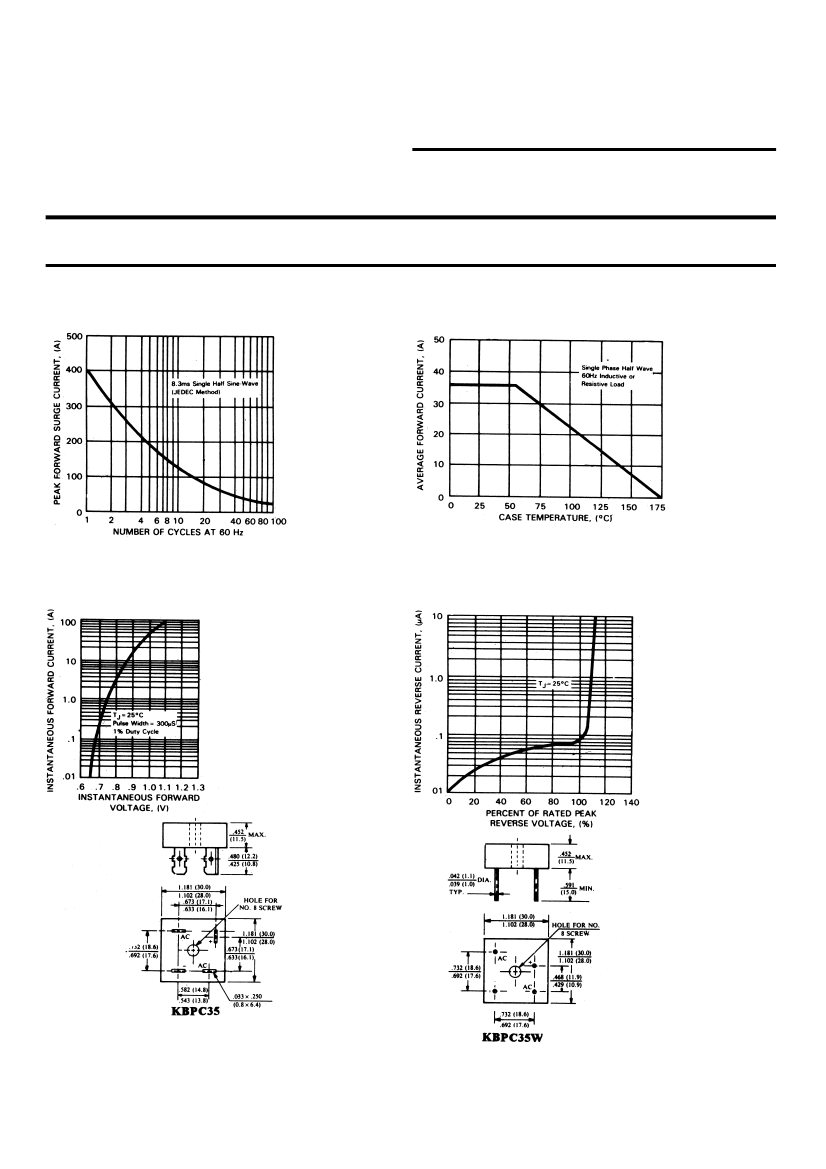

RATINGS AND CHARACTERISTIC CURVES KBPC35005 THRU KBPC3510
FIG.1-MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
FIG.2-TYPICAL FORWARD CURRENT
DERATING CURVE
FIG.3-TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
FIG.4-TYPICAL REVERSE CHARACTERISTICS
Copyright @ 2000 SHANGHAI CHENYI ELECTRONICS CO.,LTD
Page 2 of 2
