CIMR-F7Z
Varispeed F7
The industrial workhorse
•
•
•
•
•
•
•
•
•
•
•
Flux vector control with or without PG
Silent operation. No current de-rating in silent mode.
Torque control
PID control
Powerful application oriented functionality
Stand still autotuning
High slip braking
Energy saving function.
Standard LCD operator
Standard RS485 communications - Modbus
Fieldbus options: DeviceNet, PROFIBUS,
CANOpen
• Embedded OMRON PLC functionality with
PLC option card.
• PC configuration tool: CX-Drive.
• CE, UL, and cUL marking
Customized software
*
• The inverter software can be customized to meet
specific application. Examples:
• Electronic line shaft (S-8169)
• Crane software (S-7071)
* For detailed information please see CASE software section.
Ratings
• 200 V Class three-phase 0.4 to 110 kW
• 400 V Class three-phase 0.4 to 300 kW

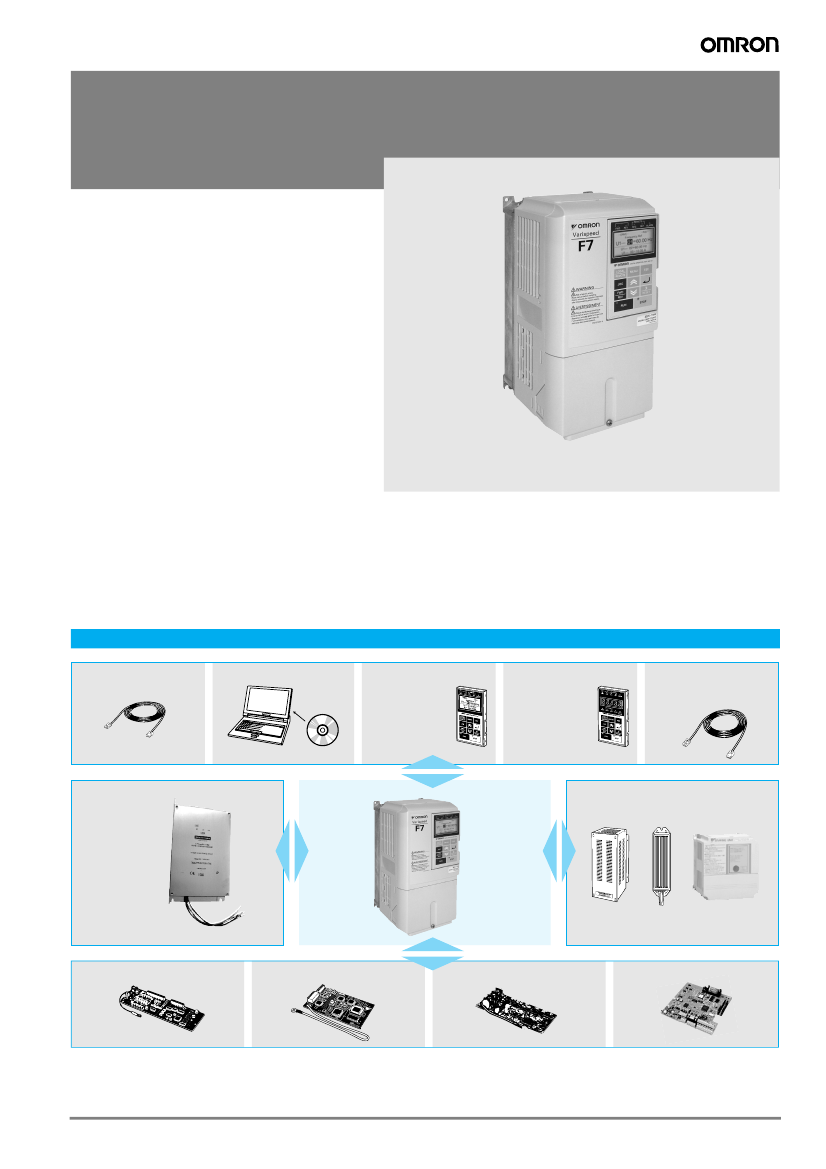

System configuration
3G3IV-PCN329-E
Inverter to PC cable
CX-Drive
JVOP-160 OY
Digital operator
(LCD display)
JVOP-161-OY
Digital operator
(LED display)
3G3IV-PCN126/326
Digital operator
extension cable
Line filter
Braking accessories
Varispeed
F7
Feedback speed option card
Communication option cards
JP
3
Reference option card
PLC option card
T1
3 U6
C3
U7
R11
C26
U1
C28
R28
R1
R120
R8
13
U8
0
R6
R5
C2
R3
1
R3
R3 6
5
R70
R1
R2
R
U1
+
+
U9
0
C1
JP
1
C3
Y1
+
R7
TR
U1
PE
C16
R131
U14
C35
C3
C22
R21
R5
R25
R15
R15
R15
+
2
TR
C24
U11
C17
R14
1
R52
C2
R75
R114
2
11
R1
R1
1
R1
10
07
R55
C5
R20
R30
9
+
R78
R54
R56
R57
R40
R39
R6
D6
R9
R99
U12
5
U15
R1
R1 0
0
R1
05
C11
R102
C12
JP5
C13
JP6
R95
RT4
U13
R94
R97
C20
R96
U17
COD
E No.
SI-N
C10
736
00-C
021
0
Varispeed F7
269
Specifications
Type designation
CIMR – F7 Z 4 0P4 0
Inverter
F7 series
Specifications
Z: European standard
specifications
Voltage
2: 200 V class
4: 400 V class
Protective enclosure
0: Open chassis type (IP00)
1: Enclosed type (IP20 / NEMA1)
Max. applicable motor output
0P4: 0.4 kW
022: 22 kW
300: 300 kW
[
200 V class
Model CIMR-F7Zo
Max. applicable motor
output
1
Output
characteristics
kW
0.55
1.2
3.2
0.75
1.6
4.1
1.5
2.7
7.0
2.2
3.7
9.6
3.7
5.7
15
5.5
8.8
23
7.5
12
31
~
~
"P" indicates a decimal
point
]
2022
22
32
85
2030
30
44
115
2037
37
55
145
2045
45
69
180
2055
55
82
215
2075
75
110
283
2090
90
130
346
2110
110
160
415
2
20P4 20P7 21P5 22P2 23P7 25P5 27P5 2011
11
17
45
2015
15
22
58
2018
18.5
27
71
Inverter capacity kVA
Rated current
Max. voltage
Max. output frequency
Rated input voltage and
frequency
Allowable voltage
fluctuation
Allowable frequency
fluctuation
A
3-phase, 200/208/220/230/240 V (proportional to input voltage)
Heavy duty (low carrier, constant torque applications): 150 Hz max
Normal duty 1 or 2 (high/reduced carrier, variable torque applications): 400 Hz max
3-phase 200/208/220/230/240 V, 50/60 Hz
3
+10%, -15%
±5%
Option
Not available
Provided
Available
4
Power
supply
Harmonic
wave
prevention
1.
2.
3.
4.
DC reactor
12-pulse input
Our standard 4-pole motors are used for max. applicable motor output. Choose the inverter model whose rated current is allowable within the motor rated
current range.
322 A in case of heavy duty mode
When using the inverter of 200 V class 37 kW or more with a cooling fan of three-phase 230 V 50 Hz or 240 V 50/60 Hz power supply, a transformer for
the cooling fan is required.
A 3-wired transformer is required at 12-pulse input.
400 V class
Model CIMR-F7Zo
Max. applicable motor
output
1
Output
characteristics
40P4 40P7 41P5 42P2 43P7 44P0 45P5 47P5 4011 4015 4018 4022 4030 4037 4045 4055 4075 4090 4110 4132 4160 4185 4220 4300
kW
0.55 0.75 1.5
1.6
2.1
2.8
3.7
2.2
4.0
5.3
3.7
5.8
7.6
4.0
6.6
5.5
9.5
7.5
13
11
18
24
15 18.5 22
24
31
30
39
34
45
30
46
60
37
57
75
45
69
91
55
85
75
90
110 132 160 185 220 300
Inverter capacity kVA
1.4
Rated current
Max. voltage
Max. output frequency
Rated input voltage and
frequency
Allowable voltage
fluctuation
Allowable frequency
fluctuation
A
1.8
110 140 160 200 230 280 390 510
8.7 12.5 17
112 150 180 216 260 304 370 506
2
675
3
3-phase, 380/400/415/440/460/480 V (proportional to input voltage)
Heavy duty (low carrier, constant torque applications): 150 Hz max
Normal duty 1 or 2 (high/reduced carrier, variable torque applications): 400 Hz max
3-phase 380/400/415/440/460/480 V, 50/60 Hz
+10%, -15%
±5%
Option
Not available
Provided
Available
4
Power
supply
Harmonic
wave
prevention
1.
2.
3.
4.
DC reactor
12-Pulse input
Our standard 4-pole motors are used for max. applicable motor output. Choose the inverter model whose rated current is allowable within the motor rated
current range.
405 A in case of heavy duty mode
540 A in case of heavy duty mode
A 3-wired transformer is required at 12-pulse input.
270
Frequency inverters
Common specifications
Enclosures
Model CIMR-F7Z
200 V
class
Enclosed type - IP20)
Open chassis type -IP00
Model CIMR-F7Z
400 V
class
Enclosed type - IP20
Open chassis type - IP00
20P4 20P7 21P5 22P2 23P7 25P5 27P5 2011 2015 2018 2022 2030 2037 2045 2055 2075 2090 2110
Available as standard
Available by removing the upper and lower cover of
enclosed type
Available as standard
Available by removing the upper and lower cover of
enclosed type
Available for option
Available as standard
N/A
40P4 40P7 41P5 42P2 43P7 45P5 47P5 4011 4015 4018 4022 4030 4037 4045 4055 4075 4090 4110 4132 4160 4185 4220 4300
Available for option
Available as standard
N/A
Common specifications
Model number CIMR-F7Z
Control method
Torque characteristics
Specification
Sine wave PWM
Closed loop vector control, open loop vector control, V/f control, V/f with PG control
Heavy duty (low carrier, constant torque applications): 2 kHz carrier frequency, 150% overload for 1 minute,
higher carrier frequency possible with current derating.
Normal duty 1 (high carrier, variable torque applications): maximum carrier frequency, depending on inverter capacity,
120% overload for 1 minute.
Normal duty 2 (variable torque applications): carrier frequency reduced, continuous overload capability increased
1:40 (V/f control)
1:100 (open loop vector control)
1:1000 (closed loop vector control)
± 3% (V/f control)
± 0.03% (V/f control with PG)
± 0.2% (open loop vector control)
± 0.02% (closed loop vector control)
(25
°C
± 10
°C)
5 Hz (control without PG)
30 Hz (control with PG)
Provided (4 quadrant steps can be changed by constant settings.) (Vector control)
± 5%
0.01 to 150 Hz (Heavy Duty), 0.01 to 400 Hz (Normal Duty 1 or 2)
Digital references: ± 0.01% (-10
°C
to +40
°C)
Analog references: ± 0.1% (25°C ±10°C)
Digital references: 0.01 Hz
Analog references: 0.025/50 Hz (11 bits plus sign)
Output frequency resolution
Overload capacity and
maximum current
Frequency setting signal
Accel/decel time
Braking torque
Main control functions
0.01 Hz
Heavy duty (low carrier, constant torque applications): 150% of rated output current for 1 minute
Normal duty 1 or 2 (high/reduced carrier, variable torque applications): 120% of rated output current for 1 minute
0 to +10V, -10 to +10 V, 4 to 20 mA, pulse train
0.01 to 6000.0 s (4 selectable combinations of independent acceleration and deceleration time settings)
Approximately 20% (approximately 125% with braking resistor option, braking transistor built into inverters of 18.5 kW or less)
Restarting after momentary power loss, speed search, overtorque/undertorque detection, torque limits, 17-speed control
(maximum), 4 acceleration and deceleration times, S-curve acceleration/deceleration, 3-wire control, auto-tuning
(rotational or stationary), dwell function, cooling fan ON/OFF control, slip compensation, torque compensation,
auto-restart after fault, jump frequencies, upper and lower limits for frequency references, DC braking for starting and stopping,
high-slip braking, advanced PID control, energy-saving control, MEMOBUS communications (RS-485/422, 19.2 kbps maximum),
2 motor parameter sets, fault reset and parameter copy function.
Protection by electronic thermal overload relay.
Stops at approx. 200% of rated output current.
Stops for fuse blown.
Heavy duty (low carrier, constant torque applications): 150% of rated output current for 1 minute
Normal duty 1 (high carrier, variable torque applications): 120% of rated output current for 1 minute
Normal duty 2 (high carrier, variable torque applications): 120% of rated output current for 1 minute,
increased continuous output current.
200 class inverter: stops when main-circuit DC voltage is above 410 V.
400 class inverter: stops when main-circuit DC voltage is above 820 V.
200 class inverter: stops when main-circuit DC voltage is below 190 V.
400 class inverter: stops when main-circuit DC voltage is below 380 V.
By selecting the momentary power loss method, operation can be continued if power is restored within 2 s.
Protection by thermistor.
Stall prevention during acceleration, deceleration and running independently.
Protection by electronic circuits.
Illuminates when the main circuit DC voltage is approx. 10 VDC or more.
-10
°C
to 40
°C
(enclosed wall-mounted type)
-10
°C
to 45
°C
(open chassis type)
95% max. (with no condensation)
- 20
°C
to + 60
°C
(short-term temperature during transportation)
Indoor (no corrosive gas, dust, etc.)
1000 m max.
10 to 20 Hz, 9.8 m/s
2
max.; 20 to 50 Hz, 2 m/s
2
max
Speed control range
Speed control accuracy
Control characteristics
Protective functions
Environment
Speed control response
Torque limits
Torque accuracy
Frequency range
Frequency accuracy
(temperature characteristics)
Frequency setting resolution
Motor protection
Instantaneous overcurrent
protection
Fuse blown protection
Overload protection
Overvoltage protection
Undervoltage protection
Momentary power loss ride
through
Cooling fin overheating
Stall prevention
Grounding protection
Charge indicator
Ambient operating temperature
Ambient operating humidity
Storage temperature
Application site
Altitude
Vibration
