Last Update:
6/12/12

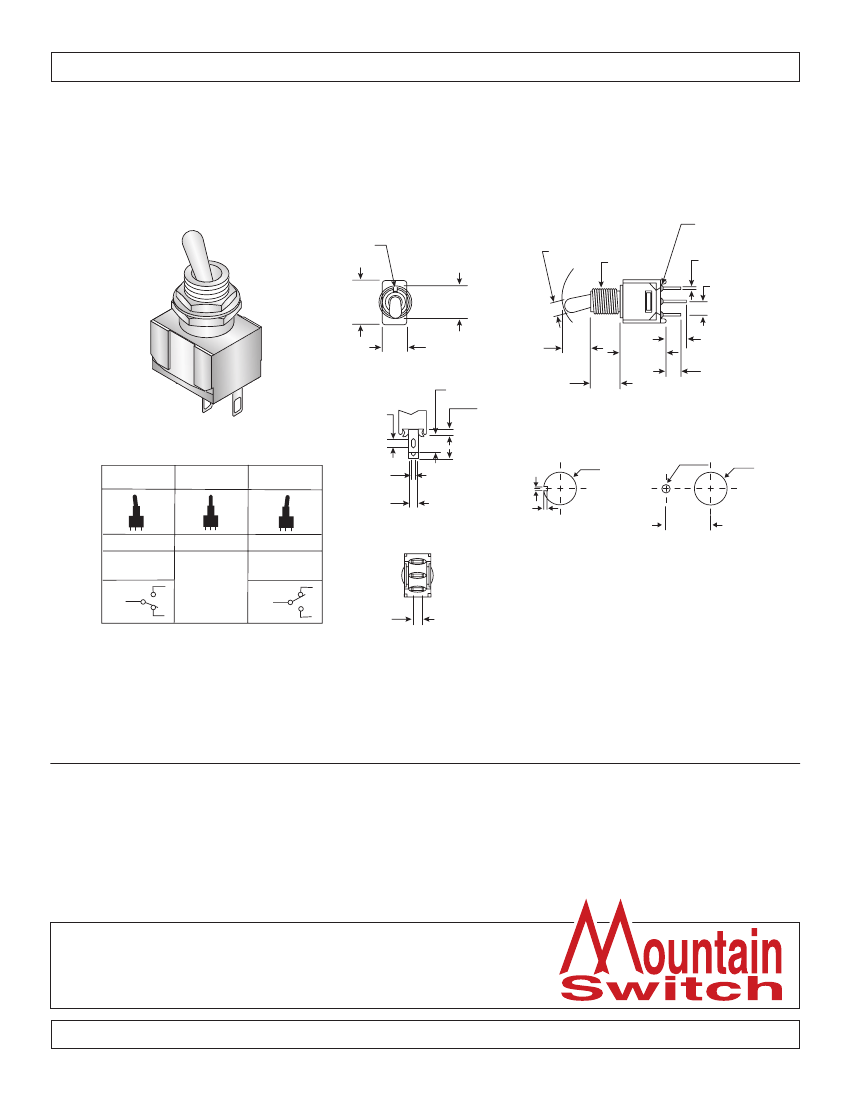

Dimensions: mm (in.)
Ref. #:
MS-100792
Keyway
ø2.54
(ø.10)
ø6.10
(ø2.40)
5.08
(.20)
2.79
(.11)
5.33
(.21)
5.59
(.22)
Epoxy
Seal
10-48UNS
6
5
4
8.64
(.34)
.51
(.02)
2.54
(.10)
4.06
(.16)
2.79
(.11)
8.13
(.32)
1.53
(.06)
1.02
(.04)
POS.1
POS.2
POS.3
.76
(.03)
1.52
(.06)
4.06
(.16)
.58
(.023)
ø4.95
(ø.195)
ø.094
(ø2.38)
ø4.95
(ø.195)
ON
2-3
1
2 Comm.
3
OFF
OPEN
ON
2-1
1
2 Comm.
3
Solder Lug
3
2
1
Without locking
ring.
.25
(.01)
.24
(6.10)
With standard
locking ring.
PANEL MOUNTING
1.52
(.06)
Electrical Specifications:
•
Electrical Life: 30,000 make-and-break cycles at full load
•
Contact Resistance: 20mΩ max. initial @ 2-4VDC 100mA
•
Insulation Resistance: 1,000MΩ min.
•
Dielectric Strength: 1,000 V RMS@ sea level.
•
Rating: 1A / 250 VAC, 3A / 120 VAC or 28 VDC
Mechanical Specifications:
•
Operating Temperature: -30° C to +85° C
Note:
•
RoHS Compliant by Exemption
Materials:
•
Case: Diallyl phthalate (DAP)
•
Acutuator: Brass, chrome plated.
•
Bushing: Brass, nickel plated.
•
Housing: Stainless steel.
•
Terminal/Contact: Brass, silver plated.
•
Switch Support: Brass, tin plated.
Toggle Switch
108-2MS3T2B3M1QE-EVX
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
