TDA04H0JB1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> TDA04H0JB1

TDA04H0JB1: DescriptionSLIDE DIP SWITCH-4SWITCHES, SPST, LATCHED,0.025A, 24VDC, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size242KB，3 Pages; ManufacturerC&K Components; Environmental Compliance

Download Datasheet Parametric View All

TDA04H0JB1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TDA04H0JB1	-	-	View	Buy Now

TDA04H0JB1 Overview

SLIDE DIP SWITCH-4SWITCHES, SPST, LATCHED,0.025A, 24VDC, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT

TDA04H0JB1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1057984630
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
Factory Lead Time	48 weeks
YTEOL	7.9
Actuator material	LIQUID CRYSTAL POLYMER
Actuator type	SLIDE
body width	6.2 mm
body height	2.2 mm
Body length or diameter	6.21 mm
center contact material	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	.025A@24VDC
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	300VAC V
Electrical life	1000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER NICKEL
Shell material	POLYPHENYLENE SULPHIDE
Insulation resistance	100000000 Ω
insulator material	POLYPHENYLENE SULPHIDE
JESD-609 code	e4
Installation features	SURFACE MOUNT-STRAIGHT
Number of positions	4
Number of switching segments	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TUBE
seal	TAPE SEALED
Solderability	MIL-STD
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	SLIDE DIP SWITCH
Terminal surface	GOLD OVER NICKEL
Terminal material	COPPER ALLOY
Termination type	SOLDER

Preview

Download Datasheet

View All

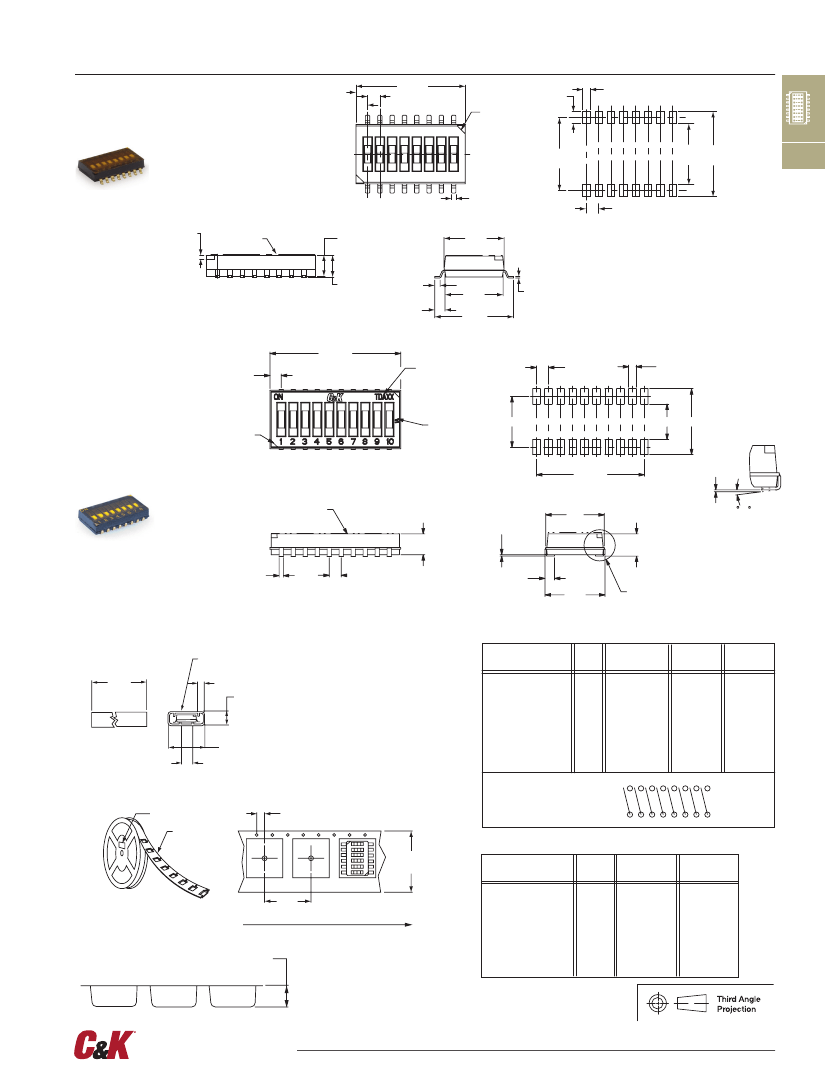

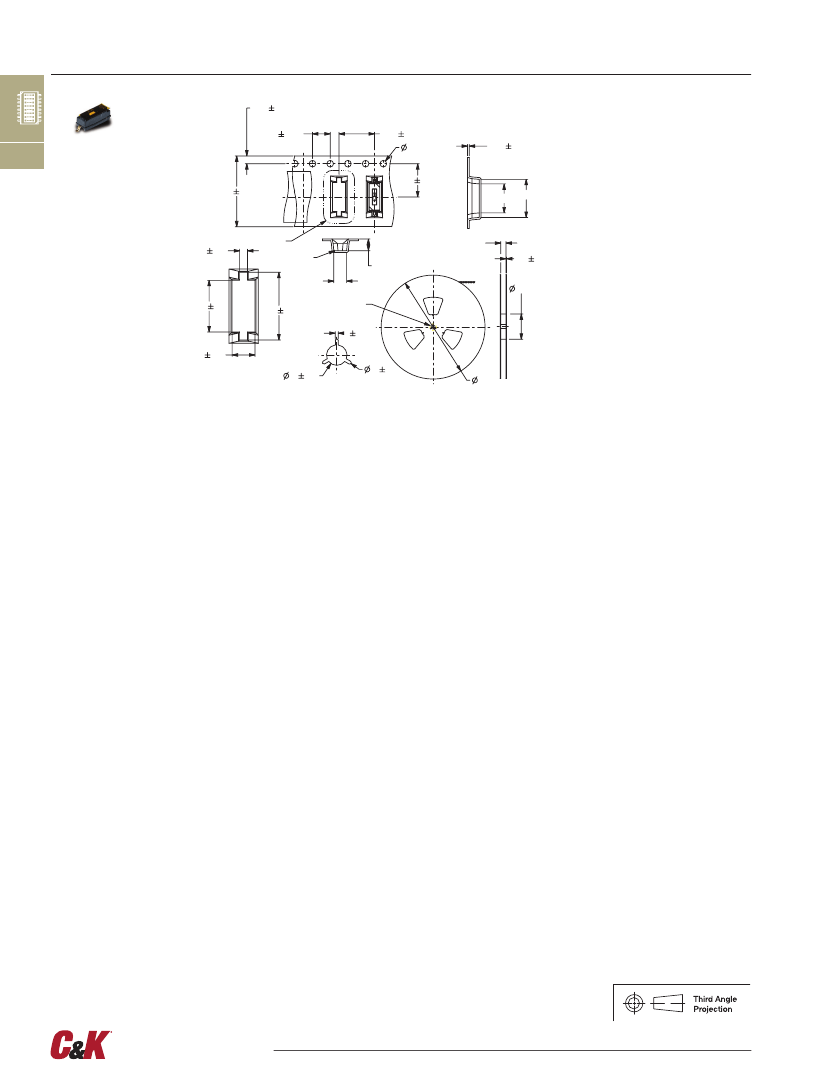

TDA Series

Ultra-miniature Surface Mount Half-pitch DIP Switches

Features/Benefits

•

Bifurcated contact for increased

Typical Applications

•

Hand-held electronic devices

•

Portable computer and

electronic devices

•

Instrumentation and controls

DIP

electrical reliability

•

Process sealed for surface

mount soldering and washable

processing

•

RoHS compliant

Specifications

SWITCH FUNCTION: SPST – 1, 2, 4, 6, 8 & 10 positions.

CONTACT RATING:

24 V DC, 25 mA (switching).

50 V DC, 100 mA (steady state).

MECHANICAL AND ELECTRICAL LIFE: 1,000 cycles.

CONTACT RESISTANCE: 100 mΩ max.

INSULATION RESISTANCE: 100 MΩ @ 100 V DC min.

DIELECTRIC STRENGTH: 300 V AC min.

STORAGE TEMPERATURE: -40°C to 85°C.

OPERATING TEMPERATURE: -40°C to 85°C.

OPERATING FORCE: 4,9N max.

SOLDERABILITY: Per MIL-STD-202F method 208D, or

EIA RS-186E method 9 (1 hour steam aging).

PACKAGING: Switches supplied in rigid dispensing tubes in full

tube quantities only, this may affect order quantity. Numbers

of switches per tube varies with model. Tape and reel packag-

ing quantity varies with model.

Materials

CASE & COVER: PPS (UL94V-0)

ACTUATOR: LCP (UL94V-0).

CONTACTS: Copper alloy, with gold plate over nickel plate.

TERMINALS: Copper alloy, with gold flash over nickel plate.

All terminals are insert molded.

TAPE SEAL: Polyimide.

Note:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Note:

All switches supplied in “OFF” position.

How To Order

The Build-A Switch concept allows you to mix and match options to create the switch you need. Below is a complete

listing of options shown in catalog. To order, simply select desired option from each category and place in the appropriate box.

All switches supplied in “OFF” position.

T D A

Number of

Positions

NEW

TDA01*

TDA02

TDA04

TDA06

TDA08

TDA10

H 0

Flush Actuator

Terminations

Gull wing

J bend

Contact material

Gold

Sealed

Packaging

NONE

Tubes

T/R

* TDA01H0JB1R is not available, TDA01 only offered in tape & reel

Dimensions are shown: mm

Specifications and dimensions subject to change

H–6

www.ckswitches.com
