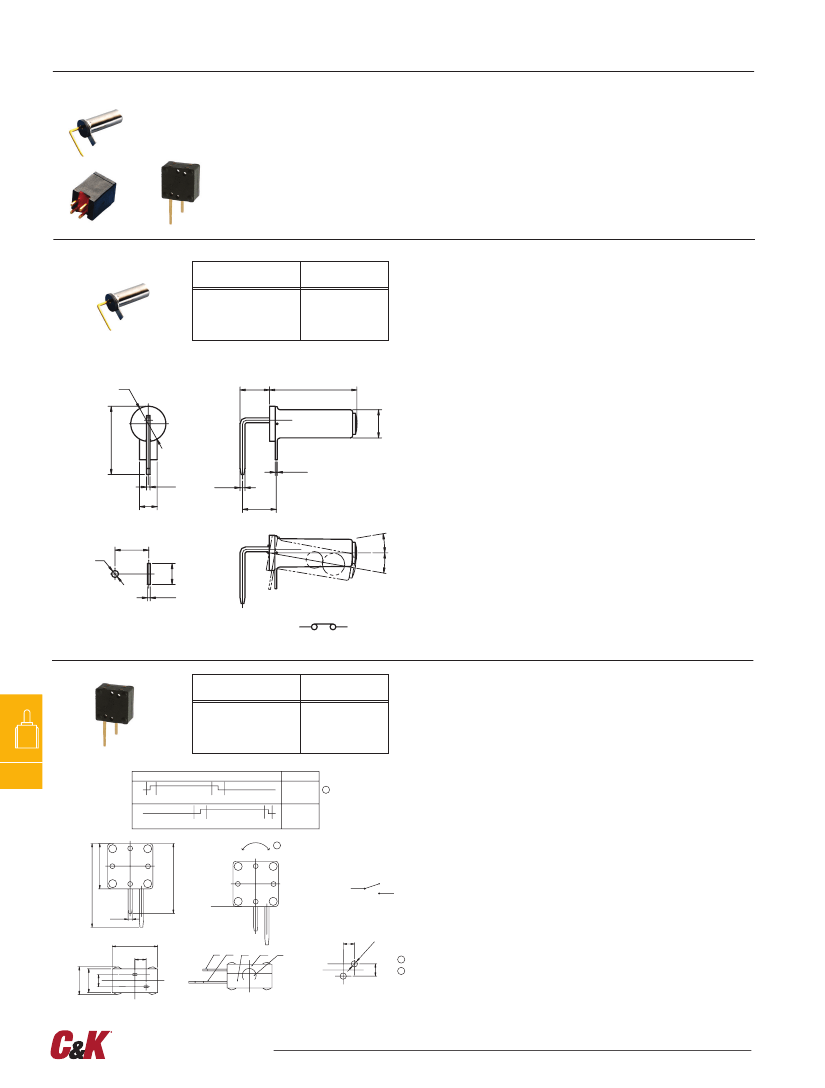

RB Series
Rolling Ball Sensor Switch
Features/Benefits
•
Different angle options to trigger
•
Ultra miniature design
•
Patent awarded
Typical Applications
•
Household goods
•
Electronic toys
•
Consumer electronics including
irons, portable heaters, games,
toys
•
Safety and security controls
Specifications

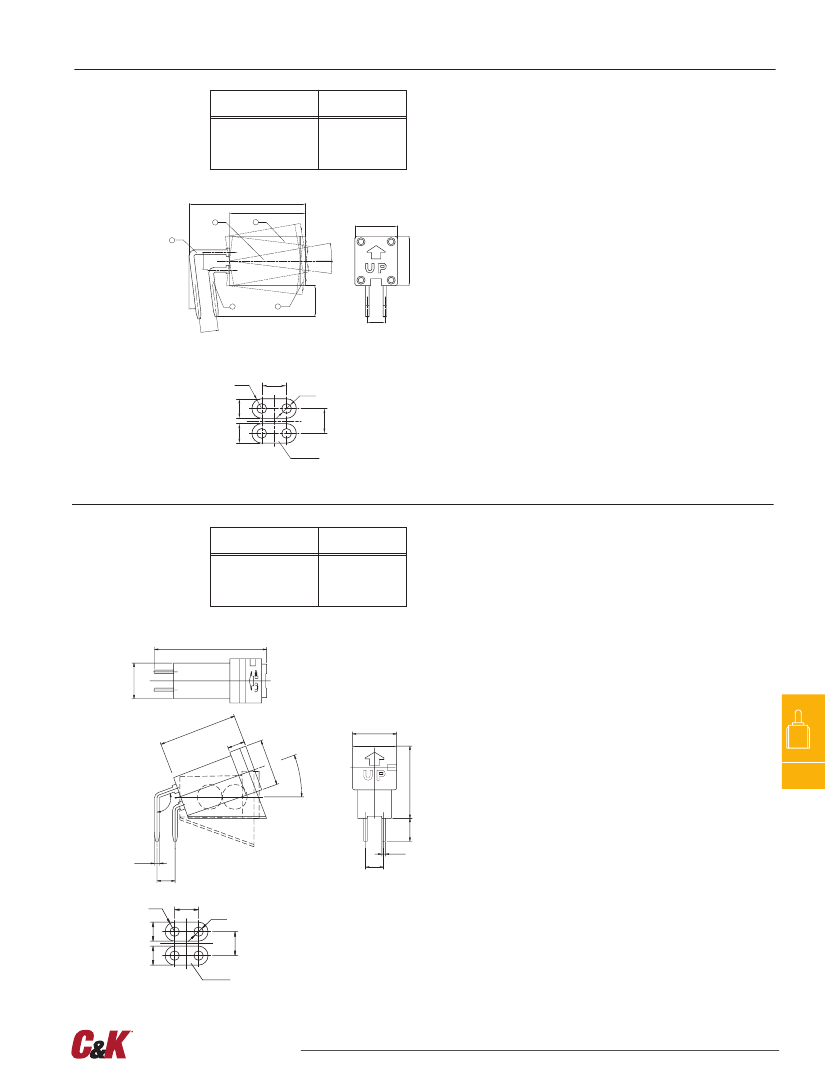

PART NUMBER
PACKAGING
CONTACT ARRANGEMENT: SPST
SENSOR ANGLE: 0˚ to -10˚ scope inside, terminal to
disconnection electric current
MINIMUM VOLTAGE: 1 VDC 10mA (resistive load)
MAXIMUM VOLTAGE: 5 VDC 1mA (resistive load)
OPERATING LIFE: 100,000 cycles
RB-231X2
1,000 pieces
ø5
4.2
12.4
INSULATION RESISTANCE: 1000 M Ω min. @ 100 VDC
DIELECTRIC STRENGTH: 500 V AC (50-60 Hz)
OPERATING TEMPERATURE: –20ºC to +70ºC
ø4
9.7
Materials
0.27
0.5
2.5
0.7
4.8
CLOSE
FRAME: Copper alloy, nickel plated
COVER: PA 46 (UL94V-0).
MOVABLE CONTACT: Copper alloy, nickel plated
TERMINALS: Copper alloy, gold plated
BRASS BALL: Brass, gold plated
ø1
4.8
3
0.4
PCB LAYOUT
OPEN
10°
10°
PART NUMBER
PACKAGING
Specifications
CONTACT ARRANGEMENT: SPST
SENSOR ANGLE: 15˚ to 90˚ scope inside, terminal to
disconnection electric current
MINIMUM VOLTAGE: 1 VDC 10mA (resistive load)
MAXIMUM VOLTAGE: 5 VDC 1mA (resistive load)
RB-220-07 R
500 pieces
E
Detect
OFF
0˚ 2˚ 7˚ 15˚
0˚
OFF
ROTATE ANGLE
ON
200˚
185˚ 215˚
160˚
145˚ 175˚
ON
OFF
360˚ CLOCKWISE
OFF ANTI
353˚
348˚ 358˚ CLOCKWISE
C
CLOCKWISE
P
C
OPERATING LIFE: 20,000 cycles (without load);
100,000 cycles with load
INSULATION RESISTANCE: 10 M Ω min. @ 100 VDC
DIELECTRIC STRENGTH: 100 V AC (50-60Hz)
OPERATING TEMPERATURE: –10ºC to +50ºC
1P-1T
6.50
COMAX
10.00
3
A
ANTICLOCKWISE
3
0˚
A
Materials
HOUSING: PA
COVER: PA
1.60
12.00
TYP.2 0.60
6.50
1.60
4.00
3.40
1.75
1
2
3
4
5
2-ø
0.9
BALL: Gold plated
C
C
1.75
0
Dimensions are shown: mm
Specifications and dimensions subject to change
E–46
www.ckswitches.com
RB Series
Rolling Ball Sensor Switch
PART NUMBER
PACKAGING
Specifications
CONTACT ARRANGEMENT: SPDT
MINIMUM VOLTAGE: 1 VDC 10mA (resistive load)
MAXIMUM VOLTAGE: 5 VDC 1mA (resistive load)
OPERATING LIFE: 100,000 cycles
INITAL CONTACT RESISTANCE: 5 Ω max.
RB-435B
500 pieces
17
11.1
5
4
2.54
1
ON
6.2
INSULATION RESISTANCE: 1000 M Ω min. @ 500 VDC
DIELECTRIC STRENGTH: 500 V AC (50-60 Hz)
OPERATING TEMPERATURE: –20ºC to +70ºC
7.2
10°
7°
OFF
3
2.54
Materials
HOUSING: PA (UL94V-0)
COVER: PA (UL94V-0)
7°
2
4.5
2.54
1P-2T
MOVABLE CONTACT: Copper alloy, nickel plated
TERMINALS: Gold plated
BALL: Steel, gold plated
R1
TYP.4
2
2.54
Ø1
TYP.4
2.54
2
Cu FOIL
PIERCING PLAN
PART NUMBER
PACKAGING
Specifications
CONTACT ARRANGEMENT: SPDT
SENSOR ANGLE: -20˚ to -30˚ scope inside, terminal to
disconnection electric current
MINIMUM VOLTAGE: 1 VDC 10mA (resistive load)
MAXIMUM VOLTAGE: 5 VDC 1mA (resistive load)
OPERATING LIFE: 100,000 cycles
INSULATION RESISTANCE: 1000 M Ω min. @ 100 VDC
DIELECTRIC STRENGTH: 500 V AC (50-60 Hz)
OPERATING TEMPERATURE: –20ºC to +70ºC
RB-435X2-20
500 pieces
15.7
5
11
2.4
ON
6.5
6.2
Materials
HOUSING: PBT (UL94V-0)
COVER: PBT (UL94V-0)
TERMINALS: Gold plated
10.1
BALL: Steel, gold plated
E
Detect
20°
110
°
0.7
2.54
2.54
R1
TYP.4
2
2.54
ø1
TYP.4
2.54
2
Cu FOIL
PCB LAYOUT
PCB LAYOUT
3.2
0.5
OFF
Dimensions are shown: mm
Specifications and dimensions subject to change
E–47
www.ckswitches.com
RB Series
Rolling Ball Sensor Switch
PART NUMBER
PACKAGING
Specifications
CONTACT ARRANGEMENT: SPDT
MAXIMUM VOLTAGE: 24 VDC 25mA (resistive load)
OPERATING LIFE: 100,000 cycles
INSULATION RESISTANCE: 1000 M Ω min. @ 100 VDC
DIELECTRIC STRENGTH: 500 V AC (50-60 Hz)
OPERATING TEMPERATURE: –20ºC to +70ºC
RB-441-45
500 pieces
6.5
5
6.5
5
Materials
HOUSING: PBT (UL94V-0)
COVER: PBT (UL94V-0)
TERMINALS: Gold plated
BALL: Gold plated
8.9
a
2.9
a
1.2±0.03
a
0.7
2.54
2.54
0.5
ON
4
5˚ ± 1
5
3.2
˚
OF
F
2
ø1
TYP.4
Cu Foil
2.54
2.54
PCB LAYOUT
E
Detect
Dimensions are shown: mm
Specifications and dimensions subject to change
E–48
www.ckswitches.com
