9012-12-11 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 9012-12-11

Preview

9012-12-11: DescriptionReed Relays REED RELAY SPST 500MA 12V; CategoryMechanical and electronic products relay; File Size281KB，2 Pages; ManufacturerCOTO TECHNOLOGY; Websitehttp://www.cotorelay.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

9012-12-11 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	9012-12-11	-	-	View	Buy Now

9012-12-11 Overview

Reed Relays REED RELAY SPST 500MA 12V

9012-12-11 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
body width	3.81 mm
body height	10.16 mm
Body length or diameter	10.16 mm
Coil operating voltage (DC)	9 V
Coil release voltage (DC)	1 V
Coil resistance	750 Ω
Maximum coil voltage (DC)	15 V
Nominal coil voltage	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	0.5A@200VAC
Maximum contact current (AC)	0.5 A
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated power R load	10W@200VDC
Contact (DC) maximum rated R load	0.5A@200VDC
Maximum contact voltage (AC)	200 V
Maximum contact voltage (DC)	200 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1500 Vrms
Dielectric strength between breaking contacts	200 Vrms
Input switching control type	Random
Insulation resistance	1000000000000 Ω
JESD-609 code	e3
Number of terminals	4
operating hours	0.35 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB hole count	4
physical size	10.16mm x 3.81mm x 10.16mm
Guideline	UL
Relay action	LATCHED
Relay function	SPST
release time	0.1 ms
seal	HERMETICAL
Terminal surface	Matte Tin (Sn)
Terminal length	0.0033 inch
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

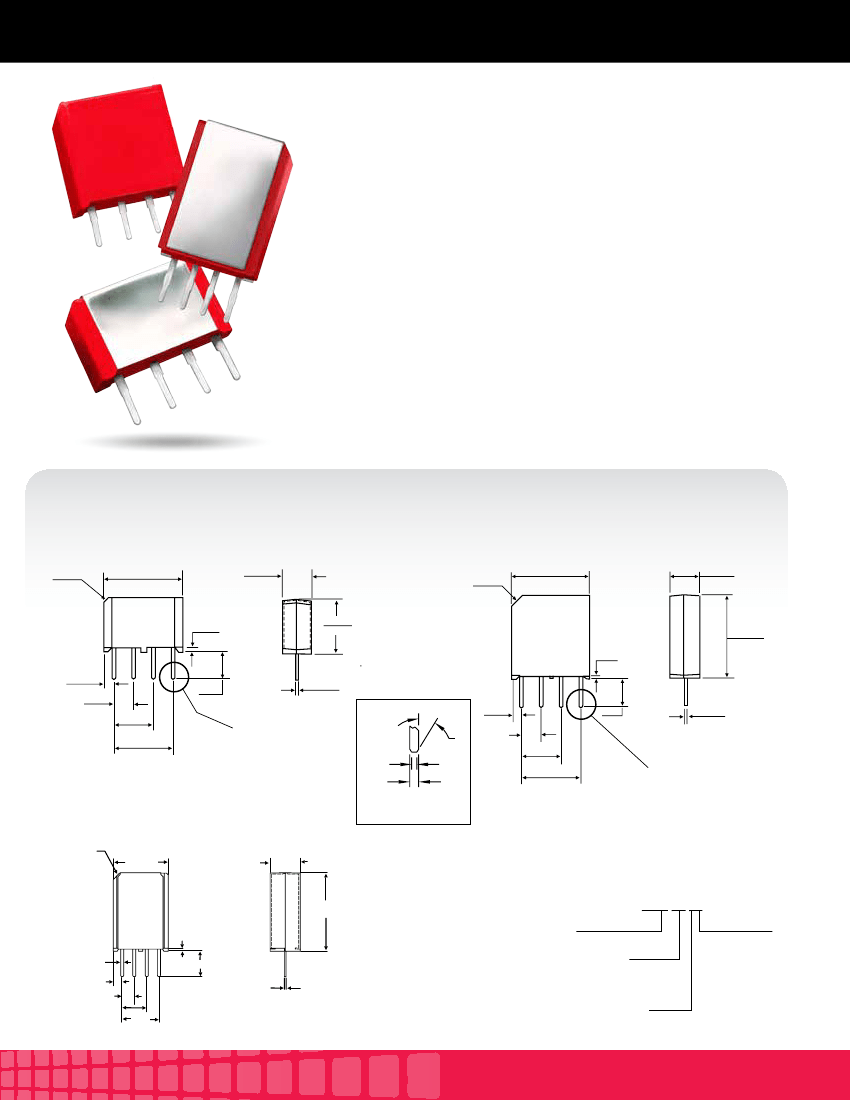

9011, 9012 & 9117 MINIATURE SIP RELAYS

9011, 9012 & 9117 Series Miniature Molded SIP Reed Relays

The 9011, 9012 & 9117 are compact versions of Coto’s standard 9000 SIPs, with the

9011 and 9117 using 65% less board space and the 9012 using 47% less board space

(LxW). These miniature SIP relays are ideal for use in ATE applications and other

high reliability test, measurement and telecommunications applications where high

board density and long life are key requirements.

9011, 9012 & 9117 Series Features

u

9012 is a 10W SIP relay (.400” x .150” x .400”)

u

9011 is a 3W SIP relay (.400” x .150” x .265”)

u

9117 is the smallest 3W SIP relay (.270” x .150” x .385”)

u

Magnetic shielding reduces interaction

u

Optional coil suppression diode protects coil drive circuits

u

UL File #E67117 - Contact factory for details

u

High insulation resistance 10

12

Ω

minimum

u

High speed switching

u

Molded thermoset body on integral lead frame design

u

High reliability, hermetically sealed contacts for long life

u

RoHS compliant

DIMENSIONS

in Inches (Millimeters)

Model 9011

IDENTIFIES

PIN #1

0.400 Max.

(10.16)

0.150 Max.

(3.81)

IDENTIFIES

PIN #1

0.400 Max.

(10.16)

Model 9012

.150 Max.

(3.81)

1

2

3

4

0.020

(0.51)

.265 Max.

(6.73)

0.015

(.381)

.400 Max.

(10.16)

1

2

3

4

0.050 Ref.

(1.27)

0.100

(2.54)

0.130

(3.30)

0.200

(5.08)

0.300

(7.62)

0.025

(0.64)

SEE LEAD DETAIL

0.010 Typ.

(0.25)

30

o

0.050

(1.27)

.020

(0.51)

.012

(0.30)

0.100

(2.54)

0.200

(5.08)

0.300

(7.62)

0.130

(3.30)

0.010 Typ.

(0.25)

SEE LEAD DETAIL

Model 9117

IDENTIFIES

PIN #1

.270 Max

(6.85)

.150 Max

(3.81)

LEAD DETAIL

(TYP.)

Ordering Information

.385 Max

(9.77)

1 2 3 4

.015 Typ.

(.38)

.044 Ref.

(1.11)

.060 (1.52)

.120 (3.04)

.011 (.27)

.125 (3.17)

.010

(.25)

.180

(4.57)

Part Number 90XX-XX-1X

Model Number

General Options

2

9011 9012 9117

0=No Diode

1=Diode

Coil Voltage

05=5 volts

12=12 volts (N/A on 9117)

Magnetic Shield

1=Mag Shield (External 9011, 9117; Internal 9012)

07082013

tel: (401) 943.2686

|

fax: (401) 942.0920

9012-12-11 Related Products

	9012-12-11	9012-05-11	9012-05-10	9011-05-10	9011-05-11
Description	Reed Relays REED RELAY SPST 500MA 12V	Reed Relays REED RELAY SPST 500MA 5V	Reed Relays SIP Reed Relay	Reed Relays SIP Reed Relay	Reed Relays REED RELAY DIP DPST 5V W/DIODE
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
body width	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm
body height	10.16 mm	10.16 mm	10.16 mm	6.73 mm	6.73 mm
Body length or diameter	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
Coil operating voltage (DC)	9 V	3.75 V	3.75 V	3.75 V	3.75 V
Coil release voltage (DC)	1 V	0.4 V	0.4 V	0.4 V	0.4 V
Coil resistance	750 Ω	500 Ω	500 Ω	500 Ω	500 Ω
Maximum coil voltage (DC)	15 V	6.5 V	6.5 V	6.5 V	6.5 V
Nominal coil voltage	12 V	5 V	5 V	5 V	5 V
Coil/Input Power Type	DC	DC	DC	DC	DC
Contact (AC) maximum rated R load	0.5A@200VAC	0.5A@200VAC	0.5A@200VAC	0.25A@100VAC	0.25A@100VAC
Maximum contact current (AC)	0.5 A	0.5 A	0.5 A	0.25 A	0.25 A
Maximum contact current (DC)	0.5 A	0.5 A	0.5 A	0.25 A	0.25 A
Contact (DC) maximum rated power R load	10W@200VDC	10W@200VDC	10W@200VDC	3W@100VDC	3W@100VDC
Contact (DC) maximum rated R load	0.5A@200VDC	0.5A@200VDC	0.5A@200VDC	0.25A@100VDC	0.25A@100VDC
Maximum contact voltage (AC)	200 V	200 V	200 V	100 V	100 V
Maximum contact voltage (DC)	200 V	200 V	200 V	100 V	100 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC
Dielectric strength between coil and contacts	1500 Vrms	1500 Vrms	1500 Vrms	1500 Vrms	1500 Vrms
Dielectric strength between breaking contacts	200 Vrms	200 Vrms	200 Vrms	200 Vrms	200 Vrms
Input switching control type	Random	Random	Random	Random	Random
Insulation resistance	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω
JESD-609 code	e3	e3	e3	e3	e3
Number of terminals	4	4	4	4	4
operating hours	0.35 ms	0.35 ms	0.35 ms	0.35 ms	0.35 ms
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
PCB hole count	4	4	4	4	4
physical size	10.16mm x 3.81mm x 10.16mm	10.16mm x 3.81mm x 10.16mm	10.16mm x 3.81mm x 10.16mm	10.16mm x 3.81mm x 6.73mm	10.16mm x 3.81mm x 6.73mm
Guideline	UL	UL	UL	UL	UL
Relay action	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED
Relay function	SPST	SPST	SPST	SPST	SPST
release time	0.1 ms	0.1 ms	0.1 ms	0.1 ms	0.1 ms
seal	HERMETICAL	HERMETICAL	HERMETICAL	HERMETICAL	HERMETICAL
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal length	0.0033 inch	0.0033 inch	0.0033 inch	0.0033 inch	0.0033 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	1	1
Maker	-	-	COTO TECHNOLOGY	COTO TECHNOLOGY	COTO TECHNOLOGY
