P Series
4 Tumbler Snap-in Switchlocks
Features/Benefits
•
Snap-in mounting
•
Multi-pole and multi-position
•
Positive detent
Typical Applications
•
Computers
•
Communication equipment
Models Available
Specifications
CONTACT RATING: Q contact material: 4 AMPS @ 125 V AC;
1 AMP @ 250 V AC (UL) See page L-20 for additional ratings.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
CONTACT RESISTANCE: Below 10 m
Ω
typ. initial @
2-4 V DC, 100 mA for both silver and gold plated contacts.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
INDEXING: 45º or 90º, 2-3 positions.
Materials
SWITCH HOUSING & LOCK: One piece construction,
6/6 Nylon (UL 94V-2), black
4 disc tumbler mechanism.
KEYS: One nickel plated brass key and one key with insert
molded plastic head.
TUMBLERS: Disc tumblers, brass.
CONTACTS & TERMINALS: Q contact material: Copper, silver
plated. See page L-20 for additional contact materials.
NOTE:
Any models supplied with Q or B contact material are RoHS compliant.
NOTE:
Specifications and materials listed above are for switchlocks with standard options.
For information on specific and custom switchlocks, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages L–19 and L–21. For additional options not shown in catalog, consult Customer Service Center.
L
Switchlock
Switch and Lock Function

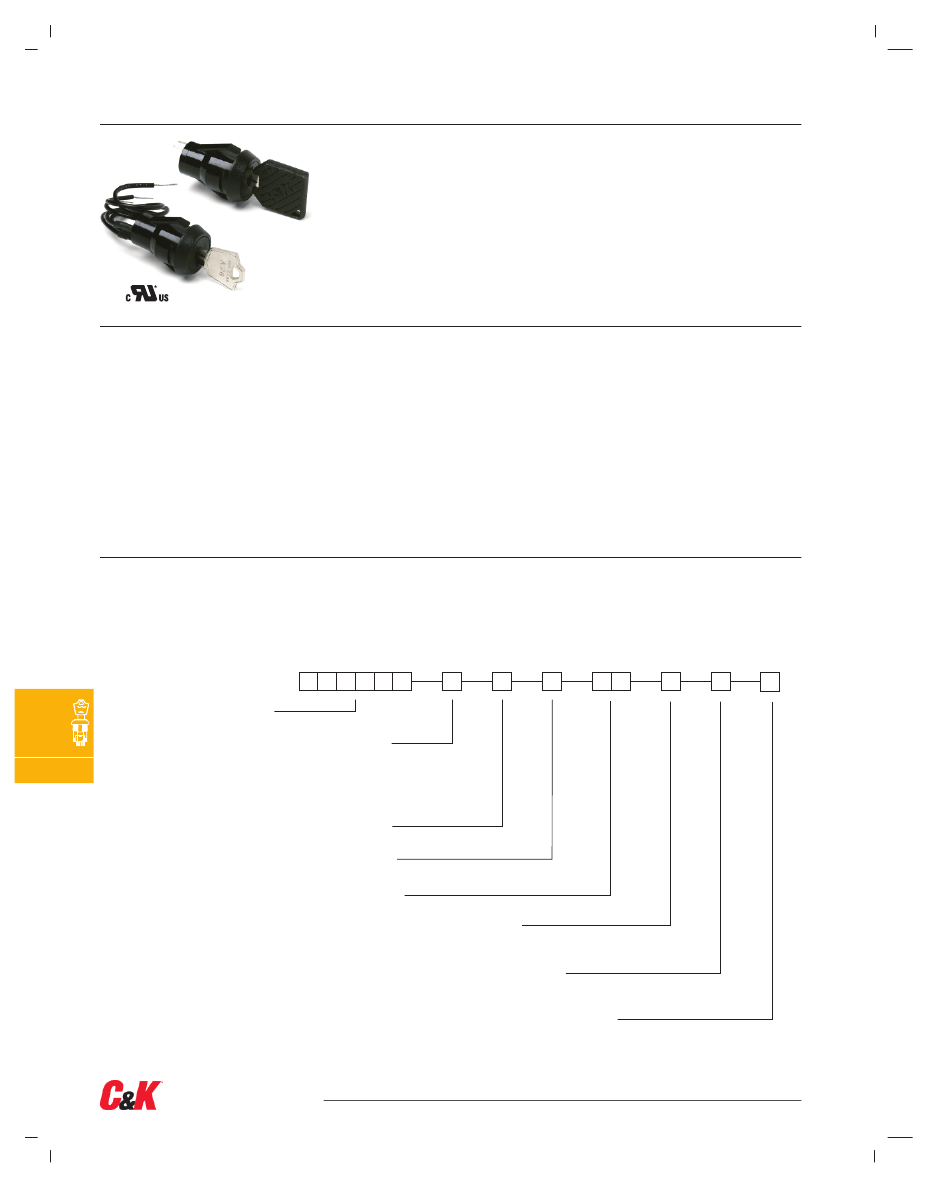

P10113
SP, 90º Index, keypull pos. 1
P20113
DP, 90º Index, keypull pos. 1 & 2
P100AF
SP, 45º Index, keypull pos. 1, 2 & 3
P200AF
DP, 45º Index, keypull pos. 1, 2 & 3
P1011U
SP, 90º Index, keypull pos. 1 & 2
Keying
2
Two nickel plated brass keys
T
One nickel plated brass key
with insert molded plastic
square head and one
nickel plated brass key
Lock Type
C
4 tumbler lock with detent
Lock Finish
M
Plastic lock with matte finish
Terminations
03
Solder lug
WC
Wire lead
Contact Material
Q
Silver
G
Gold over silver
Lock Color
2
Black
Key Color
2
Black
NONE
Nickel plated brass
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
L–18
www.ck-components.com
P Series
4 Tumbler Snap-in Switchlocks

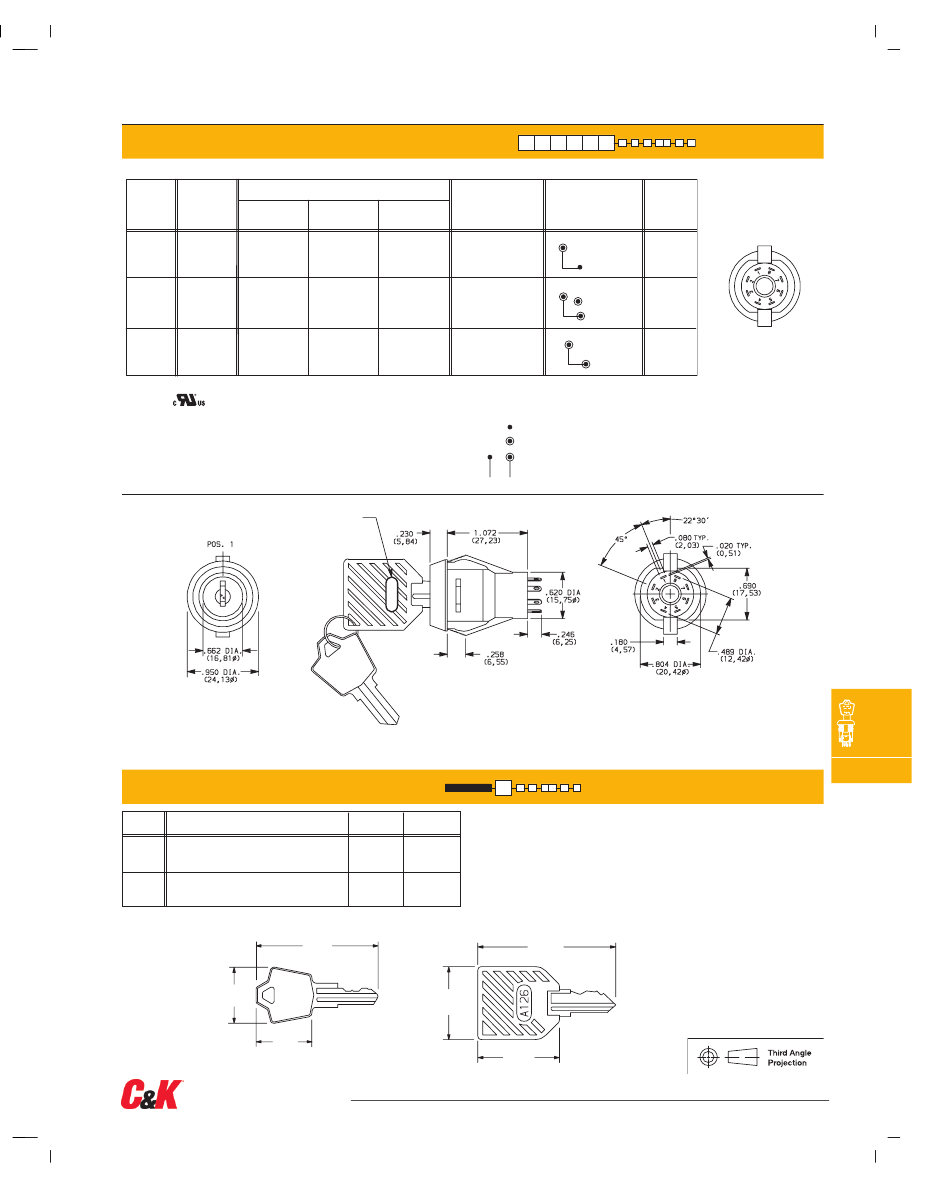

SWITCH AND LOCK FUNCTION
CONNECTED TERMINALS
NO.
POLES
SP
DP
MODEL
NO.
POS. 1
POS. 2
POS. 3
KEY PULL
POSITIONS
LOCK
CONFIGURATION
POS. 1
INDEXING
TERMINAL NUMBERS
P10113
P20113
P100AF
P200AF
8-1
8-1, 4-5
1-3
1-3, 5-7
Position 1
POS. 2
POS. 1
90º
DP
8-1
8-1, 4-5
1-2
1-2, 5-6
2-3
2-3, 6-7
Positions 1, 2 & 3
POS. 2
POS. 3
POS. 1
45º
SP
P1011U
8-1
1-3
Positions 1 & 2
POS. 2
90º
Terminal numbers
molded on housing.
All models
with all options when ordered with ‘Q’ contact material.
LEGEND
= Detent Positions (45º or 90º )
= Key pull possible in these positions.
= Stop Positions
Code number on this side,
logo on opposite side.
TERMINAL NUMBERS
MOLDED ON HOUSING
Part number shown: P100AFTCM03Q22
L
KEYING
Switchlock
OPTION
CODE

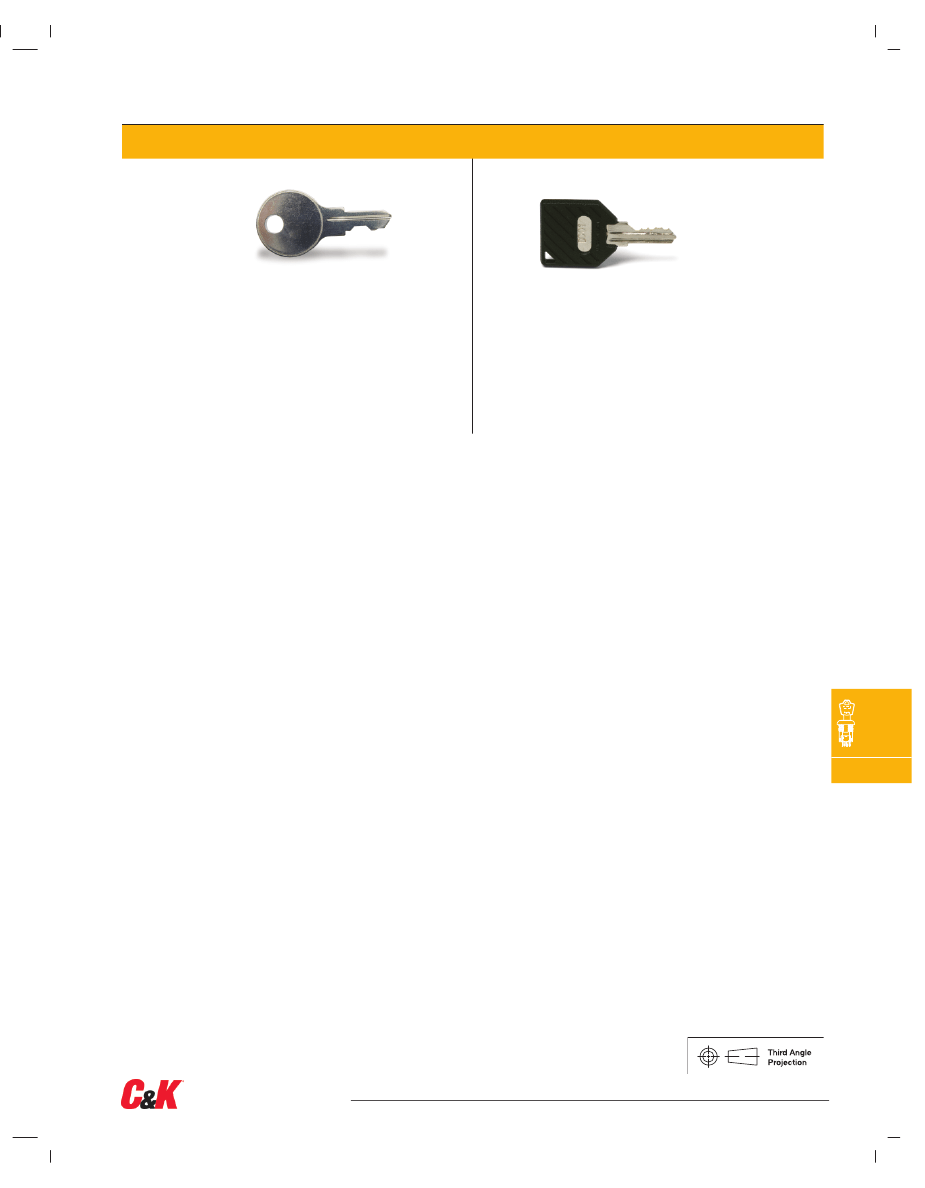

KEYING OPTIONS
2 NICKEL PLATED BRASS KEYS
1 NICKEL PLATED BRASS KEYS, WITH
PLASTIC INSERT MOLDED SQUARE HEAD &
1 NICKEL PLATED BRASS KEY
CODE NO.
ON KEY
YES
CODE NO.
ON LOCK
NO
2
T
YES
NO
NICKEL PLATED BRASS KEY
1.635
(41,52)
NICKEL PLATED BRASS KEY WITH
PLASTIC INSERT MOLDED SQUARE HEAD
1.766
(44,85)
NOTE:
All orders keyed alike with
code number on key. For more than
one key code, replacement keys, or
other special features, consult
Customer Service Center.
.798
(20,26)
A126
.948
(24,07)
.775
(19,68)
.775
(19,68)
Key part number:
11599112602
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
Key part number:
115140126
L–19
www.ck-components.com
P Series
4 Tumbler Snap-in Switchlocks
LOCK TYPE
C
4 TUMBLER LOCK WITH DETENT
OPTION
CODE
LOCK COLOR
BLACK
2
LOCK FINISH
M
PLASTIC LOCK WITH MATTE FINISH

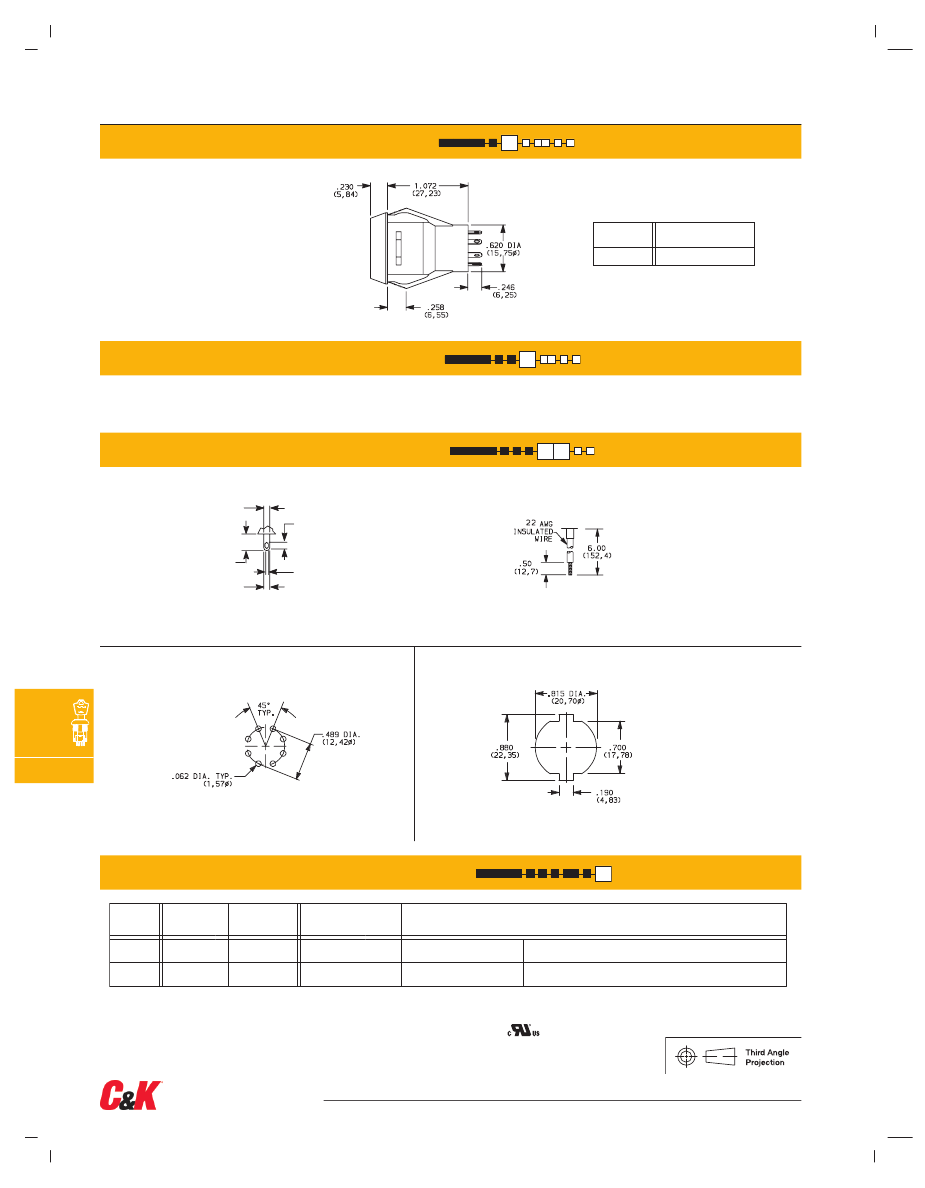

TERMINATIONS
03
SOLDER LUG
WC
.100
(2,54)
.085
(2,16)
WIRE LEAD
.246
(6,24)
.080
(2,03)
.046
(1,17)
.020 THK.
(0,51)
Black wire standard, other colors and
lengths available, consult Customer
Service Center. UL style 1015.
PC MOUNTING
PANEL MOUNTING
L
Switchlock
Panel Thickness: .100-.200 (2,54-5,08)
CONTACT MATERIAL
OPTION
CODE
RoHS
COMPLIANT*
YES
YES
RoHS
COMPATIBLE *
YES
YES
CONTACT AND
TERMINAL MATERIAL
SILVER
2
GOLD
OVER SILVER
3
POWER
LOW LEVEL/DRY CIRCUIT
OR POWER
RATING
4 AMPS @ 125 V AC; 1 AMP @ 250 V AC (UL/CSA)
0.4 VA MAX. @ 20 V AC or DC MAX. or 4 AMPS @ 125 V AC;
1 AMP @ 250 V AC (UL/CSA)
Q
G
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
2
3
CONTACTS & TERMINALS: Copper, silver plated (standard with all termination options)
CONTACTS & TERMINALS: Copper, with gold plate over silver plate termination
All models
with all options when ordered
with ‘Q’ contact material.
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
L–20
www.ck-components.com
