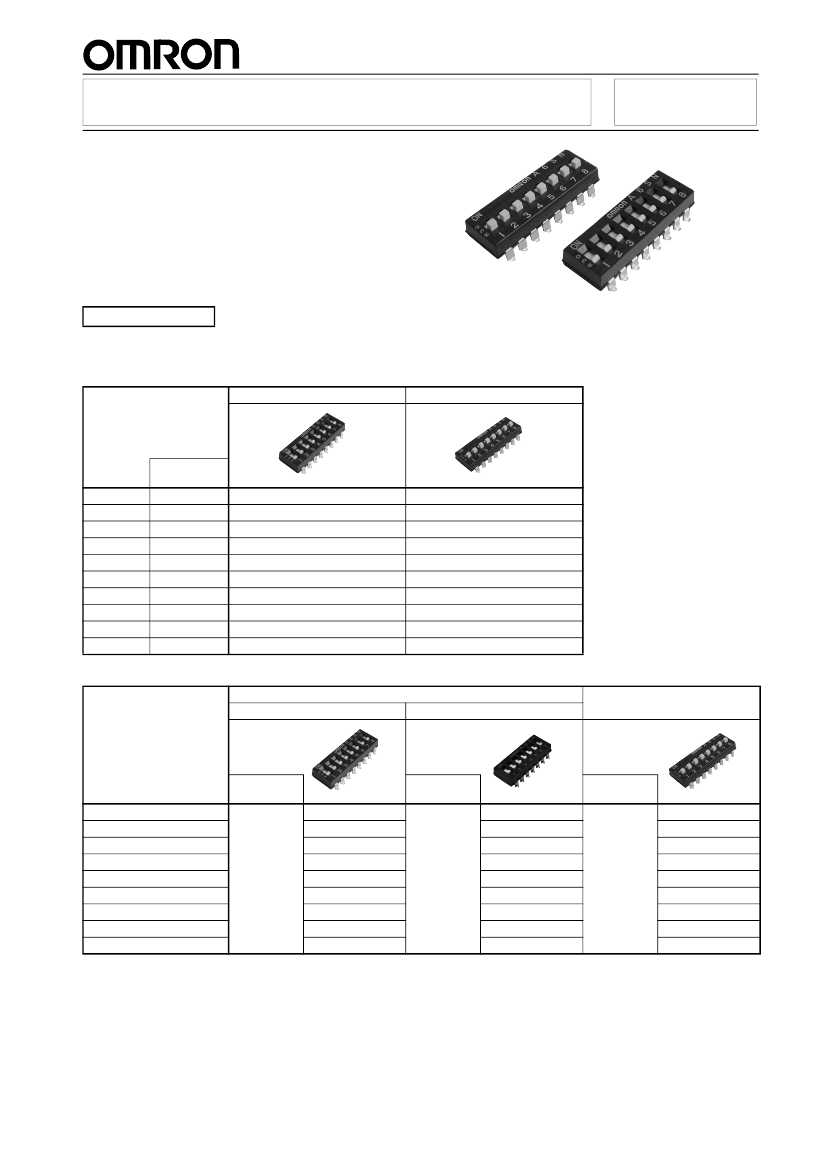

Slide DIP Switch
Surface-Mounting Slide DIP Switches with
High Contact Reliability
●
Knife-edge structure with high contact pressure
A6SN
mechanism assures high reliability.
●
Washable , without seal tape available.
●
With seal tape enables adsorption on auto mount-
ing machine.
●
Models with from 1 to 10 poles meet wide needs.
RoHS Compliant
■
List of Models
Type
Flat actuator
Raised actuator
Tube Packaging
No.of
poles
1
2
3
4
5
6
7
8
9
10
Quantity
per tube
100
60
45
35
30
25
20
20
15
15
A6SN-1101
A6SN-2101
A6SN-3101
A6SN-4101
A6SN-5101
A6SN-6101
A6SN-7101
A6SN-8101
A6SN-9101
A6SN-0101
A6SN-1104
A6SN-2104
A6SN-3104
A6SN-4104
A6SN-5104
A6SN-6104
A6SN-7104
A6SN-8104
A6SN-9104
A6SN-0104
Embossed Taping *
Type
Standard
Flat actuator
With seal tape
Raised actuator
No.of poles
2
3
4
5
6
7
8
9
10
Note:
Quantity
per tube
A6SN-2101-P
A6SN-3101-P
A6SN-4101-P
A6SN-5101-P
750
A6SN-6101-P
A6SN-7101-P
A6SN-8101-P
A6SN-9101-P
A6SN-0101-P
Quantity
per tube
A6SN-2102-P
A6SN-3102-P
A6SN-4102-P
A6SN-5102-P
750
A6SN-6102-P
A6SN-7102-P
A6SN-8102-P
A6SN-9102-P
A6SN-0102-P
Quantity
per tube
A6SN-2104-P
A6SN-3104-P
A6SN-4104-P
A6SN-5104-P
700
A6SN-6104-P
A6SN-7104-P
A6SN-8104-P
A6SN-9104-P
A6SN-0104-P
1.
Order in multiples of the package quantity.
1
A6SN
■
A6SN

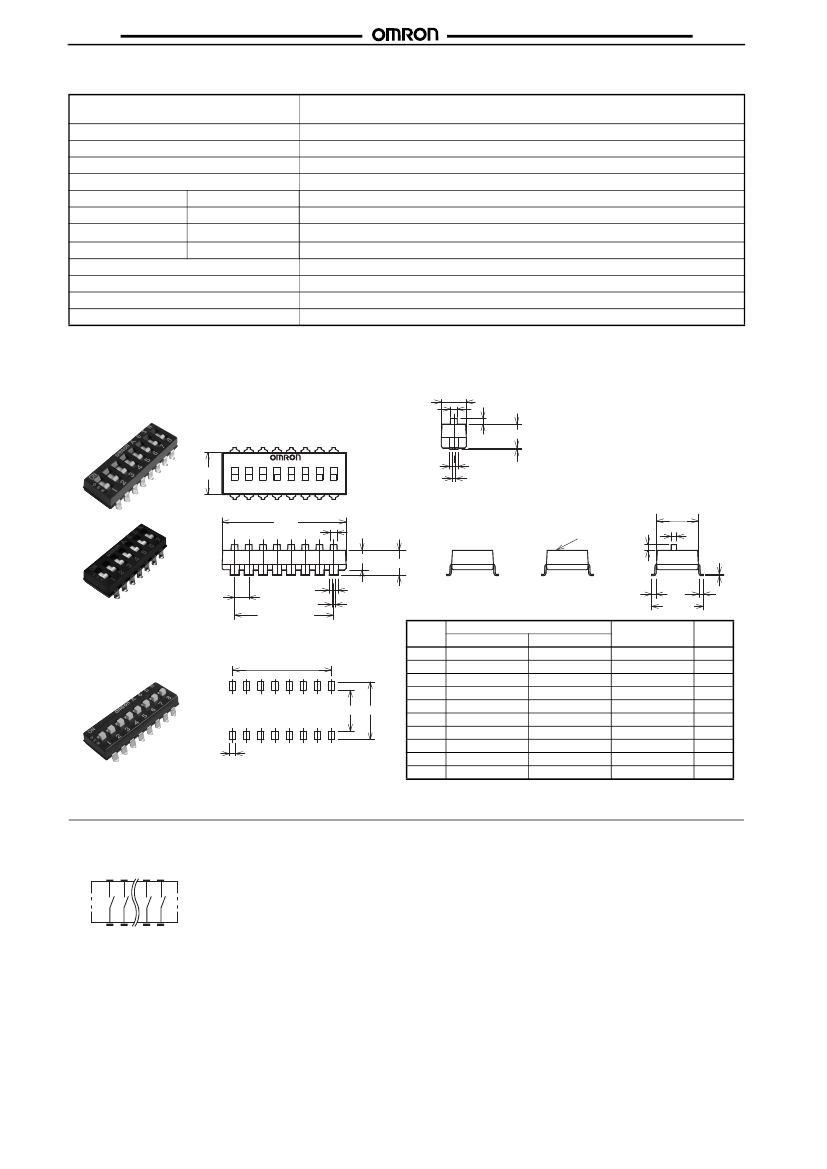

Ratings/Characteristics
25 mA at 24 VDC
10
μA
(minimum current) at 3.5 VDC
-30 to +85
°C
at 60% max. (with no icing or condensation)
35% to 95% (at +5 to +35
°C)
100 MΩ min. (at 100 VDC with insulation tester)
200 mΩ max.
300 VAC for 1 min
10 to 55 Hz, 1.5-mm double amplitude
490 m/s
2
min.
1,000 operations min.
Possible
IEC IP40
0.98 to 7.9 N {100 to 806 gf}
0.3 g (2 poles)
0.55 g (4 poles)
0.8 g (6 poles) 1.05 g (8 poles) 1.3 g (10 poles)
Between terminals
Malfunction
Malfunction
Electrical
Rating (resistive load)
Ambient operating temperature
Ambient operating humidity
Insulation resistance
Contact resistance (initial value)
Dielectric strength
Vibration resistance
Shock resistance
Durability
Washing
Degree of protection
Operating force
Weight
■
Dimensions
(Unit: mm)
1 pole type
4.48
±0.5
1.2
4.25
±0.15
●
Flat actuator
Standard / With seal tape
A6SN-
@
101
A6SN-
@
102-P
1
ON
7.5
1
2
3
4
5
6
7
8
A6SN
1.6
−0.2
0
0.6
−0.1
0
0 to 0.2
A
±
0.5
1.2
3.5
±0.15
Flat actuator
Standard
Flat actuator
With seal tape
Seal tape
(t=0.04)
Raised actuator
1
7.5
1
4.35 to 4.55
0.25
2.54
2.54× (P
−
1)
0
1.6
−0.2
0
0.6
−0.1
0.8
±0.2
9.3
±0.5
0.8
±0.2
●
Raised actuator
A6SN-
@
104
A6SN-
@
104-P
Dimensions of PCB pad (Reference)
(Top View)
2.54× (P
−
1)
±0.1
No.of
poles
1
2
3
4
5
6
7
8
9
10
6.1 10.4
1.1
P:
Number
of poles
Flat actuator
Standard
With seal tape
A6SN-1101
---
A6SN-2101
A6SN-2102-P
A6SN-3101
A6SN-3102-P
A6SN-4101
A6SN-4102-P
A6SN-5101
A6SN-5102-P
A6SN-6101
A6SN-6102-P
A6SN-7101
A6SN-7102-P
A6SN-8101
A6SN-8102-P
A6SN-9101
A6SN-9102-P
A6SN-0101
A6SN-0102-P
Raised actuator
A6SN-1104
A6SN-2104
A6SN-3104
A6SN-4104
A6SN-5104
A6SN-6104
A6SN-7104
A6SN-8104
A6SN-9104
A6SN-0104
A
4.48
7.0
9.6
12.1
14.6
17.2
19.7
22.3
24.8
27.3
■
Internal Connections
ON
1
2
9 10
Contact Form
(Top View)
■
Precautions
Be sure to read the Safety precautions common to all DIP Switches for correct use.
2
A6SN
A6SN
•
Application examples provided in this document are for reference only. In actual applications, confirm equipment functions and safety
before using
the product.
•
Consult your OMRON representative
before using
the product
under
conditions
which
are not described in the manual or applying the product to nuclear control systems, railroad
systems, aviation systems,
vehicles,
combustion systems, medical equipment, amusement machines, safety equipment, and other systems or equipment that may have a serious
influence on lives and property if
used
improperly. Make sure that the ratings and performance characteristics of the product provide a margin of safety for the system or
equipment, and
be
sure to provide the system or equipment
with
double safety mechanisms.
Note: Do not use this document to operate the Unit.
OMRON Corporation
Electronic and Mechanical Components Company
