Datasheet
PB-24Q
MOUNTING BOARD
•
Plug-compatible logic connections
•
Screw terminal barrier block for load connections
•
5 amp field-replaceable fuses
•
(LITTELFUSE #251005 or equivalent)
All even-numbered logic connections are
logic ground
I/O Modules
•
Input and output modules accepted interchangeably
•
Operate with 5, 15 or 24 volt logic supplies
•
Captive-screw retaining system for Quad-Pack
modules

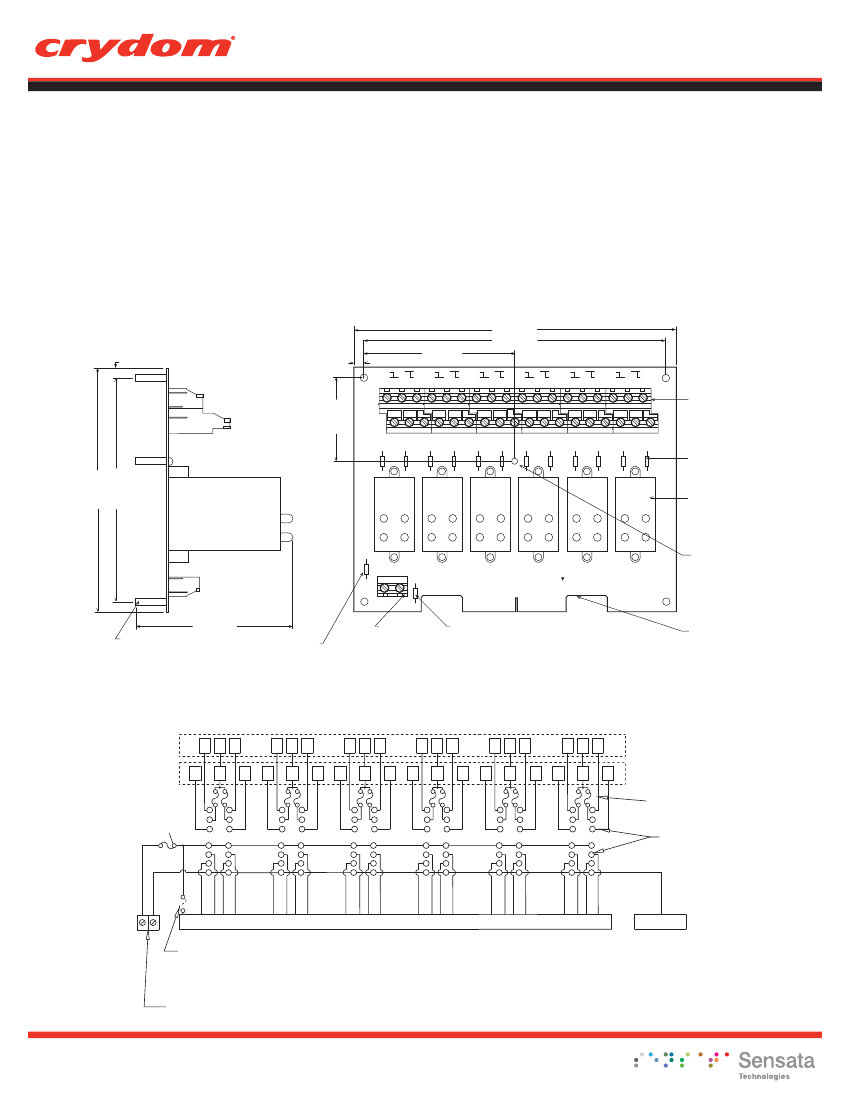

MECHANICAL SPECIFICATIONS
DIMENSIONS: INCHES (MILLIMETERS)
TOLERANCE:
±0.20
(±0.50)
0.25 (6,4)
3.75 (92,3)
0.25 (6,4)
1
2
C
C
3
4
5
6
C
C
7
8
9
10
C
C
11
12
13
14
C
C
15
16
17
18
C
C
19
20
21
22
C
C
23
25
8.0 (203,2)
7.5 (190,5)
2.0 (50,8)
TB1
POWER BARRIER STRIPS
(SEE NOTE 2,3)
F1
6.0 (152,4)
5.5 (139,7)
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11
F12
REPLACEABLE 5A
POWER LINE FUSE
(SEE NOTE 5)
CRYDOM QUAD-PACK
DIGITAL I/O MODULES
SOLD SEPARATELY
F1A
0-3
4-7
8 - 11
12 - 15
16 - 19
P1
20 - 23
THREADED (6-32)
NYLON STANDOFF
TB2
+5V
3.9 (99,1)
SWAGED STANDOFF
THRU HOLE 0.15 (3,8) DIA
x 0.75 (19,1) LONG (4)
REPLACEABLE 1A
LOGIC SUPPLY FUSE
(SEE NOTE 4)
GND
OPTIONAL FUSE LOCATION
MOVE 1A FUSE TO HERE
TO PROVIDE LOGIC SUPPLY VOLTAGE
THROUGH EDGE CONNECTOR PIN 49
COUZET
57-465
PB-24Q
4-40 SCREW
TERMINAL LOGIC
SUPPLY BARRIER
STRIP
SIGNAL INPUT/OUTPUT
50 TRACE (0.1" CENTERS)
MALE CARD EDGE
(SEE NOTE 1)
NOTES:
1) MATING CONNECTOR IS BERG 66317-150 OR EQUIVALENT.
SPECIFY SUFFIX "C" FOR OPTIONAL BERG 65823-093 (OR EQUIVALENT) MALE PIN CONNECTOR
FOR PARALLEL-TO-THE BOARD CABLE CONNECTION.
SPECIFY SUFFIX "V" FOR OPTIONAL BERG 65863-145 (OR EQUIVALENT) MALE PIN CONNECTOR
FOR PERPENDICULAR-TO-THE-BOARD CABLE CONNECTION.
2) 6-32 SCREW TERMINAL BARRIER STRIPS ACCEPT WIRE SIZES FORM 24 TO 12 AWG.
3) OPTIONAL JUMPERS AVAILABLE TO INTERCONNECT BARRIER STRIP COMMONS.
ORDER 2 EACH JUMPER "JQ4".
4) LITTELFUSE 251001 OR EQUIVALENT.
5) LITTELFUSE 251005 OR EQUIVALENT.
1
2
C
C
3
4
6
5
C
C
7
8
10
9
C 11
C
12
14
13 C 15
C
16
18
17 C 19
C
20
22
21 C 23
C
24
LOWER POWER
BARRIER STRIP
UPPER POWER
BARRIER STRIP
REPLACEABLE 5 AMP
LINE FUSES (12)
I/O MODULE PIN SOCKETS
REPLACEABLE
1 AMP LOGIC
SUPPLY FUSE
1
2
3
8
9
10
1
2
3
8
9
10
1
2
3
8
9
10
1
2
3
8
9
10
1
2
3
8
9
10
1
2
3
8
9
10
4
5
6
7
11
12
13
14
4
5
6
7
11
12
13
14
4
5
6
7
11
12
13
14
4
5
6
7
11
12
13
14
4
5
6
7
11
12
13
14
4
5
6
7
11
12
13
14
+
-
49
47
45 43 41
39
37 35 33
31
29 27
25
23
21 19
17
15
13 11
9
7
5 3
1
PINS 2-50
TIED TO COM
SIGNAL INPUT/OUTPUT 50 TRACE (0.1" CENTERS) MALE CARD EDGE OR OPTIONAL
OPTIONAL FUSE LOCATION TO
PROVIDE LOGIC SUPPLY
POWER THROUGH EDGE
CONNECTOR PIN 49
( customer installed)
LOGIC SUPPLY
BARRIER STRIP
MALE PIN CONNECTOR (option "C" or "V")
APPROVALS
UL
E79183
CSA 38595
Rev. 082516
