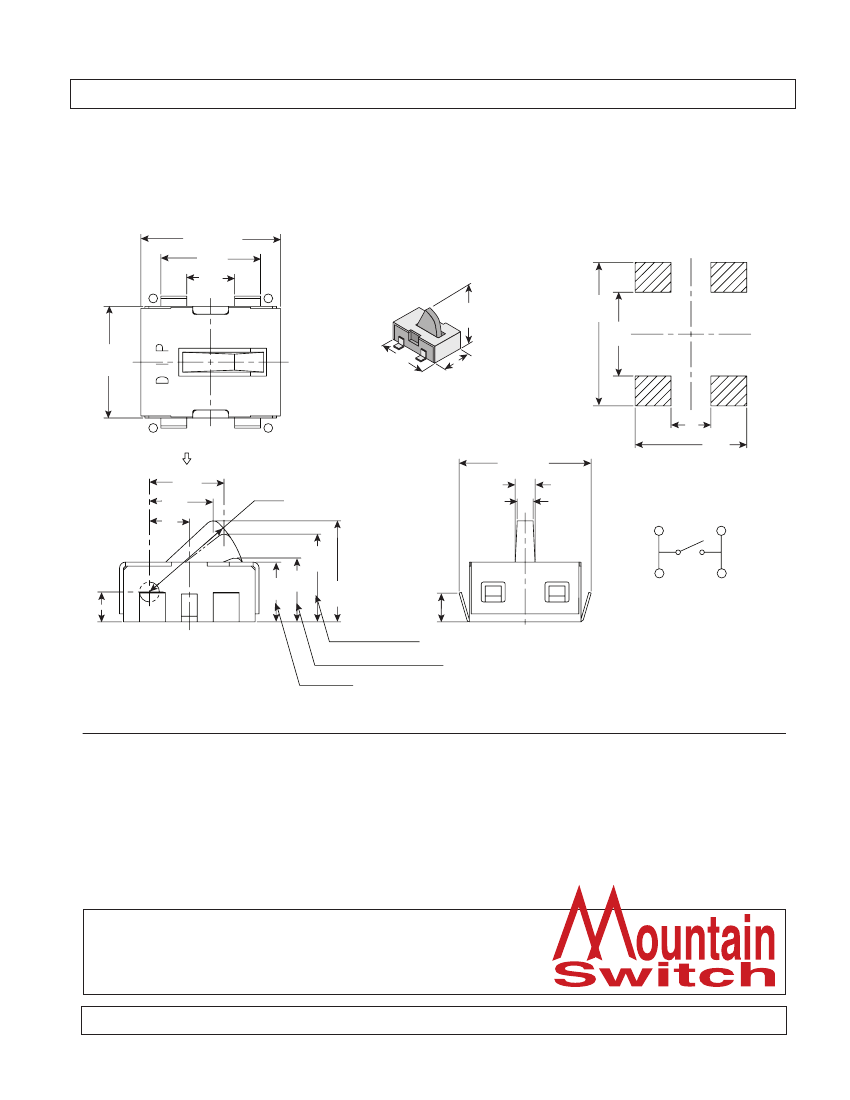

Dimensions: mm (in.)
Ref. #:
MS-101166
3
3.50±.10
(.138±.004)
2.50
(.138)
1.20
(.098)
1
2.53
(.01)
3.60
(.142)
2.10
(.083)
2.80±.10
(.11±.004)
3.50
(.138)
2.80
(.11)
4
A
1.87
(.074)
1.60
(.063)
1
(.039)
2
3.30±.20
(.130±.008)
R2.45
(.096)
.40
(.016)
.50
(.020)
1
(.039)
2.80
(.11)
P.C.B. Layout
(View from the Direction A)
3
2.20
(.087)
1.60
1.50 (.063)
2.53
(.06)
(.01)
1
.75
(.03)
.70
(.028)
4
Circuit
2
On Starting Position
Contact Resistance, Operation
Force Measure Position
Total Travel
Electrical Specifications:
•
Rating: 1mA/5V DC
•
Contact Resistance: 2Ω Max.
•
Insulation Resistance: 100MΩ Min.
•
Dielectric Strength: 100 VAC (50Hz or 60Hz) shall
•
be applied across terminals and cover for 1 minute
Electrical Life: 100,000 cycles
Mechanical Specifications:
•
Operating Temperature: -10° C to +60° C
•
Operation Force: 50gf Max.
•
Storage Temperature: -20° C to +70° C
•
Stroke: 1.03mm Max.
Note:
•
RoHS Compliant
Detector Switch
104-BTE4-EV
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
