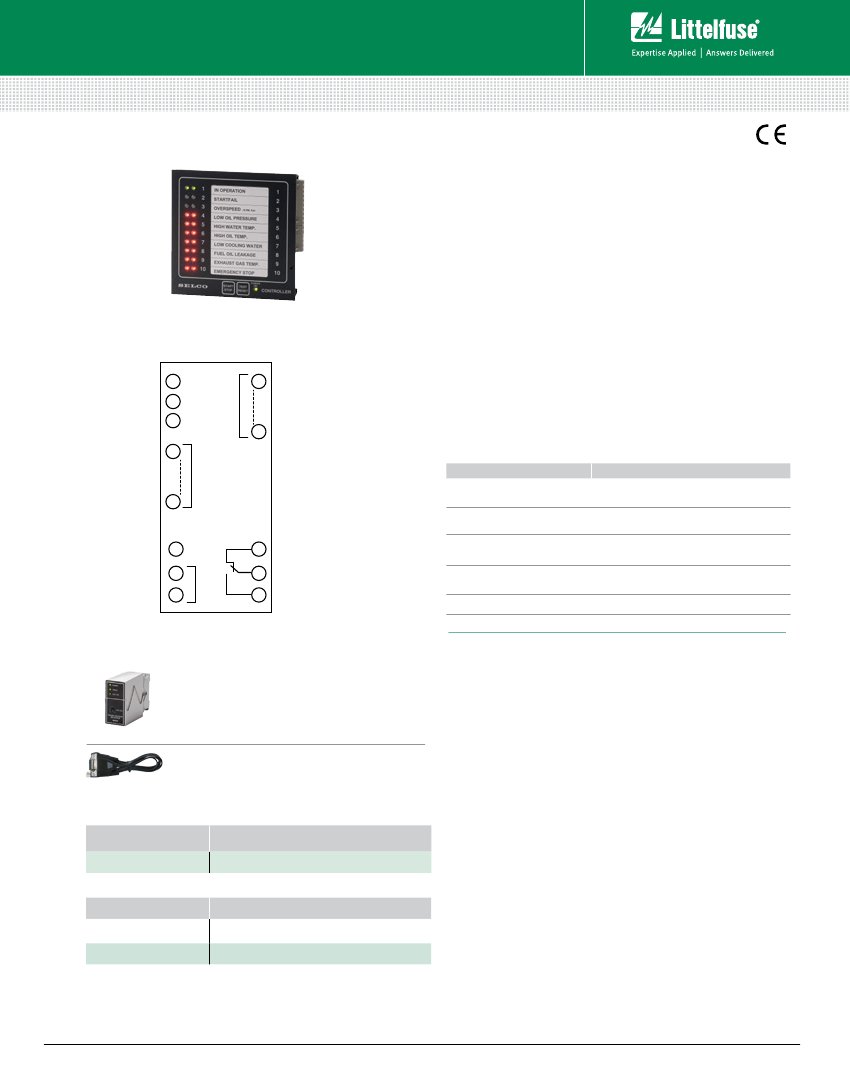

Engine Control
Basic
M2000 SerieS
Engine Control
Description
The M2000 Engine Control controls start and stop of the
engine, monitors and protects the engine during start and
operation, and simultaneously indicates the engine and alarm
status on the front of the unit. It has 9 shutdown/alarm inputs.
It is controlling the cranking, fuel valve and stop solenoid of
the engine. It is possible to configure the unit to perform up
to 6 start attempts, with user configurable crank and rest
periods. When the engine fires, cranking will be disconnected
by activating the crank disconnect input from a tacho relay or
from a direct measurement from a magnetic pick up. When
stopping the engine, a generator circuit breaker trip is available
for genset applications. A stop delay can be configured for
cooling down the engine before stop. M2000 includes cable
check of all sensor inputs. Basic configuration can be set by
dip-switches on the rear of the unit.
Extended configuration is possible using a PC. Easy installation
is ensured by means of clamping fittings, and plug-in
connection terminals. The M2000 includes an RS485 interface
enabling MODBUS RTU communication. The M2000 has been
designed and tested for use in harsh environments.
Wiring Diagram
1
LOCAL
START
2
AUTO
START
3
MODE
4
INPUTS
17
OUTPUTS
27
Features & Benefits
FeatureS
8 Alarm/shutdown
inputs
Cable monitoring on
sensor inputs
Speed detection from
magnetic pick-up
Type-approved by marine
classification societies
RS485 Modbus RTU
15
BeneFitS
Monitoring of e.g. oil pressure, coolant
temperature and engine speed
Fail safe system
No tacho relay required
Applicable in marine control and alarm systems
Communication with HMI and SCADA systems
M2000
16
CIRCUIT
CHECK
28
29
+
–
24 V
ENGINE CONTROLLER
30
31
32
Accessories
M0500 Tacho Detector
Reads engine speed from frequency of the
generator output voltage. The reading is
converted to a square wave signal and this
signal is provided on a dedicated output.
K3452 RS232 Cable
For configuration from PC.
Voltage Supply
Consumption
Inputs
Tacho Input
Ordering Information
Ordering nuMBer
cOntrOl pOwer
M2000.0130
12 V–24 Vdc, IP54 at front.
acceSSOrieS
requireMent
M0500
K3452
Optional
Optional
12-24 Vdc±30% (8-32 Vdc)
Max. 180 mA
7 normally open contacts; 1 tacho voltage;1 pick-up
Square or sine wave between 0 Vdc and
supply voltage
Pick-up Input
Square or sine wave, range 2.5 Vac to 33 Vac
Tolerance, Freq. Meas.
±2%
Frequency Range
50 Hz to 10 kHz
Outputs
11 open collector outputs, max. 150 mA per channel
Siren Relay Contact
230 Vac/2 A; 30 Vdc/2 A, 30 W
Tolerance, Delays
± 2%
LED Flash Frequency
Slow flashing light: 1.25 Hz ±10%
Quick Flashing Light
5 Hz ±10%
Programming
16 dip-switches or via RS232 interface
Communication
RS485 interface
Protocol
MODBUS-RTU
Baud Rate
1200, 2400, 4800, 9600
Parity
None
Data Bits
8
Stop Bits
1
Operating Temp.
–20°C to +70°C
Humidity
95% RH at 20°C
Vibration Test
4 g RMS according to IEC 60068-2-64
Approvals
Certified by major marine classification societies
Burn-in
50 hours before final test
Weight
0.4 kg
Dimensions
H
144 mm (5.7”);
W
144 mm (5.7”);
D
35 mm (1.4”)
Panel Cut-out
H
138 mm (5.4”);
W
138 mm (5.4”)
Protection Degree-Front
IP54 or IP32 (see Type Description)
Specifications
© 2013 Littelfuse Protection Relays & Controls
www.littelfuse.com/m2000
Rev: 4-A-050313
