VH2-01

Description
Switch Hardware HOLE PLUG
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size3MB，3 Pages
ManufacturerCarling Technologies
Download Datasheet Parametric Compare View All

VH2-01 Online Shopping

Suppliers Part Number Price MOQ In stock
VH2-01 - - View Buy Now

VH2-01 Overview

Switch Hardware HOLE PLUG

VH2-01 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerCarling Technologies
Product CategorySwitch Hardware
RoHSDetails
ProductHardware
TypeContact
For Use WithRocker Switches
Designed forV Series Contura
PackagingBulk
IlluminationNone
Length37.08 mm
Termination StyleWire
Width31.50 mm
Mounting StyleSnap In
Factory Pack Quantity100

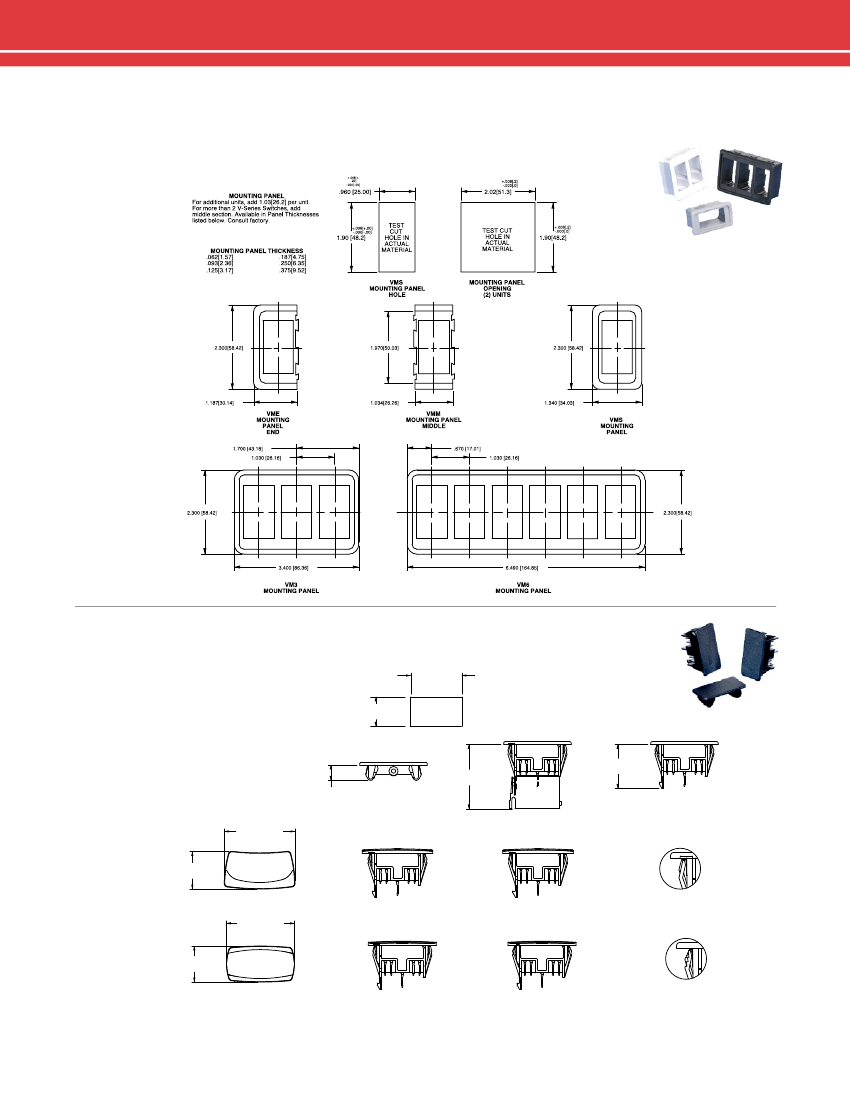

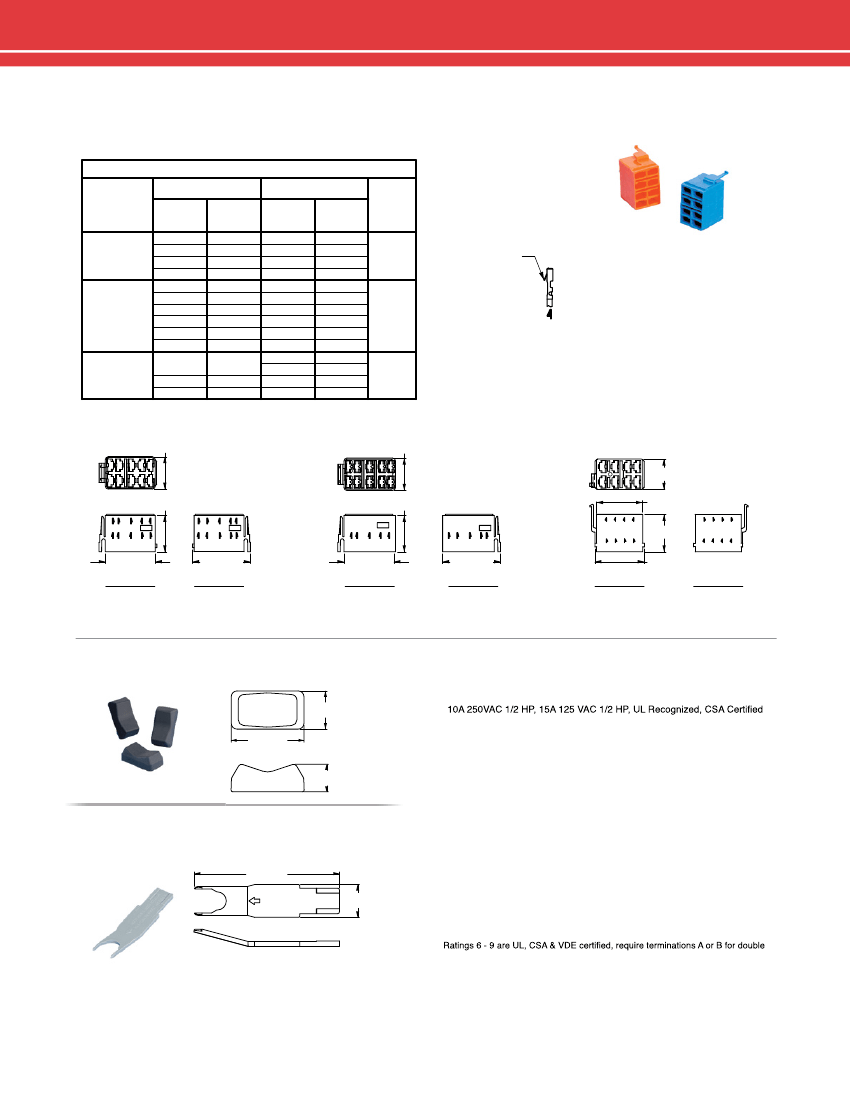

Preview

Download Datasheet
V-Series Contura Sealed Rocker Switches - Stand-Alone Components
Contura II, III, IV, V, VI, VII, X, XI, XII, XIV Base switches separately:
specify
V
with code selections 2-8 in the ordering schemes.
Contura II, III, IV, V Actuator only:
VV
with code
A
or
C
for selection 9, & with selections 10-14 in the ordering schemes.
Contura VI Actuator with lenses and inserts only:
VV
with code selections 9-16
Contura II, III, IV, V, VII Actuator only:
VV
with code
A, C, E, G, P
or
Z
for selection 9 & with selections 10-14 in the ordering schemes.
Contura X, XI, XII, XIV actuators with lenses separately:
VV
with code selections 9-14 in the ordering schemes.
Panel Seal:
VPS
Reduce inventory levels and cost by stocking actuators and base switches separately.
Contura X & XI actuators without lenses separately:
1
Actuator Separately
VVR 6 1 00 1
2
3
Actuator
Lens
Style/Color Opening
4
Actuator
Legend
Contura XII actuators without lenses separately:
5
Legend
Orientation
1
Actuator
VVP J 1 Z 21 1 00
2
Style &
Color
3
Lens
Opening
4
Lens
Opening
5
Legend
6
7
Legend
Legend
Orientation
1 CONTURA X & XI ACTUATOR SEPARATELY
VVR
2 ACTUATOR STYLE & COLOR
Black
Gray
Contura X
1
2
Contura XI
6
7
3 LENS OPENING FOR
1
1
2
3
4
One bar lens
One bar lenses
One square lens
two square lens
White
3
8
5
Red
4
9
square lens on top/
bar lens on bottom
(Contura X only)
1 CONTURA XII ACTUATOR SEPARATELY
VVP
2 ACTUATOR STYLE & COLOR
J
Black
K
Gray
N
White
3,4 LENS OPENING FOR
Z
No lens
1
Bar lens
5, 7 LENS OR BODY LEGEND
2
00
- No Legend
21
22
OFF
ON
M
Red
2
Square lens
23
O
24
I
4 ACTUATOR LENS OR BODY LEGEND
00
- No Legend this location
11
ON
12
OFF
13
I
14
O
OFF
ON
O
I
15
O O
16
O O
17
O I
18
I O
F N
N F
F
F
For additional legend options & codes, visit us at www.carlingtech.com.
0
1
2
3
4
5 LEGEND ORIENTATION
1
No legend
Orientation 1
Orientation 2
Orientation 3
Orientation 4
ORIENTATION OF
ACTUATOR/LENS IN PANEL
ORIENTATION 1
25
O
26
O
27
O
28
I
F
N
F
For additional legend options & codes, visit us at www.carlingtech.com.
6 LEGEND ORIENTATION
3
0
No legend
1
Orientation 1
2
Orientation 2
ORIENTATION OF
ACTUATOR/LENS IN PANEL
ORIENTATION 1
ORIENTATION 2
Contura X, XI & XII actuator lens assembly separately:
ORIENTATION 2
ORIENTATION 4
ORIENTATION 3
1
Lens Separately
VVL 2 1 00 0
2
Lens
Style
3
Lens
Color
4
Legend
5
Legend
Orientation
Contura X, XI & XII top piece of 2-piece lens separately:
1 CONTURA X, XI & XII LENS SEPARATELY
VVL
2 LENS STYLE
3
1
Bar lens
2
One Piece Square lens
3
Bottom of Two-Piece Square lens
5
3 TRANSLUCENT LENS COLOR
1
Clear
2
White
3
Amber
4 LENS OR BODY LEGEND
2
00
- No Legend
21
22
OFF
ON
Green
4
23
O
24
I
6
Blue
4
1
Lens Separately
VVT 1
2
Color
actuator stem
1 TOP OF LENS SEPARATELY
VVT
2 COLOR
1
Clear
2
Smoke
3
White
Contura X, XI & XII actuator lens assembly:
top lens
bottom lens
4
5
Red
posts mount toward actuator stem
}
two piece
lens assembly
1 piece lens/bar lens are positioned the same as bottom lens for assembly,
minus the top lens. Lenses snap in from bottom.
Notes:
1
If actuator lens opening for 2 bar or 2 square lenses, legend orientation 0,1, or 2
must be chosen.
2
Center of actuator marking not available for Contura XII.
3
Legend is not available for bar style lens.
4
Not recommended with neon lamps.
5
Must also order top piece of 2 piece square lens separately.
25
O
26
O
27
O
28
I
F
N
F
For additional legend options & codes, visit us at www.carlingtech.com.
5 LEGEND ORIENTATION
3
0
No legend
1
Orientation 1
2
Orientation 2
3
Orientation 3
4
Orientation 4
ORIENTATION OF
ACTUATOR/LENS IN PANEL
ORIENTATION 1
ORIENTATION 4
ORIENTATION 2
ORIENTATION 3
www.carlingtech.com
