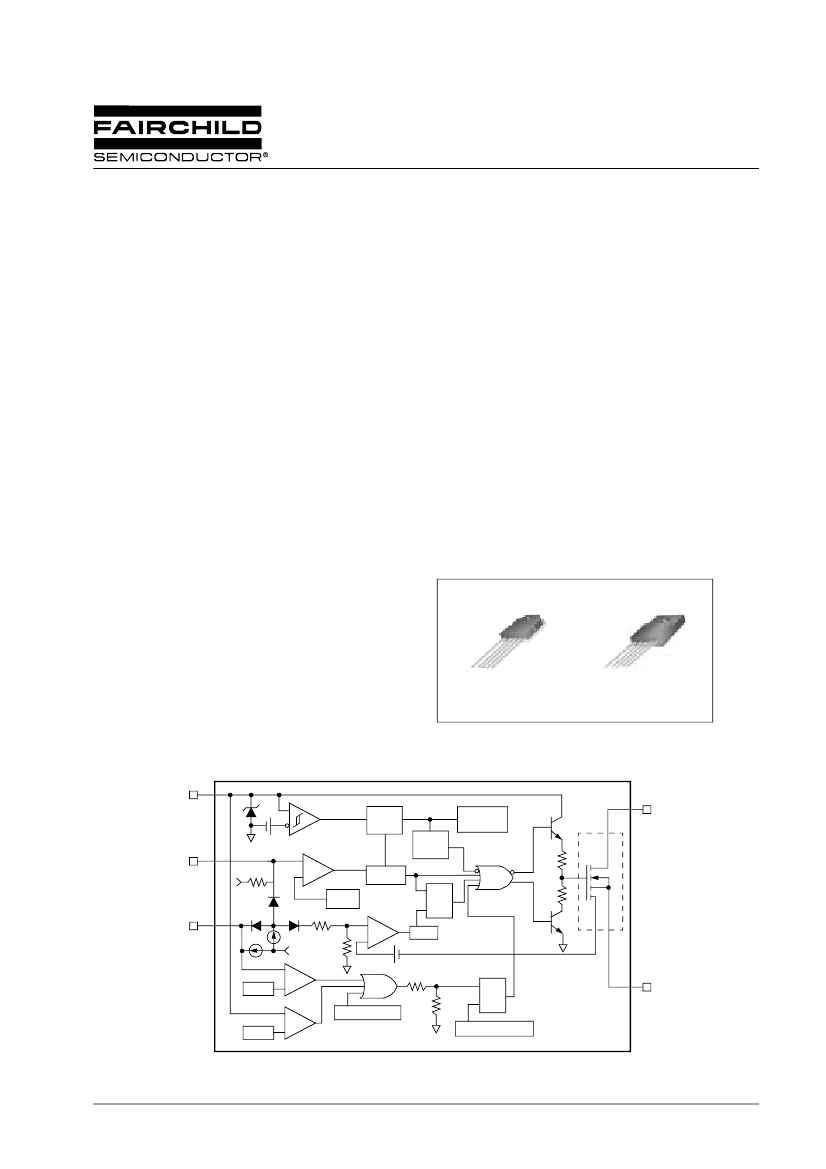

KA3S1265R/KA3S1265RF/

KA3S1265RD

Fairchild Power Switch(FPS)

Features

•

Wide operatimg frequency range up to (150kHz)

Pulse by pulse over current limiting

Over load protection

Over voltage protecton (Min. 23V)

Internal thermal shutdown function

Under voltage lockout

Internal high voltage sense FET

External sync terminal

Auto Restart Mode

Description

The Fairchild Power Switch(FPS) product family is specially

designed for an off line SMPS with minimal external

components. The Fairchild Power Switch(FPS) consist of

high voltage power SenseFET and current mode PWM IC.

Included control IC features a trimmed oscillator, under

voltage lock-out, leading edge blanking, optimized gate

turn-on/turn-off driver, thermal shut down protection, over

voltage protection, temperature compensated precision

current sources for loop compensation and fault protection

circuit. compared to discrete MOSFET and controller or

switching converter solution, a Fairchild Power

Switch(FPS) can reduce total component count, design size,

weight and at the same time increase efficiency,

productivity, and system reliability. It has a basic platform

well suited for cost-effective C-TV power supply.

TO-3P-5L

TO-3PF-5L

1. DRAIN 2. GND 3. Vcc 4. FB 5. Sync

Internal Block Diagram

#3 V

32V

Vref

−

6.4V

#4 FB

2µA

1mA 2.5R

7.5V

−

25V

−

Thermal S/D

OVER VOLTAGE S/D

−

OSC

L.E.B

0.1V

#2 GND

Good

logic

Internal

bias

#1 DRAIN

SFET

#5 Sync

Power on reset

Rev.1.0.2

KA3S1265R Related Products

	KA3S1265R	KA3S1265RF-YDTU	KA3S1265RF-TU	KA3S1265RD-YDTU	KA3S1265RD-TU	KA3S1265R-YDTU	KA3S1265R-TU	KA3S1265
Description	SWITCHING REGULATOR, 150 kHz SWITCHING FREQ-MAX, PSFM5	SWITCHING REGULATOR, 150 kHz SWITCHING FREQ-MAX, PSFM5	SWITCHING REGULATOR, 150 kHz SWITCHING FREQ-MAX, PSFM5	SWITCHING REGULATOR, 150 kHz SWITCHING FREQ-MAX, PSFM5	SWITCHING REGULATOR, 150 kHz SWITCHING FREQ-MAX, PSFM5	SWITCHING REGULATOR, 150 kHz SWITCHING FREQ-MAX, PSFM5	SWITCHING REGULATOR, 150 kHz SWITCHING FREQ-MAX, PSFM5	SWITCHING REGULATOR, 150 kHz SWITCHING FREQ-MAX, PSFM5
Is it Rohs certified?	-	conform to	incompatible	-	incompatible	incompatible	incompatible	-
Maker	-	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	-
Parts packaging code	-	TO-3PF	TO-3PF	TO-3P	TO-3P	TO-3P	TO-3P	-
package instruction	-	, SIP5,.1TB	ZIP, ZIP5,.12,.1,100TB	, SIP5,.1TB	ZIP, ZIP5,.2,.1,100TB	, SIP5,.1TB	ZIP, ZIP5,.2,.1,100TB	-
Contacts	-	2	2	2	2	2	2	-
Reach Compliance Code	-	unknow	unknow	unknow	unknow	unknow	unknow	-
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Analog Integrated Circuits - Other Types	-	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	-
control mode	-	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	-
Control Technology	-	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	-
Maximum input voltage	-	30 V	30 V	30 V	30 V	30 V	30 V	-
Minimum input voltage	-	11 V	11 V	11 V	11 V	11 V	11 V	-
Nominal input voltage	-	14 V	14 V	14 V	14 V	14 V	14 V	-
JESD-30 code	-	R-PZFM-T5	R-PSFM-T5	R-PZFM-T5	R-PSFM-T5	R-PZFM-T5	R-PSFM-T5	-
JESD-609 code	-	e3	e0	-	e0	e0	e0	-
Number of functions	-	1	1	1	1	1	1	-
Number of terminals	-	5	5	5	5	5	5	-
Maximum operating temperature	-	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	-
Minimum operating temperature	-	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-
Maximum output current	-	48 A	48 A	48 A	48 A	48 A	48 A	-
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
Encapsulate equivalent code	-	SIP5,.1TB	ZIP5,.12,.1,100TB	SIP5,.1TB	ZIP5,.2,.1,100TB	SIP5,.1TB	ZIP5,.2,.1,100TB	-
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	-	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	-
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
surface mount	-	NO	NO	NO	NO	NO	NO	-
Switch configuration	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-
Maximum switching frequency	-	150 kHz	150 kHz	150 kHz	150 kHz	150 kHz	150 kHz	-
Temperature level	-	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	-
Terminal surface	-	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-
Terminal pitch	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-
Terminal location	-	ZIG-ZAG	SINGLE	ZIG-ZAG	SINGLE	ZIG-ZAG	SINGLE	-
