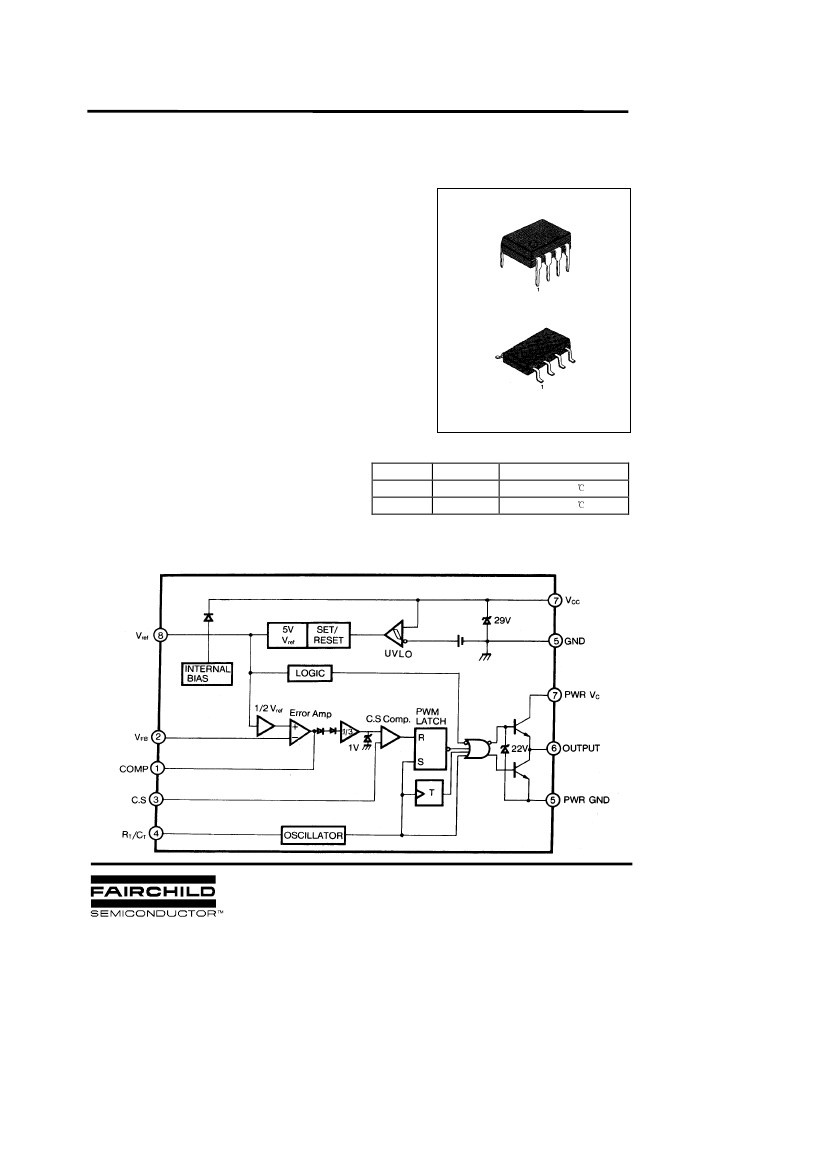

KA3882/3/4/5

SMPS CONTROLLER

CURRENT MODE PWM CONTROLLER

The KA3882/3/4/5 are fixed PWM controller for Off-Line and DC

to DC converter applications. The internal circuits include UVLO,

low start up current circuit, temperature compensated reference,

high gain error amplifier, current sensing comparator, and high

current totempole output for driving a POWER MOSFET. Also KA

3882/3/4/5 provide low start up current below 0.3mA and short

shutdown delay time typ. 100ns.

The KA3882 and KA3884 have UVLO threshold of 1 6V(on) and

10V(off).

The KA3883 and KA3885 are 8.4V(on) and 7.6V(off).

The KA3882 and KA3883 can operate within 100% duty cycle.

The KA3884 and KA3885 within 50% by using T Flip-Flop.

8 DIP

8 SOP

FEATURES

•

Low Start Current 0.2mA (typ)

Operating Range Up To 500KHz

Cycle by Cycle Current Limiting

Under Voltage Lock Out With Hysteresis

Short Shutdown Delay Time: typ.100ns

High Current Totempole Output

Output Swing Limiting: 22V

ORDERING INFORMATION

Device

KA388X

KA388XD

Package

8 DIP

8 SOP

Operating Temperature

0 ~ + 85

BLOCK DIAGRAM

Rev. B

KA388XD Related Products

	KA388XD	KA3883	KA3884	KA3885	KA388X	KA3882
Description	1 A SWITCHING CONTROLLER, 500 kHz SWITCHING FREQ-MAX, PDIP8	1 A SWITCHING CONTROLLER, 500 kHz SWITCHING FREQ-MAX, PDIP8	1 A SWITCHING CONTROLLER, 500 kHz SWITCHING FREQ-MAX, PDIP8	1 A SWITCHING CONTROLLER, 500 kHz SWITCHING FREQ-MAX, PDIP8	1 A SWITCHING CONTROLLER, 500 kHz SWITCHING FREQ-MAX, PDIP8	1 A SWITCHING CONTROLLER, 500 kHz SWITCHING FREQ-MAX, PDIP8
Is it Rohs certified?	-	incompatible	incompatible	incompatible	-	incompatible
Parts packaging code	-	DIP	DIP	DIP	-	DIP
package instruction	-	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3	-	DIP, DIP8,.3
Contacts	-	8	8	8	-	8
Reach Compliance Code	-	unknow	unknow	unknow	-	unknow
ECCN code	-	EAR99	EAR99	EAR99	-	EAR99
Analog Integrated Circuits - Other Types	-	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	-	SWITCHING CONTROLLER
control mode	-	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	-	CURRENT-MODE
Control Technology	-	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	-	PULSE WIDTH MODULATION
Maximum input voltage	-	25 V	25 V	25 V	-	25 V
Minimum input voltage	-	12 V	12 V	12 V	-	12 V
Nominal input voltage	-	15 V	15 V	15 V	-	15 V
JESD-30 code	-	R-PDIP-T8	R-PDIP-T8	R-PDIP-T8	-	R-PDIP-T8
JESD-609 code	-	e0	e0	e0	-	e0
length	-	9.817 mm	9.817 mm	9.817 mm	-	9.817 mm
Number of functions	-	1	1	1	-	1
Number of terminals	-	8	8	8	-	8
Maximum operating temperature	-	85 °C	85 °C	85 °C	-	85 °C
Maximum output current	-	1 A	1 A	1 A	-	1 A
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	-	DIP	DIP	DIP	-	DIP
Encapsulate equivalent code	-	DIP8,.3	DIP8,.3	DIP8,.3	-	DIP8,.3
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	-	IN-LINE	IN-LINE	IN-LINE	-	IN-LINE
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Certification status	-	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Maximum seat height	-	5.08 mm	5.08 mm	5.08 mm	-	5.08 mm
surface mount	-	NO	NO	NO	-	NO
Switch configuration	-	PUSH-PULL	PUSH-PULL	PUSH-PULL	-	PUSH-PULL
Maximum switching frequency	-	500 kHz	500 kHz	500 kHz	-	500 kHz
technology	-	BIPOLAR	BIPOLAR	BIPOLAR	-	BIPOLAR
Temperature level	-	OTHER	OTHER	OTHER	-	OTHER
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE
Terminal pitch	-	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm
Terminal location	-	DUAL	DUAL	DUAL	-	DUAL
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
width	-	7.62 mm	7.62 mm	7.62 mm	-	7.62 mm
Base Number Matches	-	1	1	1	-	1
