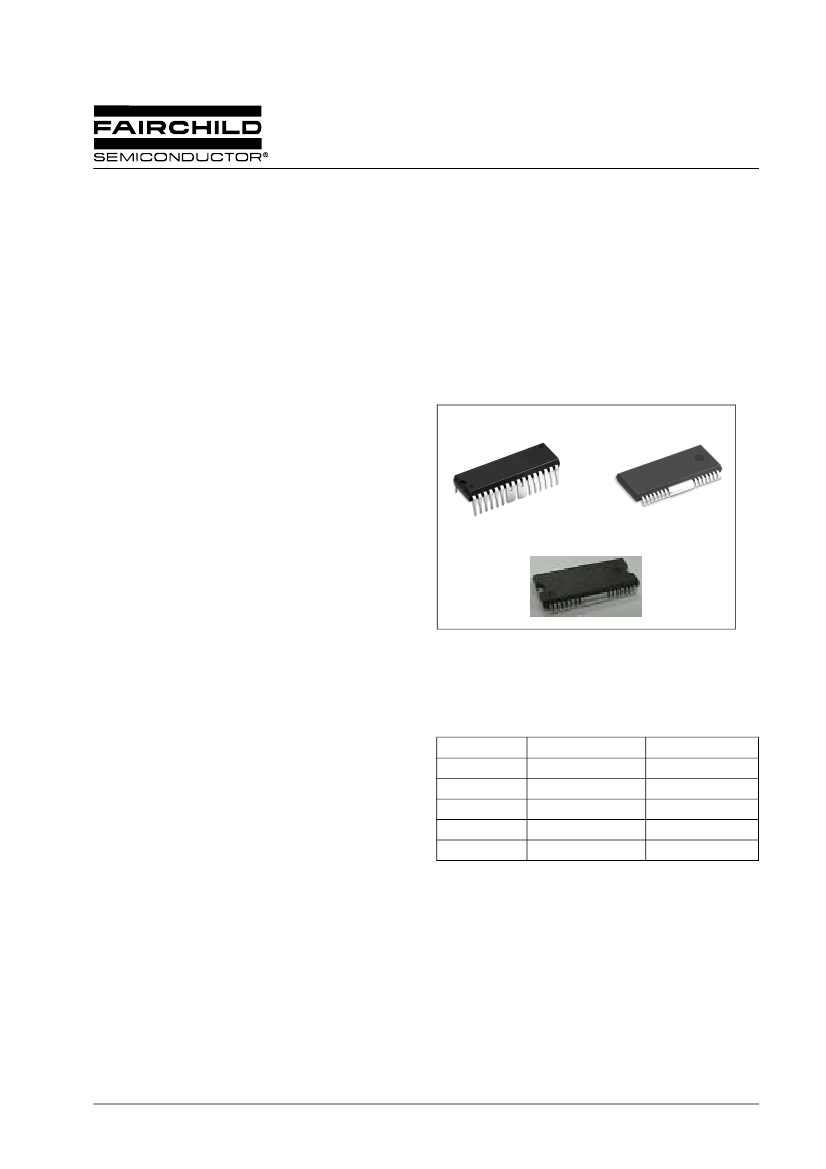

3-Phase BLDC Motor Driver
| KA3080BD | KA3080C | KA3080 | KA3080BDTF | KA3080BD3TF | KA3080BD3 | |
|---|---|---|---|---|---|---|
| Description | 3-Phase BLDC Motor Driver | 3-Phase BLDC Motor Driver | 3-Phase BLDC Motor Driver | 3-Phase BLDC Motor Driver | 3-Phase BLDC Motor Driver | 3-Phase BLDC Motor Driver |
| Is it Rohs certified? | - | conform to | - | incompatible | conform to | incompatible |
| Parts packaging code | - | DIP | - | SSOP | SSOP | SSOP |
| package instruction | - | HSDIP, SDIP32,.4 | - | HSSOP, SOP42,.4,32 | HSSOP, SOP42,.4,32 | 0.375 INCH, SSOP-28/30 |
| Contacts | - | 32 | - | 28 | 28 | 28 |
| Reach Compliance Code | - | compli | - | unknow | compli | compli |
| ECCN code | - | EAR99 | - | EAR99 | EAR99 | EAR99 |
| Other features | - | ALSO REQUIRES A 8V TO 27V SUPPLY | - | ALSO REQUIRES A 8V TO 27V SUPPLY | ALSO REQUIRES A 8V TO 27V SUPPLY | ALSO REQUIRES A 8V TO 27V SUPPLY |
| Analog Integrated Circuits - Other Types | - | BRUSHLESS DC MOTOR CONTROLLER | - | BRUSHLESS DC MOTOR CONTROLLER | BRUSHLESS DC MOTOR CONTROLLER | BRUSHLESS DC MOTOR CONTROLLER |
| JESD-30 code | - | R-PDIP-T28 | - | R-PDSO-G30 | R-PDSO-G30 | R-PDSO-G30 |
| length | - | 29.4 mm | - | 18.4 mm | 18.4 mm | 18.4 mm |
| Number of functions | - | 1 | - | 1 | 1 | 1 |
| Number of terminals | - | 28 | - | 30 | 30 | 30 |
| Maximum operating temperature | - | 75 °C | - | 75 °C | 75 °C | 75 °C |
| Minimum operating temperature | - | -25 °C | - | -25 °C | -25 °C | -25 °C |
| Maximum output current | - | 1.5 A | - | 1.5 A | 1.5 A | 1.5 A |
| Package body material | - | PLASTIC/EPOXY | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | - | HSDIP | - | HSSOP | HSSOP | HSSOP |
| Encapsulate equivalent code | - | SDIP32,.4 | - | SOP42,.4,32 | SOP42,.4,32 | SOP42,.4,32 |
| Package shape | - | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | - | IN-LINE, HEAT SINK/SLUG, SHRINK PITCH | - | SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH | SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH | SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH |
| Peak Reflow Temperature (Celsius) | - | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | - | 5,16 V | - | 5,16 V | 5,16 V | 5,16 V |
| Certification status | - | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | - | 5.08 mm | - | 2.5 mm | 2.5 mm | 2.5 mm |
| Maximum supply voltage (Vsup) | - | 5.5 V | - | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | - | 4.5 V | - | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | - | 5 V | - | 5 V | 5 V | 5 V |
| surface mount | - | NO | - | YES | YES | YES |
| technology | - | BIPOLAR | - | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | - | COMMERCIAL EXTENDED | - | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED |
| Terminal form | - | THROUGH-HOLE | - | GULL WING | GULL WING | GULL WING |
| Terminal pitch | - | 1.778 mm | - | 0.8 mm | 0.8 mm | 0.8 mm |
| Terminal location | - | DUAL | - | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | - | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | - | 10.16 mm | - | 7.5 mm | 7.5 mm | 7.5 mm |
