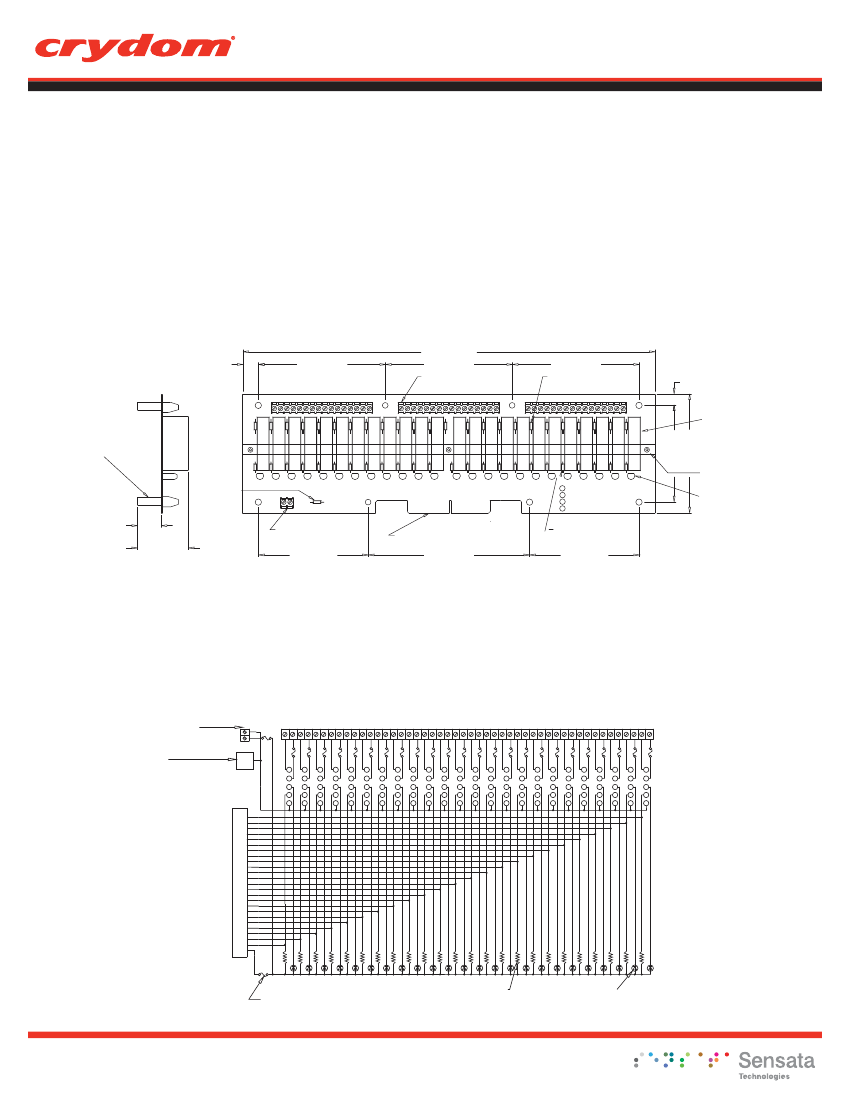

Datasheet
PB-24SM
MOUNTING BOARD
•
Plug-compatible logic connections
•
Screw terminal barrier block for load connections
•
Resident pull-up resistors
•
5 amp field-replaceable fuses
•
(LITTELFUSE #251005 or equivalent)
LEDs indicate logic status
I/O Modules
•
All even-numbered logic connections are
•
•
•
logic ground
Input and output modules accepted interchangeably
Operate with 5, 15 or 24 volt logic supplies
Pin retaining system for “SM” series miniature modules
MECHANICAL SPECIFICATIONS
13.0 (330,2)
DIMENSIONS: INCHES (MILLIMETERS)
TOLERANCE:+0.020 ( + 0,50)
-
-
0.5 (12,7)
4.0 (101,6)
4.0 (101,6)
POWER TERMINAL STRIP
(see notes 2,3,4)
1 2 3 4 5 6 7 8 9 1011 1213 141516
17 1819 202122 232425 2627 282930 3132
4.0 (101,6)
REPLACEABLE 5 AMP
LINE FUSE (24)
(see note 6)
33 343536 3738 394041 4243 444546 4748
0.35 (8,9)
3.05 (77,5)
SWAGED STANDOFF
THRU HOLE 0.15 (3,8) DIA.
(8)
REPLACEABLE
1 AMP LOGIC
SUPPLY FUSE
(see note 5)
3.75 (95,3)
CRYDOM DIGITAL
I/O MODULES
SOLD SEPARATELY
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
-
+
SIGNAL INPUT/OUTPUT 50
TRACE (0.1" CENTERS) MALE
CARD EDGE (see note 1)
5.1 (129,5)
19
20
21
Y
AC INPUT
W
DC INPUT
B
AC OUTPUT
R
DC OUTPUT
22
23
OPTIONAL HOLD DOWN
BAR KIT (see note 7)
LED STATUS
INDICATOR (24)
0.75 (19,1)
1.88 (47,6)
LOGIC SUPPLY
TERMINAL STRIP
(see note 2)
3.45 (87,6)
PULL UP RESISTOR
3.3K OHM (24)
3.45 (67,6)
NOTES: 1) MATING CONNECTOR IS BERG 66317-150 OR EQUIVALENT.
SPECIFY SUFFIX 'C' FOR OPTIONAL 65823-093 OR EQUIVALENT
MALE PIN CONNECTOR FOR PARALLEL-TO-THE-BOARD CABLE
CONNECTION. SPECIFY SUFFIX 'V' FOR OPTIONAL CIRCUIT ASSEMBLY CA-50H-2B-SR
OR EQUIVALENT MALE PIN CONNECTOR FOR PERPENDICULAR-TO-THE-BOARD
CABLE CONNECTION.
2) 4-40 SCREW TERMINAL STRIPS ACCEPT WIRE SIZES FROM 26 TO 14 AWG.
3) OPTIONAL JUMPERS ARE AVAILABLE TO INTERCONNECT BARRIER STRIP
ORDER 3 EACH "JM8".
4) PHOENIX MKD51.5 5.08mm SERIES (OR EQUIVALENT) SCREW TERMINAL
BLOCKS STANDARD. SPECIFY SUFFIX "A" FOR BOARD-MOUNTED PHOENIX
MSTBVA 1.5/16-G-5.08 (OR EQUIVALENT) MALE CONNECTOR. SPECIFY
SUFFIX "B" FOR BOARD-MOUNTED PHOENIX MSTBVA 1.5/16-G-5.08
(OR EQUIVALENT) MALE CONNECTOR AND MATING PHOENIX MSTBVA 1.5/16-ST-5.08
(OR EQUIVALENT) FEMALE. SCREW-TERMINAL PLUG-IN CONNECTOR.
5) LITTELFUSE 251001 OR EQUIVALENT.
6) LITTELFUSE 251005 OR EQUIVALENT.
7) TWO HOLD-DOWN BAR KITS ARE AVAILABLE SEPARATELY. MODEL NO. 11.06.413 EMPLOYS
A PLAIN ALUMINUM CHANNEL WHILE MODEL NO. 11.06.288 PROVIDES POCKETS IN
THE CHANNEL FOR INDIVIDUAL MODULES.
POWER BARRIER STRIP
LOGIC SUPPLY
BARRIER STRIP
EDGE
CONN
BOTTOM
LOGIC
GRD
-
+
ALL
EVEN
PINS
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
5 AMP LINE FUSE (24)
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
I/O MODULE PIN SOCKET
1
5
9
13
SIGNAL INPUT/OUTPUT
17
50 TRACE (0.1" CENTERS)
21
MALE CARD EDGE
25
OR OPTIONAL PIN
CONNECTOR
29
33
37
41
45
+LOGIC 49
APPROVALS
UL
E79183
CSA 38595
1 AMP LOGIC
SUPPLY FUSE
PULL UP RESISTOR 3.3K OHM (24)
LED STATUS INDICATOR (24)
