PTS125 Series
12 mm Tact Switches
Features/Benefits
•
THT and SMT terminations
•
Various heights
•
Snap fit actuator option
Typical Applications
•
Consumer products
•
Instrumentation
•
Computer products
•
Industrial
Tactile Switches
Specification
FUNCTION: Momentary action
CONTACT ARRANGEMENT: 1 make contact SPST, N.O.
TERMINALS: PC pins for THT and G type for SMT
TRAVEL: 0.30 mm ± 0.15 mm
Environmental
OPERATING TEMPERATURE: -20˚C to 70˚C
Process
SOLDERING: This component is suited to the following methods:
Infrared reflow soldering in accordance with IEC 61760-1 for
SMT version
Wave soldering compatible with lead free soldering profile
Mechanical
OPERATING LIFE: 200,000 cycles
OPERATING FORCE:
180 gf ± 50
250 gf ± 50
Packaging
Soldering Style
THT
SMT
SMT
SMT
SMT
SMT
SMT
SMT
Height
All heights
4.3 mm
4.3 mm with pegs
7.3 mm
7.3 mm with pegs
8.5 mm
8.5 mm with pegs
12 mm
Packaging
Plastic bag
tape & reel
tape & reel
tape & reel
tape & reel
tape & reel
tape & reel
tape & reel
Parts per
Packaging
500
900
600
500
500
500
400
250
Electrical
MAX VOLTAGE: 12 VDC
MAX CURRENT: 50 mA
DIELECTRIC STRENGTH: 250 V AC (1mn)
CONTACT RESISTANCE: <100 mΩ
INSULATION RESISTANCE: >100M Ω
BOUNCE TIME: < 5 ms
NOTE:
Specifications listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Dimensions of reels according to EIA 481B. External diameter 330 mm.
How To Order
Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select
desired option from each category and and place it in the appropriate box.
P
T
S
1
2
5
S
-2
L
F
S
Style
S
Straight, top actuated
Termination & Packaging
NONE
THT in bags
SMTR
SMT in tape & reel
RoHS, silver plated
Actuator Shape
NONE
Round
J
Snap fit 73 height only
Actuator Force
M
180 grams
K
250 grams
Pegs Option
NONE
no pegs
P
with pegs - only for SMT version in round and
square snap fit actuator (not for 12 switch height)
Switch Height
43
4.3 mm round actuator
73
7.3 mm sqaure snap fit actuator
85
8.5 mm round actuator
12
12.0 mm round actuator with ribs
Other heights with the round actuator are available upon request. Different
minimum order quantities than the stand may apply.

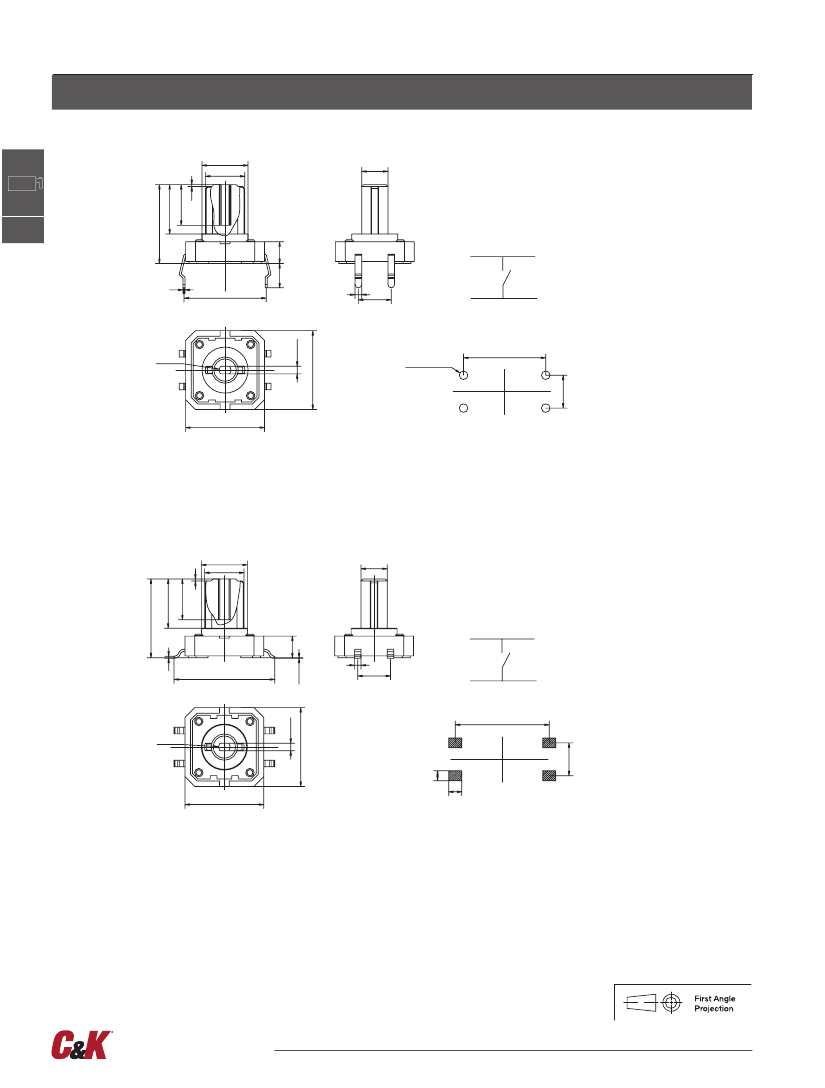

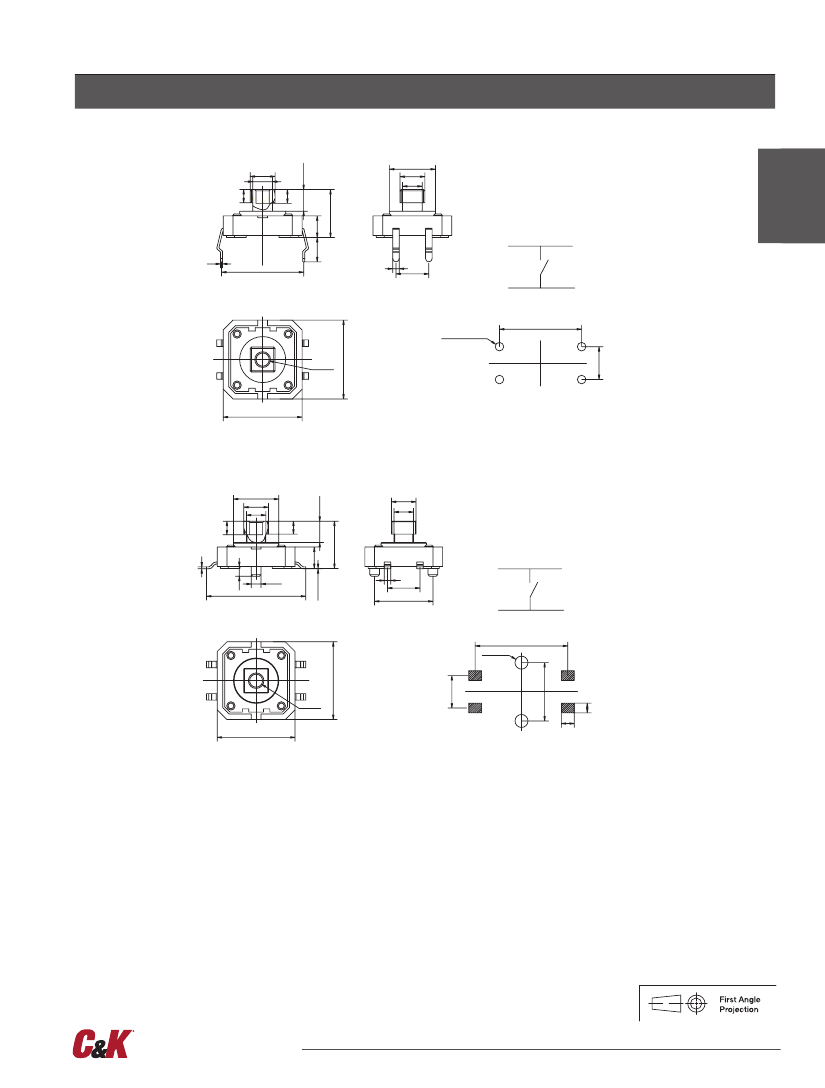

Dimensions are shown: mm
Specifications and dimensions subject to change
B–105
