Interface Modules
Diode modules & component carriers
TS35x7.5 70 mm (2.75 in.)
TS32x15 75 mm (2.95 in.)
INTERFACES

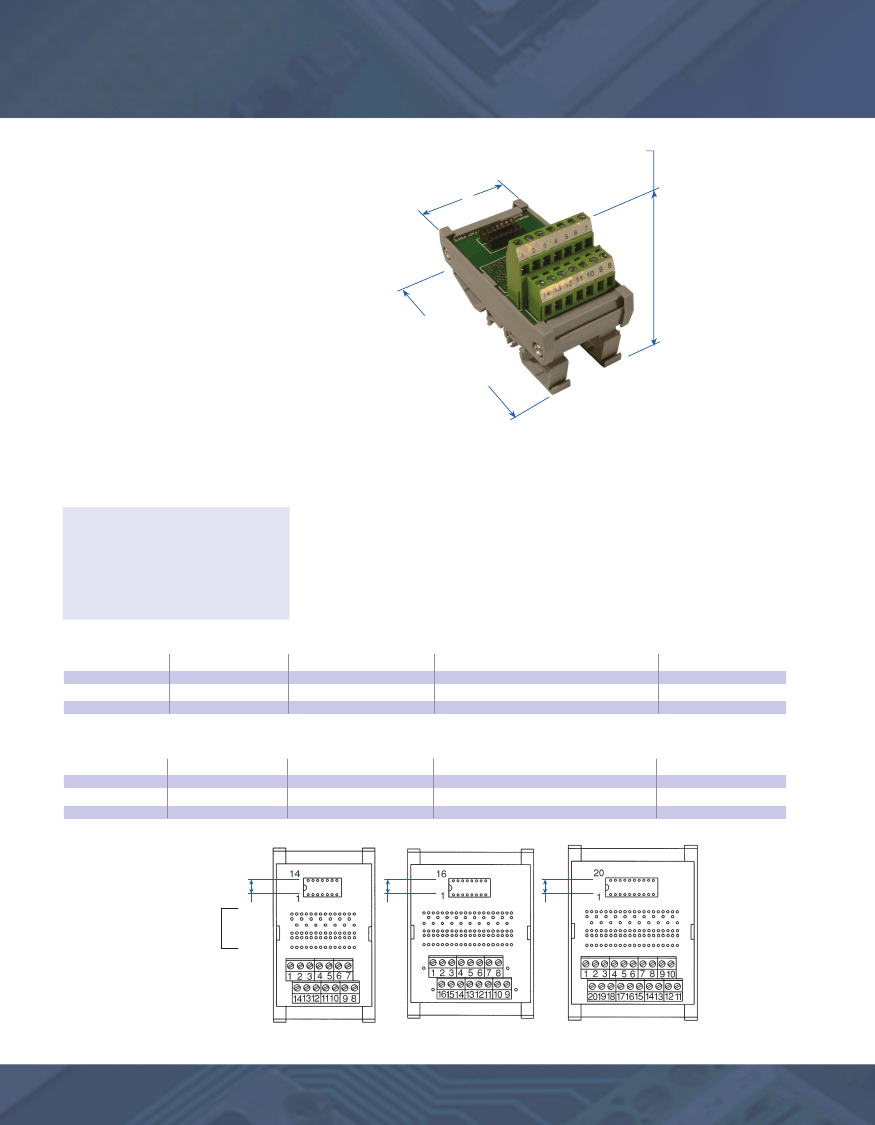

Dip Socket Carrier - 3 Amp
35 or 32mm DIN Rail Mount
Typical Applications:
14 Pin
Magnecraft® Classes 107, 171, 172;
S-D® Series MRR-D; Hamlin® 700;
Dale® TDP14 Resistors; etc.
16 Pin
Most P&B® including T85 Hi Sens and
I/O Modules IA, OA, OD16;
Midtex® 190 Power;
Augat® Alcoswitch® GD, AD Series, etc.
20 Pin
C&K® BD series switches;
Grayhill® 79 coded switches;
AMP® 7600 shunts; etc.
Technical Information
Current ..................3 A
a
L
87
m
m
3
.4
(3
.)
in
Voltage ..................250V AC
Wire Range ...........0.5-4 mm
2
/ 22-12 AWG
Torque ...................0.5-4 Nm / 4 lbs-in.
Stripping Length ...8 mm
SCREW CLAMP
Part Number
8937.2
8938.2
8939.2
Type
DIPC14
DIPC16
DIPC20
No. of Poles
14
16
20
Module Length (L) in mm(in.)
45 (1.77)
68 (2.68)
68 (2.68)
Std. Pk.
1
1
1
SPRING CLAMP
Part Number
8937.2/S
8938.2/S
8939.2/S
Type
DIPC14
DIPC16
DIPC20
No. of Poles
14
16
20
Module Length (L) in mm(in.)
45 (1.77)
56 (2.20)
56 (2.20)
Std. Pk.
1
1
1
7.62 mm (.300 in.)
a
Current Ratings
Printed Circuit Traces: 3.5A
Terminal Blocks: 15A
Dip Socket: 3A
14
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
DATA SUBJECT TO CHANGE WITHOUT NOTICE
7.62 mm (.300 in.)
PTH holes for convenient
component insertion and
easy soldering.
7.62 mm (.300 in.)
