KA2107 datasheet, PDF - EEWORLD Datasheet

KA2107: DescriptionDC VOLUME, TONE CONTROL CIRCUIT; CategoryAnalog mixed-signal IC Consumption circuit; File Size109KB，5 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric View All

KA2107 Overview

DC VOLUME, TONE CONTROL CIRCUIT

Parameter Name	Attribute value
Maker	SAMSUNG
Parts packaging code	SIP
package instruction	SIP, SIP12,.1
Contacts	12
Reach Compliance Code	compli
ECCN code	EAR99
Samacsys Descripti	Monolithic IC, 2 channel volume & tone control, 12-SIP
channel separation	80 dB
Commercial integrated circuit types	TONE CONTROL CIRCUIT
harmonic distortion	0.2%
JESD-30 code	R-PSIP-T12
length	29.4 mm
Number of frequency bands	2
Number of channels	2
Number of functions	1
Number of terminals	12
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SIP
Encapsulate equivalent code	SIP12,.1
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	12 V
Certification status	Not Qualified
Maximum seat height	9.5 mm
Maximum slew rate	50 mA
Maximum supply voltage (Vsup)	12 V
Minimum supply voltage (Vsup)	12 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
width	3.85 mm

KA2107

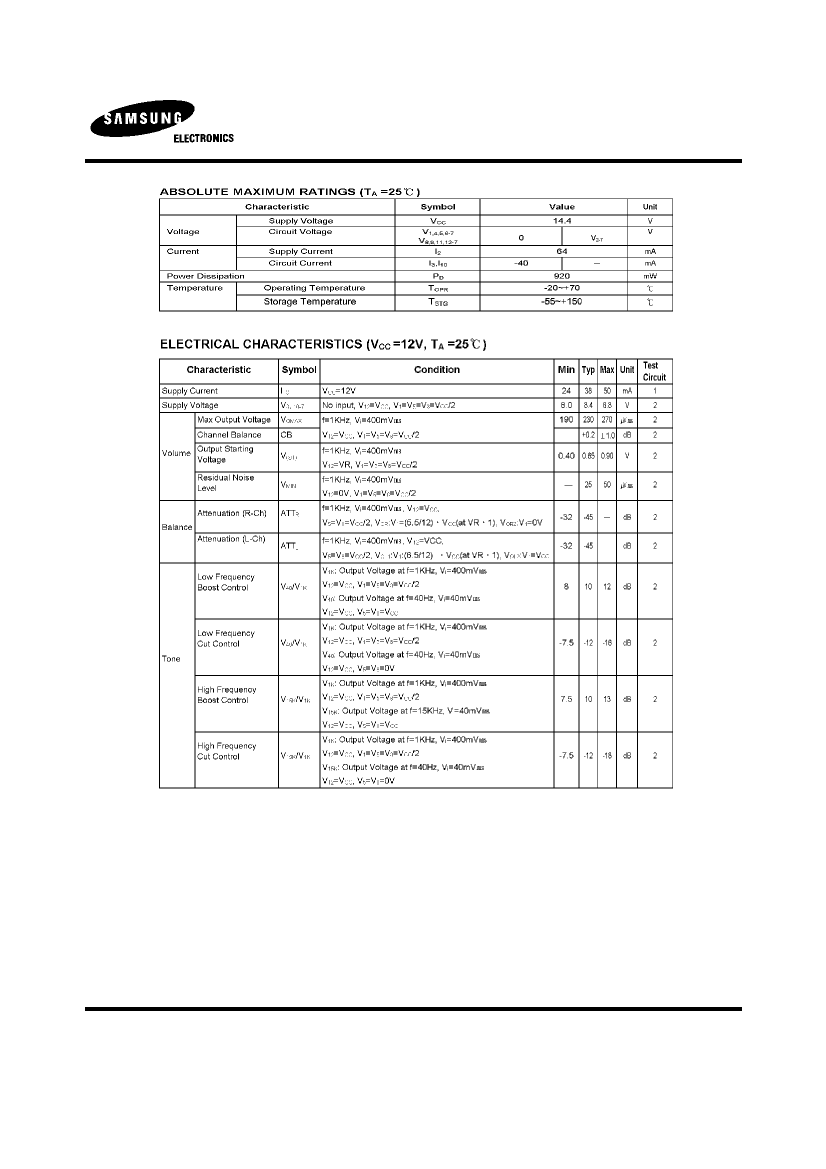

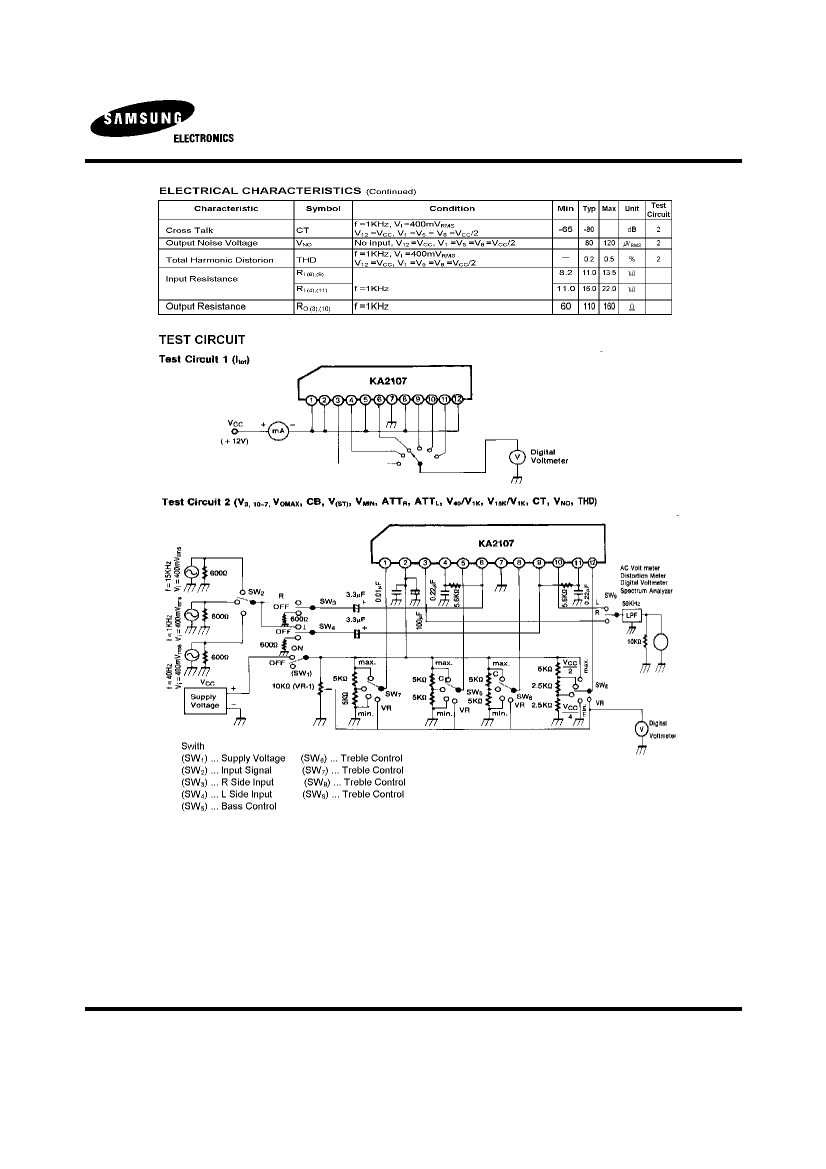

Video

CD-ROM(Edition 3.0)

This Data Sheet is subject to change without notice.

Page : 1 ( KA2107 )

Printed in Korea.
