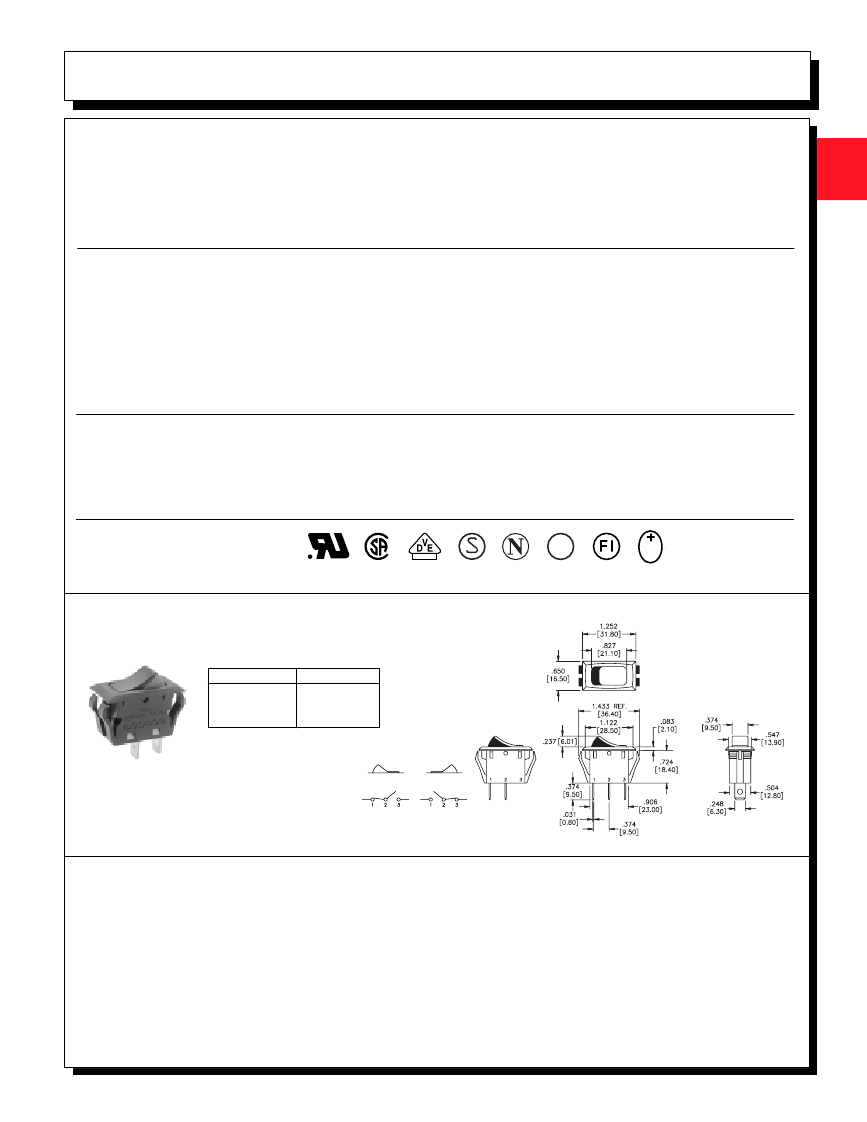

HB SERIES SNAP-IN ROCKER SWITCHES
N
FEATURES
Soft light or standard illuminated and non-illuminated models.
Single pole maintained action models with splash protection per IP42.
Actuator and case color selections.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
N
Standard actuator marking options with optional visible (visi) rocker 'ON' indication.
SPECIFICATIONS
Contact ratings:
20A 125VAC or 16A 250VAC (UL/CSA) 3/4 HP 125VAC or 250VAC (UL/CSA)
6A 125VL (UL) 16(4)A 250VAC~ µT85 (VDE, SEMCO, DEMCO, NEMCO,
FEMKO, SEV)
20 milliohms max.
100 megohms min. at 500 V
1000 VAC for 1 minute
10,000 cycles at full load
-20°C to 85°C
Initial contact resistance:
Insulation resistance:
Dielectric strength:
Electrical life:
Operating temperature range:
MATERIALS
Contacts:
Terminals:
Actuator:
Case:
Silver cadmium alloy
Silver plated copper
Nylon, type 66 or PC (UL94V-2 min.)
Nylon, type 66 (UL94V-2 min.)
Lamps:
Neon or fluorescent.
AGENCY RECOGNITION
D
s
UL, CSA, VDE, SEMKO, NEMKO, DEMKO, FEMCO, & SEV. Models are supplied with agency markings.
Quick connect terminals - non-illuminated - with visi rocker
MODEL NO.
CIRCUIT
OFF
ON
OFF
HB110C2NBBRW
ON
HB120C2NBBRW
ON
HB130C2NBBRW
ON
ON
Above models have black actuator.
Max. panel thickness: .083 [2.10]
N46
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
e w !
HB SERIES SNAP-IN ROCKER SWITCHES
N
Additional ordering information:
Commonly ordered models are shown above with complete model numbers and specificat-
ions. Below is an order format that enables you to 'build your own switch' and specify the correct switch model number by simply
selecting from all available options shown and filling in the boxes.
N
'BUILD YOUR OWN SWITCH' ORDER FORMAT
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
Fill in boxes with selections shown for complete model number.
Allowable options are shown below each respective box.
Note 'NONE" indicates box may be left empty.
Series
H B
Number
of poles
1
Single pole
Electrical
functions
Terminals
0
Actuator
type
C
Curved
rocker
Actuator
marking
1
ON OFF
2
ON ON
3
ON OFF ON
Quick connect
Illumination
Case
color
Actuator
color
Actuator
style
Sealing
1
2
3
4
5
6
HI LO
No marking
ON OFF (vertical)
O I
O
ON OFF (horizontal)
N
No illum.
L
Illuminated
A
B
C
R
W
Gray
Black
Brown
Red
White
A
B
C
G
O
R
W
Y
Gray
Black
Brown
Green
Orange
Red
White
Yellow
R
Red (visi
rocker)
N
No visi
rocker
Note:
R
not
available with
illumination.
(NONE)
W
Splash protected -case is designed to conduct moisture
drops outside the switch case and away from the contact
mechanism (available on non-illuminated models only).
Example of completely specified
model number:
HB110C2NBBRW
TERMINALS
QUICK-CONNECT
PANEL CUT-OUTS
pnl. tk'ness.
.029-.049"
.050-.078"
.079-.118"
A +0, -.004
1.126"
1.134"
1.150"
B +0, -.004
.539"
.539"
.539"
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
N47
