PVAZ172NPbF
Microelectronic Power IC
HEXFET
®
Power MOSFET Photovoltaic Relay
Single-Pole, Normally-Open, 0-60V AC, 1.0A
General Description
The PVAZ172N Photovoltaic Relay is a single-pole,
normally open solid state relay that can replace
electromechanical relays used for general purpose
switching of DC and AC loads. It utilizes International
Rectifier’s HEXFET power MOSFETs as the output
switches, driven by an integrated circuit photovoltaic
generator of novel construction. The output switch
is controlled by radiation from a GaAlAs light emitting
diode (LED) which is optically isolated from the
photovoltaic generator.
These units overcome the limitations of both
electromechanical and reed relays by offering the
solid-state advantages of high sensitivity, miniaturization,
no contact bounce, long operational life, insensitivity
to external magnetic fields, shock and vibration, and
high reliability inherent with solid state technology.
They are ideally suited for switching high currents or
low level signals without distortion or injection of
electrical noise.
These relays are packaged in 8-pin, molded DIP
packages and available with either thru-hole or
surface-mount (“gull-wing”) leads, in plastic shipping
tubes.
Features
500mΩ On-Resistance
Bounce-Free Operation
1.0 Amp capacity
4,000 V
RMS
I/O Isolation
Solid-State Reliability
UL recognized
ESD Tolerance:
4000V Human Body Model
500V Machine Model
Applications
Portable Electronics
Programmable Logic Controllers
Computers and Peripheral Devices
Audio Equipment
Power Supplies and Power Distribution
Instrumentation
Part Identification
PVAZ172NPbF
thru-hole
PVAZ172NSPbF surface-mount (gull-wing)
PVAZ172NS-TPbF surface-mount tape
and reel
(HEXFET is the registered trademark for International Rectifier Power MOSFETs)
1
www.irf.com
©
2015 International Rectifier
Submit Datasheet Feedback
April 29, 2015
PVAZ172NPbF
Electrical Specifications
(-40°C
≤
T
A
≤
=+85°C unless otherwise specified)
INPUT CHARACTERISTICS
Min. Control Current
(see figures 1 and 2)
Max. Control Current for Off-State Resistance
@ T
A
=+25°C
Control Current Range
(Caution: Current limit input LED, see figure 6)
Maximum Reverse Voltage
Limits
10
0.4
5.0 to 25
6.0
Units
mA
mA
mA
V
OUTPUT CHARACTERISTICS
Operating Voltage Range
Maximum Load Current 40
°
C
(see figures 1 and 2)
Maximum Pulsed Load Current
@T
A
=+25°C (100 ms @ 10% duty cycle)
Maximum Turn-On Time
@T
A
=+25°C (see figure 7)
For 500mA, 50VDC Load, 10mA Control
Maximum Turn-Off Time
@TA=+25°C (see figure 7)
For 500mA, 50VDC Load, 10mA Control
Maximum On State Resistance
@TA=+25°C(pulsed) (See figure 4)
1.0A Load, 10mA Control
Minimum Off State Resistance @T
A
=+25°C @ 48 VDC (see figure 5)
Minimum Off-State dv/dt
Output Capacitance
(see figure 9)
10
8
1000
150
Ohms
V/µs
pF @ 50 VDC
500
mΩ
0.5
ms
0 to 60
1.0
2.4
2.0
V(AC peak)
A (DC)
A (AC peak)
ms
GENERAL CHARACTERISTICS
Dielectric Strength, Input-Output
Insulation Resistance, Input-Output , 90 V
DC
Capacitance, Input-Output
Lead Temperature (1.6mm below seating plane) for 10 seconds
Ambient Temperature Range:
Operating
Storage
Limits
4000
10
12
@T
A
=+25°C - 50% RH
1.0
+260
-40 to +85
-40 to +100
Units
V
(RMS)
Ω
pF
°C
°C
°C
International Rectifier does not recommend the use of this product in aerospace, avionics, military or life support applications.
Users of this International Rectifier product in such applications assume all risks of such use and indemnify International
Rectifier against all damages resulting from such use.
2
www.irf.com
©
2015 International Rectifier
Submit Datasheet Feedback
April 29, 2015
PVAZ172NPbF

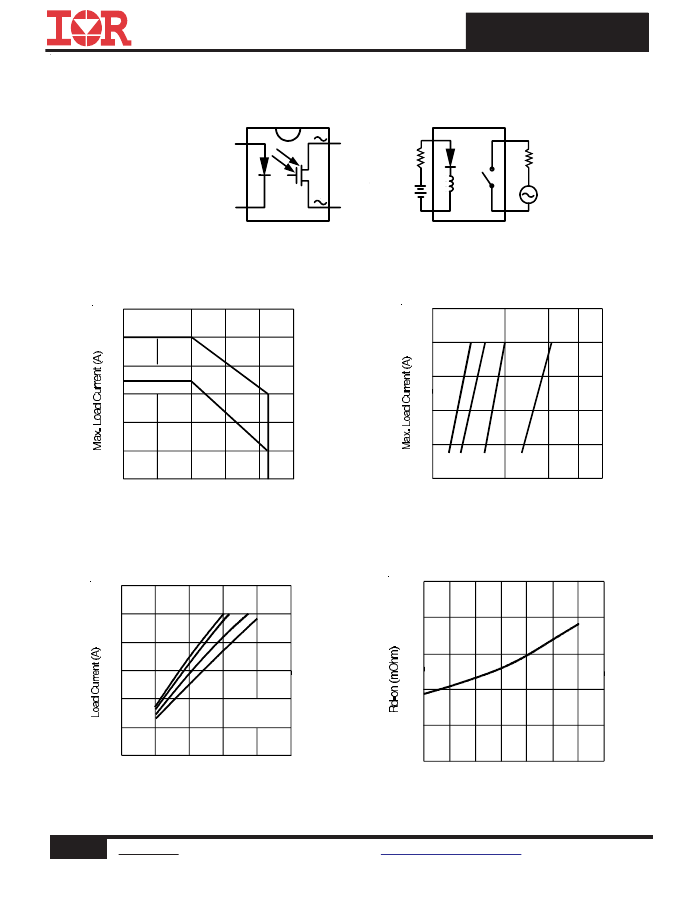

Wiring Diagrams:
Anode
2
+
8
Drain
2
8
+
Cathode
3
5
Drain
3
5
Schematic
Electromechanical
Analogy
1.2
ILED = 10mA
1.25
1.0
1.00
+25 deg. C
0.8
ILED = 5mA (Typical)
0.75
0.6
0.50
0.4
+60 deg. C
0.25
+40 deg. C
+85 deg. C
0.2
0
0
20
40
60
80
100
0
1
2
3
4
5
Ambient Temperature (deg. C)
LED Control Current (mA)
Figure 1. Current Derating Curves
Figure 2. Typical Control Current Requirements
1.2
500
+40 deg. C
+60 deg. C
1.0
400
+85 deg. C
0.8
+25 deg. C
300
0.6
0.4
200
ILED = 10mA
0.2
100
0
0
0.1
0.2
0.3
0.4
0.5
Vds (V)
0
-40
-20
0
20
40
60
80
100
Ambient Temperature (deg. C)
Figure 3. Typical On-Characteristics
Figure 4. Typical On-Resistance
3
www.irf.com
©
2015 International Rectifier
Submit Datasheet Feedback
April 29, 2015
PVAZ172NPbF
100
20
30
Id-off/Id-off 25 deg. C
CAUTION: provide current limiting
so that 25 mA maximum steady-
state control current rating is
not exceeded
deg. C limit
-40 deg. C limi
Max. device an
d
t
16
Input Current (mA)
10
12
Min. device an
d +85
3.0
8
1.0
0.3
4
0.1
-35
-15
5
25
45
65
85
105
0
0
0.5
1.0
TYPICAL
1.5
2.0
Ambient Temperature (deg. C)
LED Forward Voltage Drop (Volts DC)
Figure 5. Typical Normalized Off-State Leakage
Figure 6. Input Characteristics (Current Controlled)
20
10
I
LED
ton
toff
tdly
I
D 10%
90%
5
t
dly
3
t
on
t
off
20
50
100
200
500
1000 2000
Delay Time (microseconds)
Figure 7. Typical Delay Times
600
Figure 8. Delay Time Definitions
450
300
150
0
0
10
20
30
40
50
Vds, Drain to Source Voltage (V)
Figure 9. Typical Output
Capacitance
4
www.irf.com
©
2015 International Rectifier
Submit Datasheet Feedback
April 29, 2015
PVAZ172NPbF

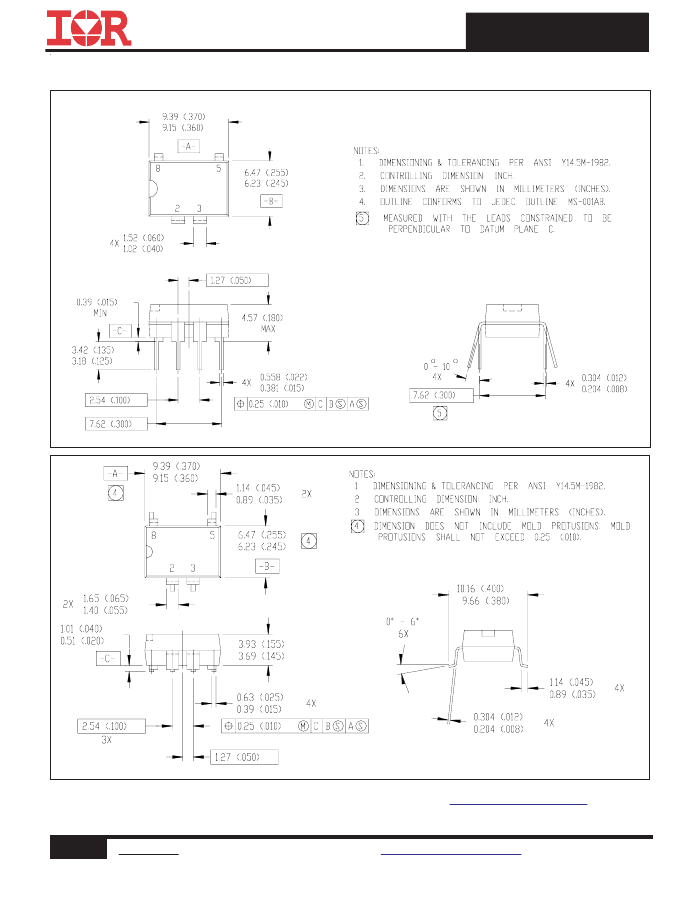

Case Outline
01-2013
00 (MS-001AB)
01-2019
00
Note: For the most current drawing please refer to IR website at:
http://www.irf.com/package/
5
