P5-V
VANDAL RESISTANT
PUSHBUTTONS
VANDAL RESISTANT PUSHBUTTONS
ALTERNATE ACTION, SEALED AGAINST DUST & MOISTURE

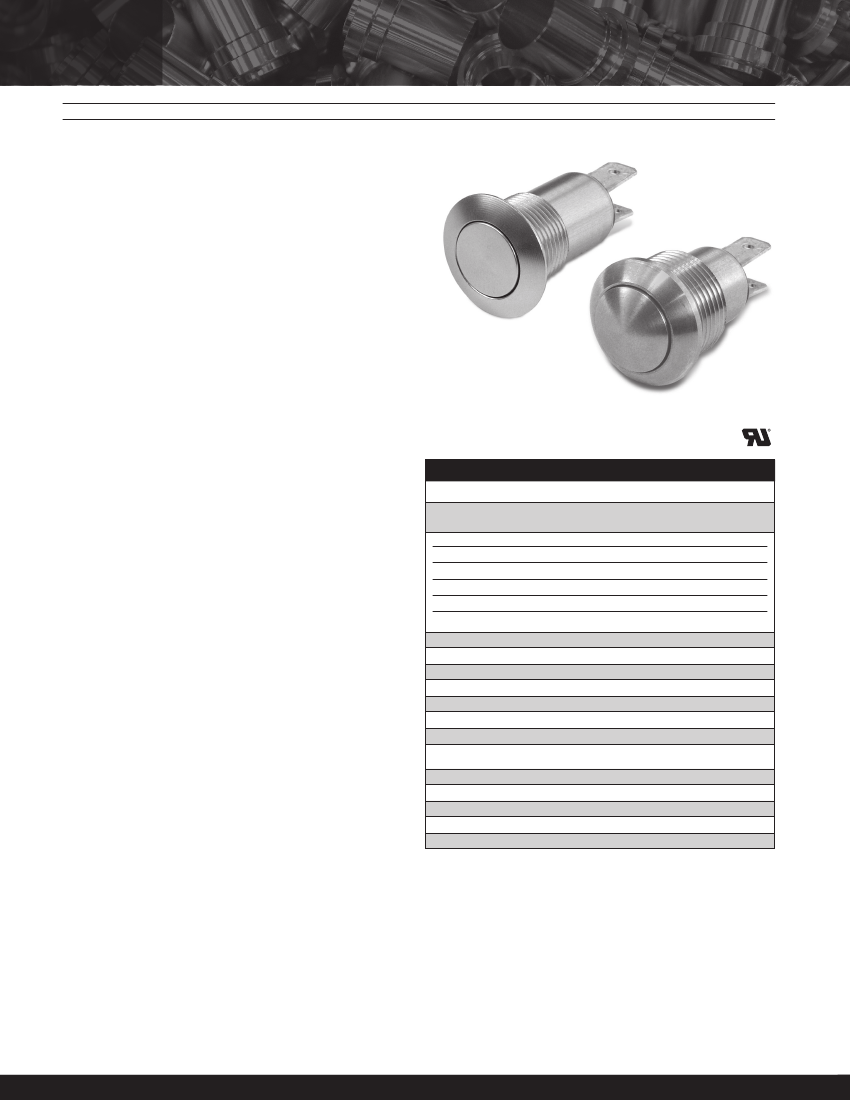

The P5-V switch gives you all the functionality of the P5 Alternate
Action switch with the added benefit of an aluminum security
level case and button or a stainless steel vandal resistant case
and button.
Push and the P5-V switch turns “on.” Push again and the
switch turns “off.” Positive tactile feedback is featured so the
operator is clearly aware the switch has been actuated. The
button returns to the original position after each actuation.
To guard against front panel splash and dirt the P5-V is sealed
at the button with OTTO’s patented “rolling sleeve” design.
The terminals are sealed with epoxy, providing a seal against
flux during wiring and behind panel dirt and moisture. The
combination of sealing provides smooth operation over a wide
temperature range. Watertight sealing to IP68S and IP69K is also
available.
We are able to provide custom button engraving with epoxy
ink backfill and other special characters, shrouded buttons,
contact configurations and materials to suit your application
requirements.
High Profile
Flat Button
High Profile
Curved Button
Standard Characteristics/Ratings:
ELECTRICAL RATINGS:
Load
Resistive
Inductive
Lamp
Motor
DWV
Low Level
Electrical Life:
Mechanical Life:
Seal:
Operating Force:
Total Travel:
Overtravel:
Sea Level @
28VDC or 115VAC, 60/400Hz
5A
3A
1A
3A
1050Vrms
10mA @ 30mV
25,000 cycles
1,000,000 cycles
IP64 or IP68S and IP69K
3.0 lbs. +1/-0.5 lb.
0.180 inches max
0.012 inches min
Features:
• Security (aluminum) or vandal resistant
(stainless steel) case & button
• Button sealed with patented “rolling sleeve” design
• Contact area sealed at case & terminals
• Watertight to IP68S and IP69K or dusttight &
moistureproof to IP64
• Less than 25mΩ contact resistance
• Handles low level up to 10 amps
• 1 million mechanical cycle life
• RoHS, Reach & WEEE Compliant
Operating Temp Range:
-55°C to +85°C
MATERIALS:
Case:
Button:
Terminals:
Terminal Hardware:
Mounting Hardware:
Anodized aluminum alloy or stainless steel
Anodized aluminum alloy or stainless steel
Brass with gold over silver
Screw, lockwasher and terminal lug when applicable
Hex nut, lockwasher and panel seal when applicable
144
OTTO Full Line Catalog
Specifications Subject To Change Without Notice
VANDAL RESISTANT PUSHBUTTONS
SEALED AGAINST DUST & MOISTURE
P5-V
VANDAL RESISTANT
PUSHBUTTONS

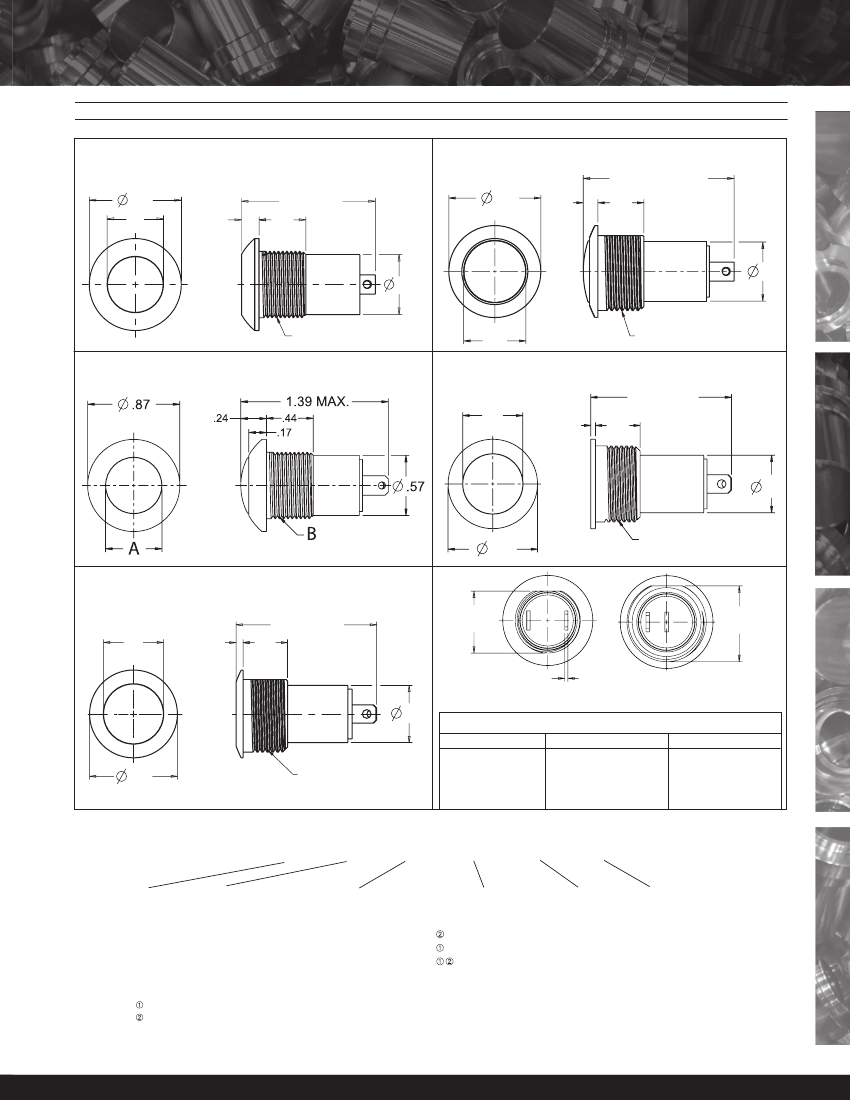

High Profile, Flat Button
Bezel Profile/Button Style 1
Low Profile, Curved Button
Bezel Profile/Button Style 4
2X 1.45 MAX.
.87
A
.17
1.47 MAX.
.44
.88
.14
.44
.565
.57
B
High Profile, Curved Button
Bezel Profile/Button Style 2
A
Flush Mount, Flat Button
Bezel Profile/Button Style 5
B
1.39 MAX.
A
PUSHBUTTONS
.047
.44
.57
.88
Low Profile, Flat Button
Bezel Profile/Button Style 3
B
A
.08
.44
1.40 MAX.
TO FLAT
IF APPLICABLE
.594
TO FLAT
IF APPLICABLE
.718
.03 TYP.
.57
.625-24 UNEF-2A
ALL TERM.
STYLES
.750-20 UNEF-2A
Dimension
Case Style
1-4
Ø
.525
0.625-24 UNEF-2A
.594
5-8
Ø
.590
0.750-20 UNEF-2A
0.718
.88
B
A (Button Dia.)
B (Thread)
D-Flat
P5
Type
V.
Stainless
A.
Aluminum
–
X
P5-V PART NUMBER CODE
X
X
X
X
Seal
X
Bezel Profile/
Button
1.
High Profile/Flat Button
2.
High Profile/Curved Button
3.
Low Profile/Flat Button
4.
Low Profile/Curved Button
5.
Flush Profile
Thread*
1.
5/8-24 & Hex Nut
3.
5/8-24 W/D–Flat & Hex Nut
5.
3/4-20 & Hex Nut
7.
3/4-20 W/D–Flat & Hex Nut
Terminal Style/
Bezel Color
1.
Solder Terminal/Silver
2.
Screw Terminal/Silver
3.
Solder Terminal/Black
4.
Screw Terminal/Black
Circuit Form/
Contact Material
1.
SPST/Silver
2.
SPST/Gold
3.
SPDT/Silver
4.
SPDT/Gold
1.
Dusttight
2.
Watertight
*
For Knurl Nut Thread options, contact factory.
Only Available on P5-A Styles.
Screw terminals available on SPST circuits only.
Specifications Subject To Change Without Notice
www.ottoexcellence.com
145
