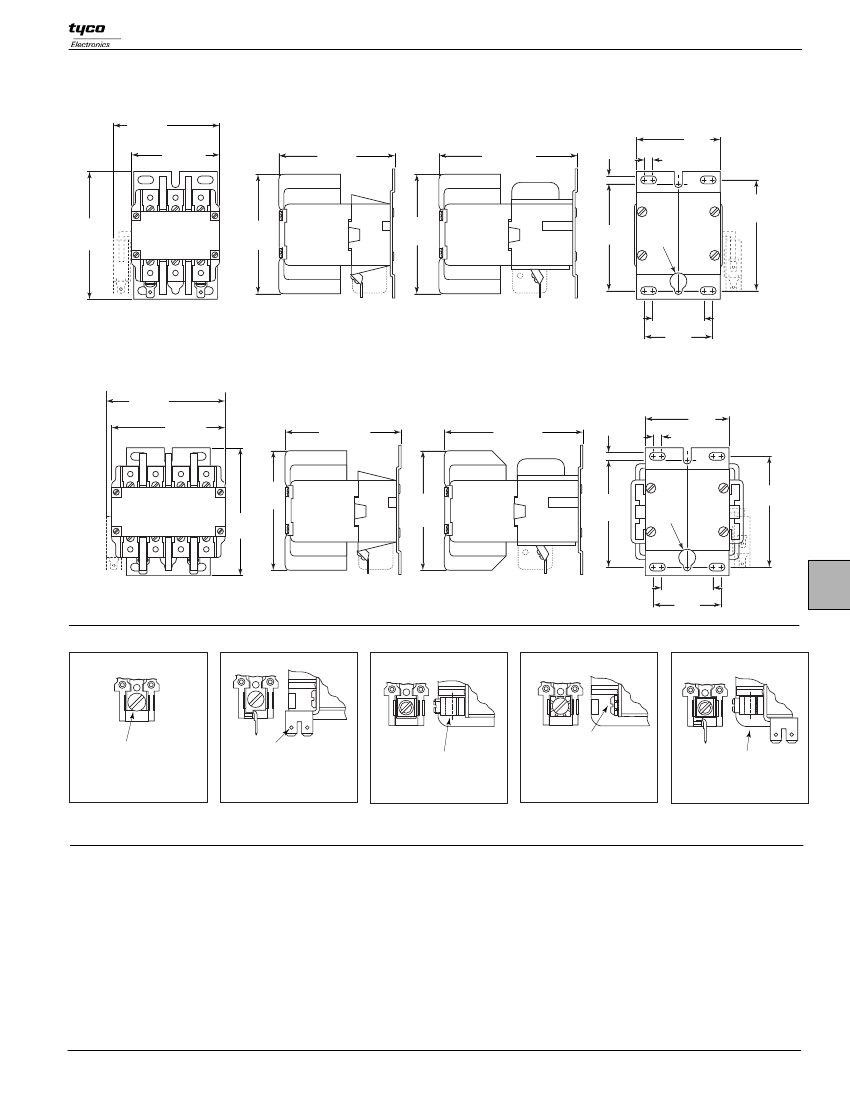

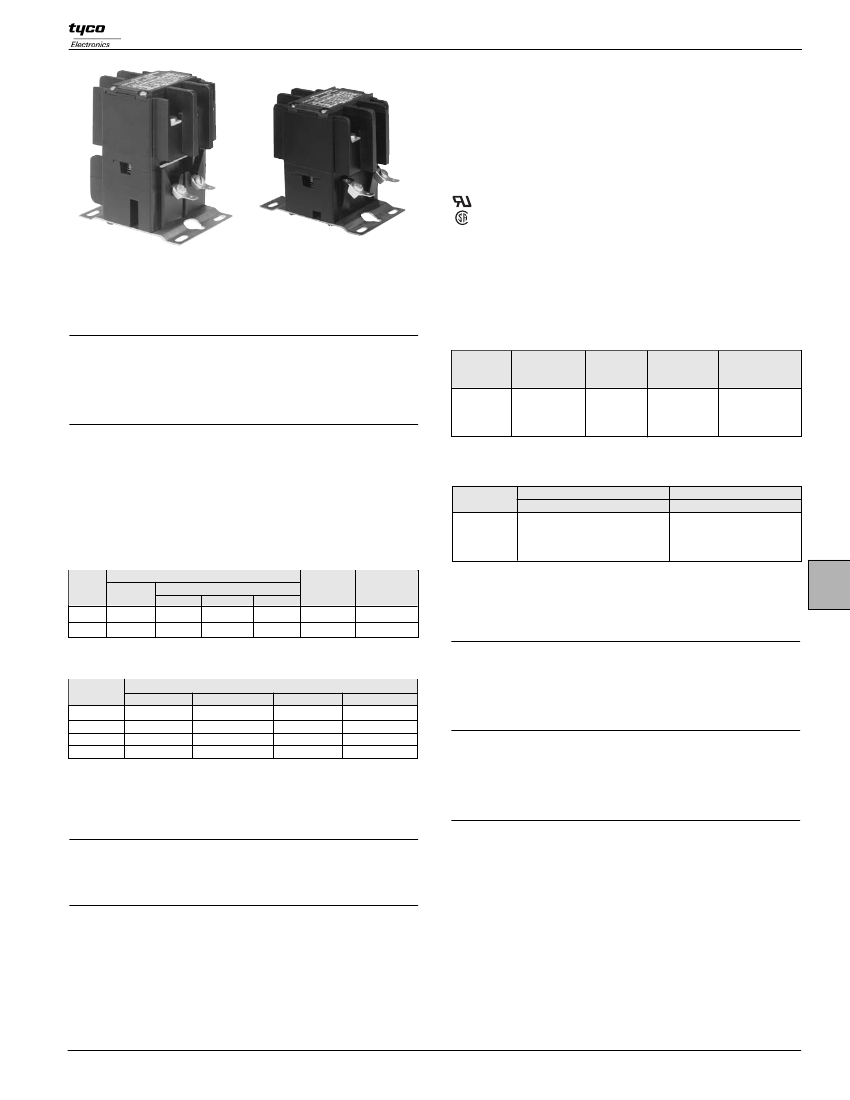

Outline Dimensions
3 Pole Models
AC Coil
3.25 MAX.
(82.55)
W/SWITCH
2.650 MAX.
(67.31)
W/O SWITCH
DC Coil
3.420 MAX.
(86.87)
3.975 MAX.
(100.97)
.21 TYP.
(5.3)
2.550
(64.77)
.25 TYP.
(6.4)
3.250
±
.010
(82.55
±
.25)
3.800 MAX.
(96.52)
3.550 MAX.
(90.17)
3.550 MAX.
(90.17)
3.125
±
.010
(79.38
±
.25)
.5 DIA.
(12.7)
1.500
±
.020
(38.10
±
.51)
2.00
(50.8)
4 Pole Models
AC Coil
3.600 MAX.
(91.44)
W/SWITCH
3.350 MAX.
(85.09)
W/O SWITCH
DC Coil
3.420 MAX.
(86.87)
3.975 MAX.
(100.97)
.21 TYP.
(5.3)
2.550
(64.77)
.25 TYP.
(8.4)
3.550 MAX.
(90.17)
3.800 MAX.
(96.52)
3.550 MAX.
(90.17)
3.125
±
.010
(79.38
±
.25)
.5 DIA.
(12.7)
3.250
±
.010
(82.55
±
.25)
1.500
±
.020
(38.10
±
.51)
2.00
(50.8)
Contact Terminal Options
Code 2
Code 3
Code 4
Code 5
Code 6
#10-32 UNF-2A X .375” (9.525mm)
Binder Terminal Screw 15S365
accepts the following
wire size: Solid, Single — 8 AWG
Dual .250” (6.35mm)
Quick Connect 26A945
#10-32 UNF-2A X .375” (9.525mm)
Binder Terminal Screw 15S365
accepts the following
wire size: Solid, Single — 8 AWG
Box Lug (Keyed) 24C540 with
15S361 & 15S364 Screws
Accepts the following wire sizes:
Solid, Single —14-4 AWG
#10-32 UNF-2A X .500” (12.7mm)
Screw with Captive
Pressure Plate 15S362
Accepts the following wire sizes:
Solid, Single —22-8 AWG
Solid, Double —22-14 AWG
Stranded, Single —22-8 AWG
Stranded, Double —22-16 AWG
Dual .250” (6.35mm)
Quick Connect 26A945
Box Lug 9P30X3
Accepts the following wire sizes:
Solid, Single —14-4 AWG
Main Contact Ordering and Replacement Information
Contact Replacement Kits
Contact replacement kits for 3 pole models include 3 contact pressure springs, 3 movable contact assemblies and 6 stationary contact assemblies. Kits for 4
pole models include 4 contact pressure springs, 4 movable contact assemblies and 8 stationary contact assemblies. Contact replacement kits are for use only
on those models with form X contact arrangements.
Kits for P30 contactors:
3 Form X models - Kit No. 9P30X1
4 Form X models - Kit No. 9P30X2
Kits for P40 contactors:
3 Form X models - Kit No. 9P40X1
4 Form X models - Kit No. 9P40X2
To Replace Contacts:
1.
Remove screws holding dust cover in place, and remove cover.
2.
Compress and remove contact pressure springs.
3.
Lift movable contacts and remove.
4.
Remove screws holding stationary contact in place, and remove contacts.
5.
Reverse the above procedure to install new stationary and movable contacts.
Caution:
Do not overtighten the screws, as it is possible to strip the threads.
