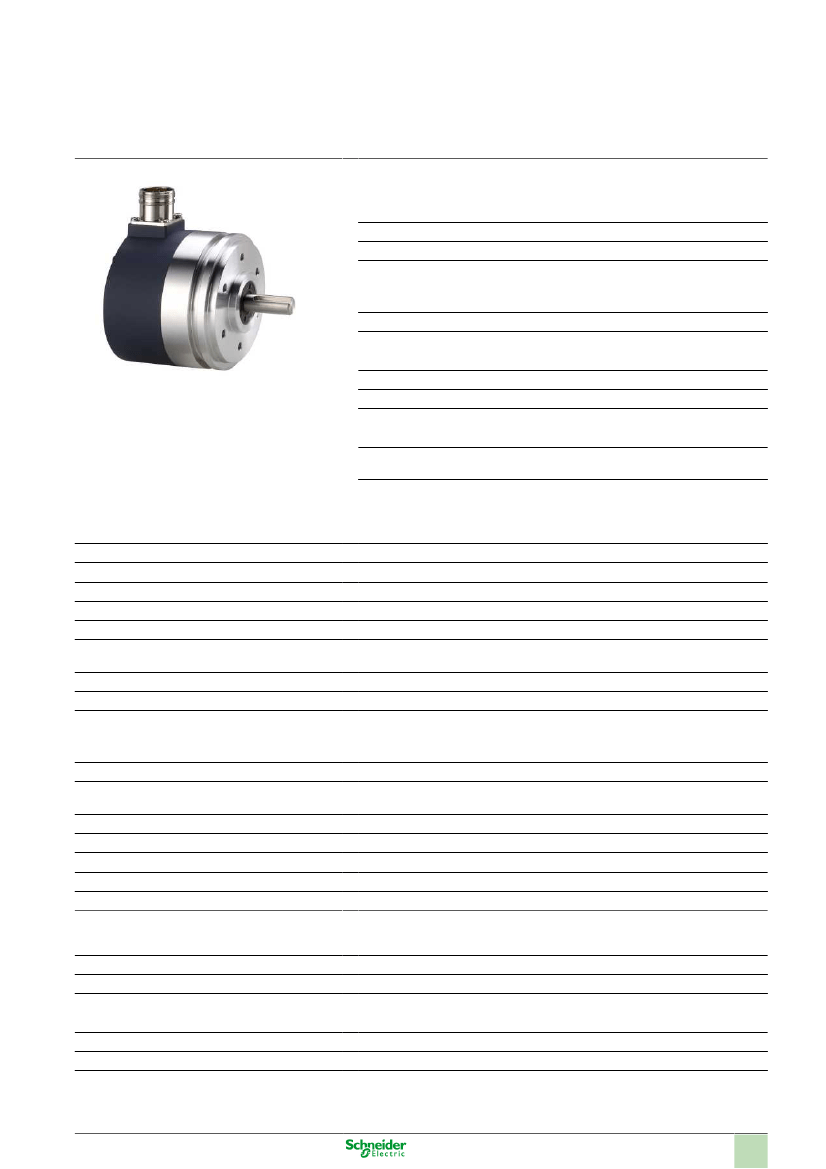

Product data sheet

Characteristics

XCC1912PS03KN

incremental encoder Ø 90 - solid shaft 12 mm -

360 points - push-pull

Product availability: Non-Stock - Not normally stocked in distribution facility

Main

Commercial Status

Range of product

Encoder type

Encoder name

Product specific

application

Diameter

Shaft diameter

Shaft type

Resolution

Output stage

Type of output stage

Electrical connection

[Us] rated supply

voltage

Enclosure material

Commercialised

OsiSense XCC

Incremental encoder

XCC

3.54 in (90 mm)

0.47 in (12 mm)

Solid shaft

360 points

Driver push-pull

1 male connector M23 radial 12 pins

11...30 V DC

Zamak

The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.

This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.

It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.

Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.

Type K

Complementary

Shaft tolerance

Residual ripple

Maximum revolution speed

Shaft moment of inertia

Torque value

Maximum load

Output frequency

Number of channels

Current consumption

Protection type

Maximum output current

Output level

Surge withstand

Base material

Shaft material

Type of ball bearings

Product weight

0...500 mV

6000 rpm

0.05 lb.in² (150 g.cm²)

0.09 lbf.in (0.01 N.m)

20 daN radial

10 daN axial

100 kHz

0...75 mA (no-load)

Reverse polarity protection

Short-circuit protection

40 mA

High level: V supply - 3 V minimum (20 mA)

Low level: 1.5 V maximum (20 mA)

1 kV, level 2 conforming to IEC 61000-4-5

Aluminium

Stainless steel

6001ZZ

3 lb(US) (1.36 kg)

Environment

Marking

Ambient air temperature for operation

Ambient air temperature for storage

IP degree of protection

Vibration resistance

Shock resistance

Resistance to electrostatic discharge

-4...176 °F (-20...80 °C)

-22...185 °F (-30...85 °C)

IP66 conforming to IEC 60529

10 gn (f = 10...1000 Hz) conforming to IEC 60068-2-6

30 gn for 11 ms conforming to IEC 60068-2-27

8 kV (air discharge) level 3 conforming to IEC 61000-4-2

4 kV (contact discharge) level 3 conforming to IEC 61000-4-2

Feb 28, 2016
