ADJ61012 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> ADJ61012

ADJ61012: DescriptionGeneral Purpose Relays 2 Form A, 12VDC; CategoryMechanical and electronic products relay; File Size287KB，11 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

ADJ61012 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ADJ61012	-	-	View	Buy Now

ADJ61012 Overview

General Purpose Relays 2 Form A, 12VDC

ADJ61012 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
body width	13 mm
body height	16.5 mm
Body length or diameter	29 mm
Maximum coil current (DC)	0.013 A
Coil operating voltage (DC)	8.4 V
Coil power	150 mW
Coil release voltage (DC)	8.4 V
Coil resistance	960 Ω
Maximum coil voltage (DC)	12 V
Nominal coil voltage	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	4000VA@250VAC
Contact (AC) maximum rated R load	10A@250VAC
Maximum contact current (AC)	10 A
Contact resistance	100 mΩ
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC
Dielectric strength between coil and contacts	4000 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Tin Oxide
End contact plating	GOLD
Input switching control type	Random
Insulation resistance	1000000000 Ω
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	10 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
method of packing	BOX
physical size	29mm x 13mm x 16.5mm
Guideline	UL; VDE
Relay action	LATCHED
Relay style	2 FORM A
Relay function	DPST
Relay type	POWER/SIGNAL RELAY
release time	10 ms
seal	FLUX FREE SEALED
surface mount	NO
Terminal length	0.0035 inch
Termination type	SOLDER
weight	14 g
Base Number Matches	1

Preview

Download Datasheet

View All

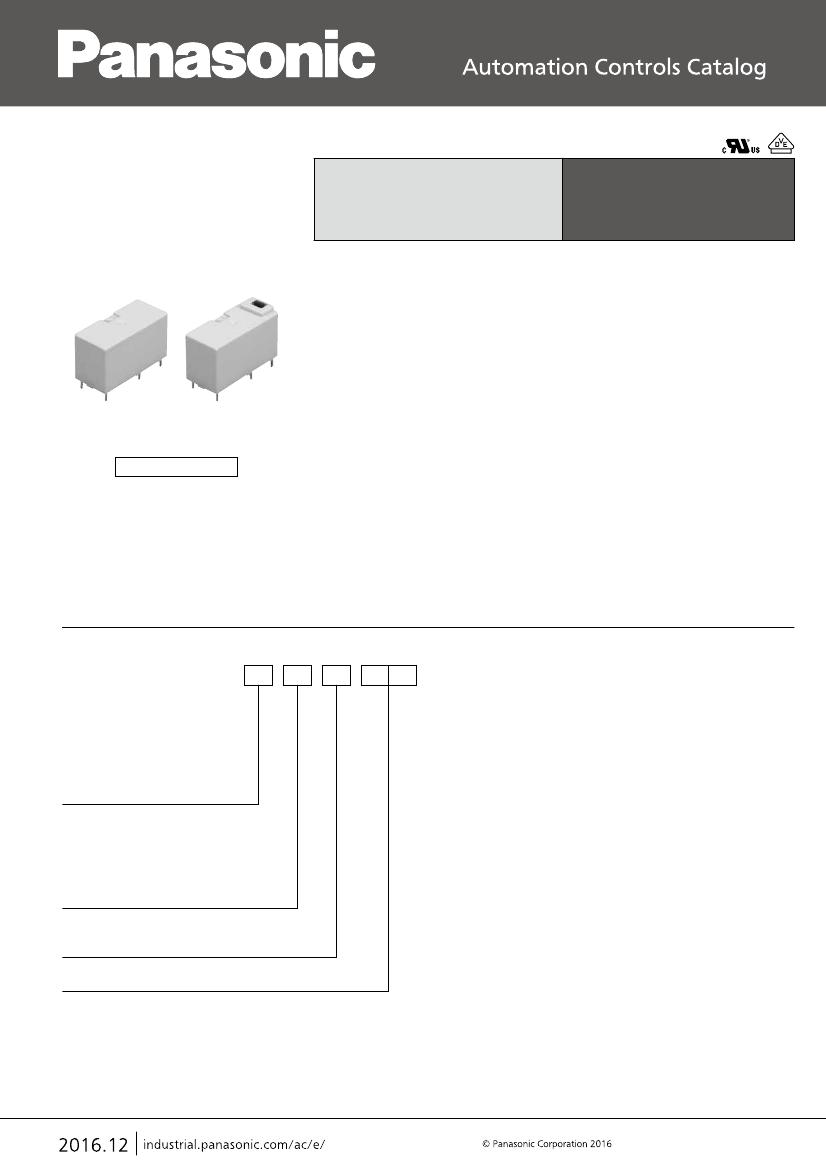

1-pole/2-pole 16A

polarized power relays

DJ RELAYS (ADJ)

6. With operation veriﬁcation function

A test button (manual lever) type to

facilitate circuit checks is also available

(1 Form C, 1 Form A, 1 Form B types

only).

FEATURES

1. Variety of contact arrangements

Wide lineup of 1 Form C, 1 Form A,

1 Form B, 2 Form C, 2 Form A, 2 Form

B, 1 Form A 1 Form B.

2. Latching operation

Latching via a polarized magnetic

circuit structure allows remote

operation and lower energy

consumption

3. Compact with high capacity

16A (1-pole type) contact rating in a

compact size

29×13×16.5 mm (L×W×H).

4. Low power consumption

1 coil latching: 150mW

2 coil latching, single side stable:

250mW

5. Long insulation distance

Both clearance and creepage distance

between coil and contact are at 8 mm

min.

TYPICAL APPLICATIONS

1. FA equipment (brake circuits of

industrial machine and robots, etc.)

2. Electric power devices (remote

surveillance devices, etc.)

3. Household appliance networks

(Motor control and lighting control,

etc.)

4. Time switches

Without a test button

With a test button

RoHS compliant

Protective construction: Flux-resistant

type/Sealed type

ORDERING INFORMATION

ADJ

Contact arrangement

1: 1 Form C

2: 1 Form A

3: 1 Form B

4: 1 Form A 1 Form B

5: 2 Form C

6: 2 Form A

7: 2 Form B

Operating function and protective construction

1: 1 coil latching, Flux-resistant type

2: 1 coil latching, Sealed type

3: 2 coil latching, Flux-resistant type

4: 2 coil latching, Sealed type

5: Single side stable, Flux-resistant type

6: Single side stable, Sealed type

Auxiliary function

0: Without a test button

1: With a test button

Nominal coil voltage (DC)

05: 5 V, 06: 6 V, 12: 12 V, 24: 24 V, 48: 48 V

–1–

ASCTB176E 201612-T
