Limit Switches
Catalog
March
File 9007 / XC
07
CONTENTS
Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Applications by Market Segment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Osiswitch
®
XC Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Osiswitch Miniature Snap Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Osiswitch Miniature Limit Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Osiswitch Compact Limit Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Osiswitch Classic Limit Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Class 9007 Industrial Snap Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Class 9007 Miniature Limit Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Class 9007AW Heavy Duty Industrial Limit Switches . . . . . . . . . . . . . . . 161
Class 9007C Heavy Duty Industrial Limit Switches . . . . . . . . . . . . . . . . . 162
Class 9007T and FT Severe Duty Mill and Foundry Limit Switches . . . . 214
R.B.Denison
®
Lox-Switch™ L Severe Duty Mill and Foundry Switches . 226
Building a New Electric World
Limit Switches
Table of Contents
Osiswitch
®
Limit Switches
Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Osiswitch
®
Miniature Snap Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Osiswitch
®
Miniature, Metal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Osiswitch
®
Miniature, Plastic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Osiswitch
®
Compact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Osiswitch
®
Compact, Metal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Osiswitch
®
Compact, Plastic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Osiswitch
®
Compact, Metal and Plastic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Osiswitch
®
Compact, Plastic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Osiswitch
®
Compact, Metal and Plastic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Osiswitch
®
Compact with Manual Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Osiswitch
®
Classic, Metal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Osiswitch
®
Classic, Metal, Conforming to CENELEC EN 50041 . . . . . . . . . . . . . 98
Osiswitch
®
Classic, Plastic, Conforming to CENELEC EN 50041 . . . . . . . . . . . 126
Osiswitch
®
Classic, For Hoisting, Mechanical Handling, and Conveyer Belt Shift
Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Osiswitch
®
Classic, For Hoisting and Material Handling . . . . . . . . . . . . . . . . . . 138
Osiswitch
®
Classic, For Material Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
3
03/2007
© 1997–2007 Schneider Electric All Rights Reserved
Limit Switches
Limit Switches

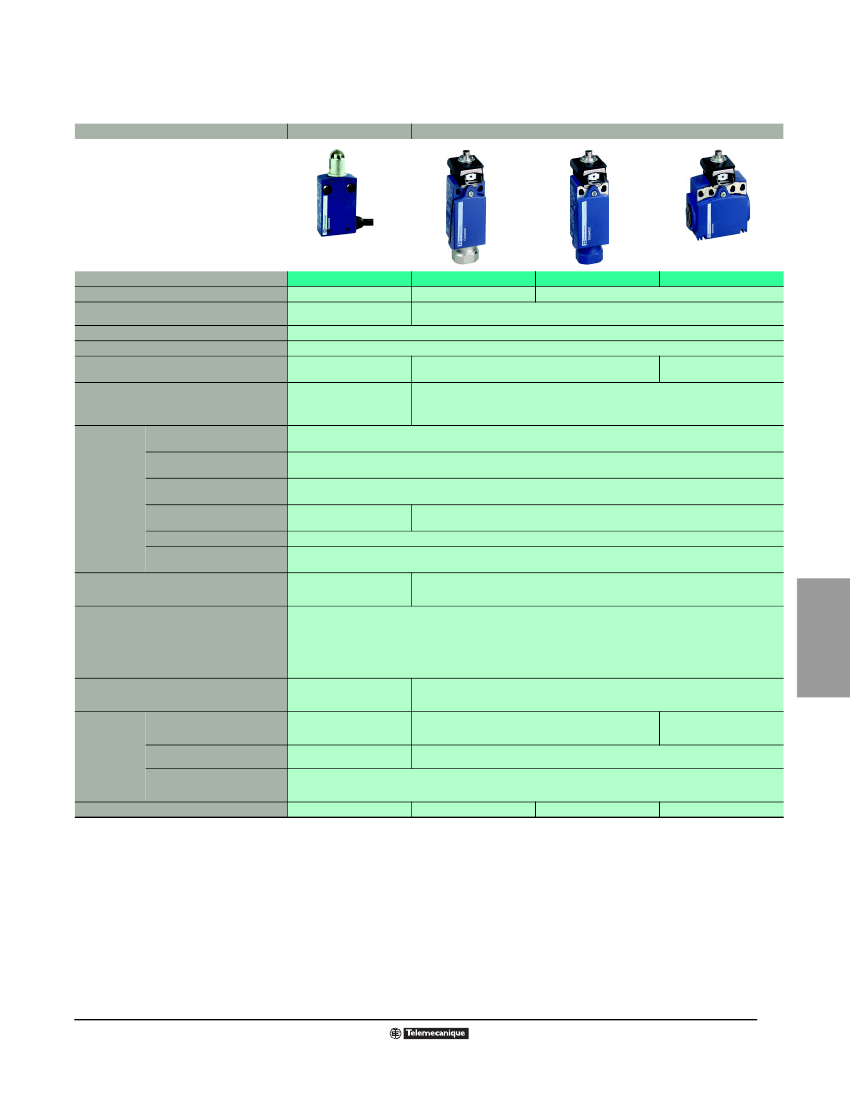

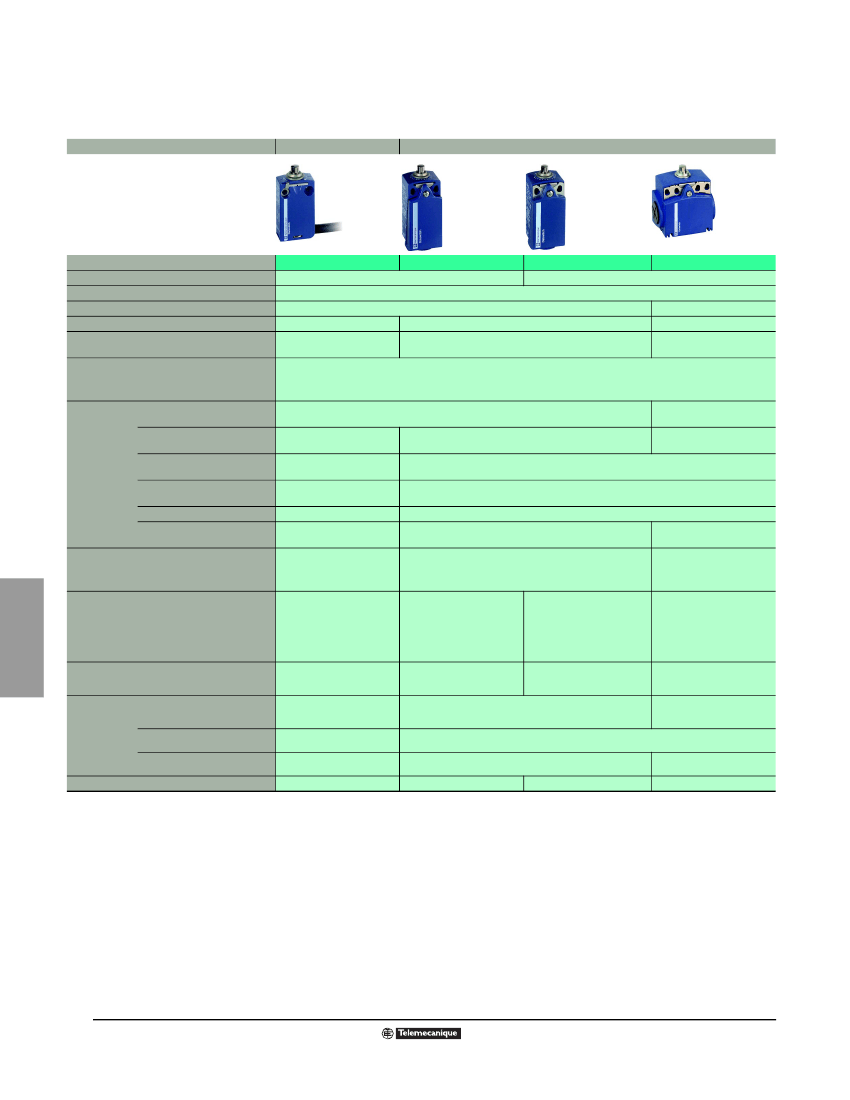

Selection Guide
Osiswitch
®
Universal
Design
Miniature
Compact
Catalog number
Enclosure
Features
Modularity
CENELEC conformity
Body dimensions (w x h x d),
mm (in.)
Head
2 snap action contacts with
positive opening operation
3 snap action contacts with
positive opening operation
Contact
blocks
4 snap action contacts with
positive opening operation
2 slow break contacts with
positive opening operation
2 slow break contacts
3 slow break contacts with
positive opening operation
Insulation voltage (Ui) / thermal current
(Ithe)
XCMD
Metal
XCKD
XCKP
Plastic, double insulated
XCKT
Mounting by the body or by the head
Head, body and connection modularity
—
30 x 50 x 16
(1.18 x 1.97 x 0.63)
EN 50047
31 x 65 x 30
(1.22 x 2.56 x 1.18)
Head and body modularity
EN 50047 compatible
58 x 51 x 30
(2.28 x 2.01 x 1.18)
Linear movement (plunger)
Rotary movement (lever)
Rotary movement, multi-directional
Same heads for ranges XCMD, XCKD, XCKP and XCKT
N/C + N/O; N/C + N/C
N/C + N/C + N/O
N/C + N/C + N/O + N/O
N/C + N/O
break before make
—
N/C + N/C + N/O
break before
make
Pre-cabled
2 contacts: 400 V/6 A
3 contacts: 400 V/4 A
4 contacts: 400 V/3 A
Integral M12, 4-pin:
250 V/3 A
N/C + N/C + N/O; N/C + N/O + N/O
—
N/C + N/O
break before make;
N/O + N/C
make before break;
N/C + N/C
simultaneous
N/O + N/O
simultaneous
N/C + N/C + N/O
break before make;
N/C + N/O + N/O
break before make
Screw terminal
2 contacts: 500 V/10 A
3 contacts: 400 V/6 A
—
Screw terminal
2 contacts:
500 V/10 A
N/C + N/O
—
Limit Switches
Connector
Integral M12, 5-pin:
60 V/4 A
Remote 7/8" 16UN:
250 V/6 A
Integral M12, 5-pin:
60 V/4 A
Integral M12, 4-pin:
250 V/3 A
—
Degree of protection
NEMA Types 1, 2, 4X, 6, 12
IP 66, IP 67, IP 68,
IK 06
—
Integral: No
Remote: Yes
Integral or remote M12 or
remote 7/8" 16UN
44
NEMA Types 1, 2, 4, 6, 12, 13
IP 66, IP 67,
IK 06
NEMA Types 1, 2, 4, 6, 6P, 12, 13 NEMA Types 1, 2, 4, 6, 12, 13
IP 66, IP 67,
IP 66, IP 67,
IK 04
IK 04
2 entries for ISO M16 or PG 11
conduit thread or 1/2" NPT
(using adapter
Screw terminals
Connection
Pre-cabled
Connector
Page
1 entry for ISO M16 or M20, PG 11, PG 13 conduit thread or
1/2" NPT, PF 1/2
—
Integral M12
56 and 60
62 and 66
—
68
4
© 1997–2007 Schneider Electric All Rights Reserved
03/2007
Limit Switches
Selection Guide
Osiswitch
®
Optimum and Application
Design
Miniature Optimum
Compact Application: with manual reset
Catalog number
Enclosure
Features
Modularity
CENELEC conformity
Body dimensions (w x h x d),
mm (in.)
Head
2 snap action contacts with
positive opening operation
3 snap action contacts with
positive opening operation
Contact
blocks
4 snap action contacts with
positive opening operation
2 slow break contacts with
positive opening operation
2 slow break contacts
3 slow break contacts with
positive opening operation
XCMN
Plastic, double insulated
Mounting by the body or by the
head
—
—
30 x 50 x 16
(1.18 x 1.97 x 0.63)
Linear movement (plunger)
Rotary movement (lever)
Rotary movement, multi-
directional
N/C + N/O
—
—
—
—
—
Screw terminal
XCDR
Metal
Mounting by the body
XCPR
Plastic, double insulated
XCTR
31 x 65 x 30
(1.22 x 2.56 x 1.18)
Linear movement (plunger)
Rotary movement (lever)
Same heads for ranges XCDR, XCPR and XCTR
58 x 51 x 30
(2.28 x 2.01 x 1.18)
N/C + N/O
break before make
400 V/6 A
Connector
—
Degree of protection
NEMA Types 1, 2, 13
IP 65,
IK 04
—
Yes
—
IP 66, IP 67,
IK 04
1 entry for ISO M20 or PG 13 conduit thread or 1/2" NPT
—
2 entries for ISO M16 or PG 11
conduit thread or 1/2" NPT
(using adapter)
Screw terminals
Connection
Pre-cabled
Connector
Page
52
76
78
80
5
03/2007
© 1997–2007 Schneider Electric All Rights Reserved
Limit Switches
Insulation voltage (Ui) / thermal current (Ithe)
2 contacts:
Screw terminal
2 contacts:
500 V/10 A
