1066-0-15-80-30-14-10-0 datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 1066-0-15-80-30-14-10-0

Preview

1066-0-15-80-30-14-10-0: DescriptionCircuit Board Hardware - PCB Recept with No Tail; CategoryTopical application Mechanical and electrical/engineering/automation; File Size662KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

1066-0-15-80-30-14-10-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1066-0-15-80-30-14-10-0	-	-	View	Buy Now

1066-0-15-80-30-14-10-0 Overview

Circuit Board Hardware - PCB Recept with No Tail

1066-0-15-80-30-14-10-0 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Mill-Max
Product Category	Circuit Board Hardware - PCB
RoHS	Details
Packaging	Bulk
Factory Pack Quantity	500

Preview

Download Datasheet

View All

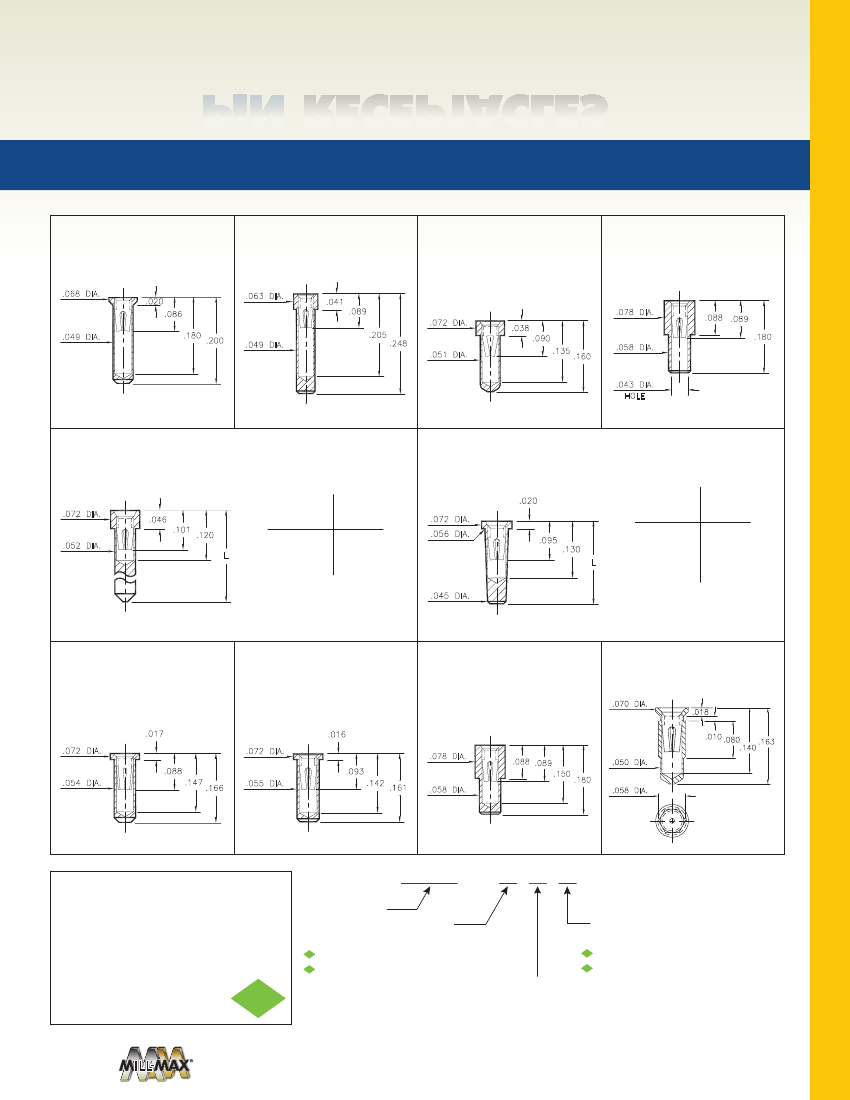

RECEPTACLES

FOR .015” - .025” DIAMETER PINS

0660

.068 DIA.

0660-0-15-XX-30-XX-10-0

Solder mount in .051 min. mounting hole

0677

.063 DIA.

0677-0-15-XX-30-XX-10-0

Solder mount in .051 min. mounting hole

0555

0555-0-15-XX-32-XX-10-0

0558

Solder mount in .053 min. mounting hole

Also available on 16mm wide carrier tape:

1,800 parts per 13” reel

Order as: 0555-0-57-XX-32-XX-10-0

0558-0-15-XX-30-XX-10-0

Solder mount in .061 min. mounting hole

.020

.086

.041

.089

.072 DIA.

.078 DIA.

.049 DIA.

.180

.200

.205

.049 DIA.

.038

.090

.135

.160

.088 .089

.180

.248

.051 DIA.

.058 DIA.

.043 DIA.

HOLE

0675/0679

.072 DIA.

067X-0-15-XX-30-XX-10-0

Solder mount in .054 min. mounting hole

1065/1066/7065

X06X-0-15-XX-30-XX-10-0

Basic Part

Number

.120

Solder mount in .055 min. mounting hole

.046

.101

Length

.020

.072 DIA.

.056 DIA.

.095

Basic Part

Number

.130

Length

.052 DIA.

0675-0

0679-0

.145

.203

1065-0

1066-0

7065-0

.190

.160

.181

.045 DIA.

0682

0682-0-15-XX-32-XX-10-0

.017

.072 DIA.

.088

.054 DIA.

Solder mount in .056 min. mounting hole

Also available on 16mm wide carrier tape:

1,500 parts per 13” reel

Order as: 0682-0-57-XX-32-XX-10-0

0667

0667-0-15-XX-30-XX-10-0

.016

.072 DIA.

.093

Solder mount in .057 min. mounting hole

Also available on 16mm wide carrier tape:

1,700 parts per 13” reel

Order as: 0667-0-57-XX-30-XX-10-0

0665

0665-0-15-XX-30-XX-10-0

4286

.070 DIA.

Solder mount in .061 min. mounting hole

Also available on 16mm wide carrier tape:

1,580 parts per 13” reel

Order as: 0665-0-57-XX-30-XX-10-0

4286-0-15-XX-30-XX-10-0

Hex press-fit in .055 plated through-hole

.018

.010 .080

.078 DIA.

.140

.163

.088 .089

.150

.180

.050 DIA.

.147

.166

.055 DIA.

.142

.161

.058 DIA.

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Inches

Tolerances On:

Lengths:

± .005

2011/65/EU

ORDER CODE: XXXX - X - XX - XX -

- XX - 10 - 0

BASIC PART #

SPECIFY SHELL FINISH:

200

μ”

TIN/LEAD OVER NICKEL

200

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

100

μ”

TIN/LEAD OVER NICKEL

100

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

Diameters: ± .002

Angles:

±2°

RoHS - 2

SELECT CONTACT:

#30 or #32

CONTACT (DATA ON PAGE 253)

(For alternate contact choices, see groups B and C on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 163 | PIN RECEPTACLES
