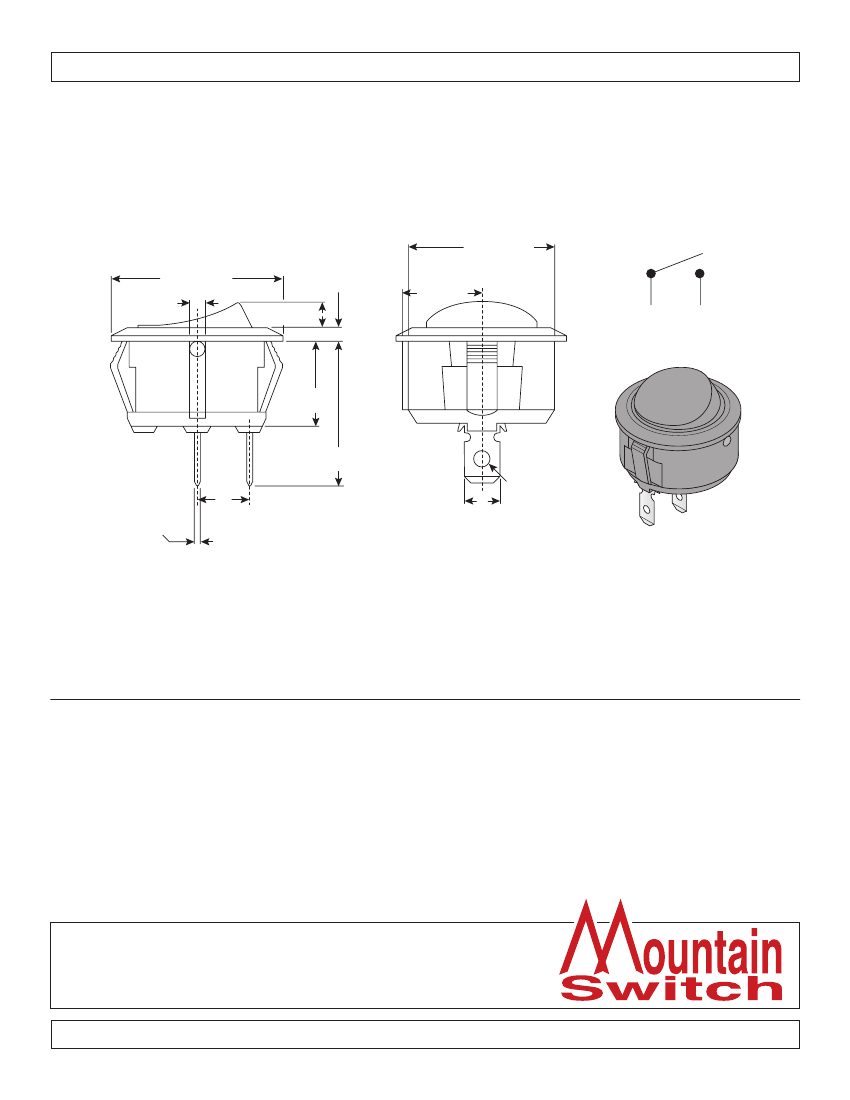

Dimensions: mm (In.)
Ref. #:
MS-101127
ø19.80 ± .30
(ø.779 ± .012)
ø23 ± .30
(ø.905 ± .012)
2 ± .10
(.079 ± .004)
2 ± .30
(.079 ± .012)
3.50 ± .50
(.138 ± .20)
10.70 ± .10
(.421 ± .004)
2
1
Circuit Structure
8.30 ± .50
(.327 ± .20)
20.30 ± .50
(.799 ± .20)
ø2.20 ± .20
(ø.087 ± .008)
.80 ± .05
(.031 ± .002)
7.10 ± .30
(.279 ± .012)
4.75 ± .10
(.187 ± .004)
Electrical Specifications:
•
Rating: 16A / 125VAC, 10A / 250 VAC
•
Contact Resistance: 50m Ω max.
•
Insulation Resistance: 500 VDC 100M Ω min.
•
Dielectric Strength: 1500 VAC 1 minute
Mechanical Specifications:
•
Operating Temperature: -20°C ~ 85°C
•
Circuit: 2P SPST On-Off
Note:
•
RoHS Compliant
Rocker Switch
103-7051-EV
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
