PVL10FLS11: DescriptionIndustrial Panel Mount Indicators / Switch Indicators 10mm 2-20mA 1.8V Red Lens Sldr SS IP67; CategoryTopical application Mechanical and electrical/engineering/automation; File Size174KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric View All

PVL10FLS11 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PVL10FLS11	-	-	View	Buy Now

PVL10FLS11 Overview

Industrial Panel Mount Indicators / Switch Indicators 10mm 2-20mA 1.8V Red Lens Sldr SS IP67

PVL10FLS11 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	E-Switch
Product Category	Industrial Panel Mount Indicators / Switch Indicators
RoHS	Details
Type	LED
Termination Style	Solder Lug
Mounting Style	Panel
Illumination	Illuminated
Illumination Color	Red
Color	Silver
Voltage Rating	1.8 V
IP Rating	IP67
Packaging	Bulk
Operating Temperature Range	- 25 C to + 55 C
Product	Indicators
Mounting Hole Diameter	10 mm
Factory Pack Quantity	1

Preview

Download Datasheet

View All

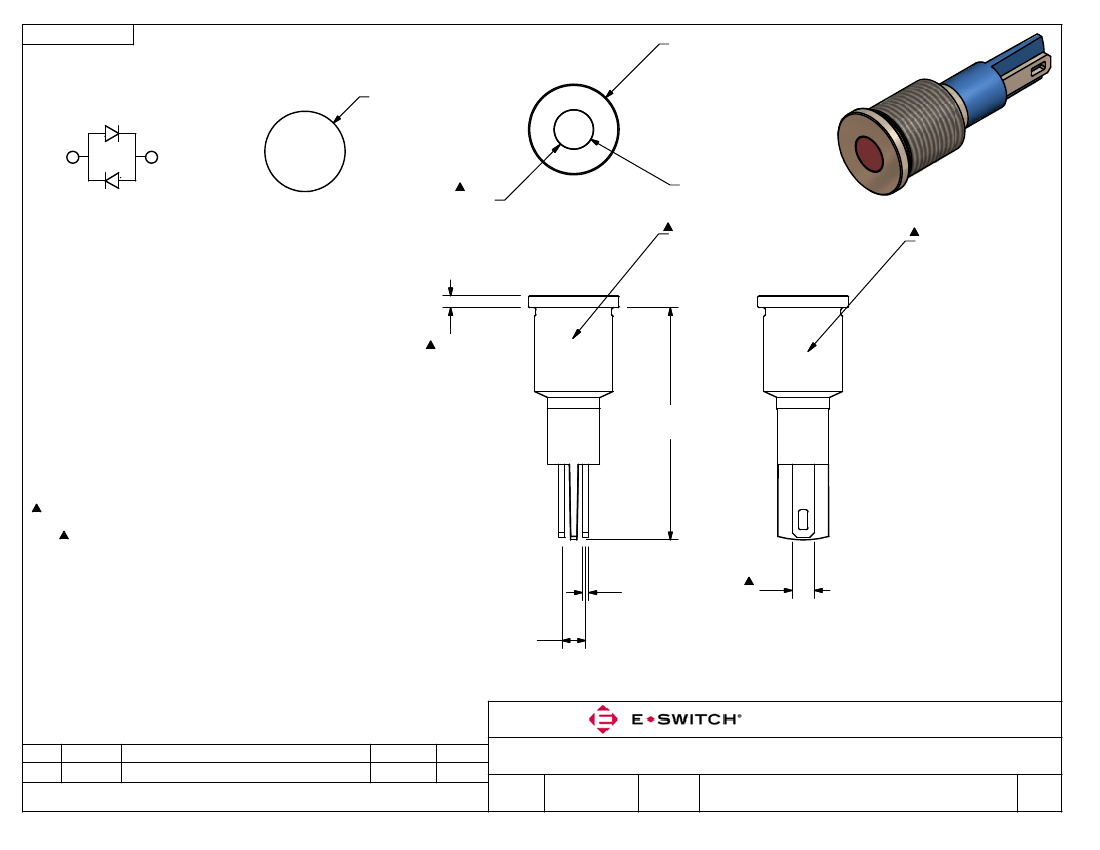

SHEET 1 OF 1



11.50

[.453 in]



10.20

[.402 in]

+

-

1

-

+

2

RECOMMENDED

PANEL MOUNTING

1-6mm THICKNESS

RED LENS



5.00

[.197 in]

M10 x 0.75

THREAD

LED SCHEMATIC

BODY FINISH

STAINLESS STEEL

1.50

[.059 in]

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X = ±0.4

X.XX = ±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. OPERATING TEMP: -25°C to 55°C

5. CURRENT RATING: 2mA-20mA

6. LAMP VOLTAGE: 1.8V

7. IP RATING: IP67

8.

DENOTES CRITICAL PARAMETER.

9. HARDWARE SUPPLIED: O-RING AND HEXNUT

10 2002/95/EC (ROHS) COMPLIANT.

29.50

[1.161 in]

1

2

.80

[.031 in]

3.00

[.118 in]

2.80

[.110 in]

A

REV

22135

PCR NO

New Release

DESCRIPTION

1/27/16

DATE

rc

BY

TITLE

SCALE

PVL10FLS11

DATE

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

2:1

1/27/2016

rc

DR

52-PVL10FLS11

DWG

REV

A
