561-FSTP1000: DescriptionCircuit Board Hardware - PCB CKT BRD PST F S-THRD; CategoryTopical application Mechanical and electrical/engineering/automation; File Size77KB，1 Pages; ManufacturerEagle-Picher

Download Datasheet Parametric Compare View All

561-FSTP1000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	561-FSTP1000	-	-	View	Buy Now

561-FSTP1000 Overview

Circuit Board Hardware - PCB CKT BRD PST F S-THRD

561-FSTP1000 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Eagle-Picher
Product Category	Circuit Board Hardware - PCB
RoHS	Details
Length	25.4 mm
Material	Nylon
Mounting Hole Size	3.96 mm
Packaging	Bulk
Factory Pack Quantity	500

Preview

Download Datasheet

View All

Female Circuit Board Posts -

Self Threading

561-FSTP250, 561-FSTP375, 561-FSTP500,

561-FSTP625, 561-FSTP750, 561-FSTP875,

561-FSTP1000

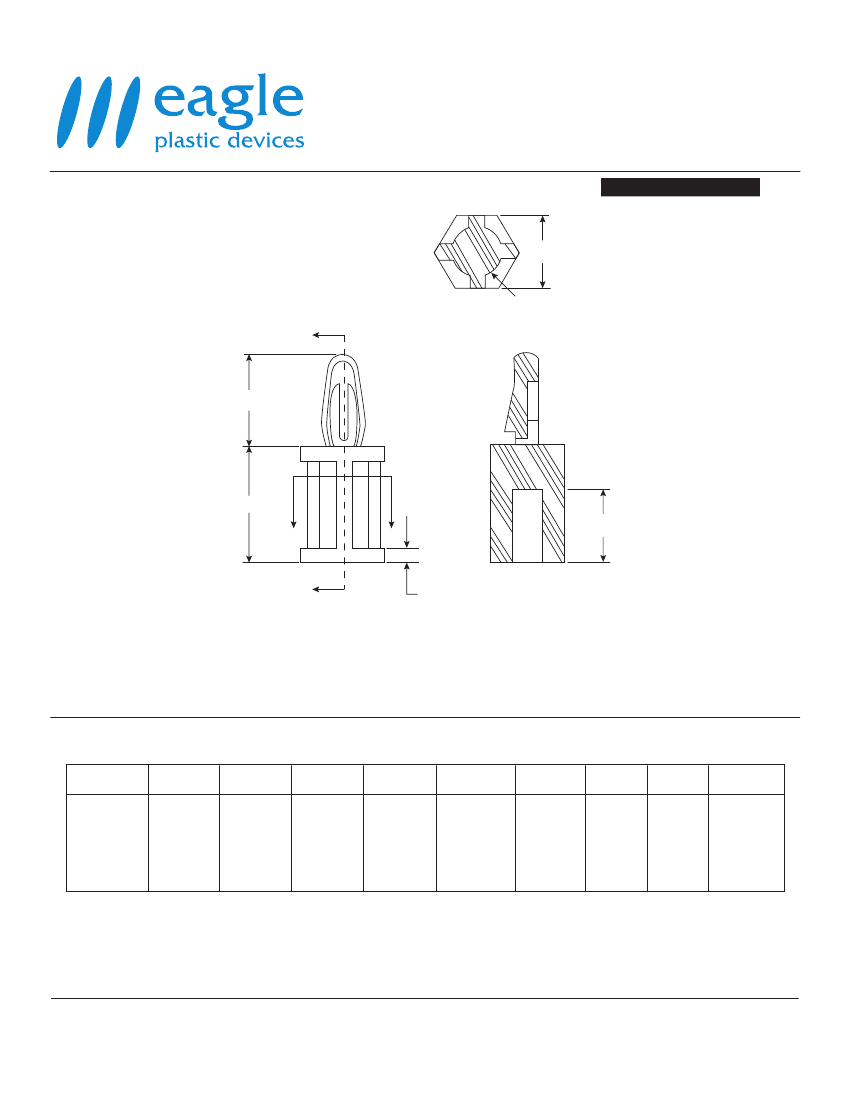

Date Last Revised: 5-12-09

HOLE SIZE - .156

PANEL THICKNESS - 1/16”

HEX OD

POST DIAMETER

A

LOCK LENGTH

CORE DEPTH

B

A

WASHER THICKNESS

NOTE: Self Threading Posts are designed for use with a #6 self-tapping screw.

RoHS Compliant

Specifications

Head Dia. A

561-FSTP250

561-FSTP375

561-FSTP500

561-FSTP625

561-FSTP750

561-FSTP875

561-FSTP1000

Description

FSTP 250

FSTP 375

FSTP 500

FSTP 625

FSTP 750

FSTP 875

FSTP 1000

Hex OD

.312 (+/- .015)

Washer

Lock Length Post Diameter Core Depth

Thickness

.062 (+/-.015) .400*(ref.)

.218(+/-.015)

.312

.062 (+/-.015) .400*(ref.)

.218(+/-.015)

.312

.062 (+/-.015) .400*(ref.)

.218(+/-.015)

.312

.062 (+/-.015) .400*(ref.)

.218(+/-.015)

.312

.062 (+/-.015) .400*(ref.)

.218(+/-.015)

.312

.062 (+/-.015) .400*(ref.)

.218(+/-.015)

.312

.062 (+/-.015) .400*(ref.)

.218(+/-.015)

.312

Hole Size

.156

Panel

Body Length

Thickness

.062

.250(+/-.015)

.620

.375(+/-.015)

.062

.500(+/-.015)

.062

.625(+/-.015)

.062

.750(+/-.015)

.062

.875(+/-.015)

.062

1.000(+/-.015)

Description

• Material - molded in natural nylon 6/6

Available from Mouser Electronics

1-800-346-6873 / www.mouser.com

EPD-200795

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.

561-FSTP1000 Related Products

	561-FSTP1000	561-FSTP875	561-FSTP375	561-FSTP750	561-FSTP625	561-FSTP250
Description	Circuit Board Hardware - PCB CKT BRD PST F S-THRD	Circuit Board Hardware - PCB CKT BRD PST F S-THRD	Trimmer Resistors - Through Hole 3/8" 5Kohms Sealed Vertical Adjust	Headers u0026 Wire Housings SOCKET 24-18AWG BULK	Circuit Board Hardware - PCB CKT BRD PST F S-THRD	Standoffs & Spacers CKT BRD PST F S-THRD
Manufacturer	Eagle-Picher	Eagle-Picher	Eagle-Picher	Eagle-Picher	Eagle-Picher	Eagle-Picher
Product Category	Circuit Board Hardware - PCB	Circuit Board Hardware - PCB	Circuit Board Hardware - PCB	Circuit Board Hardware - PCB	Circuit Board Hardware - PCB	Standoffs & Spacers
RoHS	Details	Detailsaewwyucutxdqyyctsddxqzwdrevbcafwu	Details	Details	Details	Details
Length	25.4 mm	22.23 mm	9.53 mm	19.05 mm	15.88 mm	6.35 mm
Material	Nylon	Nylon	Nylon	Nylon	Nylon	Nylon
Mounting Hole Size	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm
Factory Pack Quantity	500	100	100	500	500	1000
Packaging	Bulk	-	Bulk	Bulk	Bulk	Bulk
