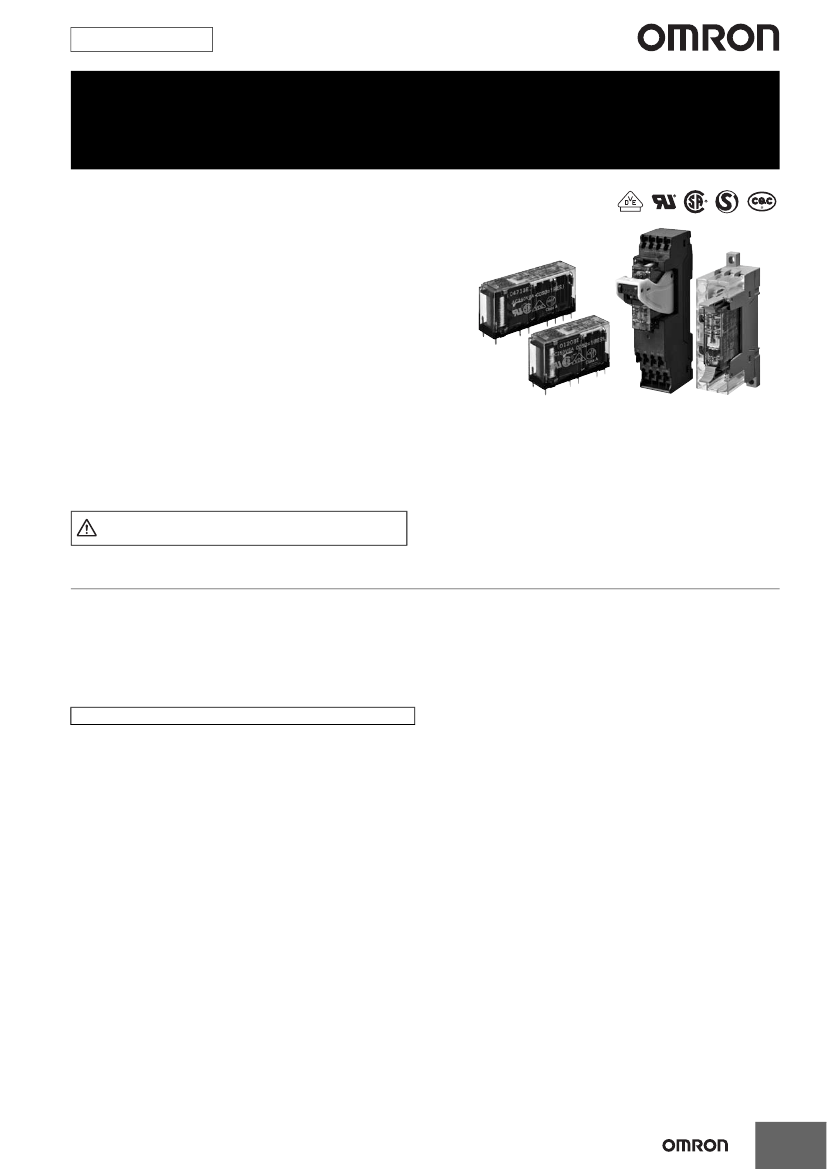

New Product
Relays with Forcibly Guided Contacts
G7SA
Compact, Slim Relays Conforming to
EN Standards
• Additional Push-In Plus terminal sockets are used to save
wiring work in comparison with traditional screw terminals.
(Wiring time is reduced by 60%* in comparison with
traditional screw terminals.)
• Relays with forcibly guided contacts (EN/IEC 61810-3,
Certified by VDE).
• Supports the CE marking of machinery (Machinery Directive).
• Helps avoid hazardous machine status when used as part of
an interlocking circuit.
• Four-pole and six-pole Relays are available.
• The Relay’s terminal arrangement simplifies PWB pattern
design.
• Reinforced insulation between inputs and outputs.
Reinforced insulation between some poles of different polarity.
*
According to OMRON actual measurement data
Be sure to read the
Safety Precautions
on page 13.
Note:
Sockets are sold separately.
For the most recent information on models that have been
certified for safety standards, refer to your OMRON website.
Model Number Structure
Model Number Legend
Main unit
Relays with forcibly guided contacts
G7SA-@A@B@
⎯
1
⎯
2
⎯
3
Specify the power supply voltage (coil rated voltage) when ordering.
1. NO Contact Poles
2: DPST-NO
3: 3PST-NO
4: 4PST-NO
5: 5PST-NO
2. NC Contact Poles
1: SPST-NC
2: DPST-NC
3: 3PST-NC
3. Coil Rated Voltage (V)
12 VDC
18 VDC
21 VDC
24 VDC
48 VDC
110 VDC
Options (order separately)
Sockets
P7SA-@@-@-@@
⎯⎯⎯⎯ ⎯ ⎯ ⎯ ⎯ ⎯
1
2 3 4 5 6
1. Basic Model Name
P7SA: Socket for G7SA
2. Number of Poles
10: 4 poles (10 terminals)
14: 6 poles (14 terminals)
3. Mounting Type
F: Front-mounting
P: Back-mounting
4. LED Indicator
Blank: Without operation indicator LED/built-in diode
ND: With operation indicator LED/built-in diode
5. Terminal Type
Blank: Screw terminals when 3. is F type
PCB terminals when 3. is P type
PU: Push-In Plus terminals
6. Coil Rated Voltage (V)
24 VDC: When 4. is ND
1
G7SA

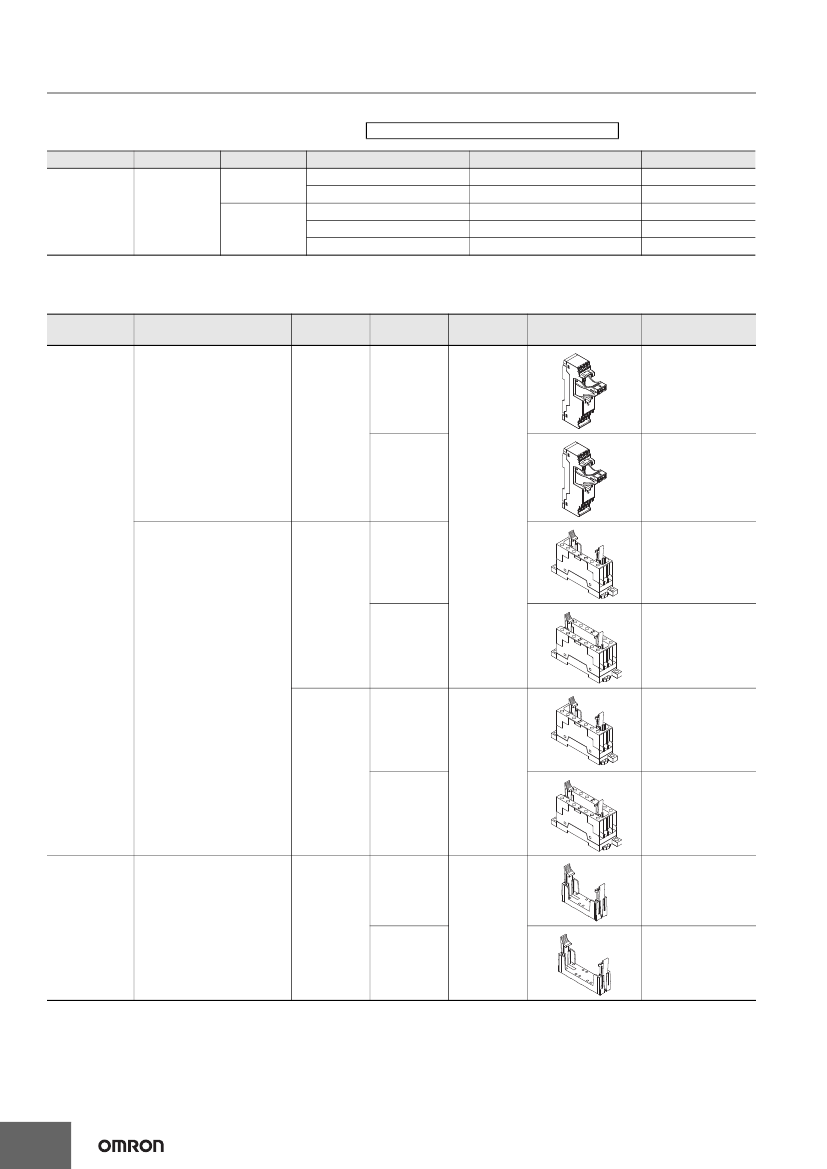

Ordering Information
Main unit
Relays with Forcibly Guided Contacts
Type
Sealing
Poles
4 poles
Standard
Flux-tight
6 poles
Specify the coil rated voltage when ordering.
Contact configuration
3PST-NO, SPST-NC
DPST-NO, DPST-NC
5PST-NO, SPST-NC
4PST-NO, DPST-NC
3PST-NO, 3PST-NC
Coil rated voltage
12, 18, 21, 24, 48, 110 VDC
12, 18, 21, 24, 48, 110 VDC
12, 18, 21, 24, 48, 110 VDC
12, 18, 21, 24, 48, 110 VDC
12, 18, 21, 24, 48, 110 VDC
Model
G7SA-3A1B
G7SA-2A2B
G7SA-5A1B
G7SA-4A2B
G7SA-3A3B
Options (order separately)
Sockets
Mounting
Terminal Type
LED
Indicator
Poles
Coil rated
voltage
Appearance
Model
4 poles
P7SA-10F-ND-PU
Push-In Plus terminals
Yes
6 poles
P7SA-14F-ND-PU
24 VDC
4 poles
P7SA-10F-ND
Front-mounting
Yes
6 poles
P7SA-14F-ND
Screw terminals
4 poles
P7SA-10F
No
−
6 poles
P7SA-14F
4 poles
Back-mounting
PCB terminals
No
6 poles
P7SA-10P
−
P7SA-14P
2
G7SA
Socket Accessories
Short Bars (For P7SA-@F-ND-PU)
Pitch
No. of poles
2
5.2 mm
3
4
5
Red (RD)
Blue (BL)
Yellow (YL)
Colors
Model*1*2
XW5S-P2.5-2@
XW5S-P2.5-3@
XW5S-P2.5-4@
XW5S-P2.5-5@
Note:
Use for crossover wiring of adjacent contact terminals (bottom) within one Socket.
*1.
Replace the box (@) in the model number with the code for the covering color. Color Options: RD = red, BL = blue, YL = yellow
Example: XW5S-P2.5-10RD when the covering color is red.
*2.
XW5S-P2.5-5@ cannot be used with P7SA-10F-ND-PU.
Parts for DIN Track Mounting
Type
DIN Tracks
End Plate
*
Spacer
1m
0.5 m
Model
PFP-100N
PFP-50N
PFP-M
PFP-S
Minimum Order
(quantity)
1
10
*
When mounting DIN track, please use End Plate (Model PFP-M).
3
G7SA
Specifications
Ratings
Safety Relay Unit
Coil (4 poles)
Item
Rated voltage
12 VDC
18 VDC
21 VDC
24 VDC
48 VDC
110 VDC
Rated
current
(mA)
30
20
17.1
15
7.5
3.8
Coil
resistance
(Ω)
400
900
1,225
1,600
6,400
28,810
Max.
voltage
(V)
Power
consumption
(mW)
Contacts
Item
Load
Rated load
Rated carry current
Max. switching voltage
Max. switching current
Contact materials
Resistive load
6 A at 250 VAC, 6 A at 30 VDC
6A
250 VAC, 125 VDC
6A
Au plating + Ag alloy
110%
Approx. 360
Approx. 420
Coil (6 poles)
Item
Rated voltage
12 VDC
18 VDC
21 VDC
24 VDC
48 VDC
110 VDC
Rated
current
(mA)
41.7
27.8
23.8
20.8
10.4
5.3
Coil
resistance
(Ω)
288
648
882
1,152
4,606
20,862
Max.
voltage
(V)
Power
consumption
(mW)
110%
Approx. 500
Approx. 580
Note: 1.
The rated current and coil resistance are measured at a coil
temperature of 23°C with tolerances of ±15%.
2.
The maximum voltage is based on an ambient operating
temperature of 23°C maximum.
Characteristics
Safety Relay Unit
Contact resistance
*1
Operating time
*2
Response time
*3
Release time
*2
Must operate voltage
Must release voltage
Mechanical
Maximum operating
frequency
Rated load
Insulation resistance
*4
Between coil and
contacts
Between
Dielectric Strength
contacts of
*5 *6
different polarity
Between contacts
of the same polarity
Vibration resistance
Destruction
Shock resistance
Malfunction
Mechanical
Durability
*7
Electrical
Inductive load switching capability
*8
(IEC60947-5-1)
Failure rate (P level)
(reference value
*9)
Ambient operating temperature
*10
Ambient operating humidity
Weight
100 mΩ max.
20 ms max.
10 ms max.
20 ms max.
75% max.
10% min.
36,000 operations/h
1,800 operations/h
1,000 MΩ min.
4,000 VAC, 50/60 Hz for 1 min.
4,000 VAC, 50/60 Hz for 1 min. (except for followings)
4 poles (for poles 3-4 in 4-pole Relays),
6 poles (for poles 3-5, 4-6, and 5-6 in 6-pole Relays): 2,500 VAC, 50/60 Hz for 1 min.
1,500 VAC, 50/60 Hz for 1 min.
10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
1,000 m/s
2
100 m/s
2
10,000,000 operations min. (at approx. 36,000 operations/h)
100,000 operations min. (at the rated load and approx. 1,800 operations/h)
AC15 240 VAC, 2 A
DC13 24 VDC, 1 A/48 VDC, 0.5 A/110 VDC, 0.2 A
5 VDC, 1 mA
12 to 48 VDC: -40 to 85°C (with no icing or condensation)
110 VDC:
-40 to 60°C (with no icing or condensation)
5% to 85%
4 poles: Approx. 22 g
6 poles: Approx. 25 g
Note: 1.
The above values are initial values.
2.
Performance characteristics are based on coil temperature of 23°C.
*1.
The contact resistance was measured with 1 A at 5 VDC using the voltage-drop method.
*2.
These times were measured at the rated voltage and an ambient temperature of 23°C. Contact bounce time is not included.
*3.
The response time is the time it takes for the normally open contacts to open after the coil voltage is turned OFF. Contact bounce time is
included. Measurement conditions: Rated voltage operation, Ambient temperature: 23°C
*4.
The insulation resistance was measured with a 500-VDC megohmmeter at the same locations as the dielectric strength was measured.
*5.
Pole 3 refers to terminals 31-32 or 33-34, pole 4 refers to terminals 43-44, pole 5 refers to terminals 53-54, and pole 6 refers to terminals 63-64.
*6.
When using a P7SA Socket, the dielectric strength between coil contacts/different poles is 2,500 VAC, 50/60 Hz for 1 min. When using Push-In Plus
terminal sockets (P7SA-@F-ND-PU), the dielectric strength between coil contacts as well as between different poles is 4,000 VAC, 50/60 Hz for 1 min.
*7.
The durability is for an ambient temperature of 15 to 35°C and an ambient humidity of 25% to 75%. For the durability performance to the load,
refer to the Durability Curve.
*8.
AC15: cosφ = 0.3, DC13: L/R = 48-ms.
*9.
The failure rate is based on an operating frequency of 300 operations/min.
*10.
12 to 48 VDC: When operating between 70 and 85°C, reduce the rated carry current of 6 A by 0.1 A for each degree above 70°C.
110 VDC: When operating between 40 and 60°C, reduce the rated carry current of 6 A by 0.27 A for each degree above 40°C.
4
G7SA
Options (order separately)
Sockets
Push-In Plus terminals
4 poles
Items
Models
P7SA-10F-ND-PU
6 poles
P7SA-14F-ND-PU
Screw terminals
4 poles
P7SA-10F(-ND)
6 poles
P7SA-14F(-ND)
PCB terminals
4 poles
P7SA-10P
6 poles
P7SA-14P
Ambient operating temperature
• With operation indicator LED/built-in diode
P7SA-@F-ND(-PU):
−20
to +70°C
• Without operation indicator LED/built-in diode
P7SA-@F:
−40
to +85°C
(with no icing or condensation)
25% to 85%
6 A
*1
4,000 VAC for 1 min.
−40
to +85°C
(with no icing or condensation)
5% to 85%
Ambient operating humidity
Continuous carry current
Between coil and
contact terminals
Between contact
terminals of different
polarity
Between contact
terminals of same
polarity
2,500 VAC for 1 min.
2,500 VAC for 1 min.
Dielectric
strength
1,500 VAC for 1 min.
1,000 MΩ min.
*2
Approx. 58 g
Approx. 70 g
Approx. 44 g
Approx. 59 g
Approx. 9 g
Approx. 10 g
Insulation resistance
Weight
*1.
When operating the P7SA-@F-ND-PU at a temperature between 50 and 70°C, reduce the continuous current (6 A at 50°C or less) by 0.25 A
for each degree above 50°C.
When operating the P7SA-@F-ND at a temperature between 50 and 70°C, reduce the continuous current (6 A at 50°C or less) by 0.3 A for
each degree above 50°C.
When operating the P7SA-@F at a temperature between 50 and 85°C, reduce the continuous current (6 A at 50°C or less) by 0.1 A for each
degree above 50°C.
*2.
Measurement conditions: For 500 VDC applied to the same location as for dielectric strength measurement.
Short Bars (for P7SA-@F-ND-PU)
Application
Applicable sockets
Models
Maximum carry current
Ambient operating
temperature
Ambient operating
humidity
XW5S-P2.5-2@
Crossover wiring of
contact terminals
(bottom)
P7SA-@F-ND-PU
XW5S-P2.5-3@
XW5S-P2.5-4@
XW5S-P2.5-5@
24 A
−40
to 55°C
5% to 95%
Certified Standards
Safety Relay Unit
EN Standards, VDE Certified
Models
G7SA-2A2B
G7SA-3A1B
G7SA-3A3B
G7SA-4A2B
G7SA-5A1B
12, 18, 21, 24, 48,
110 VDC
EN/IEC 61810-1
Electromagnetic relay
EN/IEC 61810-3
Relays with forcibly guided
contacts
12, 18, 21, 24, 48,
110 VDC
6 A, 240 VAC (Resistive)
6 A, 30 VDC (Resistive)
Ratings
Standard number
Certification No.
Operating coil
Contact ratings
125547
UL Standards Certification (File No. E41515) Industrial Control Devices
Models
G7SA-2A2B
G7SA-3A1B
G7SA-3A3B
G7SA-4A2B
G7SA-5A1B
UL508
E41515
Recognized
6 A, 250 VAC (Resistive)
6 A, 30 VDC (Resistive)
12, 18, 21, 24, 48,
110 VDC
Standard number
Category
Listed/Recognized
Contact ratings
Operating Coil ratings
CSA standard CSA C22.2 No.14 Industrial Control Devices
Models
G7SA-2A2B
G7SA-3A1B
G7SA-4A2B
G7SA-5A1B
3211-07
LR35535
6 A, 250 VAC (Resistive)
6 A, 30 VDC (Resistive)
12, 18, 21, 24, 48,
110 VDC
Class number
File No.
Contact ratings
Operating Coil ratings
5
