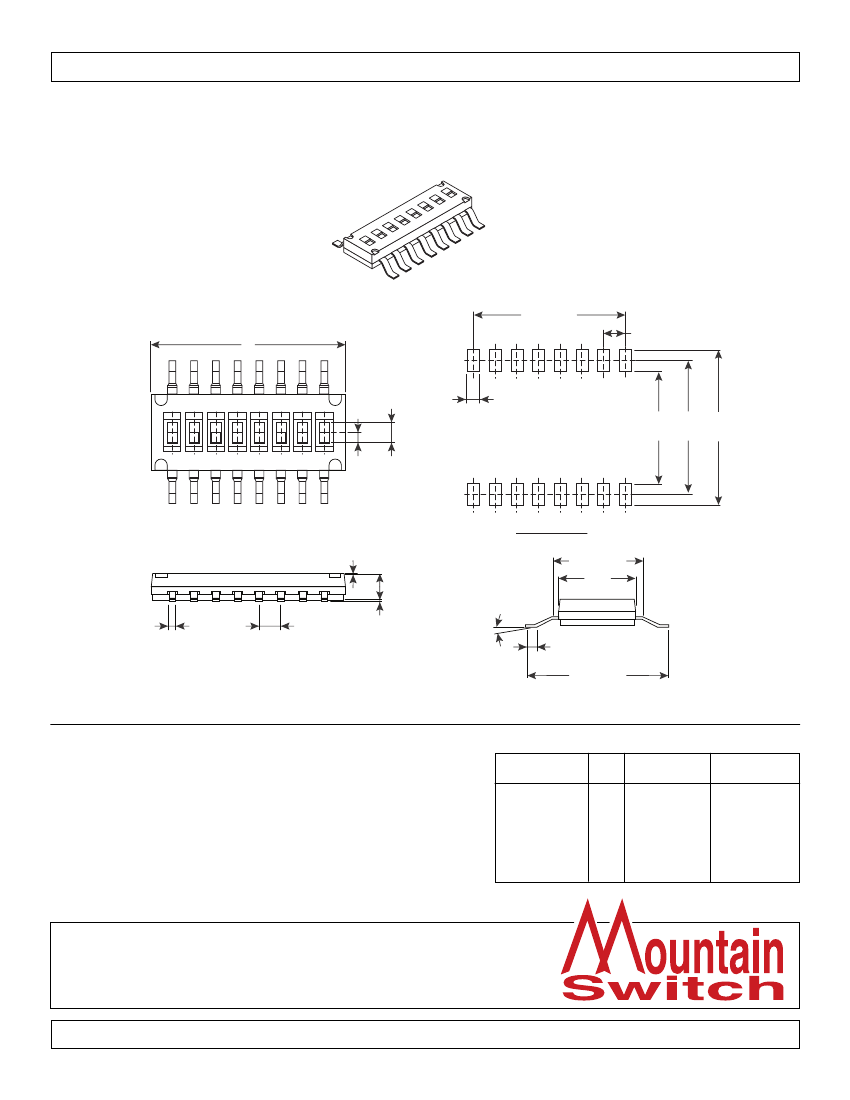

Dimensions: mm (in.)
Ref. #:
MS-101146
D
IP
O
N
1
2
3
4
5
6
7
8
1.27x(P-1)
(.05x[P-1])
A
1.20
(.047)
1.27 Pitch
(.05)
ON
19
DIP
.60
(.024)
.76
(.03)
6.60 7.85 9.10
(.26) (.310) (.36)
1 2 3 4 5 6 7 8
Tape
.05 (.002)
1.42±.03
(.057±.001)
.40
(.016)
1.27 Pitch .10±.10
(.05)
(.004±.004)
0°~10°
P.C.B. Layout
5.30 (.208)
4.50±.05
(.177±.002)
.60±.10
(.023±.004)
8.10 (.319)
Electrical Specifications:
•
Rating: Non-switching: 100mA/50V DC
•
•
Mechanical Specifications:
•
Operating temperature: -40°C ~ +85°C
•
Operation force: 500gf max.
Switching: 25mA/24V DC
Contact resistance: 100mΩ max. (initial)
Insulation resistance: 100MΩ min.
Note:
•
RoHS Compliant
106-FHD2-EV
106-FHD4-EV
106-FHD6-EV
106-FHD8-EV
106-FHD10-EV
106-FHD2T-EV
106-FHD4T-EV
Mouser
Stock No.
No. of
Pos.
2
4
6
8
10
2
4
3.77 (.148)
6.31 (.248)
8.85 (.348)
11.39 (.448)
13.93 (.548)
3.77 (.148)
6.31 (.248)
Dim A.
mm (In.)
Without
Without
Without
Without
Without
With
With
Top
Tape
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
Available from Mouser Electronics
Dip Switches
106-FHD2-EV, 106-FHD4-EV, 106-FHD6-EV, 106-FHD8-EV,
106-FHD10-EV, 106-FHD2T-EV, 106-FHD4T-EV
www.mouser.com
1-800-346-6873
