87622182 Overview

Timers CTR24 HOUR M 2333 NPN INPUT ORNG BCKLT

87622182 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Crouzet
Product Category	Timers
RoHS	Details
Product	Digital Timer
Type	Solid State Timer
Timing Range	99.999.99 hrs, 99.999.59 hrs, 999.999.9 s, 9.999 hrs 59 min 59 s
Display Type	8 Digit LCD
Operating Temperature Range	- 10 C to + 60 C
Current Rating	50 mA
Termination Style	Plug In
Operating Supply Voltage	10 V to 260 V
Factory Pack Quantity	1
Unit Weight	1.760171 oz

Preview

Download Datasheet

View All

23/06/2014

www.crouzet.com

Hour without preselection - LCD 24 x 48 - CTR24 CTR24 model with orange backlighting Part number 87622182

Display : 8-digit LCD, height 8 mm

Built-in module for voltage inputs 10 →260 VAC/DC (2224-2324)

4 timing ranges : 99,999.99 hrs - 99,999.59 hrs - 999,999.9 s - 9,999 hrs 59 min 59 s

Reset on panel or external with inhibition option

Backlit model (2323-2333-2324)

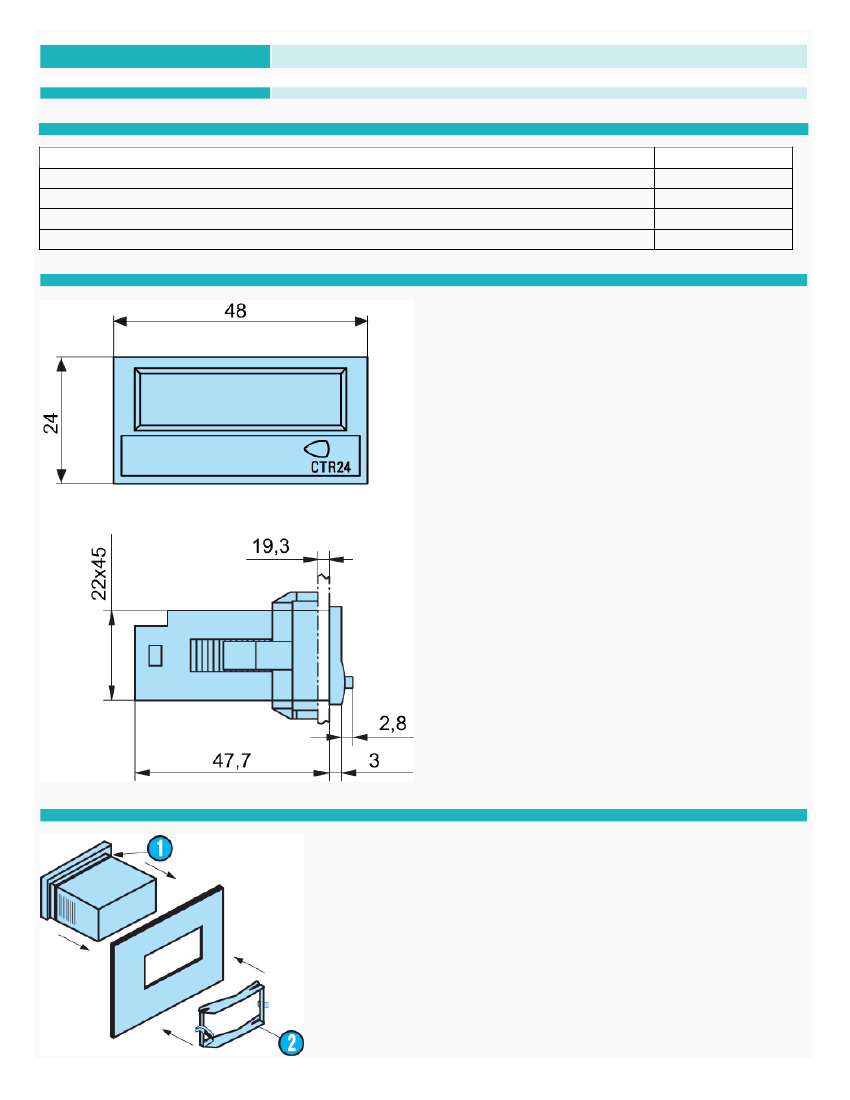

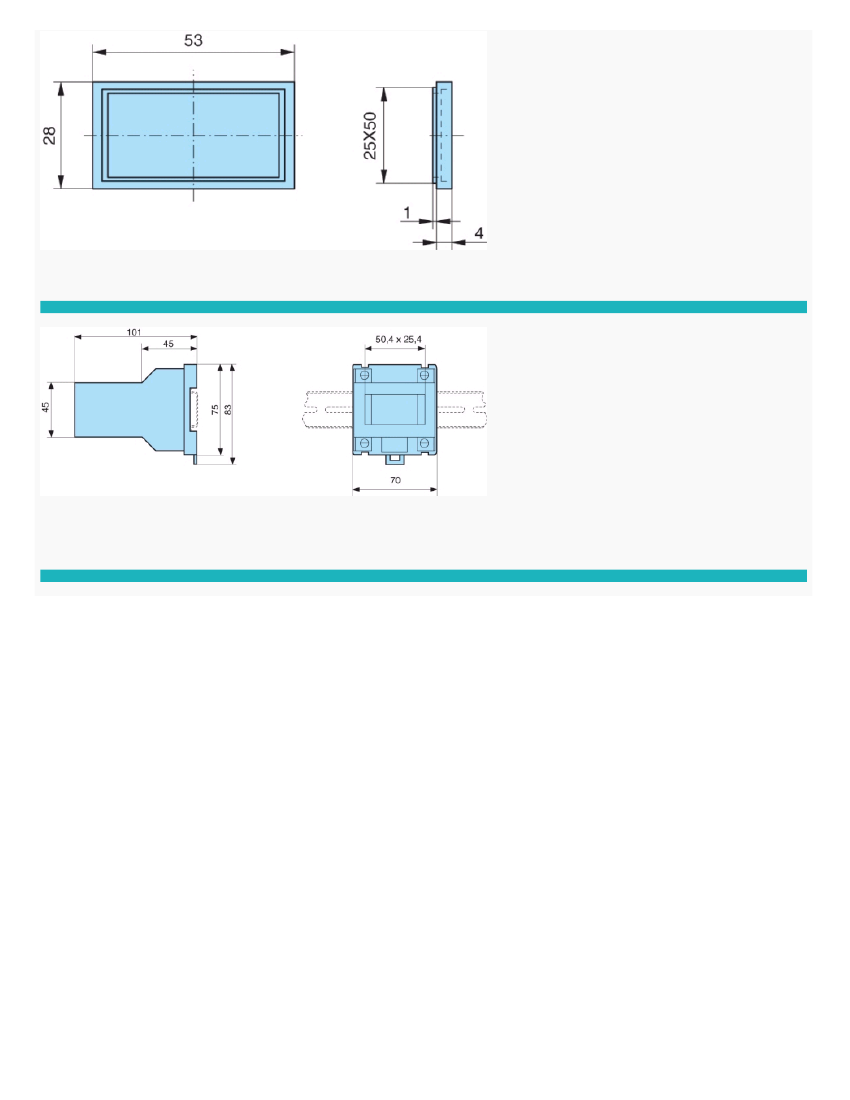

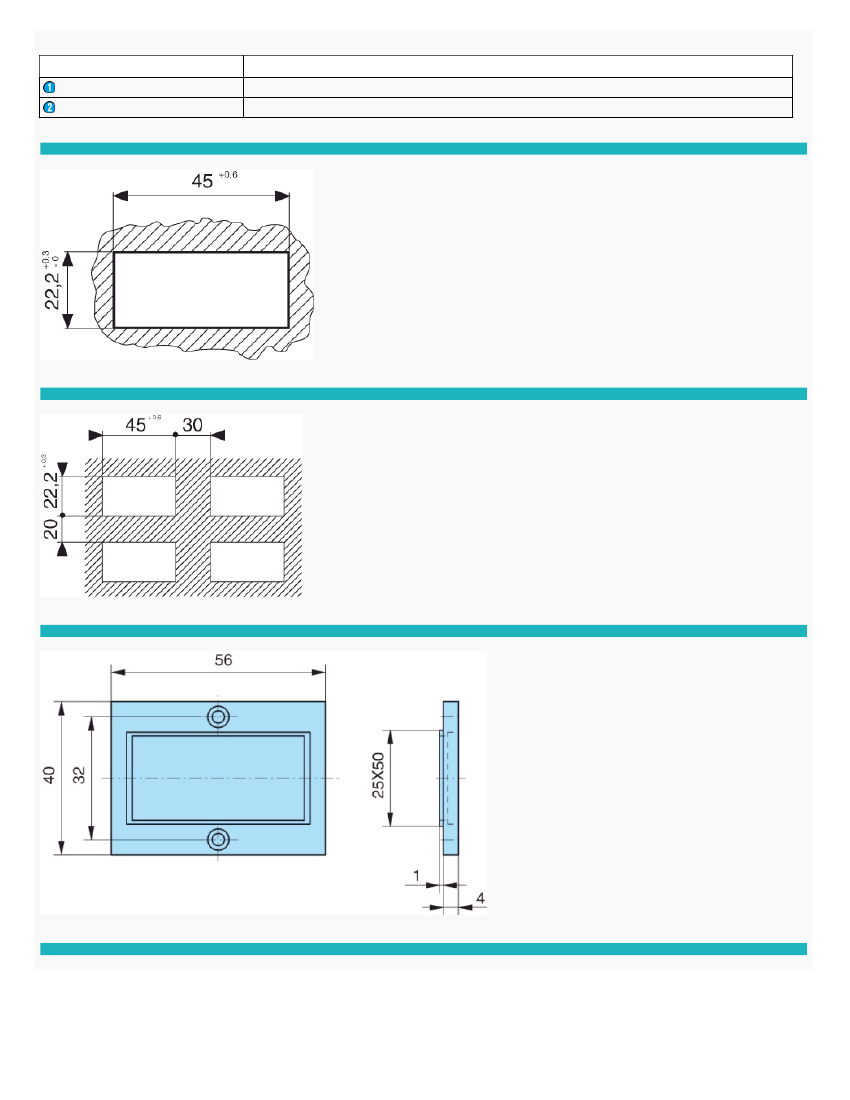

Accessories for 50 x 25 mm cut-out

Part numbers

Type

87622182

CTR24 model with orange backlighting

Type

2333

Functions

Hour counter, solid state input NPN

Specifications

Physical details and protection

Consumption

Connection by 8 screw terminals at rear of casing

Connection capacity

Fixed using bracket

Degree of protection front face

Temperature limits use (°C)

Temperature limits stored (°C)

Breakdown voltage

Conformity to standards

Altitude

Certifications

Weight (g)

Backlighting : 24 VDC± 20 % 50 mA

1,5 mm

IP 65

-10 →+60

-20 →+70

EN 610110-1 : 2000 V / 50 Hz / 1 min.

EN 61000-6-2 - EN 55011 class B

2000 m

UL - cULus (pending) - CE

Operating characteristics

Function

Display

Height digits (mm)

Time ranges

Hour counter

8-digit LCD

0 →99 999.99 h

0 →99 999.59 h

0 →9 999 999.9 s

0 →9 999 h 59 min 59 s

Time base : Crystal controlled (Accuracy ± 100)

Input 2223-2323

Start/stop input

Low level

High level

Min time closed

Input impedance

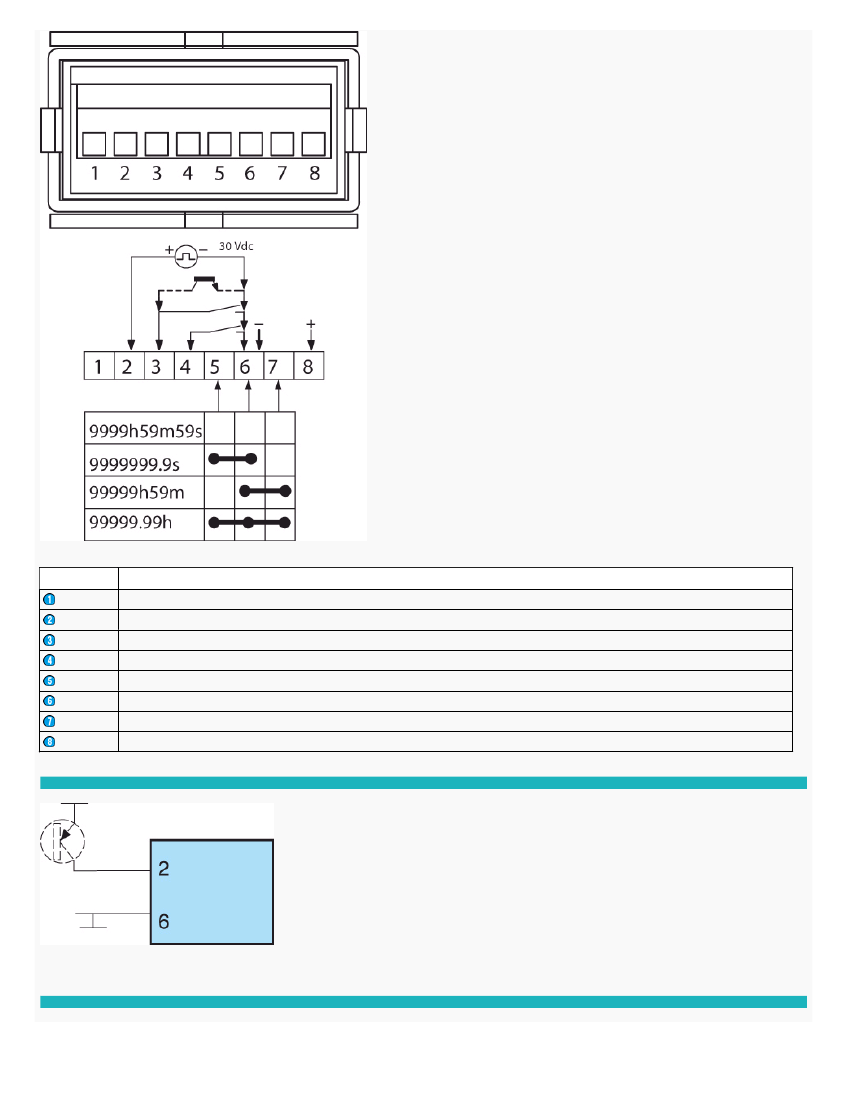

by PNP or dry contact (terminals 2-6)

0 →0,7 VDC

4 →30 VDC PNP

> 100 ms

100 kΩ PNP

Input 2233-2333

Start/stop input

Low level

High level

Minimum time closed

Input impedance

by PNP or dry contact (terminals 2-6)

0 →0,7 VDC

3 →30 VDC

> 100 ms

1 MΩ

Reset to zero - External 2223-2323 & 2233-2333

Volt-free contact or open collector (terminals 3-6)

Minimum time closed

50 ms

Input 2224-2324

One start/stop input Two voltage levels (terminals 3-6)

Voltage - Terminals 1-2

Input impedance

Minimum pulse time DC

Minimum pulse time AC

Low level

High level

10 →260 VAC/DC

160 KΩ

100 ms

0 →2 VAC/DC

10 →260 VAC/DC

Reset to zero - External 2224-2324

Voltage - Terminals 2-3

Minimum pulse time

Low level

High level

16 ms

0 →2 VAC/DC

10 →260 VAC/DC

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
