800AWSP9M7QE datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 800AWSP9M7QE

Preview

800AWSP9M7QE: DescriptionPushbutton Switches 3A 120VAC or 28VDC Off-(On) SPST/SPDT; CategoryMechanical and electronic products switch; File Size125KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric View All

800AWSP9M7QE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	800AWSP9M7QE	-	-	View	Buy Now

800AWSP9M7QE Overview

Pushbutton Switches 3A 120VAC or 28VDC Off-(On) SPST/SPDT

800AWSP9M7QE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	E-Switch
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Actuator angle
Actuator length	0.215 inch
Actuator material	GLASS FILLED NYLON
Actuator type	PUSHBUTTON
body width	5.08 mm
Body length or diameter	8.128 mm
Nozzle length	0.162 inch
center contact material	COPPER ALLOY
Center contact plating	SILVER
Contact (AC) maximum rated R load	1A@120VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@28VDC
Contact function	OFF-(ON)
Contact resistance	0.01 mΩ
contact time	SNAP ACTION
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VRMS V
Electrical life	50000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	SILVER
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
JESD-609 code	e4
Manufacturer's serial number	800A
Installation features	THROUGH HOLE-RIGHT ANGLE
PCB hole count	3
seal	EPOXY
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Terminal surface	Silver (Ag)
Terminal length	0.13 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

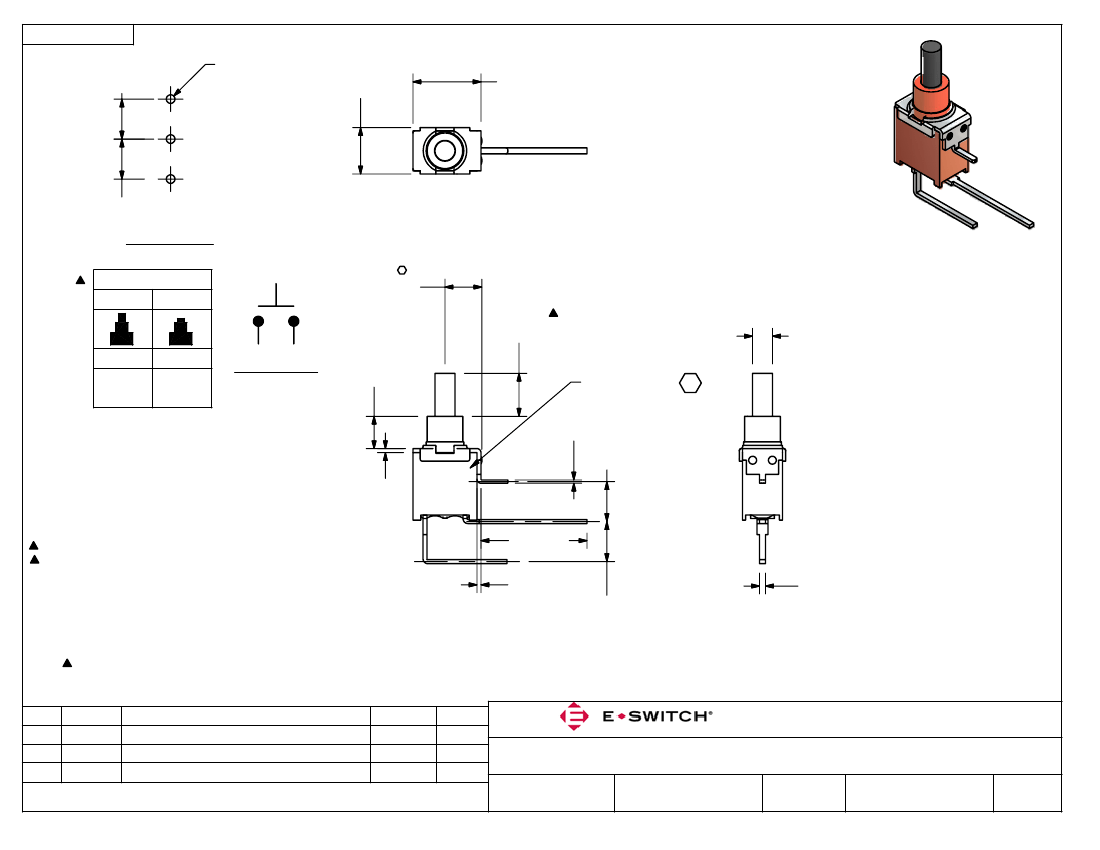

SHEET 1 OF 1

5.08

[.200 in]

n

1.09

[.043 in]

5.90

[.232 in]

8.64

[.340 in]

5.08

[.200 in]

P.C. MOUNTING

D

ISOMETRIC

5.46

[.215 in]

SWITCH FUNCTION

POS. 1

POS. 2

1

OFF

OPEN

(ON)

1-3

3

4.7

[.184 in]

2.54

n

[.100 in]

CIRCUIT: SPST

4.11

[.162 in]

E=SWITCH LOGO

C

OTHER SIDE

.41

[.016 in]

5.08

[.200 in]

(ON)=MOMENTARY

NOTE:

.51

1. ALL DIMENSIONS IN MM [INCH]

[.020 in]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. CONTACT MATERIAL: SILVER

5. RATING: 1A @ 250 VAC

3A @ 120 VAC OR 28 VDC

6. MECHANICAL LIFE: 50,000 MAKE-AND-BREAK CYCLES

7. CONTACT RESISTANCE: 20 mΩ MAX. INITIAL @ 2-4VDC

100mA FOR BOTH GOLD AND SILVER CONTACTS

8. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.

9. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.

10. OPERATING TEMP.: -30°C to 85°C

11.

DENOTES CRITICAL PARAMETER.

12. 2002/95/EC (ROHS) COMPLIANT

D

C

B

REV

20653

20252

20063

PCR NO

Add 4.7mm dimension

CORRECT BODY ORIENTATION

UPDATE AND CONVERT DRAWING

DESCRIPTION

6/19/12

11/02/11

07/19/11

DATE

rc

BMA

BY

1

13.46

[.530 in]

3

.51

[.020 in]

5.08

[.200 in]

.76

[.030 in]

TITLE

SCALE

800AWSP9M7QE

2:1

DATE

DR

DWG
