49113 Overview

Pushbutton Switches MINI SEAL ESD RESIST RND BEZEL GRN NO LED

49113 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ITW Switches
Product Category	Pushbutton Switches
RoHS	Details
Product	Standard Switches
Type	Sealed
Contact Form	SPST
Switch Function	OFF - (ON)
Current Rating	125 mA
Voltage Rating AC	32 VAC, 125 VAC
Voltage Rating DC	50 VDC
Mounting Style	Panel
Mounting Type	Snap In
Termination Style	Solder Lug
Actuator	Round
IP Rating	IP67
Contact Plating	Gold
Height	12.7 mm
Illumination	None
Cap Color	Green
Life	1 Million Cycles
Factory Pack Quantity	25
Unit Weight	0.128009 oz

Preview

Download Datasheet

View All

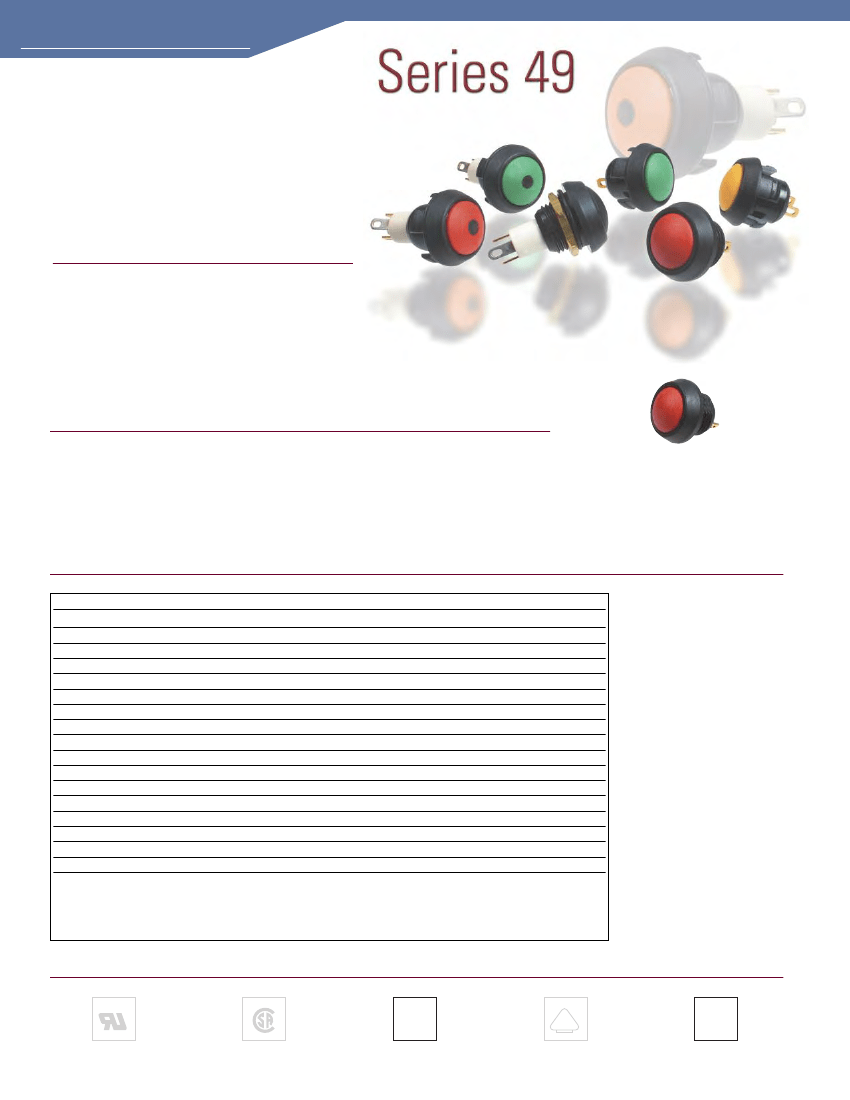

USHBUTTON

WITCHES

INIATURE

EALED

ESD R

ESISTANT

This switch series is rugged, panel sealed, avail-

able with round or square bezels and LED lighted

or non-lighted. Bushing mount or snap-in mount-

ing available. Series 49 switches are ideal for

demanding applications in harsh environments

where water, moisture or dust are problematic.

PPLICATIONS

•

Industrial equipment control handles

Dog training control modules

Outdoor controls

Medical equipment

Beverage dispensing

EATURES

•

Normally open or closed circuitry

Momentary action

LED lighted or non-lighted

.110 Quick Connect or

Solder terminals available

•

Gold contacts

ESD 15KV minimum

Panel sealed to IP67

Long life – up to 1 million cycles

Threaded or snap-in mounting

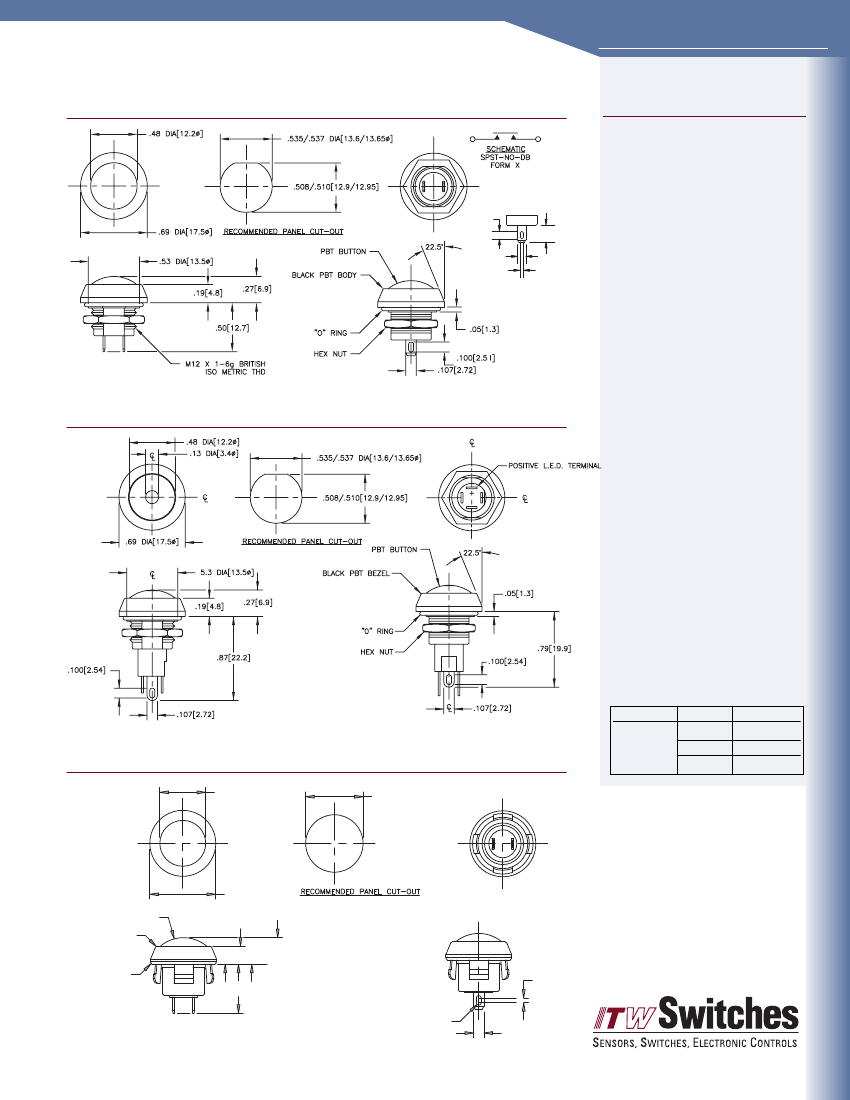

CTUAL

IZE

RDERING

NFORMATION

Part Number

49-111

49-112

49-113

49-411G

49-411R

49-412G

49-412R

49-413G

49-413R

49-9111

49-9113

49-611

49-612

49-613

49-131

49-132

49-133

Body Style

Round bezel

Illuminated round

Snap-in round

Round bezel

Button Color

Black

Red

Green

Black

Red

Green

Black

Green

Black

Red

Green

Black

Red

Green

LED Color

—

Green

Red

Green

Red

Green

Red

—

Contacts

Normally Open

Normally Closed

Normally Open

Terminals

Solder

.110 QC

TANDARDS

/ A

GENCY

/ R

ATINGS

RoHS

COMPLIANT

2002 / 95 / EC

D E

IEC

IP67

COMPLIANT

www.itwswitches.com

Contact an Authorized Distributor or Factory for Pricing
